Description

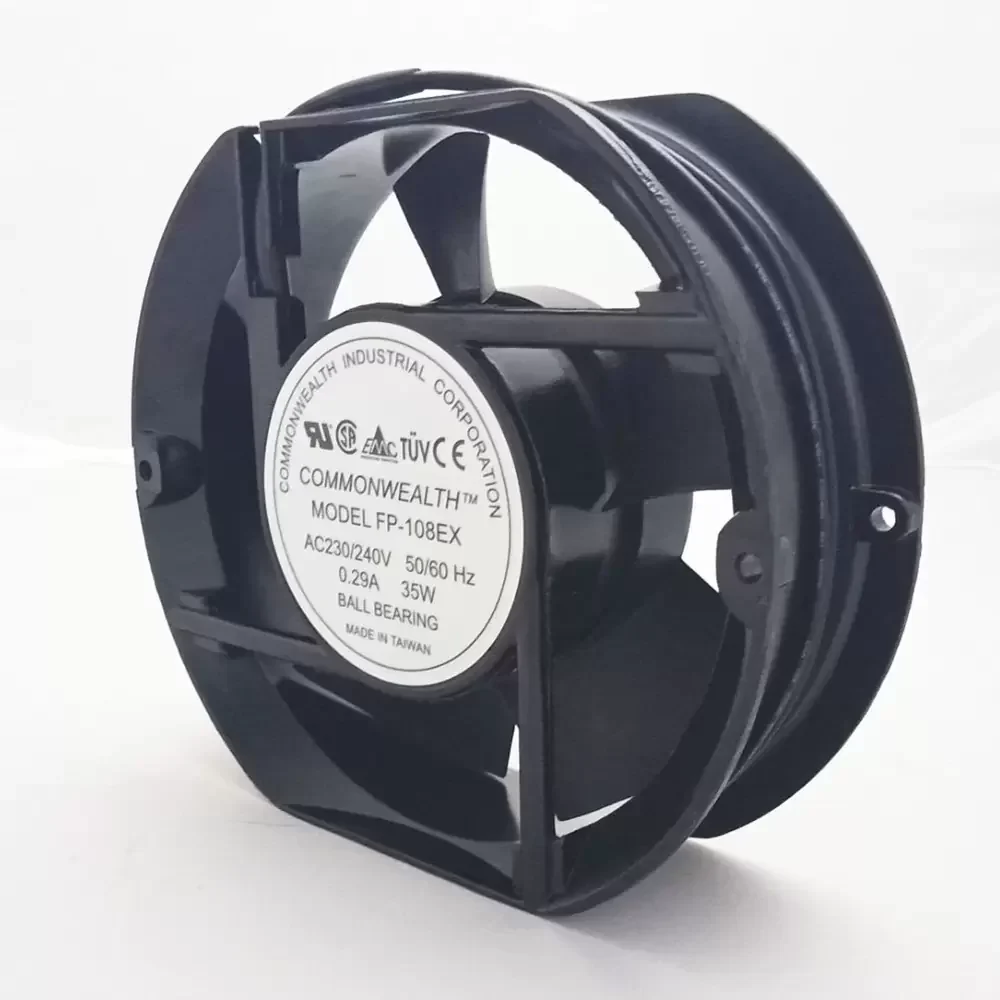

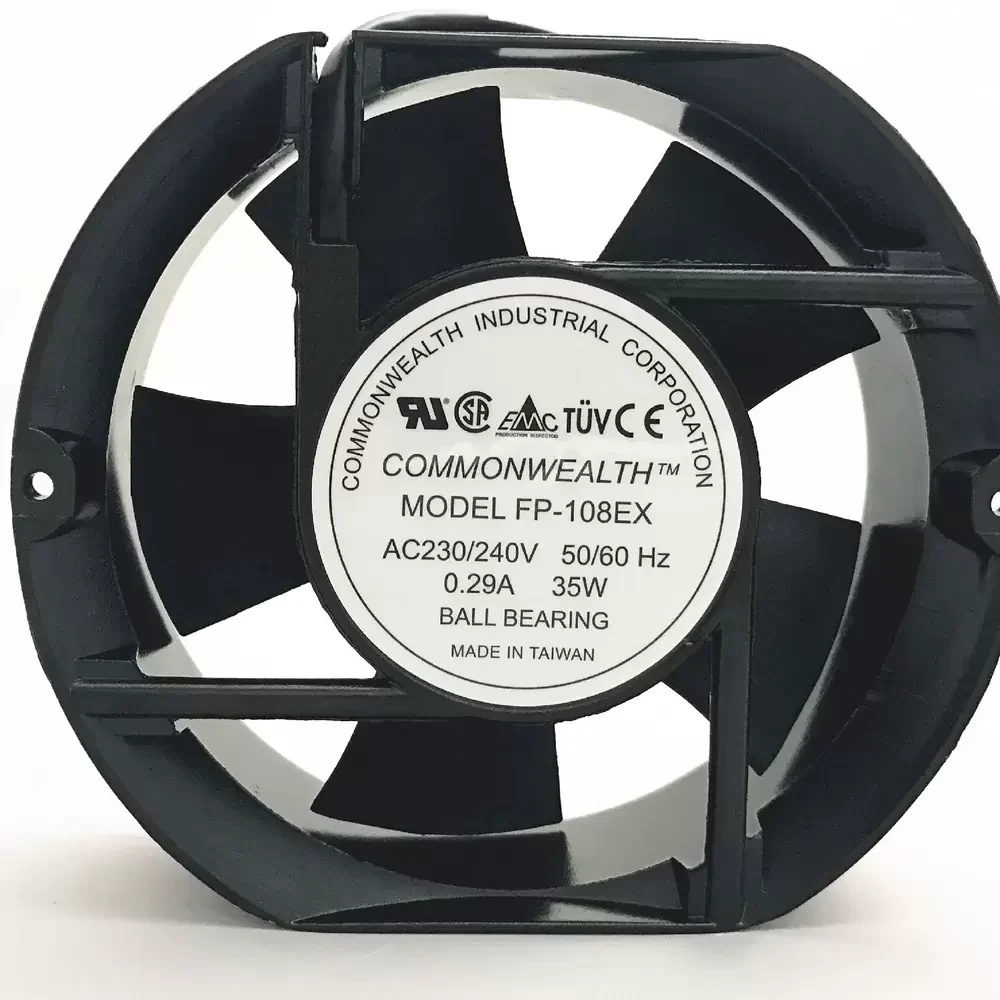

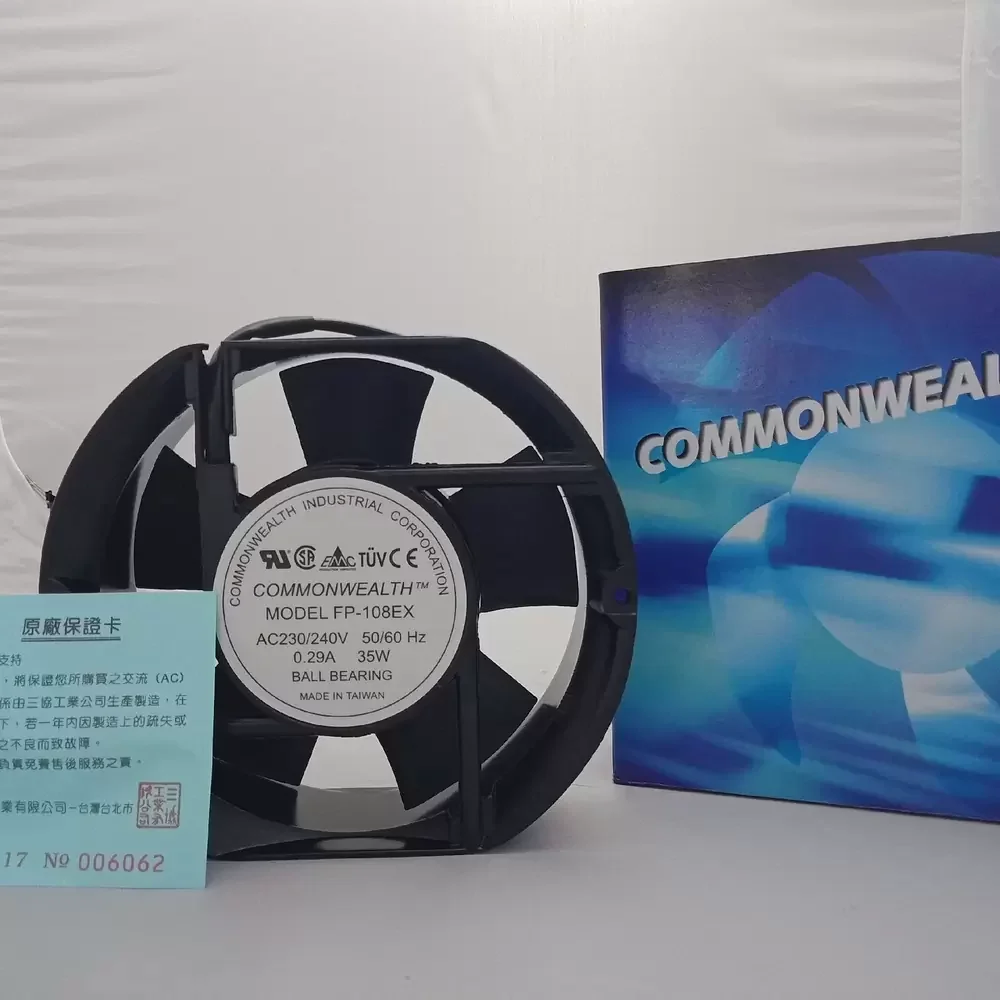

The Commonwealth FP-108EX is a robust AC axial fan engineered for high-static pressure industrial environments requiring consistent thermal management. Utilizing a capacitor-run induction motor architecture paired with a precision ball bearing system, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design is housed within a die-cast aluminum frame, providing superior structural rigidity and effective heat dissipation. Designed for 230VAC operation, the fan optimizes airflow efficiency while maintaining a stable thermal impedance profile, making it suitable for critical cooling applications where reliability and durability are paramount.
Model Number: FP-108EX
Brand: Commonwealth (CIC)
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Frequency: 50/60 Hz
Rated Current: 0.29 A
Power: 35 W
Rated Speed: 2900 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 225.0 CFM (382.2 m³/h / 6.37 m³/min)
Max. Static Pressure: 18.0 mmH₂O (176.5 Pa / 0.71 inH₂O)
Dimensions: 172mm x 150mm x 51mm
Frame Material: Aluminum Die-Cast (Black Paint)
Impeller Material: PBT Thermoplastic (UL94V-0)
Noise Level: 55 dBA
Termination: Lead Wires / Terminals
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +80°C
Life Expectancy: 50,000 Hours at 25°C
Motor Type: Capacitor-Run Induction Motor
Protection: Impedance Protected
Insulation Resistance: 10M Ohm at 500VDC
Dielectric Strength: 1500VAC for 1 Minute
Weight: 940 g
The FP-108EX is specifically designed for demanding industrial applications such as server cabinet ventilation, large-scale power supply cooling, and CNC machinery heat dissipation. Its robust construction allows for integration into welding machines and telecommunications infrastructure where consistent airflow is critical. The FP-108EX maintains optimal operating temperatures in enclosed electronics racks, preventing thermal throttling and ensuring system stability in automation control panels and medical instrumentation.
