Description

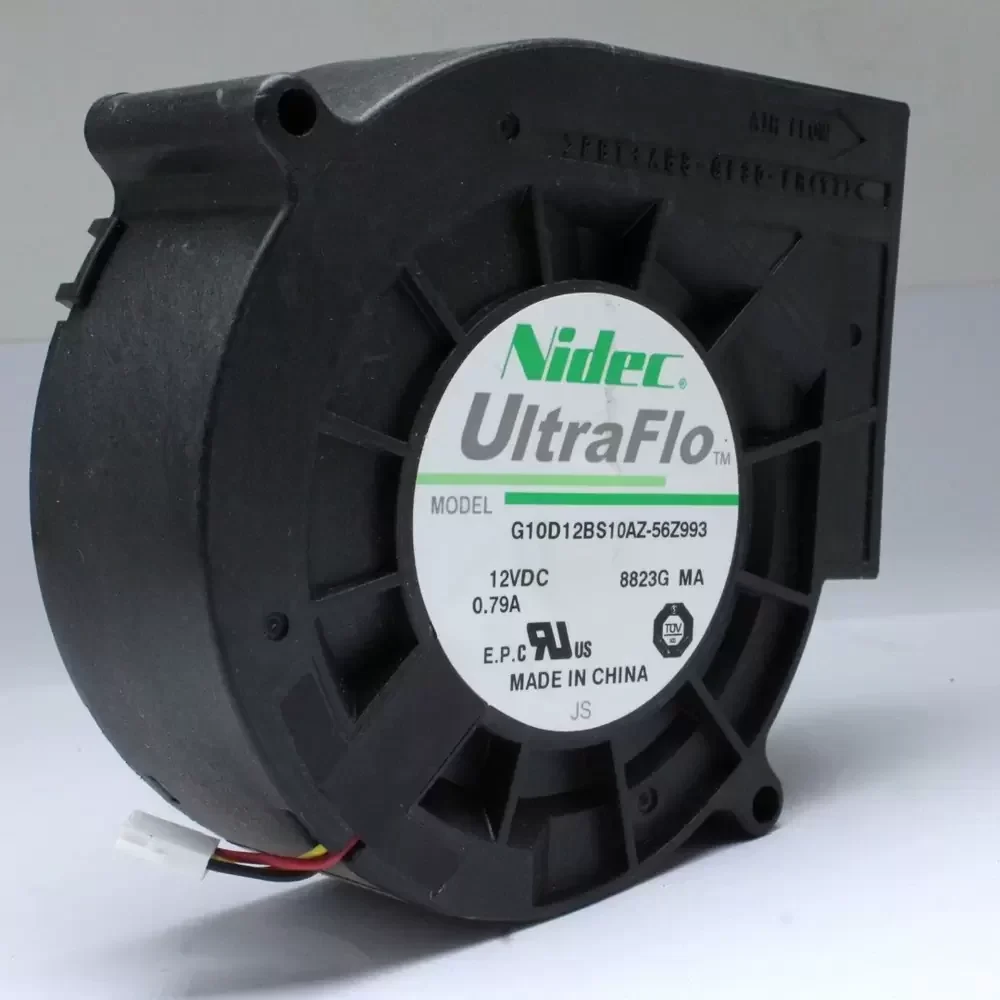

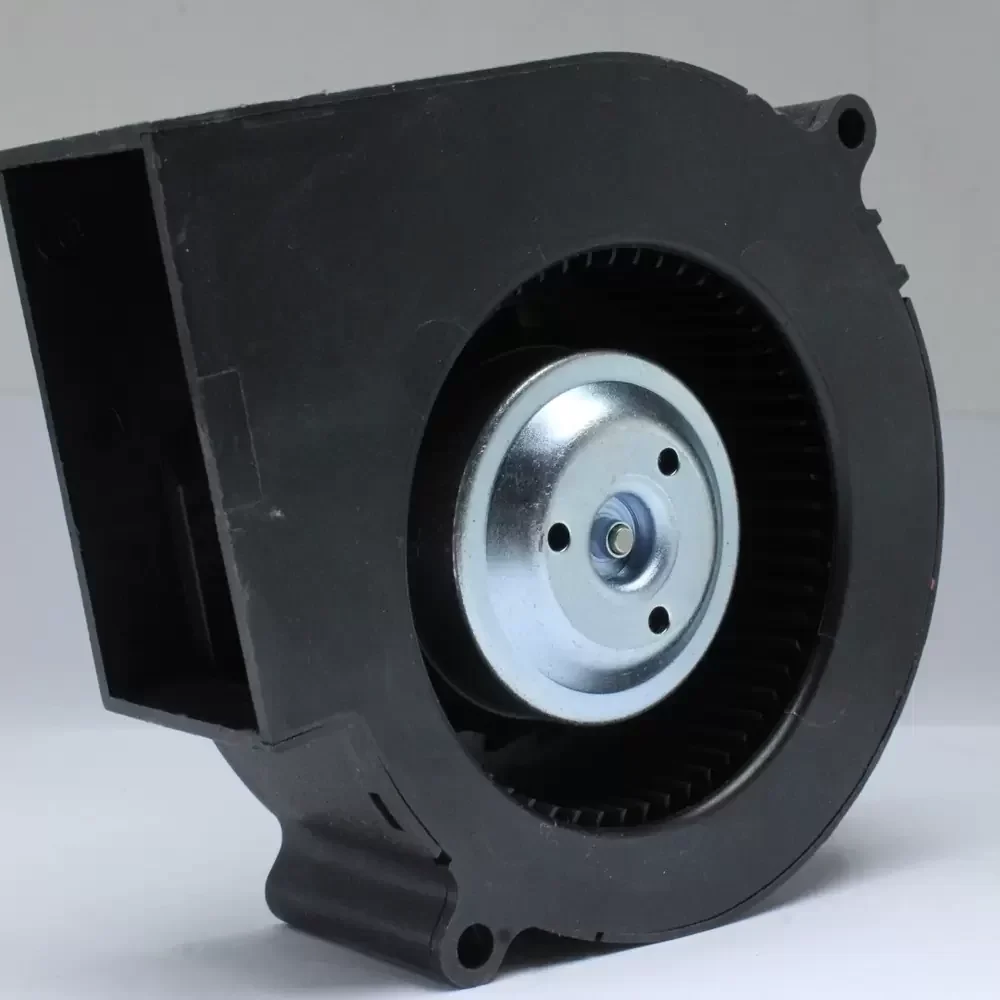

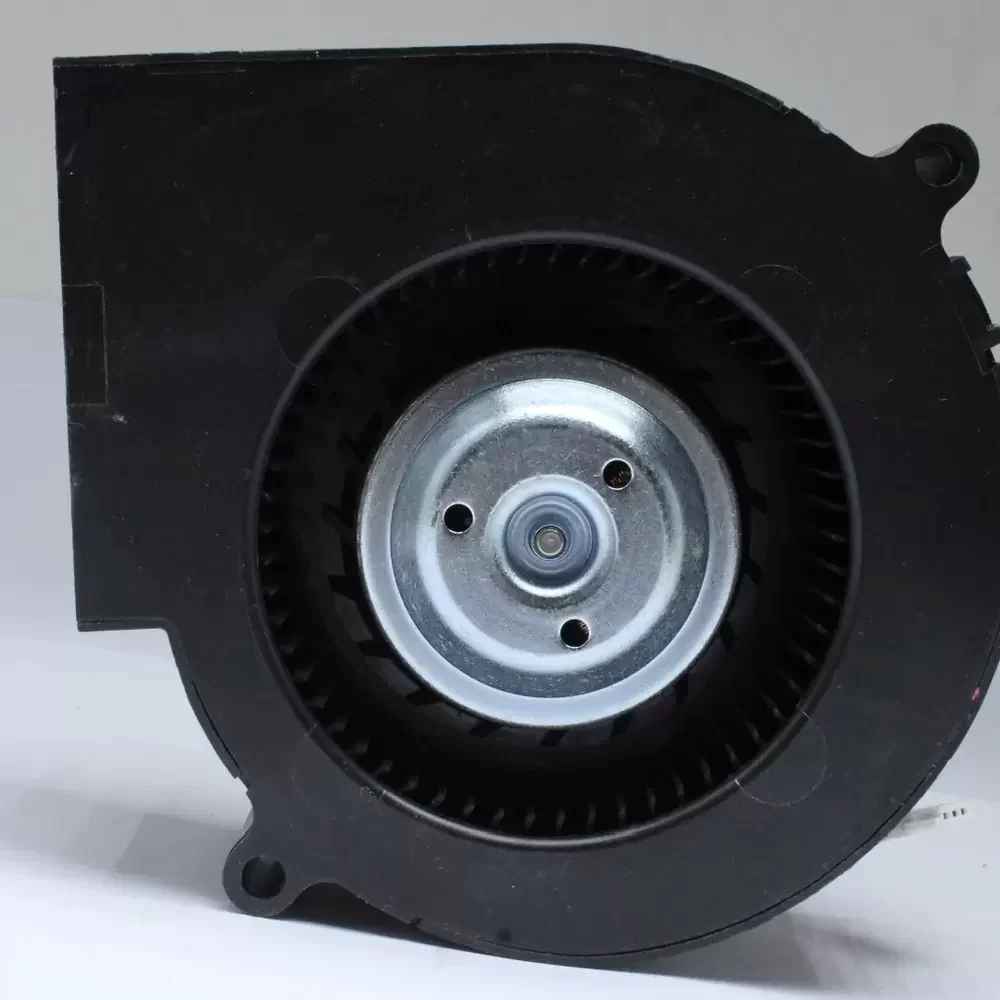

The Nidec G10D12BS10AZ-56Z993 is a Blower engineered for high-demand industrial cooling applications requiring superior structural rigidity and precise thermal management. This unit utilizes a sophisticated DC motor architecture paired with a dual ball bearing system to minimize thermal impedance and extend operational longevity. Its aerodynamic impeller design is optimized for high static pressure generation, ensuring efficient airflow through dense system obstructions. The integration of PWM speed control and tachometer feedback allows for granular thermal regulation, while the UL94V-0 rated housing ensures compliance with stringent safety standards for flame retardancy and environmental resilience in mission-critical hardware environments.
Model Number: G10D12BS10AZ-56Z993
Brand: Nidec
Product Type: Blower
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.79A
Power: 9.48W
Rated Speed: 4200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 28.2 CFM (47.9 m³/h / 0.80 m³/min)
Max. Static Pressure: 24.5 mmH₂O (240.2 Pa / 0.96 inH₂O)
Dimensions: 90x90x32mm
Weight: 190g
Life Expectancy: 70,000 Hours
Speed Control: PWM, Tachometer
Ingress Protection: IP54
Insulation Class: Class A
Noise Level: 52.0 dBA
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 4-Wire Lead Wires
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +75 C
Mounting Orientation: Any
Certifications: UL, CE, RoHS
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
The G10D12BS10AZ-56Z993 is specifically designed for integration into high-density server enclosures, telecommunications base stations, and medical diagnostic equipment where concentrated directional cooling is required. In industrial automation and CNC control cabinets, the G10D12BS10AZ-56Z993 provides the necessary static pressure to overcome internal resistance and maintain optimal operating temperatures for sensitive electronic components.
