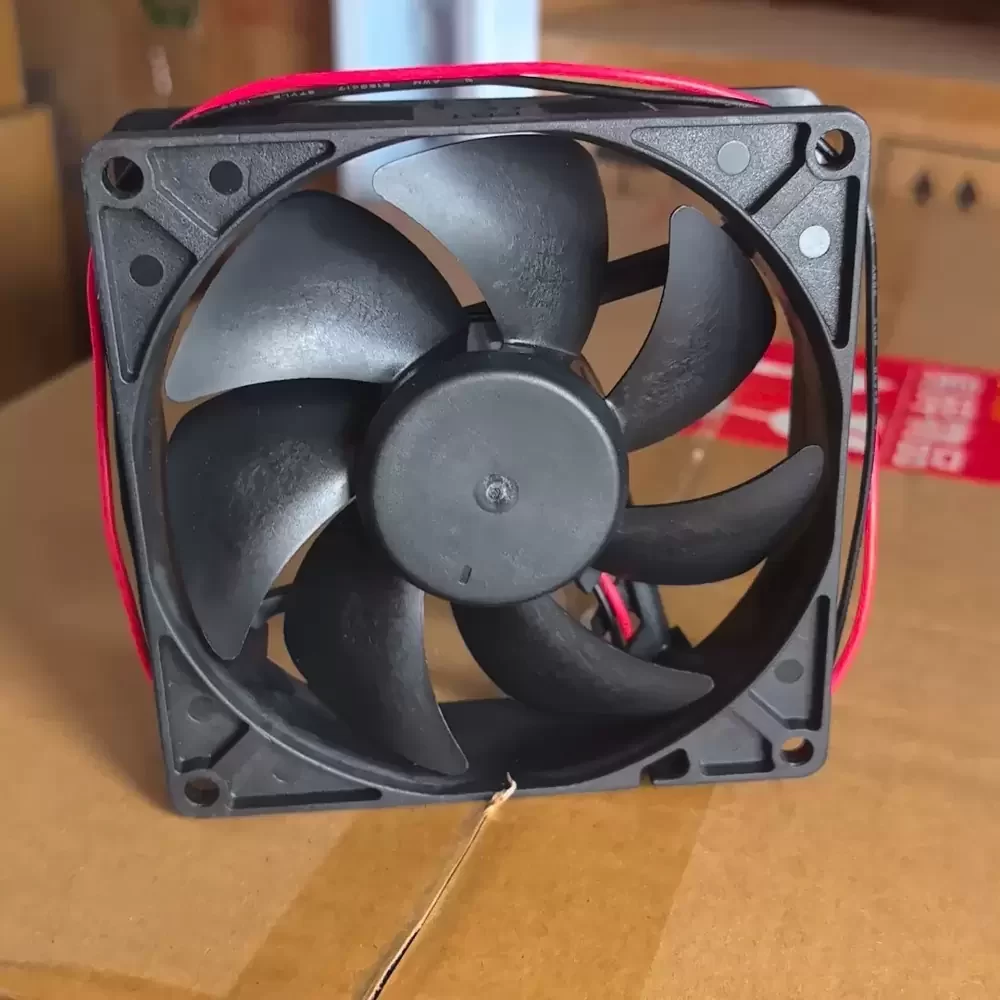

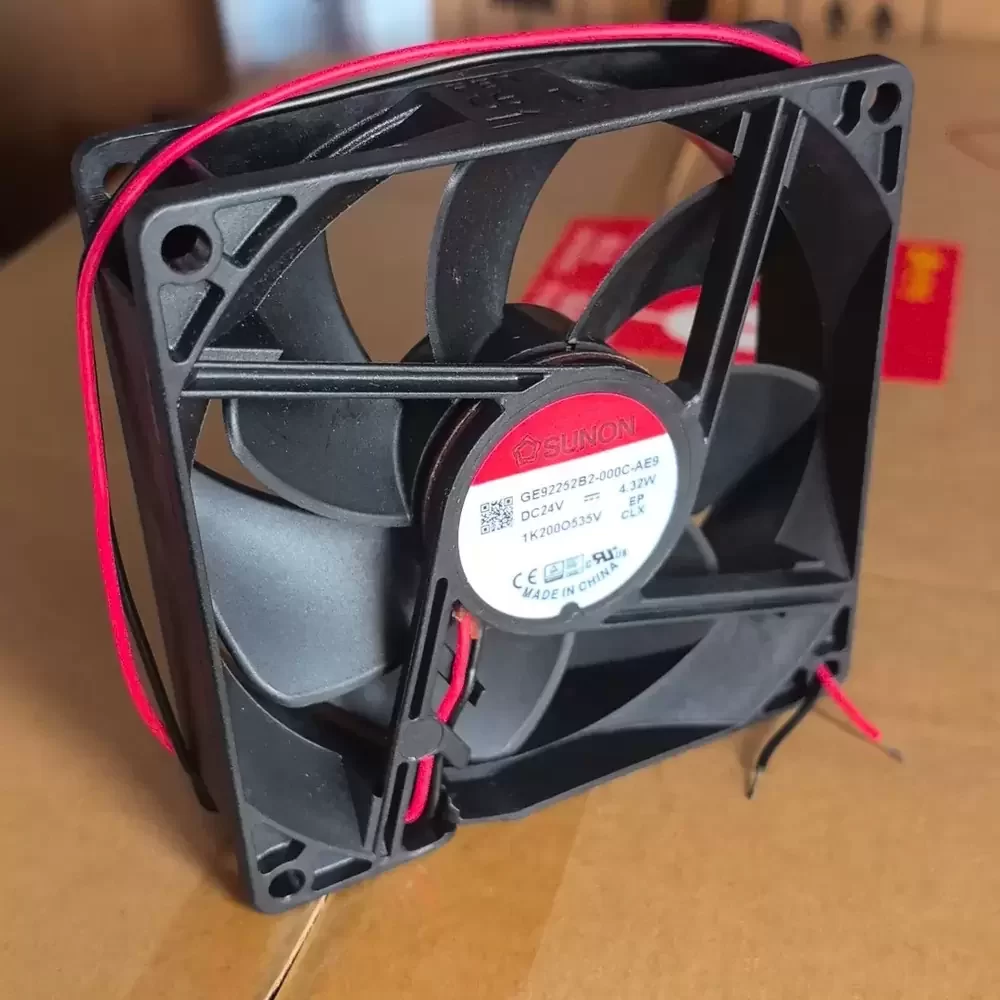

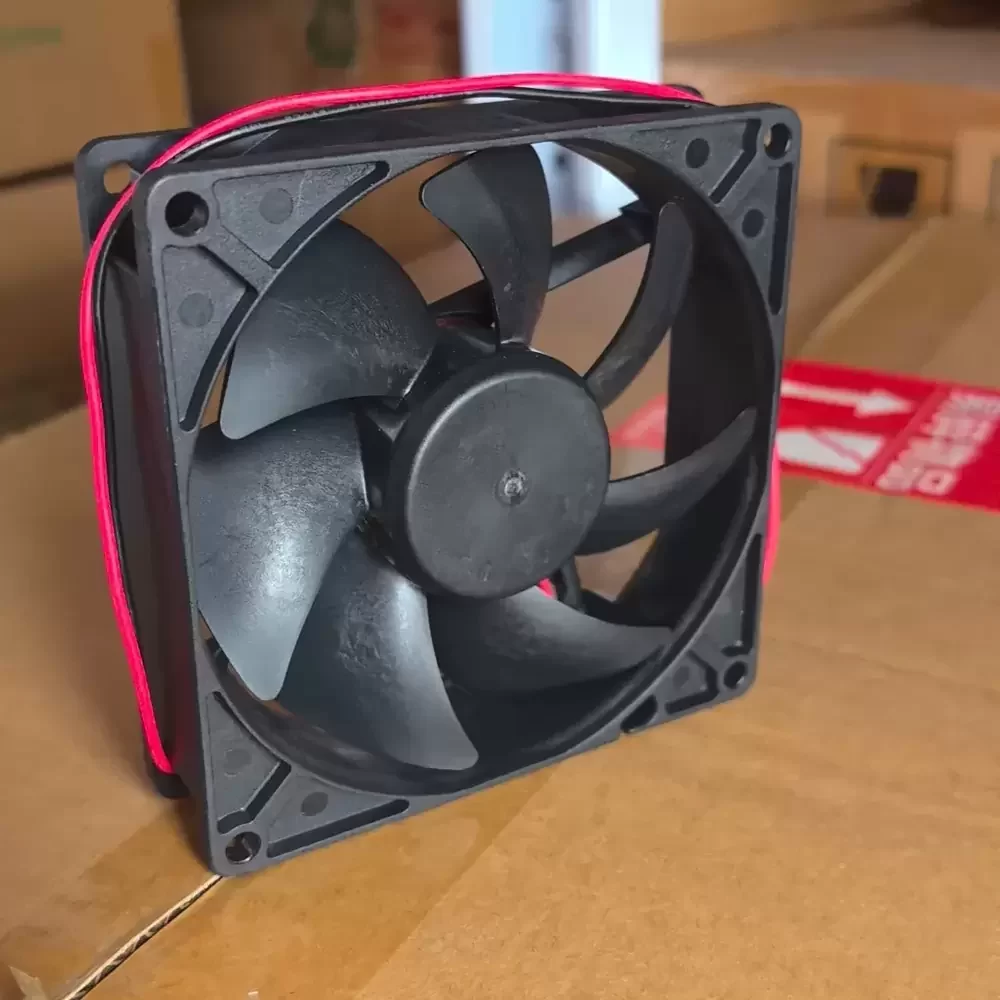

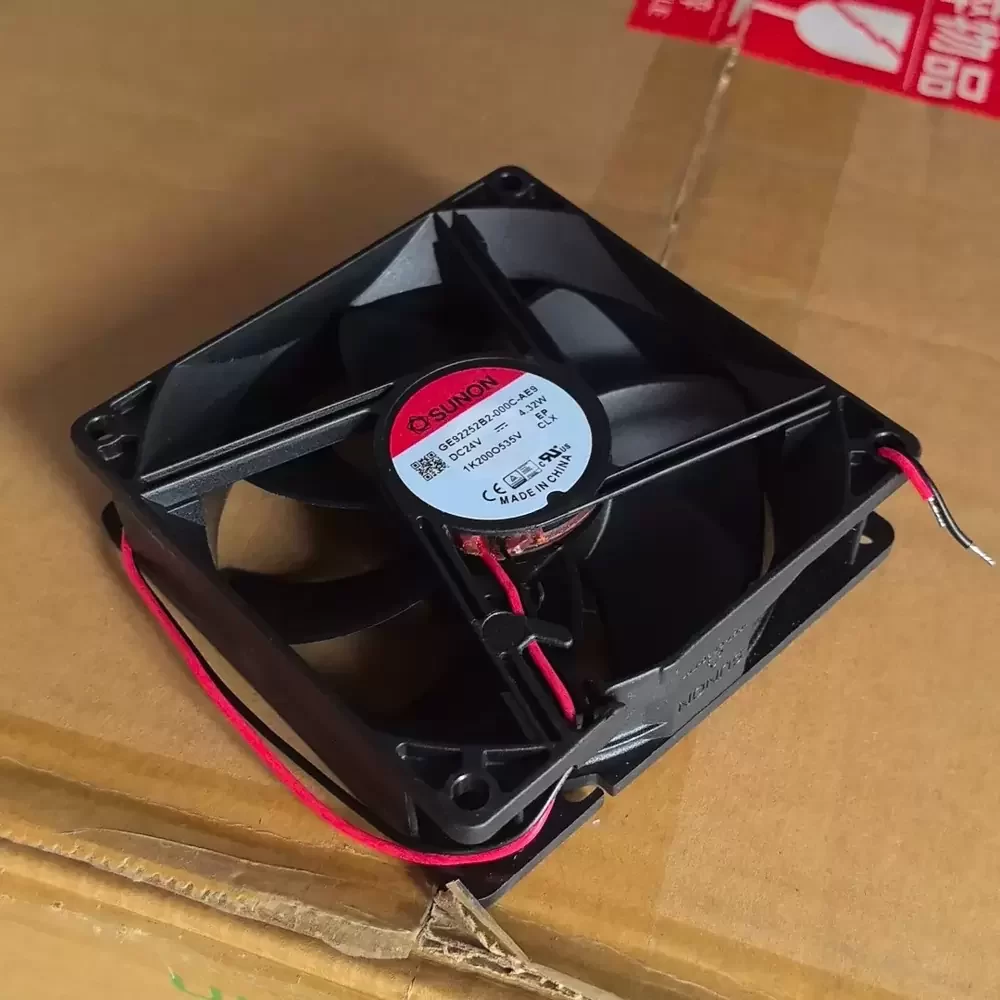

Description
The Sunon GE92252B2-000C-AE9 is a DC Axial Fan engineered for harsh industrial environments requiring superior ingress protection. Utilizing a robust 2 Ball Bearing architecture, this unit ensures long-term reliability and reduced thermal impedance under continuous operation. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity. Encased in UL94V-0 thermoplastic, the GE series features IP68-rated potting, providing complete protection against dust and water immersion, making it ideal for demanding thermal management applications.
Model Number: GE92252B2-000C-AE9
Brand: Sunon
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 10.0 – 27.6 VDC
Power: 4.32 W
Rated Current: 0.18 A
Rated Speed: 4500 RPM
Max. Air Flow: 75.0 CFM (127.4 m³/h / 2.12 m³/min)
Max. Static Pressure: 0.35 inH2O (8.89 mmH₂O / 87.1 Pa)
Bearing Type: 2 Ball Bearing
Dimensions: 92 x 92 x 25 mm
Weight: 123 g
Life Expectancy: 70,000 Hours @ 40°C
Ingress Protection: IP68 (Dust Tight / Waterproof)
Noise Level: 47.0 dBA
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: Lead Wires (300mm)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Safety Features: Auto Restart, Polarity Protection
Designed for resilience in challenging environments, the GE92252B2-000C-AE9 excels in outdoor telecommunications equipment and industrial automation systems exposed to moisture and dust. This cooling solution is frequently integrated into LED signage, solar inverters, and marine electronics where standard fans fail. The GE92252B2-000C-AE9 ensures critical component longevity in CNC machinery and refrigeration units by maintaining optimal thermal envelopes despite contaminant exposure.
