Description

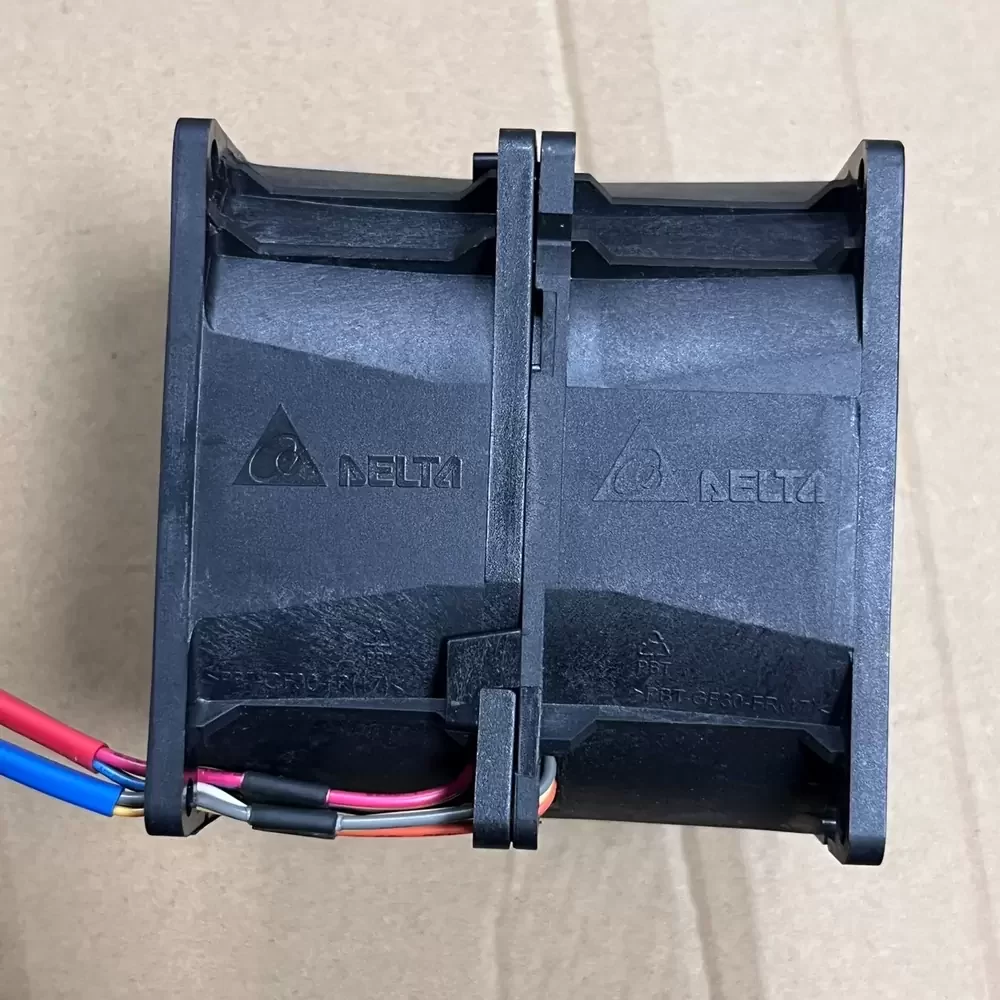

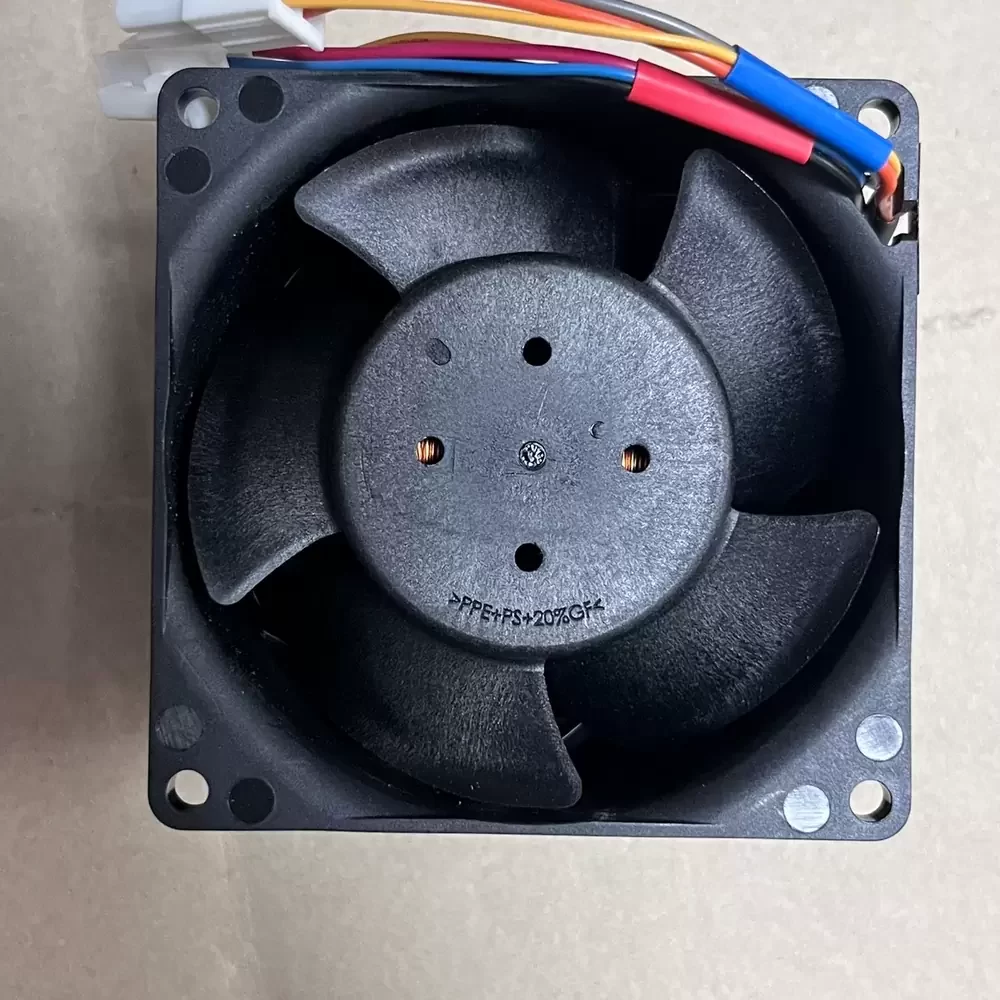

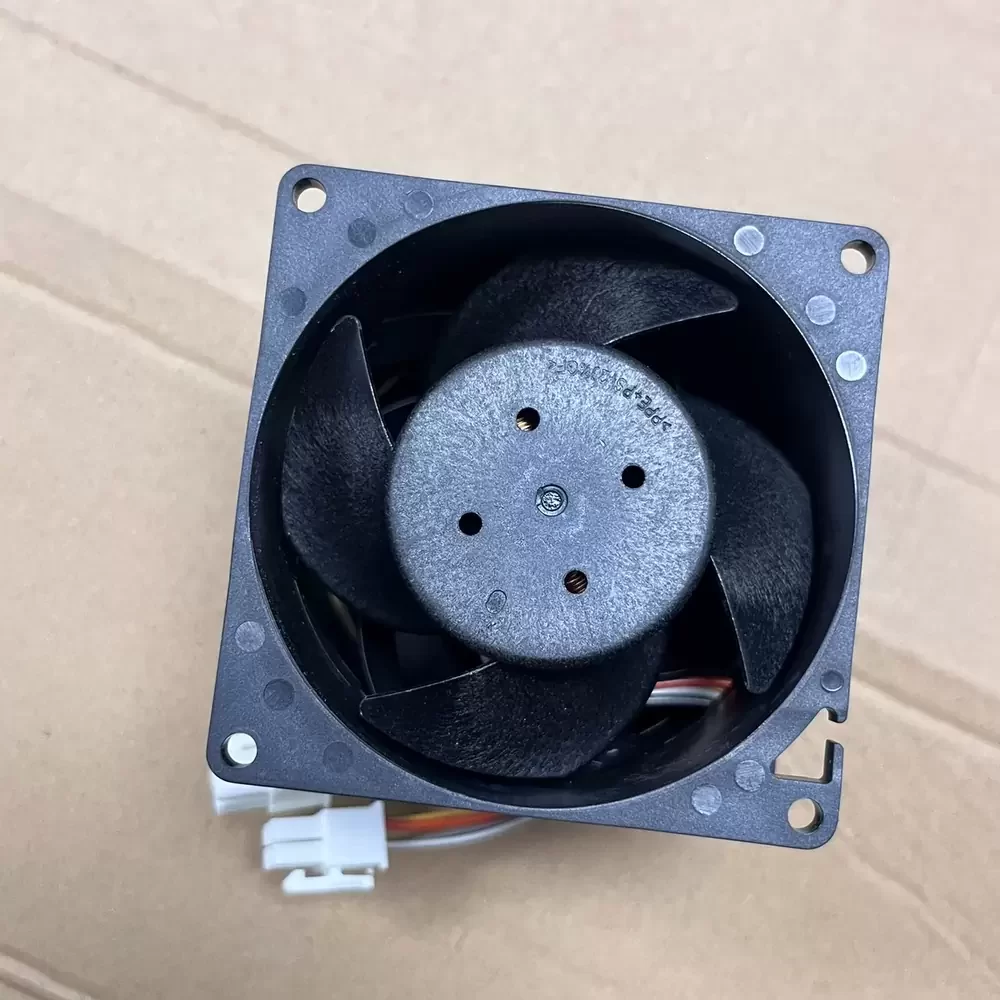

The Delta GFC0812EW-00 is a high-performance Counter-Rotating Axial Fan designed for extreme cooling requirements in high-impedance systems. Engineered with a dual-motor configuration within a compact 80x80x80mm chassis, this unit utilizes advanced DC brushless motor technology to achieve exceptional static pressure and airflow density. The contra-rotating blade design minimizes turbulence and straightens airflow, significantly enhancing thermal impedance management in high-density server environments. Featuring precision ball bearings, the GFC0812EW-00 ensures structural rigidity and operational longevity under continuous high-speed loads, making it an optimal solution for critical industrial and telecommunications hardware.
Model Number: GFC0812EW-00
Brand: Delta
Product Type: Counter-Rotating Axial Fan
Rated Voltage: 12VDC
Safety Current: 12.00 A
Operating Current: 8.27 A (Max 9.92 A)
Power Consumption: 99.24 W
Rated Speed (Front): 13500 RPM ±10%
Rated Speed (Rear): 11000 RPM ±10%
Bearing Type: Ball Bearing
Max. Air Flow: 177 CFM (300.7 m³/h)
Max. Static Pressure: 114 mmH₂O (1118 Pa / 4.49 inH₂O)
Dimensions: 80x80x80mm
Weight: 450g
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Motor Type: DC Brushless

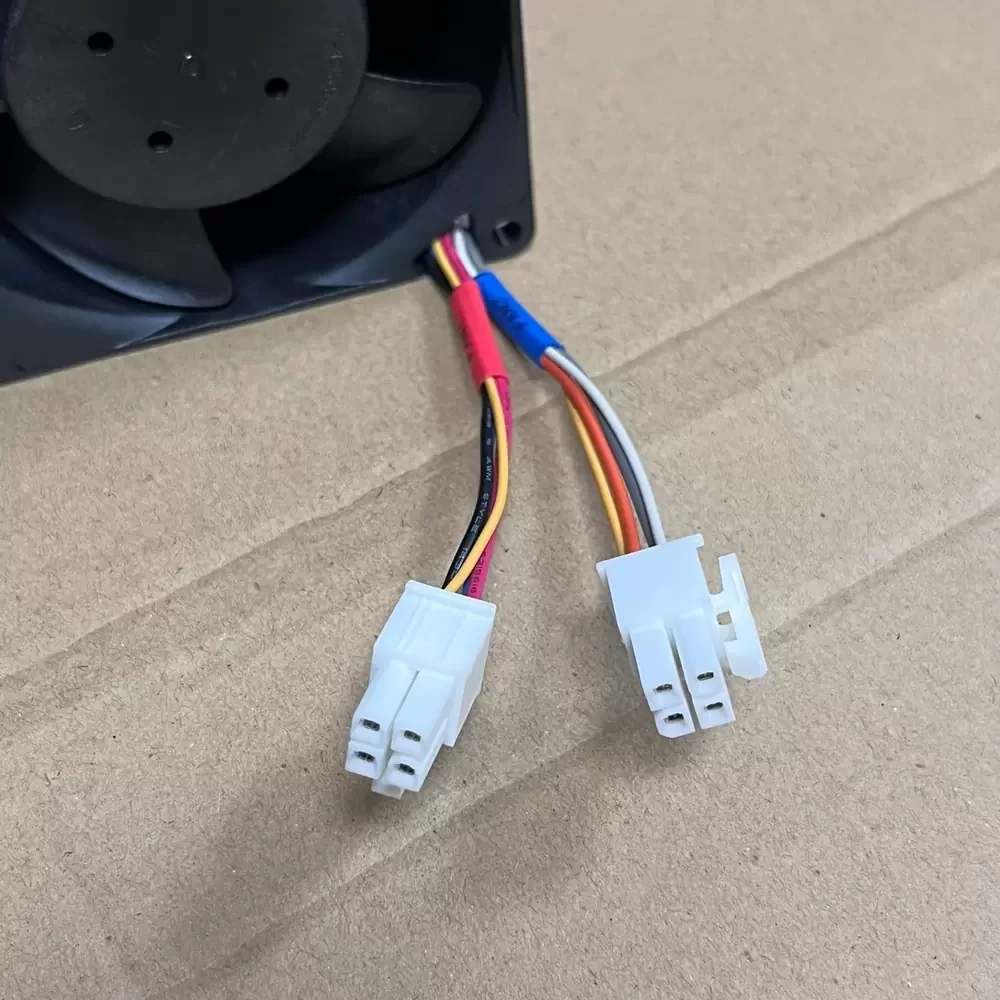

Termination: Lead Wires
Application: Server/Telecom/Automotive
This high-static pressure cooling solution is specifically engineered for mission-critical applications requiring substantial airflow against high system resistance. The GFC0812EW-00 is widely deployed in enterprise-grade server racks, telecommunications base stations (such as Huawei equipment), and high-performance computing clusters where thermal density is a primary concern. Additionally, the robust design of the GFC0812EW-00 makes it suitable for automotive supercharger cooling systems and industrial ventilation setups, ensuring reliable heat dissipation for sensitive electronic components under demanding operational conditions.
