Description

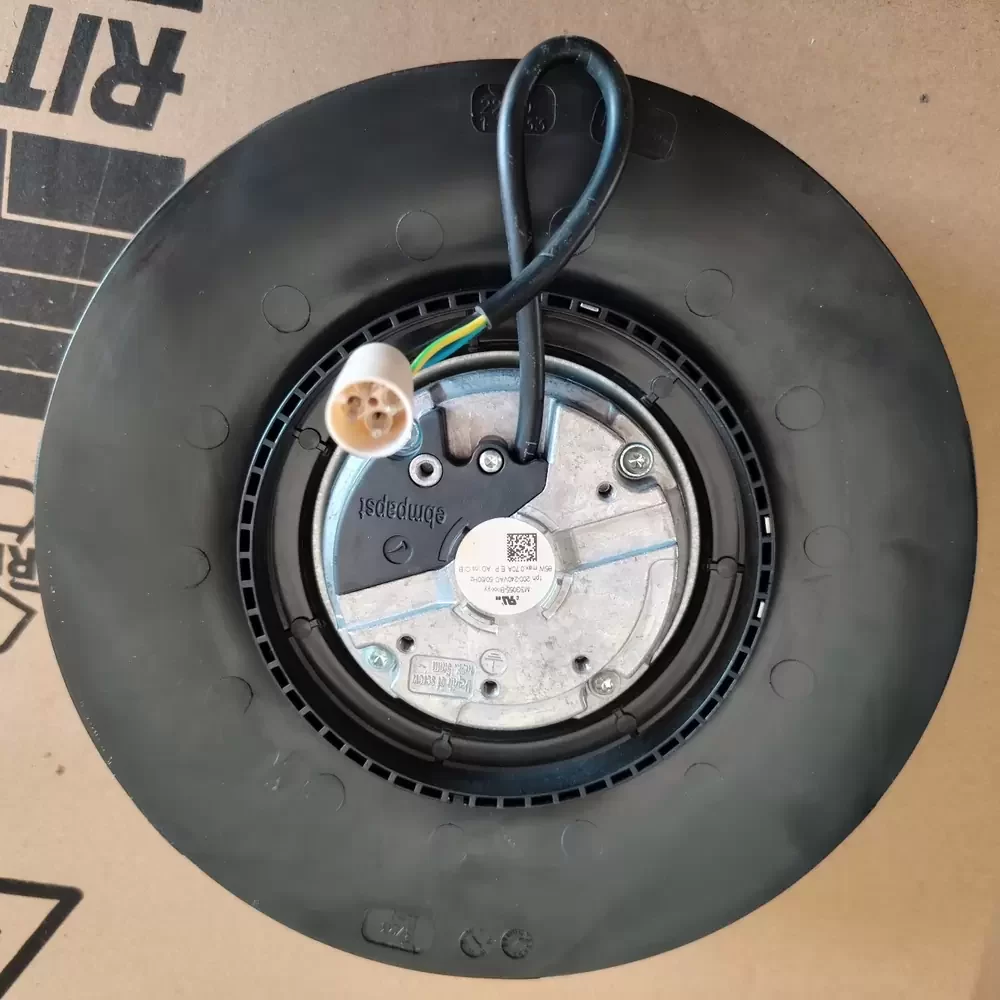

The ebmpapst R3G220-RC09-08 is a precision-engineered EC Centrifugal Fan designed for demanding industrial thermal management applications. Utilizing advanced GreenTech EC motor technology, this unit delivers superior aerodynamic efficiency while maintaining a compact footprint. The backward-curved impeller design optimizes airflow dynamics, significantly reducing turbulence and associated noise generation while maximizing static pressure capabilities. Constructed with robust materials to ensure structural rigidity, the fan operates with exceptional reliability under continuous load. Its integrated electronics provide precise speed control and monitoring, ensuring optimal thermal impedance regulation within complex systems. The unit features an IP54 ingress protection rating, safeguarding internal components against dust and moisture in harsh operating environments.
Model Number: R3G220-RC09-08
Brand: ebmpapst
Product Type: EC Centrifugal Fan (Backward Curved)
Rated Voltage: 200-240 VAC
Frequency: 50/60 Hz
Rated Current: 0.47 A
Power Input: 51 W
Rated Speed: 2070 RPM
Impeller Diameter: 220 mm
Bearing Type: Maintenance-free Ball Bearings
Motor Technology: GreenTech EC Motor
Ingress Protection: IP54
Insulation Class: B
Direction of Rotation: Clockwise, viewed toward rotor
Material of Impeller: PA Plastic (Glass-fiber reinforced)
Mounting Position: Any
Type of Protection: Thermal Overload Protector (TOP) wired internally
Operating Temperature Range: -25 to +60 Degrees Celsius
Approvals: CE, UL, CSA, VDE
Application: Inverter Cooling, Cabinet Ventilation
The R3G220-RC09-08 is specifically engineered for critical cooling applications within industrial automation and power electronics sectors. It is frequently deployed in variable frequency drive (VFD) cabinets and inverter equipment to dissipate heat generated during high-load operations. Additionally, the R3G220-RC09-08 serves as a vital component in server rack cooling systems, telecommunications infrastructure, and precision medical devices where consistent airflow is paramount for component longevity and system stability.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
