Description

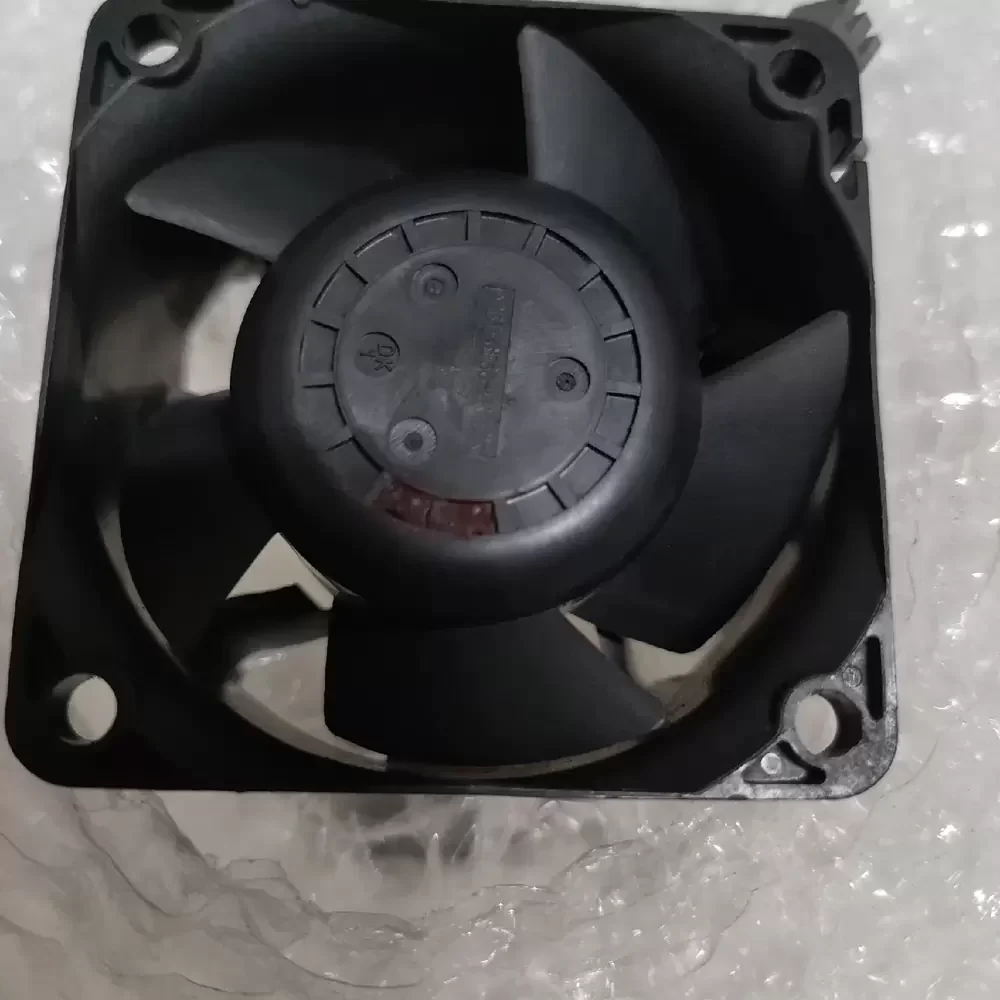

The Nidec V60E12BS1B5-07A024 is a high-performance DC Axial Fan engineered for demanding thermal management applications within the industrial and server sectors. Part of the renowned UltraFlo series, this unit utilizes advanced aerodynamic blade geometry to deliver exceptional airflow relative to its compact 60mm footprint. The motor assembly features a robust dual ball bearing architecture, ensuring reduced friction, enhanced structural rigidity, and extended longevity under high-speed operation. Designed with a 4-wire interface, it supports precise speed modulation via PWM, optimizing the balance between thermal impedance reduction and acoustic output. Its construction meets rigorous industrial standards, making it suitable for continuous duty cycles in critical electronic enclosures requiring high static pressure capabilities.
Model Number: V60E12BS1B5-07A024
Brand: Nidec
Series: UltraFlo
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 – 13.2 VDC
Rated Current: 1.60 A
Input Power: 19.2 W
Rated Speed: 11500 RPM
Max. Air Flow: 67.3 CFM (114.34 m³/h / 1.90 m³/min)
Max. Static Pressure: 480 Pa (48.95 mmH₂O / 1.93 inH₂O)
Noise Level: 58.5 dB(A)
Bearing Type: Dual Ball Bearing
Dimensions: 60 x 60 x 38 mm
Weight: 130 g
Termination: 4-Wire (Lead Wires)
Wire Assignment: Red (+), Black (-), Yellow (Tach), Blue (PWM)
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PA66 Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Ingress Protection: IP40
Safety Certifications: UL, cUL, TUV, CE
This cooling solution is specifically optimized for high-density electronic environments such as 2U server racks and telecommunications equipment. The V60E12BS1B5-07A024 excels in forcing air through restrictive chassis zones where high static pressure is required to overcome impedance from heatsinks and dense cabling. Additionally, the V60E12BS1B5-07A024 is frequently utilized in precision industrial machinery, power supply units, and network switchgear, providing reliable thermal dissipation to prevent component throttling and ensure system stability.
