Description

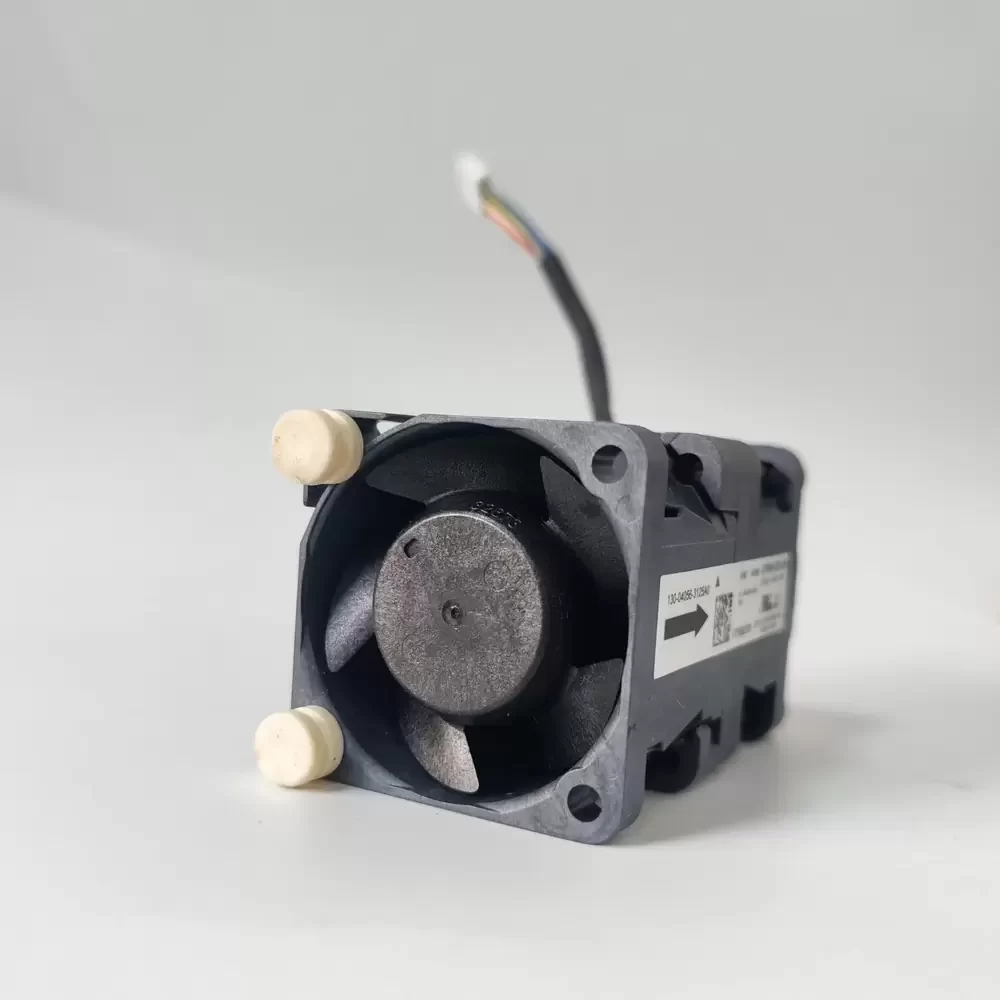

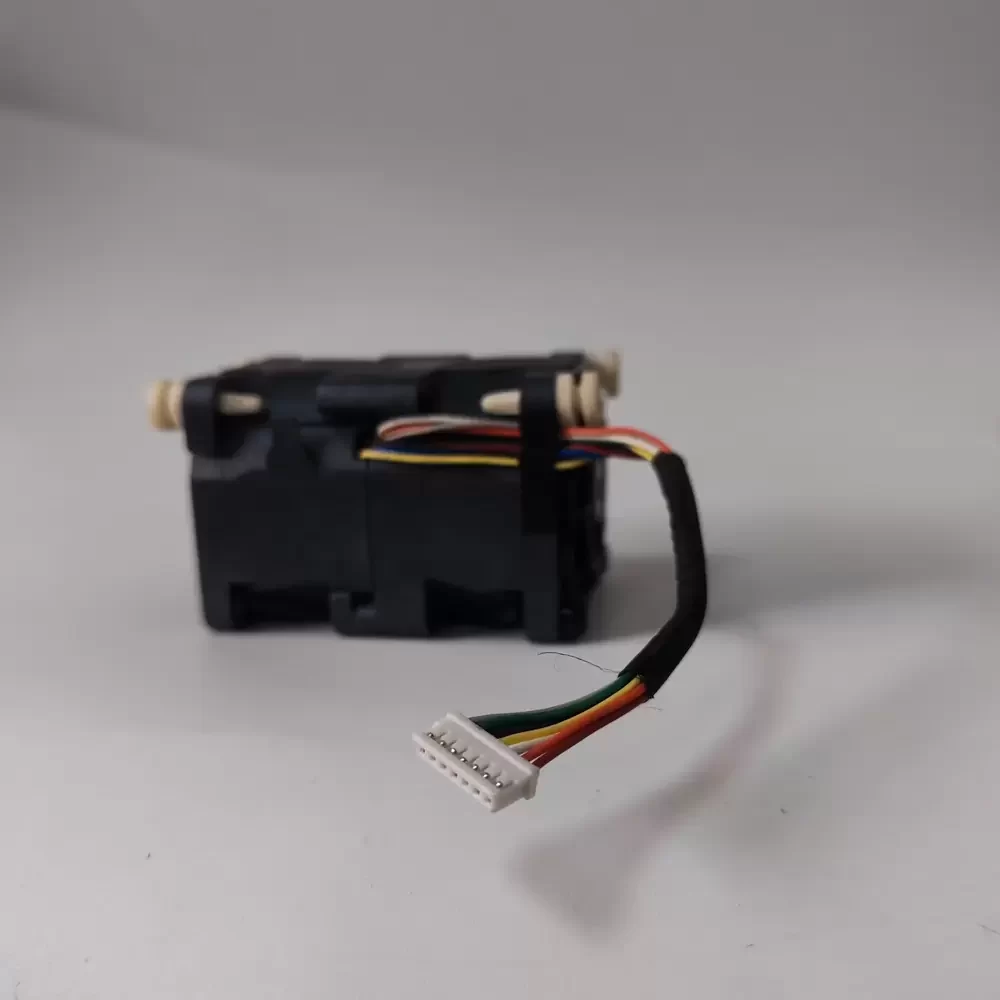

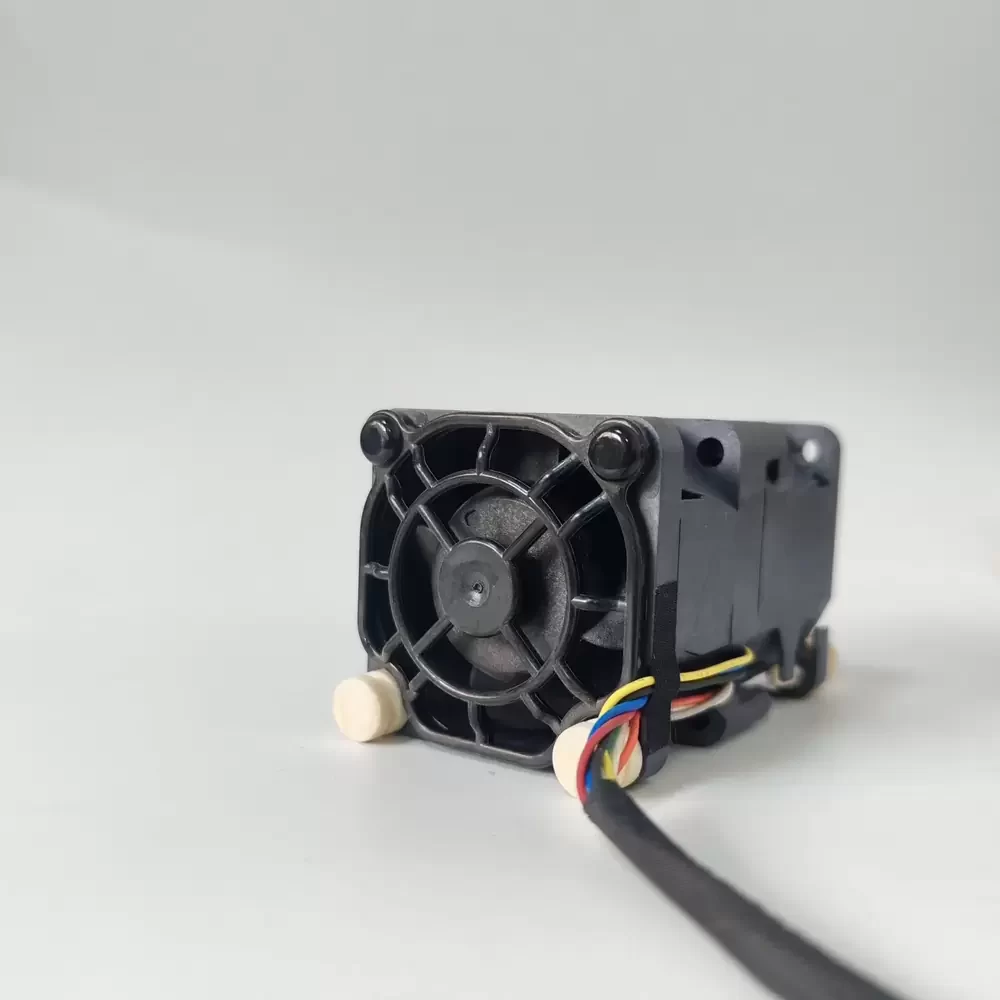

The Delta GFM0412SS-08 is a specialized counter-rotating axial fan designed for extreme performance applications requiring immense static pressure and airflow density. Engineered with a dual-motor configuration within a 40x40x56mm frame, this unit leverages advanced DC brushless technology to achieve a staggering rotational speed of 33000 RPM. The fan features a robust thermoplastic housing and precision Dual Ball Bearing architecture, ensuring exceptional structural rigidity and thermal impedance management under heavy loads. Its counter-rotating blade design minimizes turbulence while maximizing pressure generation, making it a critical component for high-impedance systems where standard single-stage fans fail to deliver adequate cooling or air movement.
Model Number: GFM0412SS-08
Brand: Delta Electronics
Product Type: DC Axial Fan (Counter-Rotating)
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Rated Current: 4.50 A
Input Power: 54.0 W
Rated Speed: 33000 RPM
Bearing Type: Dual Ball Bearing
Dimensions: 40 x 40 x 56 mm
Air Flow: High Capacity Booster Configuration
Static Pressure: High Static Pressure Optimization
Frame Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Ingress Protection: IP Rating Compatible
Termination: Lead Wires with Connector
Mounting Orientation: Any
Operating Temperature: -10 to +70 Degrees Celsius
Life Expectancy: 70000 Hours at 40 Degrees Celsius
The GFM0412SS-08 is primarily utilized in specialized agricultural equipment, such as the XAG agricultural drone spreaders, where high-velocity air is required to disperse granules effectively. Beyond agricultural robotics, the GFM0412SS-08 is also deployed in high-density 1U server racks, telecommunications base stations, and compact industrial machinery that demands redundant, high-pressure airflow to overcome significant system resistance.
