Description

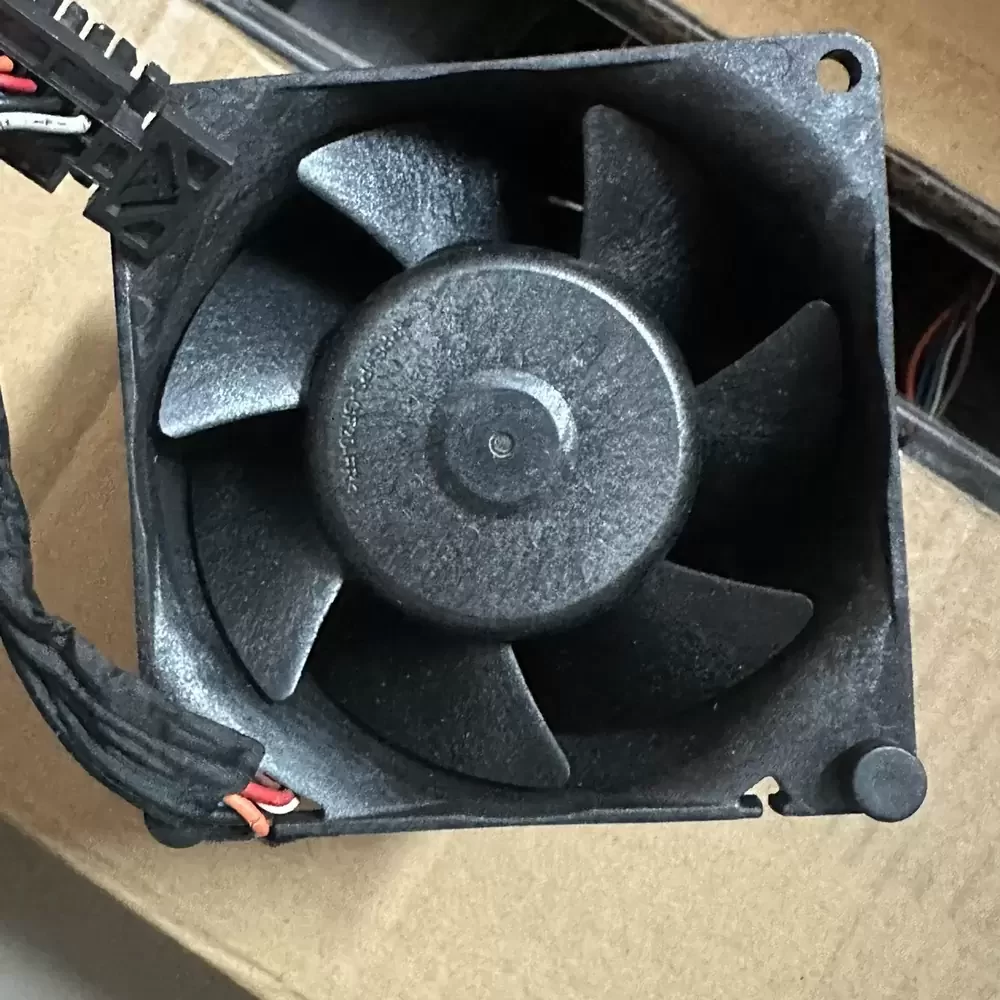

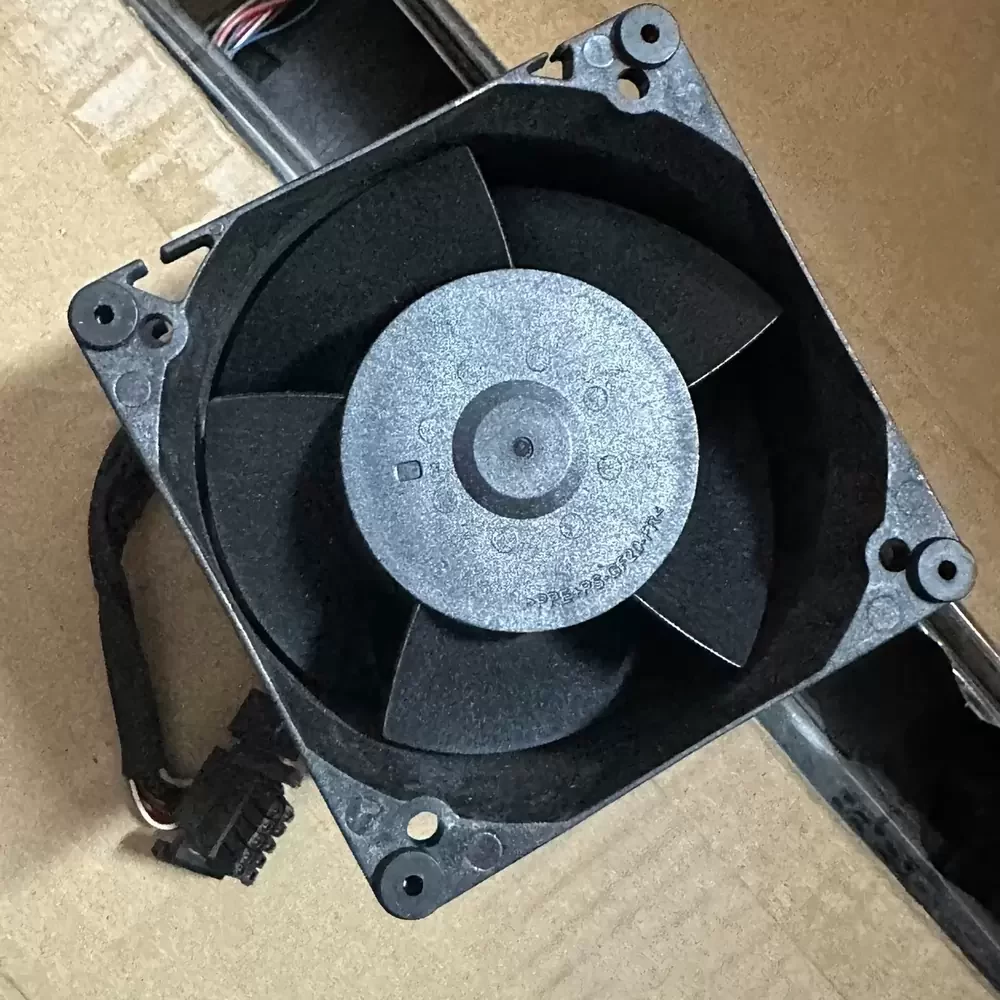

The Delta GFM0812DU-A08 is a DC Axial Fan engineered for extreme thermal management in high-density computing environments. Utilizing a counter-rotating dual-rotor architecture, this unit significantly reduces thermal impedance by generating exceptional static pressure and airflow. The motor technology is optimized for 12VDC operation at a high current draw of 14.00A, ensuring structural rigidity under intense aerodynamic loads. Equipped with a precision dual ball bearing system, the GFM0812DU-A08 offers extended service life and reliability in mission-critical industrial applications where consistent cooling performance is paramount for system stability.
Model Number: GFM0812DU-A08
Brand: Delta
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 14.00A
Power: 168.0W
Rated Speed: 14500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 162.45 CFM (276.0 m³/h / 4.60 m³/min)
Max. Static Pressure: 82.15 mmH₂O (805.6 Pa / 3.23 inH₂O)
Dimensions: 80x80x80mm
Weight: 560g
Life Expectancy: 70,000 Hours at 40°C
Termination: 8-pin Connector
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection: Locked Rotor Protection, Reverse Polarity Protection
Speed Control: PWM Signal, Tachometer Output
The GFM0812DU-A08 is primarily deployed in high-performance server racks and enterprise-level networking hardware where concentrated heat dissipation is required. Industrial control systems and CNC machinery also utilize the GFM0812DU-A08 to maintain optimal operating temperatures within enclosed cabinets. Its robust design makes it suitable for telecommunications infrastructure and heavy-duty power supply units.
