Description

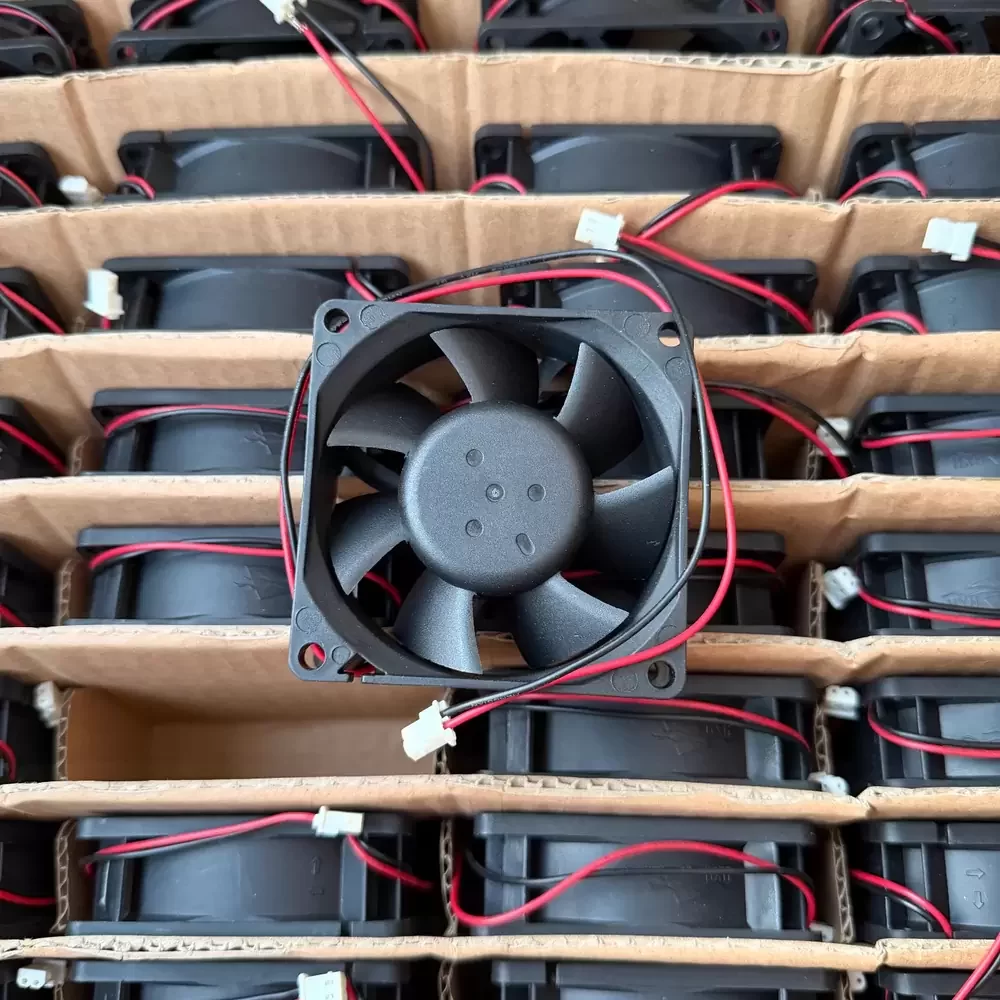

The HXH HDB0712UA is a precision-engineered Axial Fan designed for demanding thermal management applications requiring a balance of airflow and static pressure. This unit integrates a robust DC brushless motor with a Double Ball Bearing architecture, ensuring minimized friction and extended operational longevity under continuous load. The 70mm frame is constructed from reinforced thermoplastic, offering superior structural rigidity and resistance to thermal deformation. Optimized blade geometry enhances aerodynamic efficiency, delivering a high static pressure to airflow ratio while maintaining low thermal impedance. It is specifically calibrated for industrial environments requiring reliable heat dissipation and stable electrical performance.
Model Number: HDB0712UA
Brand: HXH
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.35 A
Power: 4.2 W
Rated Speed: 4200 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 38.5 CFM (65.4 m³/h / 1.09 m³/min)
Max. Static Pressure: 5.2 mmH₂O (50.9 Pa / 0.20 inH₂O)
Dimensions: 70x70x25mm
Weight: 85 g
Life Expectancy: 50,000 Hours @ 40°C
Noise Level: 39.0 dBA
Housing Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: 2-Wire Lead (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: >10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Protection: Impedance Protected, Reverse Polarity
The HDB0712UA is engineered for integration into high-density electronic enclosures where space is constrained but airflow requirements are critical. Common deployment scenarios include server rack cooling modules, industrial power supply units, and telecommunications equipment requiring consistent thermal regulation. The HDB0712UA also serves effectively in CNC machinery control panels and medical instrumentation, providing the necessary static pressure to overcome system impedance in tightly packed component arrays.
