Description

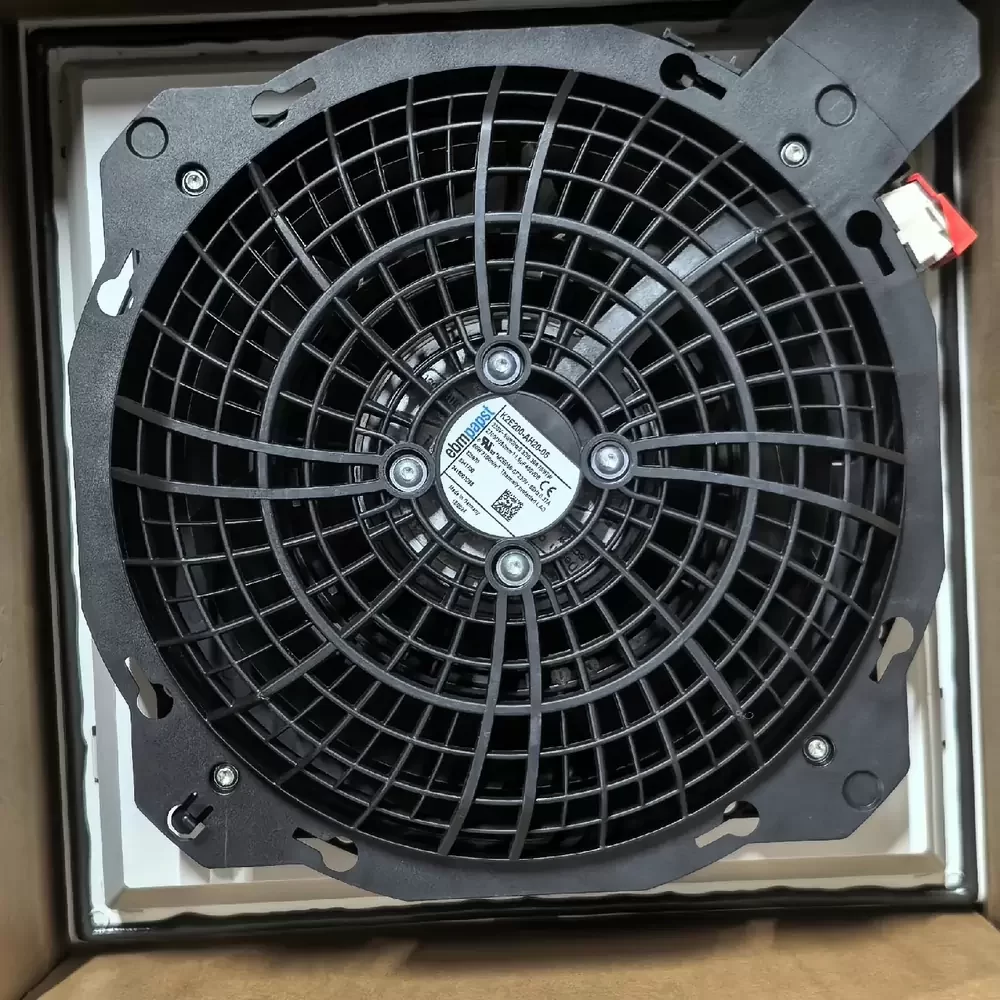

The ebm-papst K2E200-AH20-05 is a high-efficiency AC centrifugal fan module engineered for demanding thermal management applications within industrial enclosures. Utilizing an advanced external rotor motor design coupled with precision ball bearings, this motorized impeller delivers superior airflow dynamics while maintaining exceptional rotational stability and low vibration levels. The unit features backward-curved blades constructed from glass-fiber reinforced polyamide, optimizing structural rigidity and significantly reducing aerodynamic noise generation. Its robust thermal impedance characteristics and IP44 protection rating make it an ideal solution for continuous operation in environments requiring reliable heat dissipation and consistent static pressure performance.
Model Number: K2E200-AH20-05
Brand: ebm-papst
Cross Reference: Rittal SK3243.100
Product Type: Motorized Impeller / Centrifugal Fan
Rated Voltage: 230VAC
Frequency: 50 / 60 Hz
Rated Current: 0.29 / 0.35 A
Power Input: 64 / 80 W
Rated Speed: 2550 / 2750 RPM
Max. Air Flow: 523.8 CFM (890 m³/h)
Max. Static Pressure: 1.85 inH₂O (460 Pa)
Impeller Diameter: 200mm
Bearing Type: Ball Bearing
Motor Type: M2E068-BF (AC External Rotor)
Capacitor: 1.5 µF / 450 VDB
Impeller Material: PA6 Plastic (Glass-fiber reinforced)
Operating Temperature: -25°C to +55°C
Insulation Class: B
Protection Class: IP44
Weight: 1.3 kg
Termination: Lead wires
Direction of Rotation: Clockwise (viewed toward rotor)
Approvals: CE, CCC, EAC

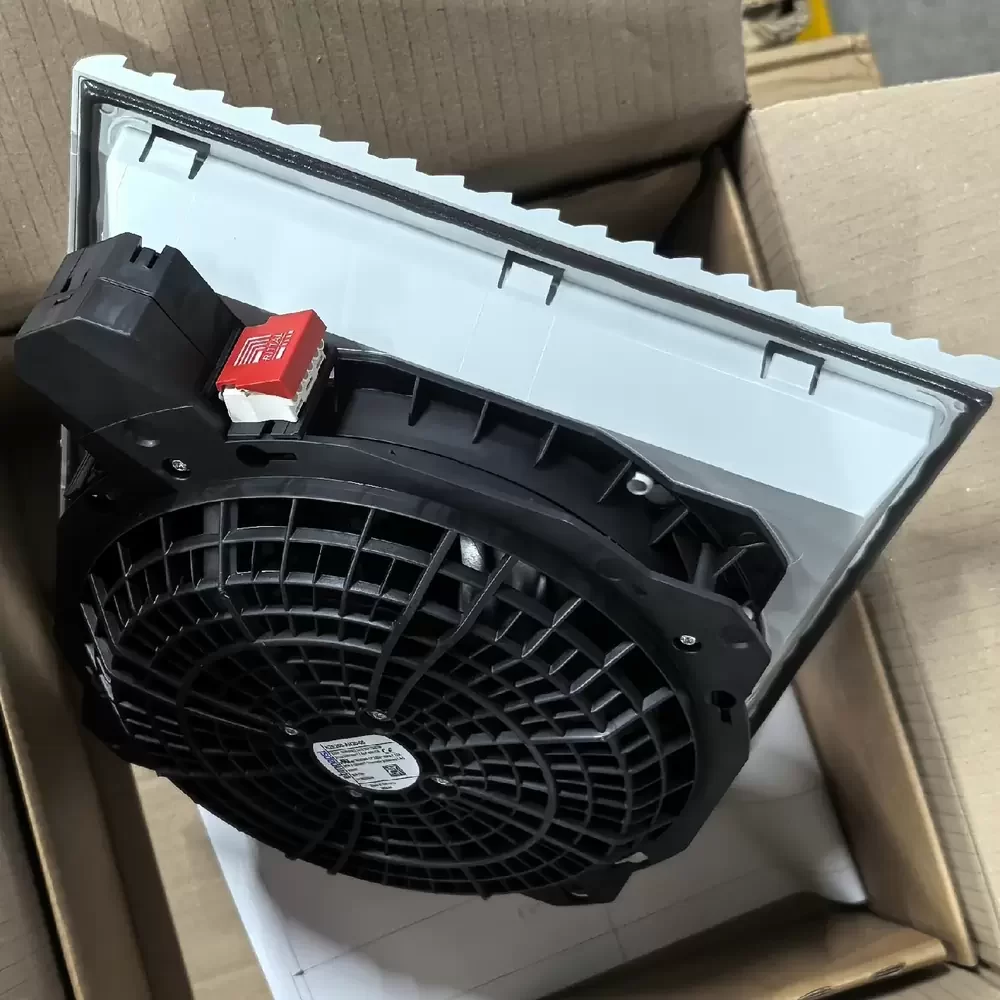

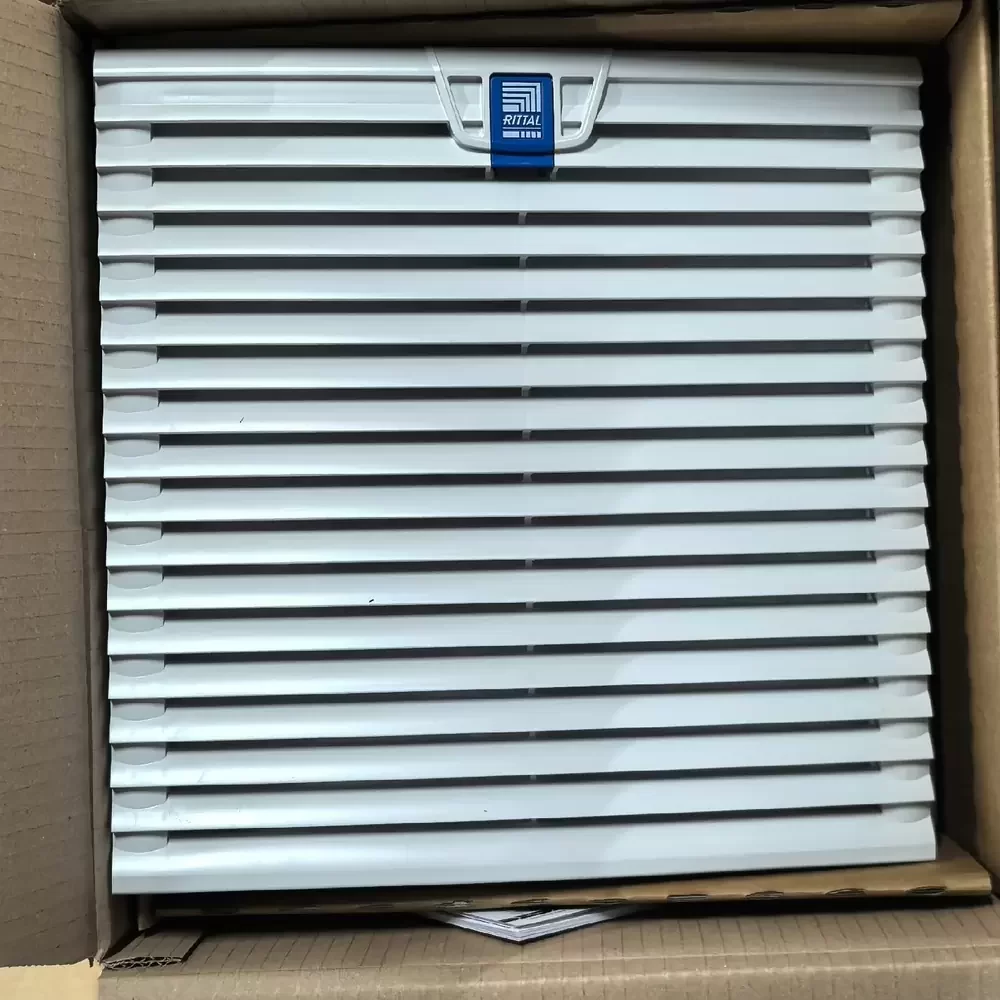

Designed specifically for high-density electronics cooling, the K2E200-AH20-05 serves as a critical component in industrial enclosure climate control systems. This model is frequently deployed as the primary air mover in Rittal SK3243.100 filter fan units, ensuring optimal operating temperatures for server racks, telecommunications cabinets, and automation control panels. The K2E200-AH20-05 provides consistent airflow to prevent thermal throttling in sensitive power distribution units and CNC machinery interfaces, maintaining system integrity under continuous load.
