Description

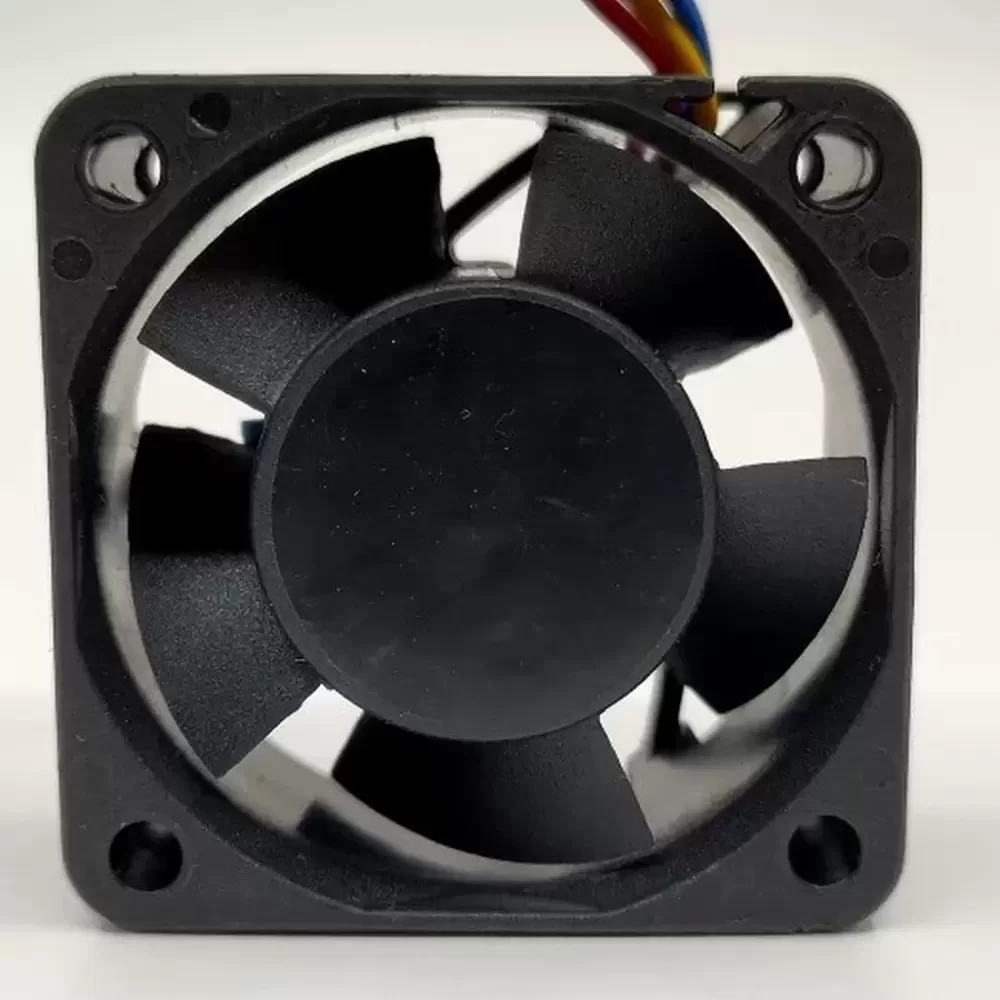

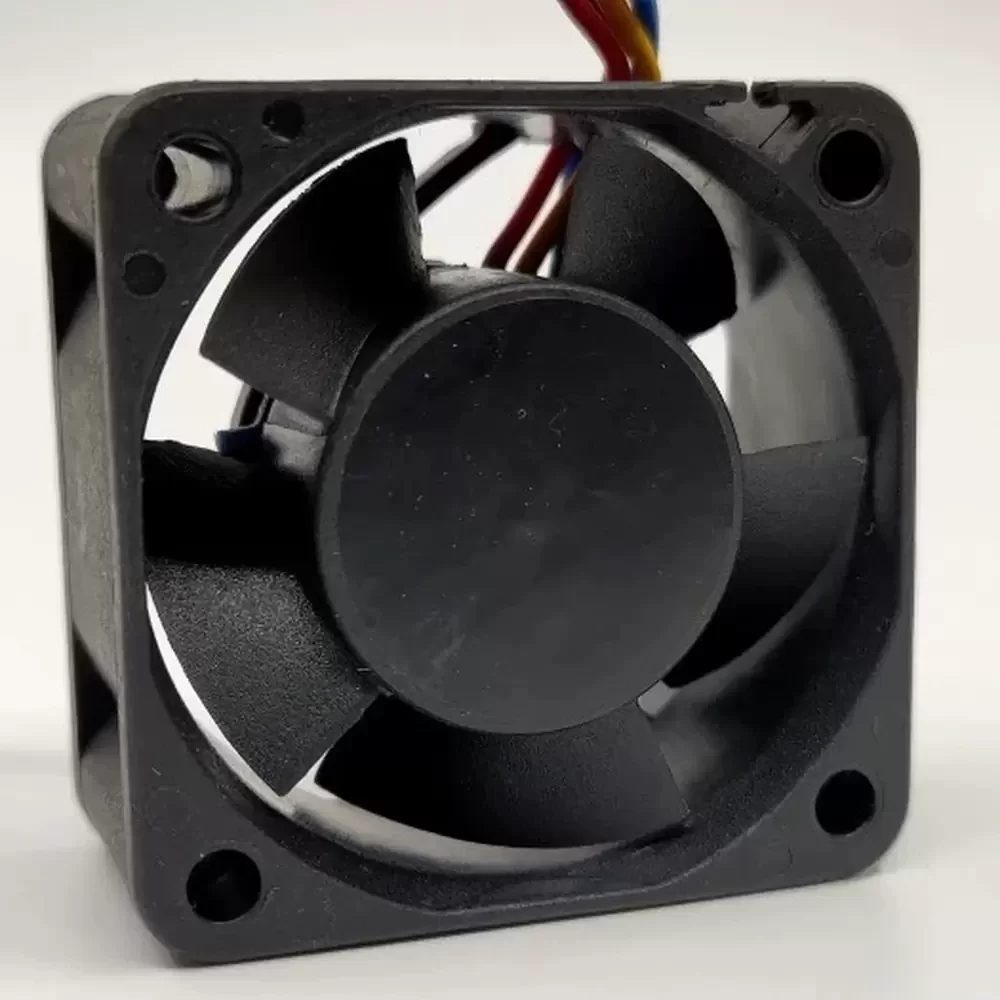

The SUNON KDE1204PKVX is a DC Axial Fan engineered for high-reliability thermal management in space-constrained environments. Utilizing Sunon’s proprietary Maglev (Magnetic Levitation) bearing architecture, this 40x40x20mm unit significantly reduces friction and vibration, enhancing structural rigidity and extending operational longevity. The fan operates on a 12VDC rail with a 1.1W power rating, featuring integrated PWM speed control for precise airflow modulation. Its aerodynamic impeller design minimizes thermal impedance, ensuring efficient heat dissipation. This industrial-grade component is designed for continuous duty cycles where acoustic stability and consistent performance are critical for maintaining system integrity.

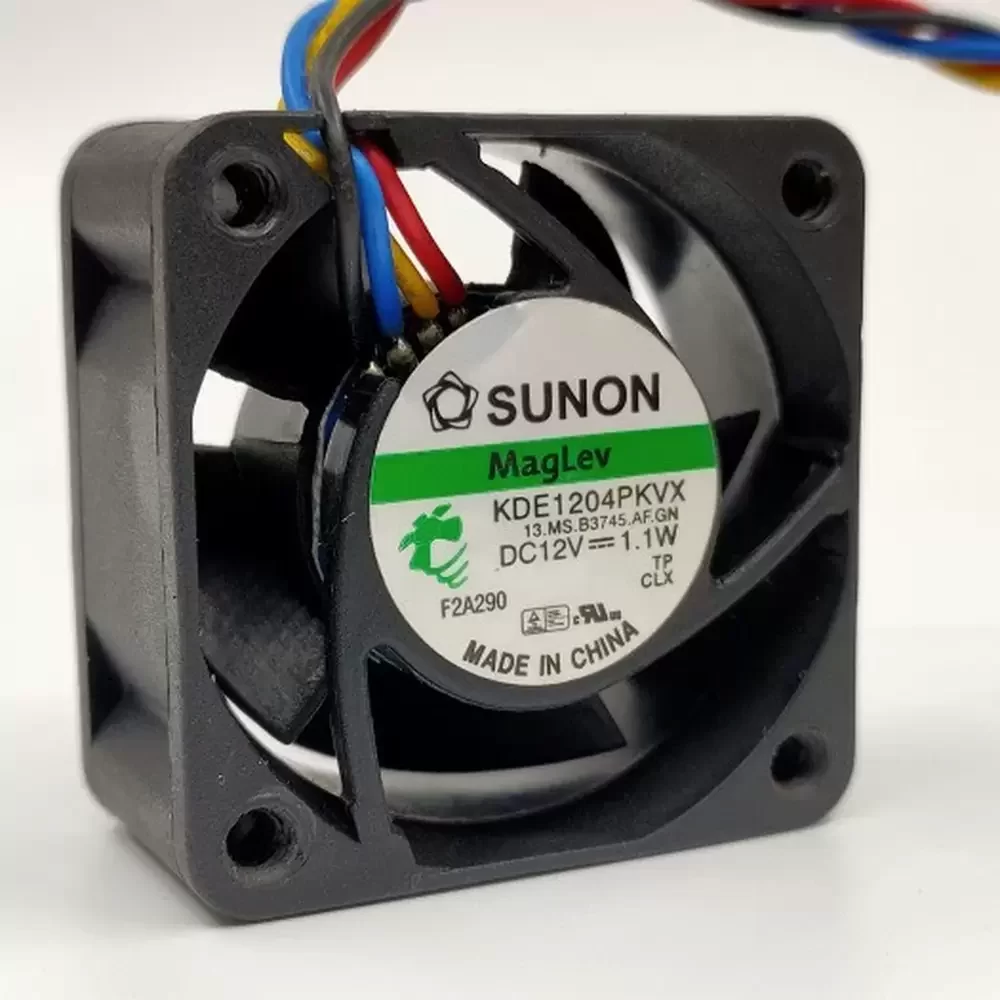

Model Number: KDE1204PKVX 13.MS.B3745.AF.GN
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 4.5 – 13.8 VDC
Rated Current: 0.09 A
Power: 1.1 W
Rated Speed: 8200 RPM
Bearing Type: Vapo / Maglev
Max. Air Flow: 10.8 CFM (18.35 m³/h / 0.31 m³/min)
Max. Static Pressure: 7.11 mmH₂O (69.7 Pa / 0.28 inH₂O)
Dimensions: 40x40x20mm
Weight: 31 g
Life Expectancy: 60,000 Hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Tachometer: Yes
Noise Level: 33.0 dB(A)
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: 4-Wire Lead Wires with 4-Pin Connector
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Class: Class A
Protection Features: Auto Restart, Polarity Protection
The KDE1204PKVX is ideally suited for high-density electronic enclosures and telecommunications equipment where precise thermal regulation is mandatory. In server rack environments, the KDE1204PKVX provides targeted cooling for localized hotspots on motherboards and network switches. Its compact 4020 form factor also makes it a preferred choice for medical diagnostic devices and industrial power supplies that require consistent airflow within a small footprint. The integration of PWM functionality allows system controllers to dynamically adjust the fan speed based on real-time thermal loads, optimizing energy efficiency with the KDE1204PKVX.
