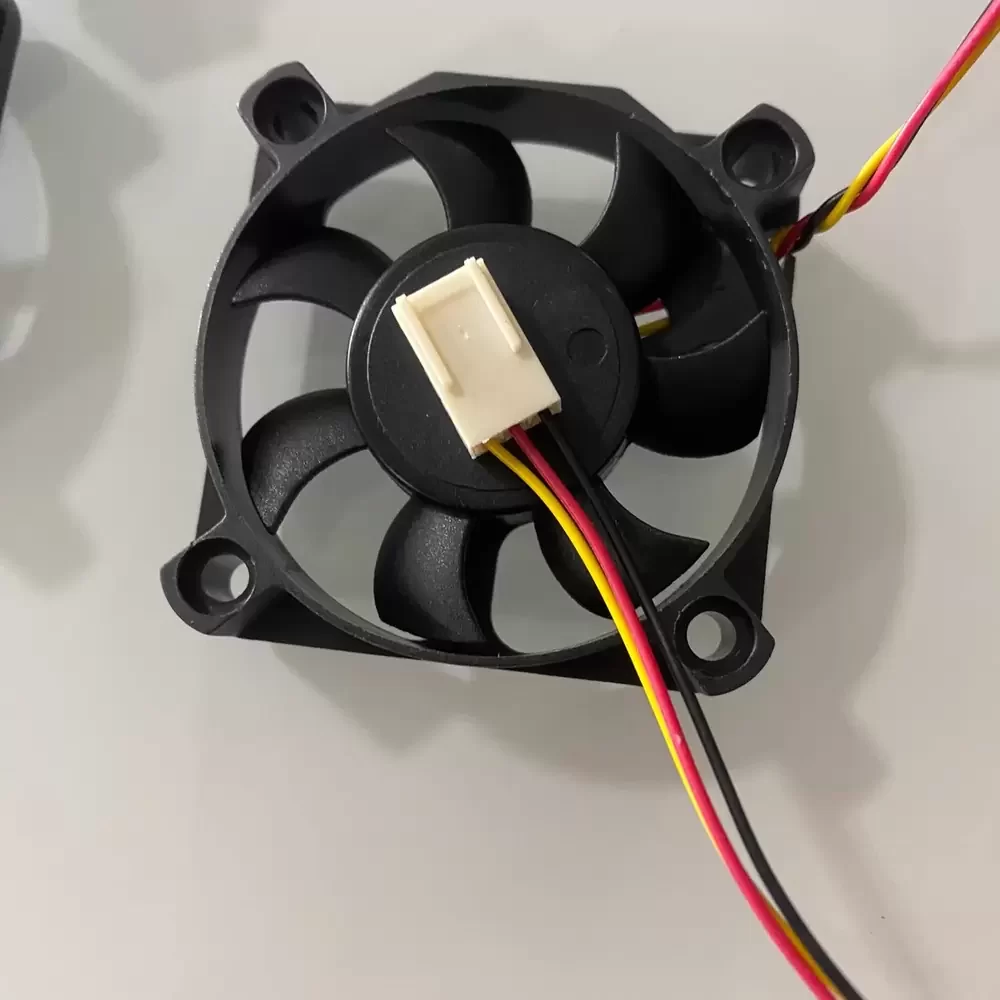

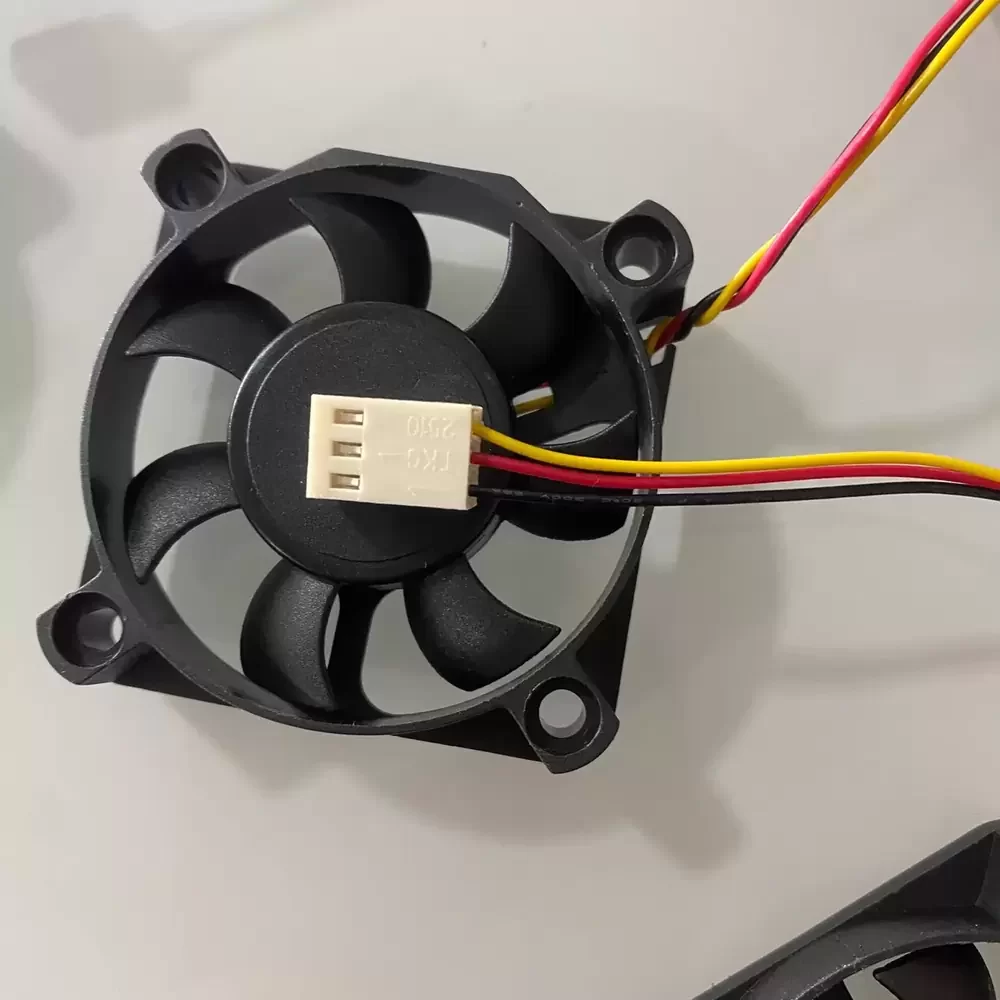

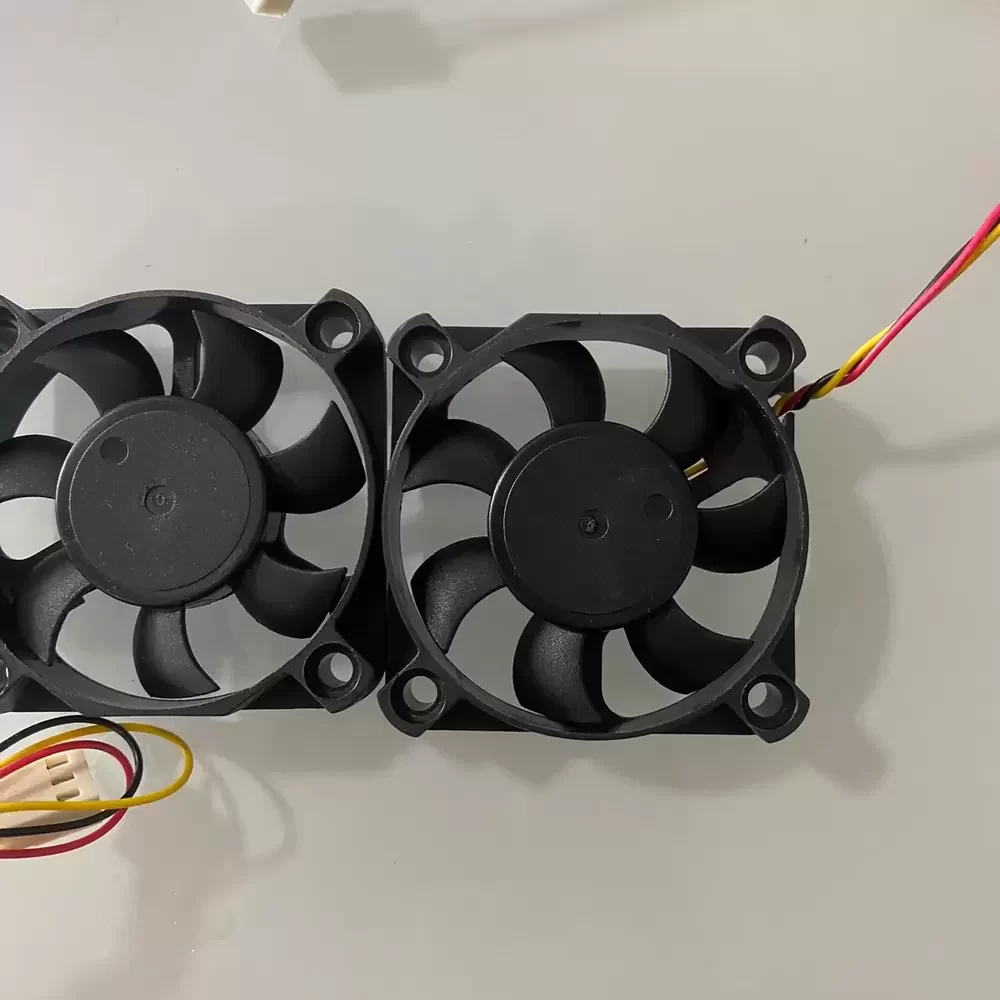

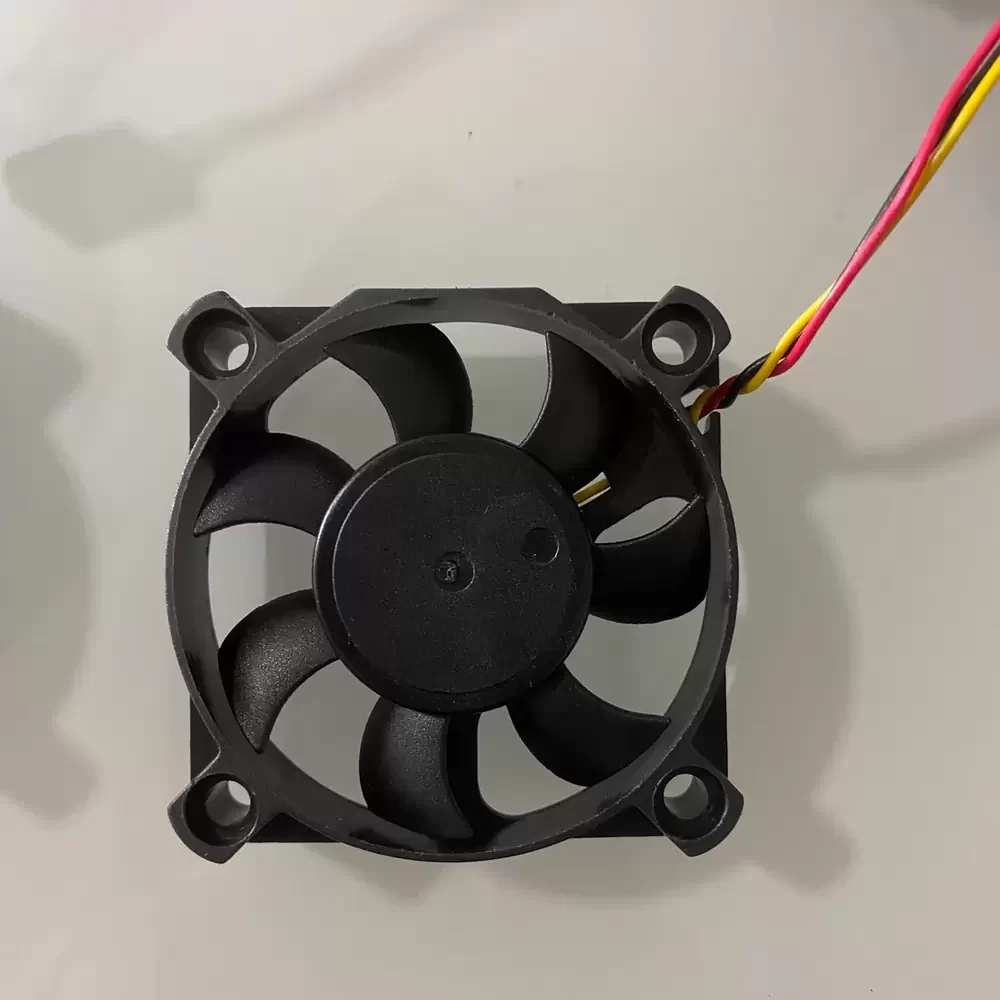

YY5010H12S SNOWFAN 12VDC 0.1A 50x50x10mm Axial Cooling Fan

Description

SNOWFAN YY5010H12S 50 x 50 x 10 mm 12 VDC 11.93 CFM axial cooling fan features a robust structural design for continuous thermal regulation. Constructed with a premium environmental and fire-prevention PBT UL94V-0 plastic frame and impeller, this unit operates at a nominal 6000 RPM to generate a maximum static pressure of 4.50 mmH2O. The hardware integrates a 3-wire interface with a 22 cm cable length, utilizing a sleeve bearing mechanism to maintain a 36 dBA noise profile while drawing 0.10 A of current.

YY5010H12S SpecificationsModel Number: YY5010H12S
Brand: SNOWFAN
Product Category: DC Axial Cooling Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.5 VDC
Rated Current: 0.10 A
Rated Input Power: 1.2 W
Dimensions: 50 x 50 x 10 mm
Rotational Speed: 6000 RPM
Maximum Airflow: 11.93 CFM
Maximum Air Pressure: 4.50 mmH2O
Acoustic Noise: 36 dBA
Bearing Type: Sleeve Bearing
Housing Material: PBT UL94V-0 Plastic
Impeller Material: PBT UL94V-0 Plastic
Interface: 3-Wire
Cable Length: 22 cm

YY5010H12S Applications
Primary applications include integration into POSITX industrial control mainboards, CNC spindle cooling systems, and telecom base station power supplies. Deployed within high-density server racks and automated manufacturing control panels to prevent thermal throttling of critical processing units.
