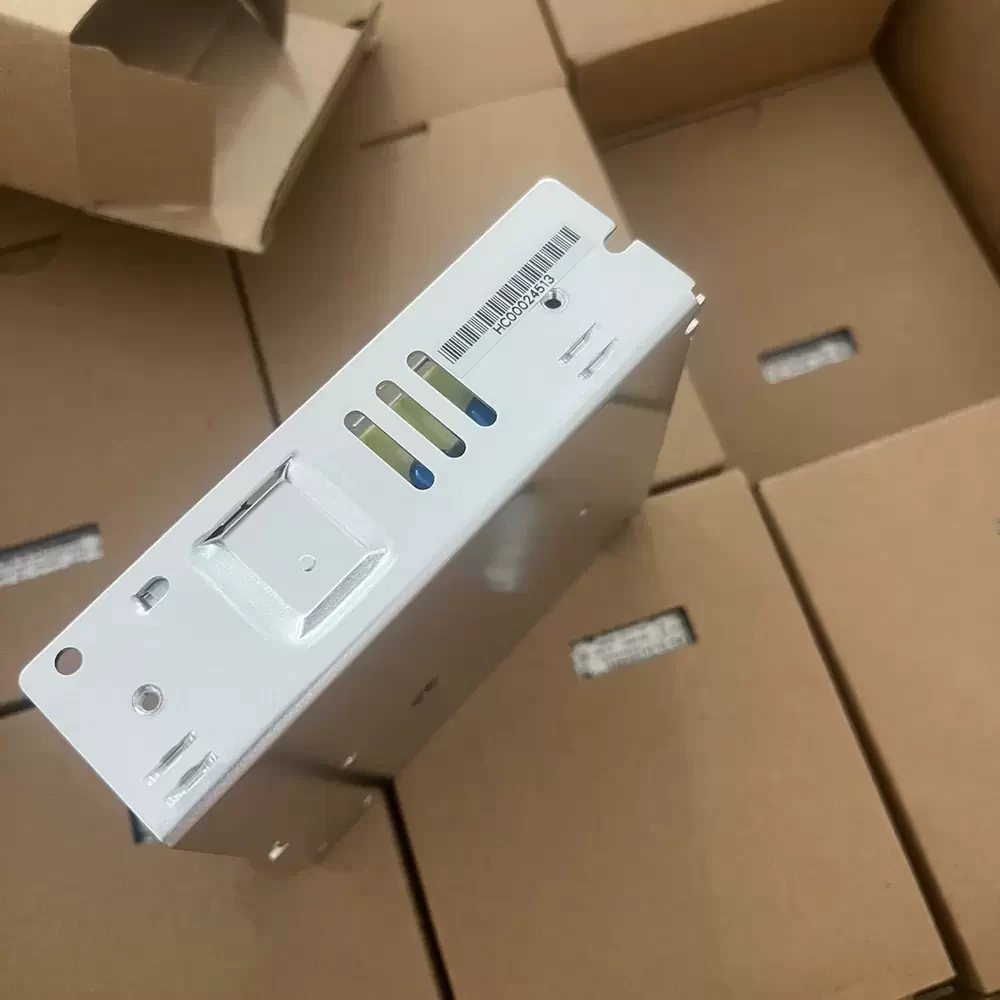

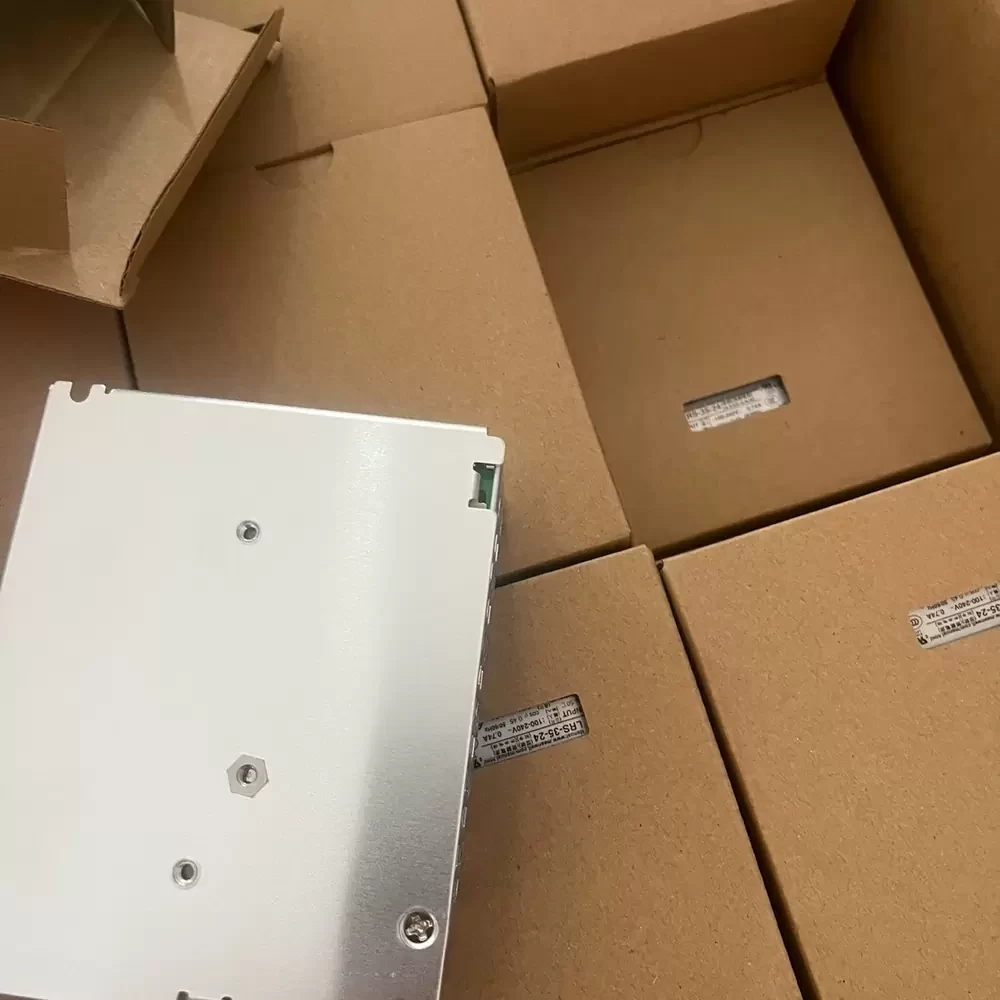

LRS-35-24 Mean Well 24VDC 36W 1.5A Enclosed Switching Power Supply

Description

Mean Well LRS-35-24 99 x 82 x 30 mm, 24 VDC, 36 W, 1.5 A single-output enclosed power supply features a 30 mm low profile design. The unit operates on a universal input range of 85 to 264 VAC and provides a 24 VDC output. It is constructed with a metallic mesh case to facilitate natural air convection cooling and includes a power-on LED indicator. The internal circuitry is designed to withstand 300 VAC surge inputs for 5 seconds and 5G vibration testing. It utilizes 105 °C long-life electrolytic capacitors and maintains a no-load power consumption of less than 0.2 W.

LRS-35-24 Specifications
Model: LRS-35-24
Brand: Mean Well
Category: Enclosed Switching Power Supply
Output Voltage: 24 VDC
Rated Current: 1.5 A
Current Range: 0 to 1.5 A
Rated Power: 36 W
Ripple and Noise: 150 mVp-p
Voltage Adj. Range: 21.6 to 28.8 VDC
Voltage Tolerance: ±1.0 %
Line Regulation: ±0.5 %
Load Regulation: ±0.5 %
Setup, Rise Time: 500 ms, 30 ms / 230 VAC
Hold Up Time: 50 ms / 230 VAC
Input Voltage Range: 85 to 264 VAC / 120 to 373 VDC
Input Frequency Range: 47 to 63 Hz
Efficiency: 88 %
AC Current: 0.7 A / 115 VAC, 0.42 A / 230 VAC
Inrush Current: 45 A / 230 VAC
Leakage Current: < 0.75 mA / 240 VAC
Overload Protection: 110 to 150 % rated output power
Over Voltage Protection: 28.8 to 33.6 V
Operating Temperature: -30 to +70 °C
Operating Humidity: 20 to 90 % RH non-condensing
Storage Temperature: -40 to +85 °C
Vibration Resistance: 10 to 500 Hz, 5G 10 min./1 cycle, 60 min. each along X, Y, Z axes
Safety Standards: UL 62368-1, TUV EN 62368-1, EAC TP TC 004, BSMI CNS14336-1
Withstand Voltage: I/P-O/P: 3.75 kVAC, I/P-FG: 2 kVAC, O/P-FG: 1.25 kVAC
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500 VDC / 25 °C / 70 % RH
Dimensions: 99 x 82 x 30 mm (L x W x H)
Weight: 0.23 kg

LRS-35-24 Applications
Primary applications include integration into industrial automation machinery, control systems, and mechanical and electrical equipment. Deployed within household appliances, telecommunications infrastructure, and LED signage power distribution units.
