Description

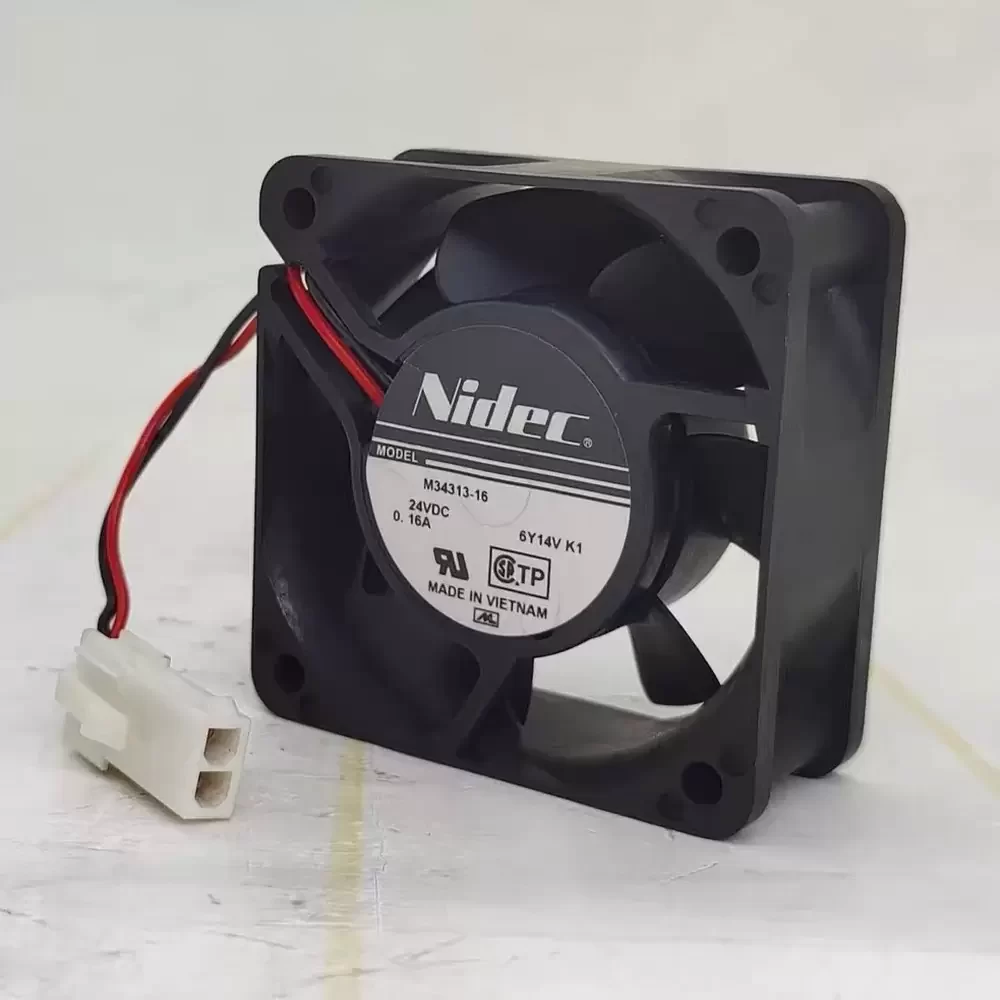

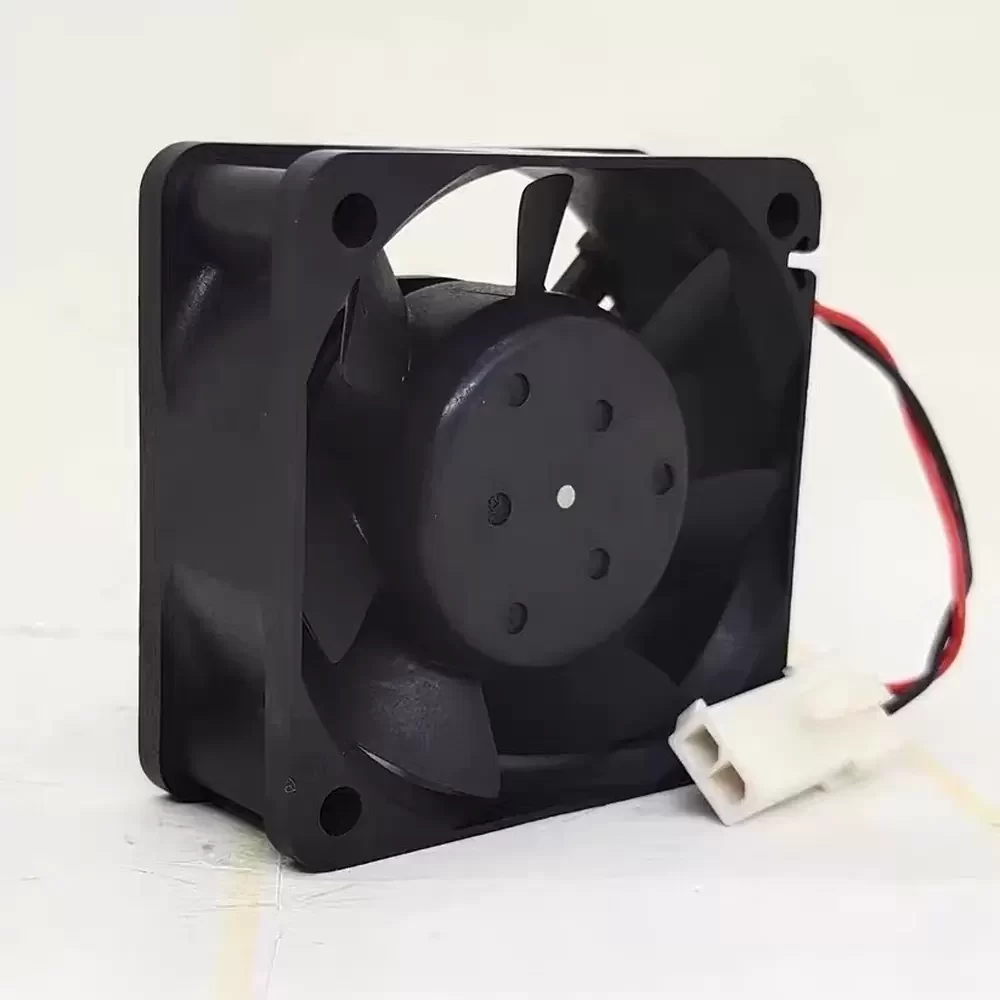

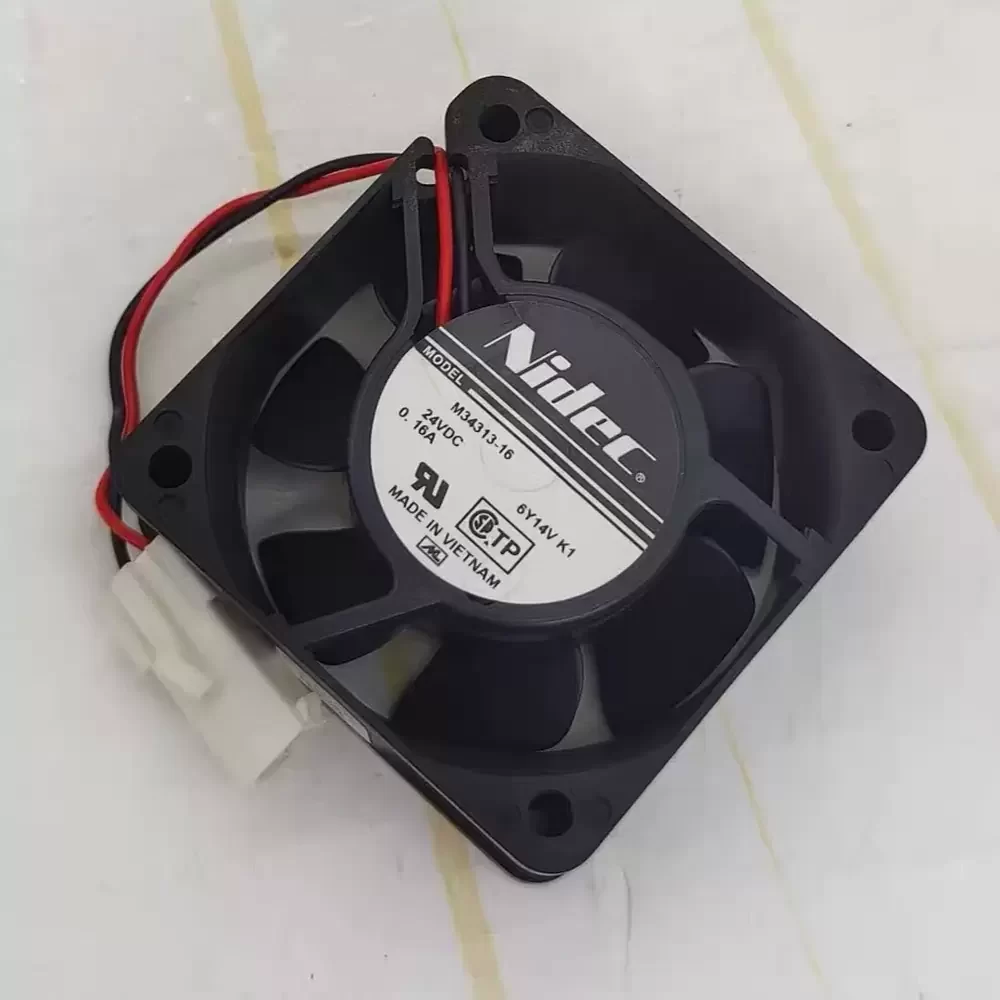

The Nidec M34313-16 is a high-precision DC axial fan engineered for critical thermal management in industrial environments. Utilizing advanced brushless motor technology, this unit minimizes thermal impedance while maintaining structural rigidity under continuous duty cycles. The aerodynamic impeller design is optimized for high static pressure, ensuring efficient heat dissipation through dense heat sinks and restricted enclosures. Its robust construction and specialized bearing architecture provide long-term stability and low vibration, making it an essential component for maintaining the operational integrity of sensitive power electronics and automated control systems.
Model Number: M34313-16
Brand: Nidec
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.16A
Power: 3.84W
Rated Speed: 4500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 23.5 CFM (39.9 m³/h)
Max. Static Pressure: 5.4 mmH₂O (53.0 Pa)
Dimensions: 60x60x25mm
Weight: 65g
Life Expectancy: 70,000 Hours at 40°C
Housing Material: UL94V-0 PBT Plastic
Blade Material: UL94V-0 PBT Plastic
Termination: 2-Wire Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Insulation Class: Class A
Certifications: UL, CSA, TUV, CE
The Nidec M34313-16 is specifically designed for integration into frequency converters and industrial inverters where consistent airflow is vital for power module cooling. In addition to motor drives, the M34313-16 is frequently deployed in telecommunications base stations, server power supplies, and medical diagnostic equipment. Its compact 60mm form factor allows for versatile mounting in space-constrained control cabinets and CNC machinery, ensuring that the M34313-16 delivers reliable performance in demanding 24/7 applications.
