Description

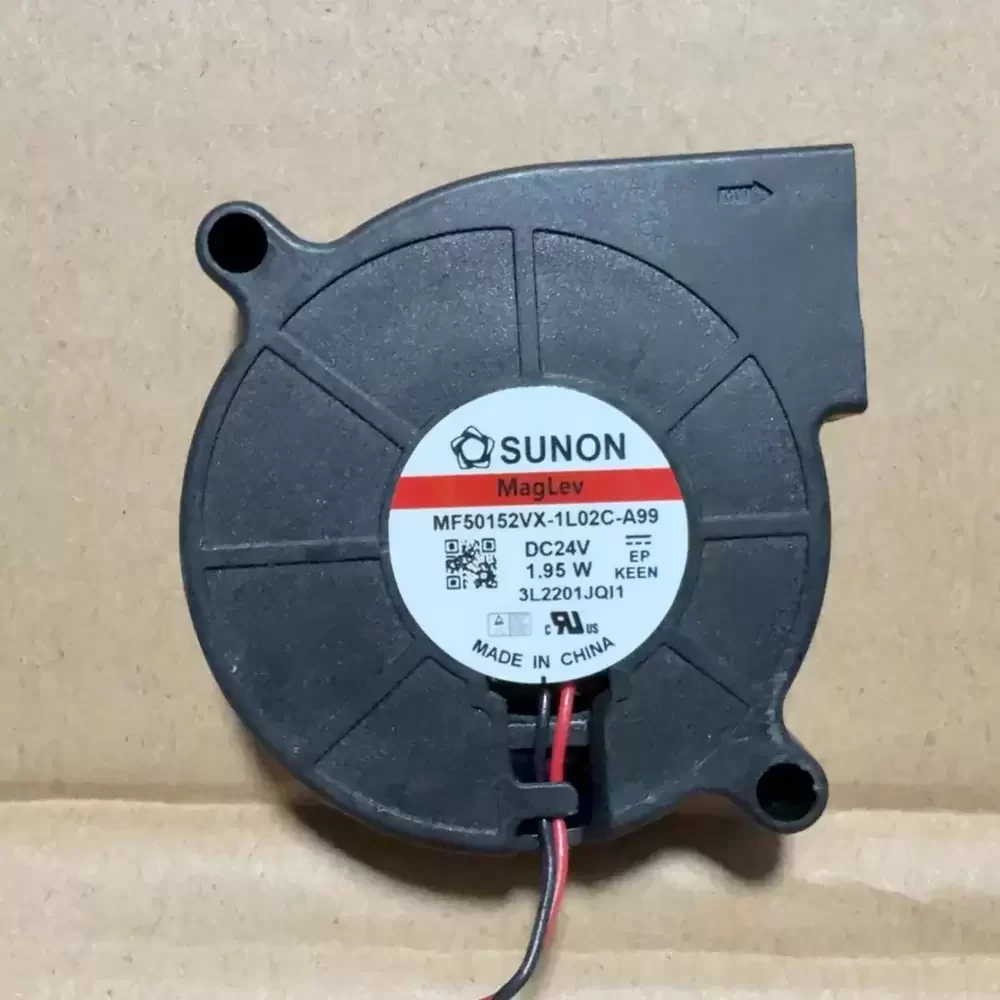

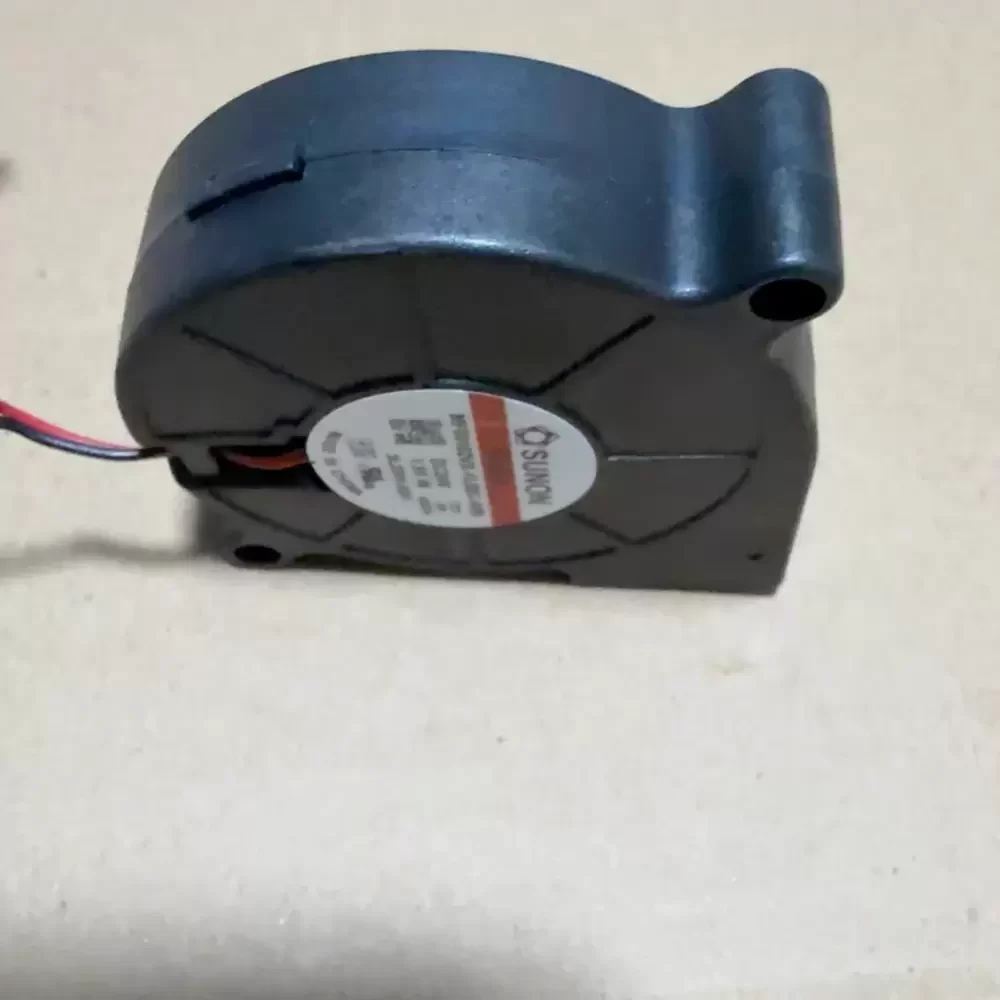

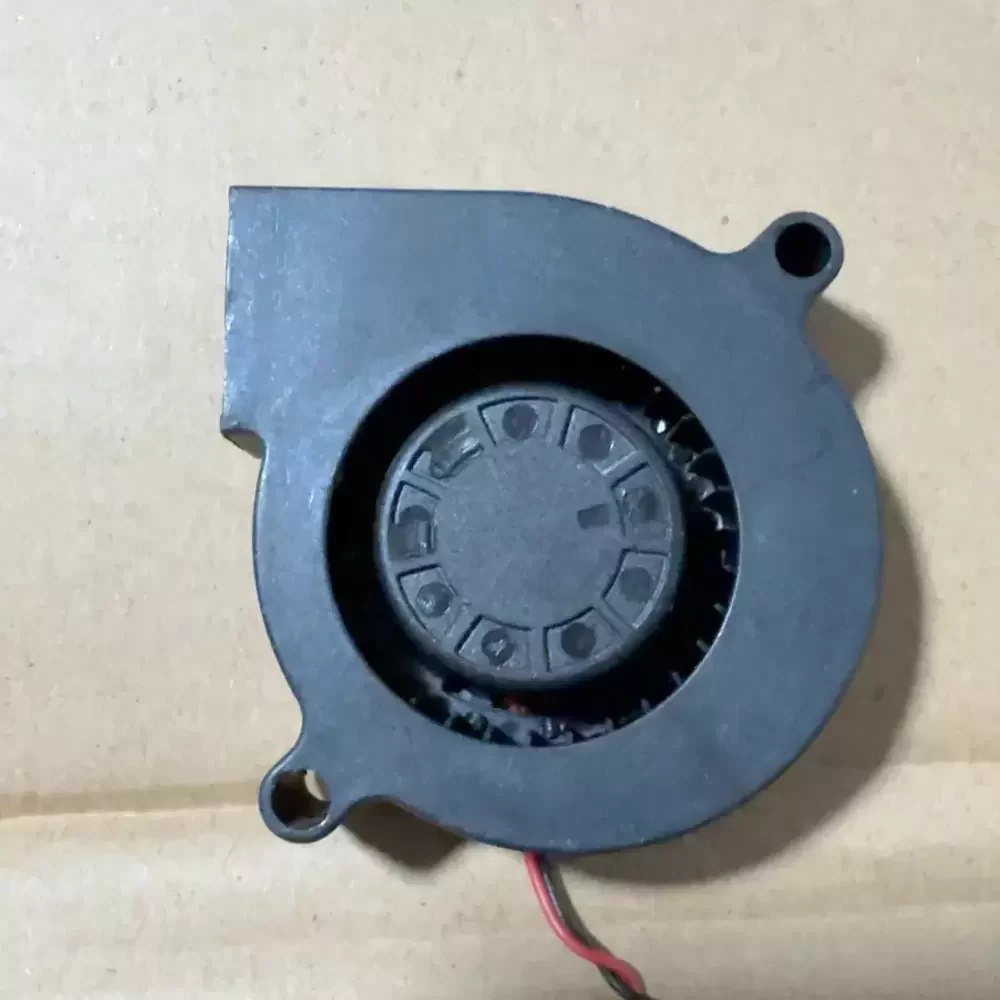

Sunon MF50152VX-1L02C-A99 is a 24VDC 50x50x15mm Blower optimized for localized thermal management in high-impedance environments. The MagLev bearing system utilizes magnetic levitation to eliminate physical contact between the shaft and bearing, preventing friction-induced wear and ensuring stable operation under continuous 24/7 thermal stress. By maintaining a consistent 1.95W power draw, this 50x50x15mm 24VDC Blower generates concentrated airflow necessary to overcome the static pressure of dense internal components. Integrated MagLev Blower technology allows for significantly reduced acoustic resonance while sustaining the high rotational speeds required for effective heat dissipation in compact enclosures.
Model Number: MF50152VX-1L02C-A99
Brand: Sunon
Product Type: Centrifugal Blower
Rated Voltage: 24VDC
Voltage Range: 20.4 – 27.6 VDC
Rated Current: 0.081 Amps
Power: 1.95 Watts
Rated Speed: 6000 RPM
Bearing Type: VAPO / MagLev
Max. Air Flow: 4.8 CFM
Max. Static Pressure: 0.97 inH2O
Dimensions: 50x50x15mm
Weight: 30g
Life Expectancy: 70,000 Hours at 40C
Noise Level: 42.2 dB(A)
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)

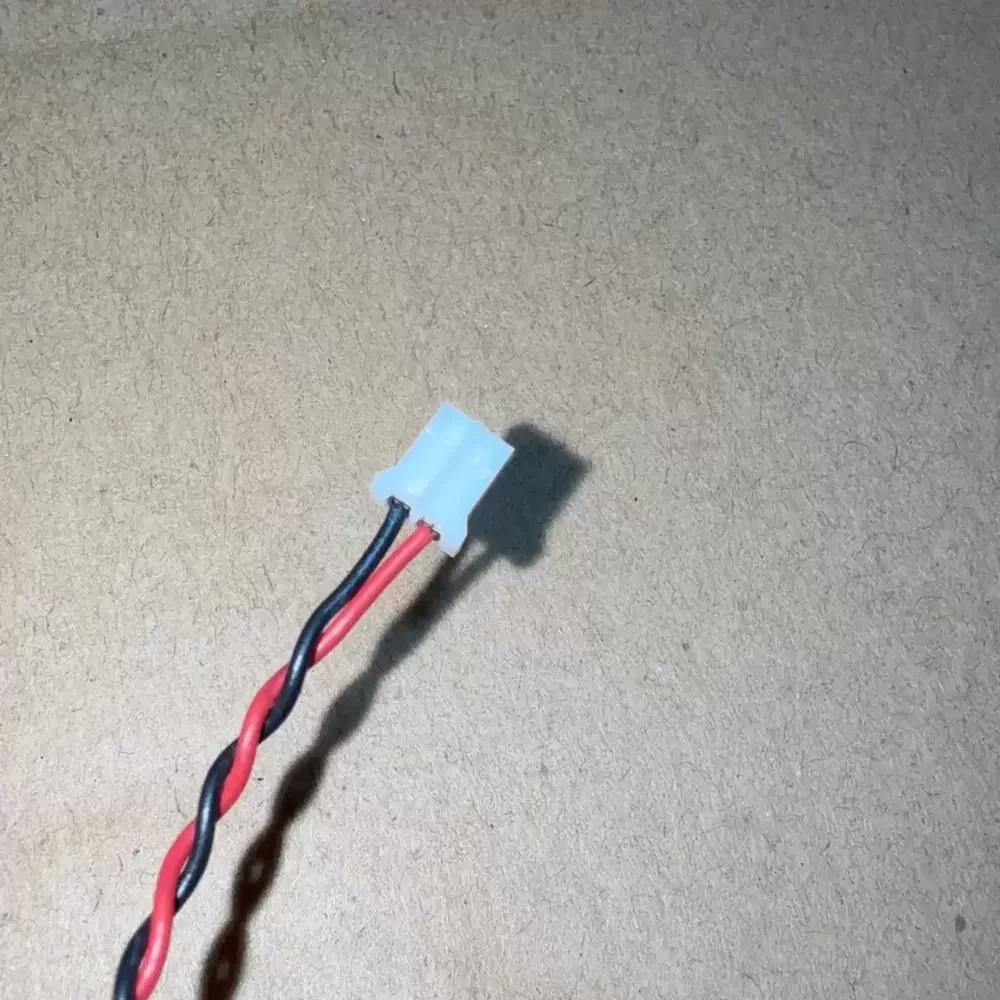

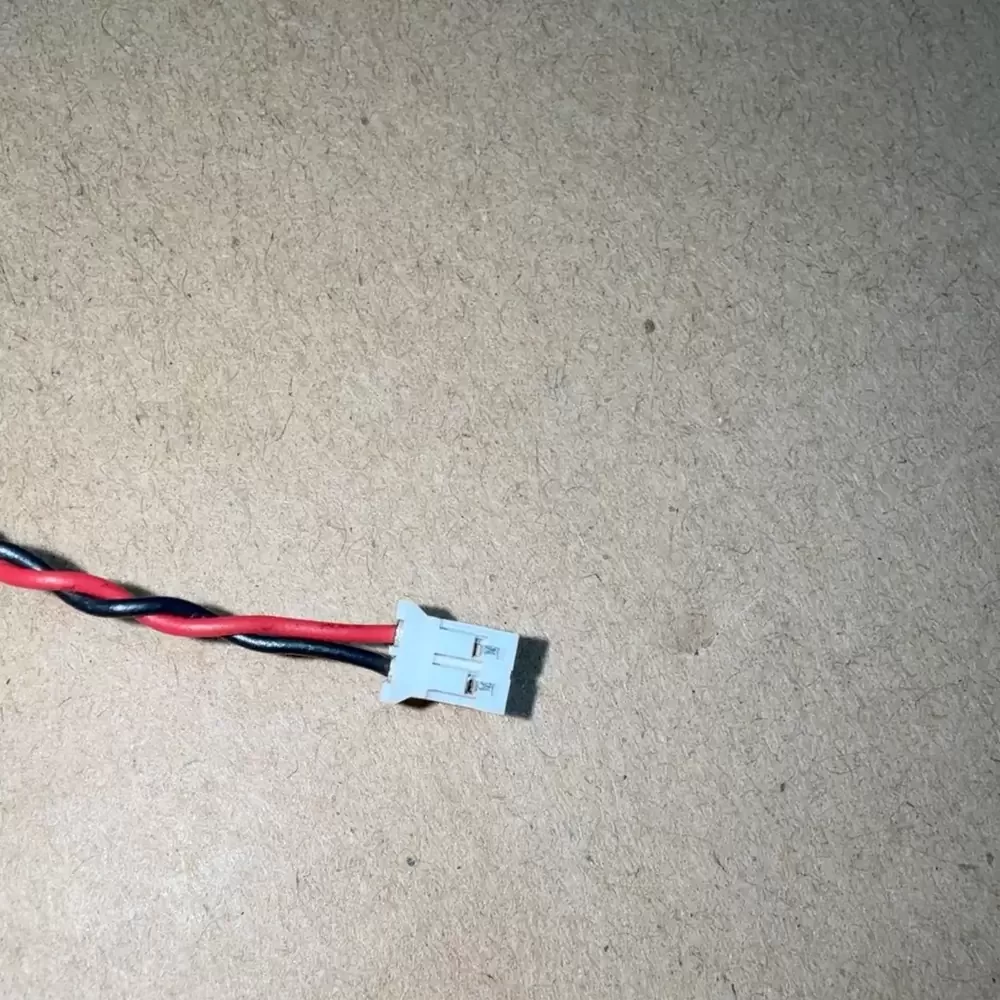

Termination: 2-Wire Lead Wires with Connector
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +70 C
Protection Features: Auto-Restart, Polarity Protection
Applications & Industry Use Cases
1. Stage Lighting Systems: Prevents heat soak in beam lights and high-intensity stage projectors.
2. Ultrasonic Humidifiers: Provides the concentrated airflow needed for efficient moisture vapor distribution.
3. Air Purification Units: Acts as a compact replacement fan for internal filtration circulation.
4. Industrial PLCs: Maintains thermal equilibrium within small-form-factor automation control cabinets.
5. Medical Equipment: Ensures quiet, reliable cooling for portable diagnostic and respiratory devices.
