Description

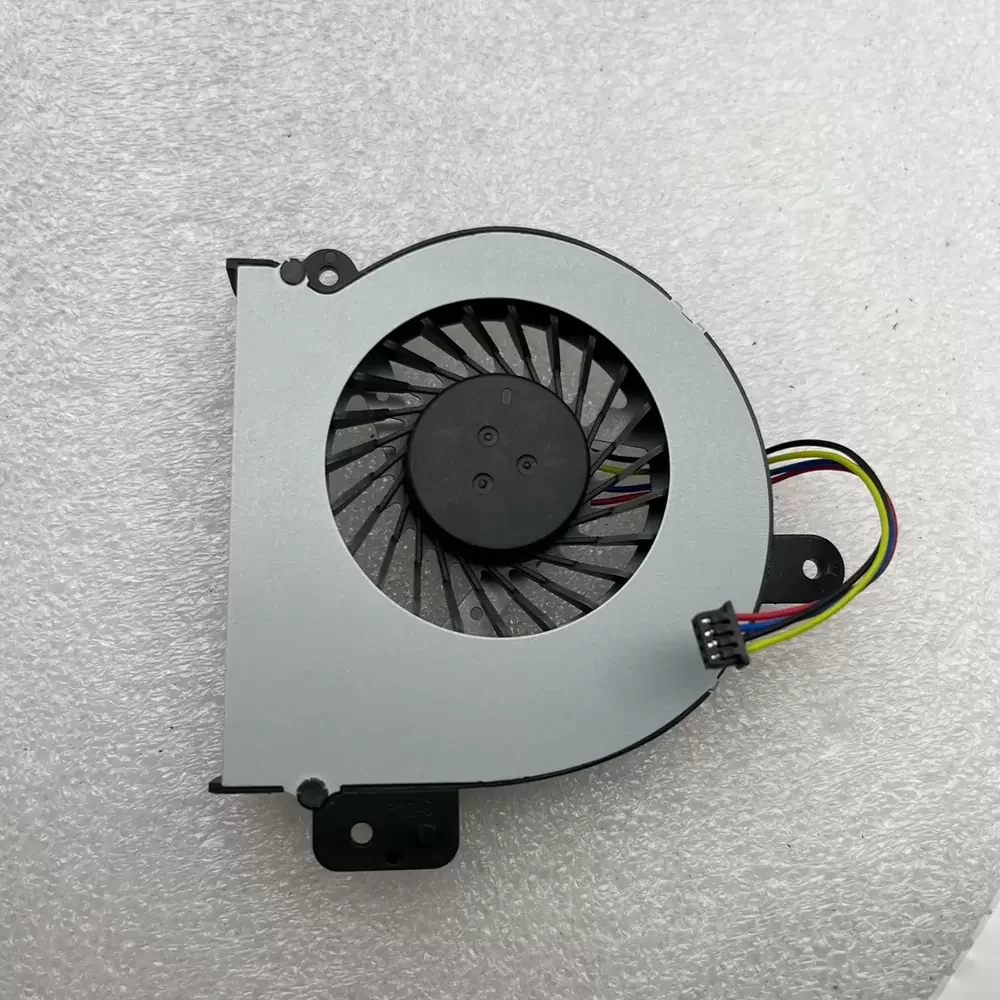

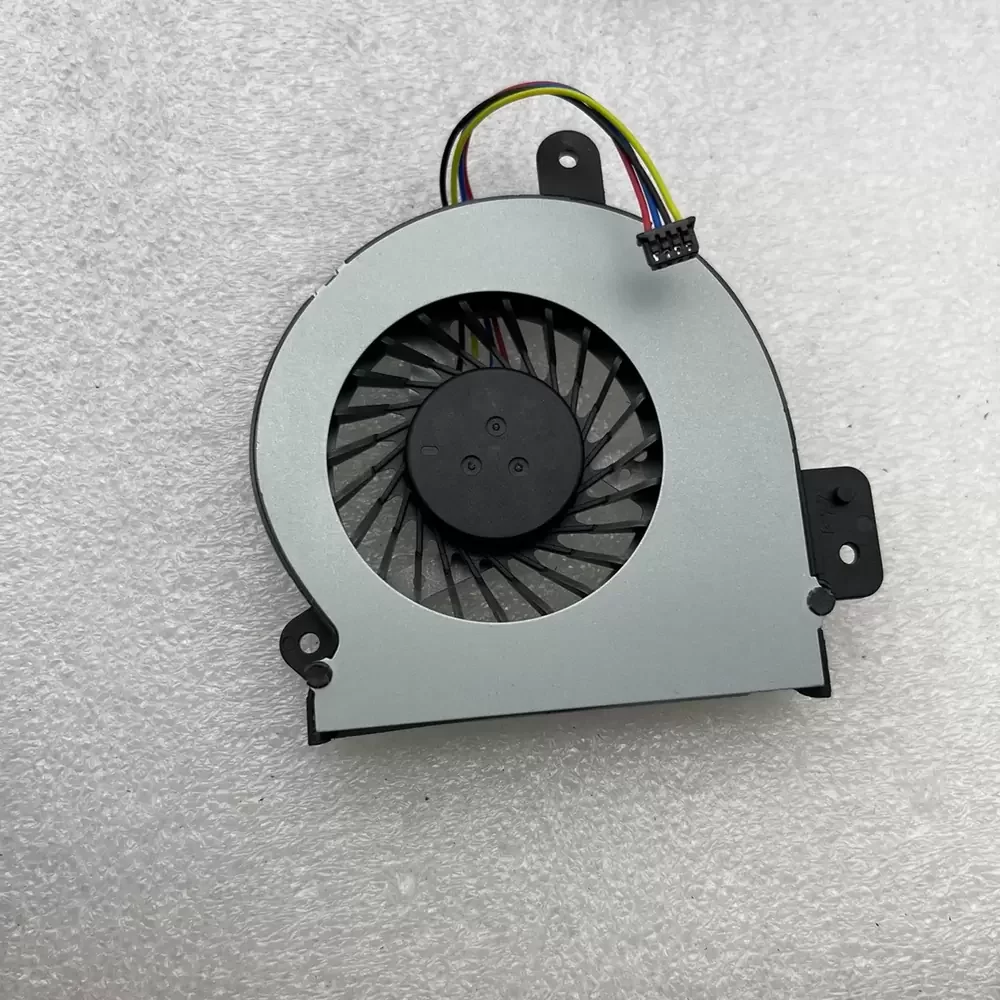

SUNON MF60090V1-C482-S9A is a 5VDC 60x60x9mm Blower Fan optimized for thermal management in ultra-compact computing environments. Utilizing SUNON’s proprietary MagLev motor technology, this unit minimizes thermal impedance while maintaining structural rigidity under high-speed operation. The aerodynamic impeller design is engineered to overcome the high system impedance typical of dense laptop heat sink assemblies. Operating at a rated power of 2.00W, this 4-wire PWM-controlled fan provides precise thermal regulation and low acoustic signatures. It serves as a critical cooling component for ASUS VM60 and VM40B series, ensuring stable performance by maintaining optimal junction temperatures through efficient heat dissipation.
Model Number: MF60090V1-C482-S9A
Brand: SUNON
Product Type: Blower Fan
Rated Voltage: 5 VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.40 A
Power: 2.00 W
Rated Speed: 4500 RPM
Bearing Type: Vapo Bearing
Max. Air Flow: 4.8 CFM (8.15 m³/h / 0.13 m³/min)
Max. Static Pressure: 13.21 mmH₂O (129.5 Pa / 0.52 inH₂O)
Dimensions: 60 x 60 x 9 mm
Weight: 25 g
Life Expectancy: 50000 hours
Speed Control: 4-Wire PWM / Tachometer
Ingress Protection: IP50
Insulation Class: Class A
Noise Level: 32.5 dB(A)
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: 4-Pin Connector
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +70 C
Mounting Orientation: Any
Protection Features: Auto Restart, Polarity Protection
MF60090V1-C482-S9A Applications
1. ASUS VM60 and VM40B Series Laptops: Direct replacement fan engineered to match the specific pressure-flow curve required for internal heat pipe cooling modules.
2. Small Form Factor (SFF) PC Cooling: Ideal for overcoming high system impedance in restricted airflow environments where a standard axial fan cannot provide sufficient static pressure.
