Description

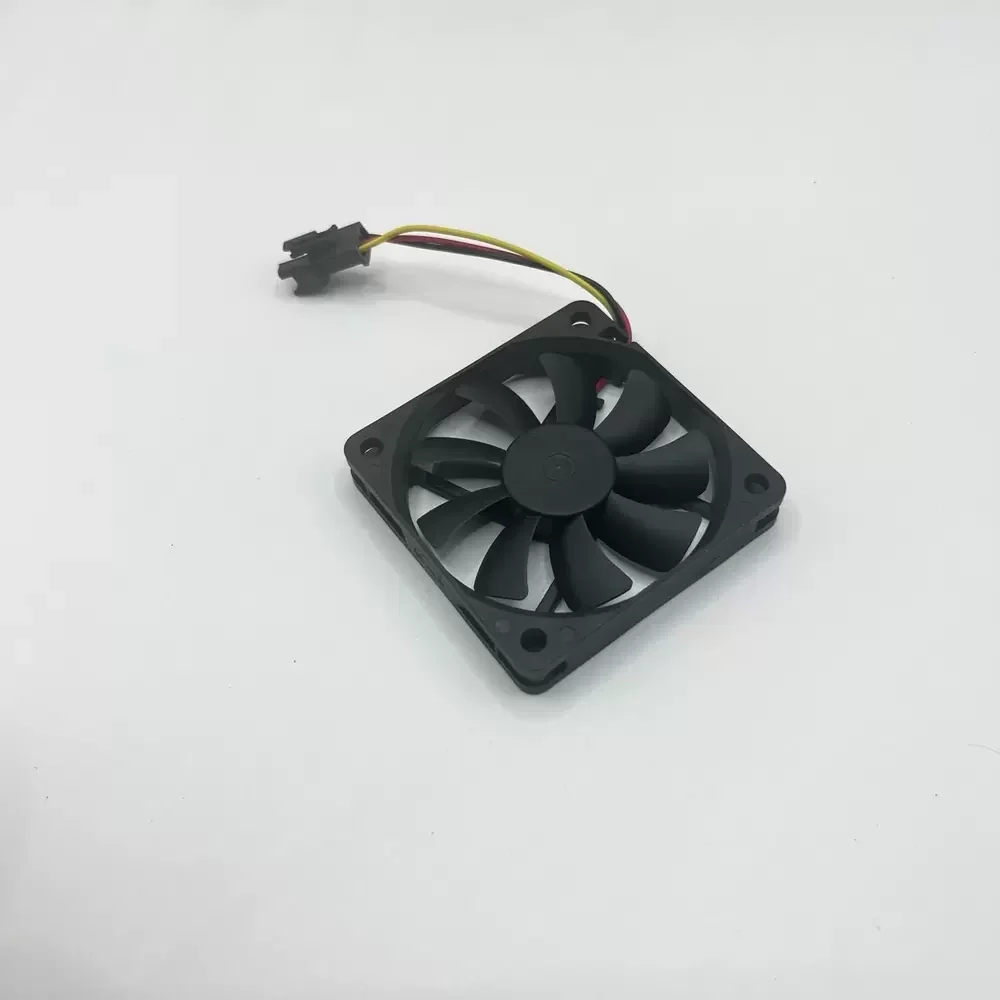

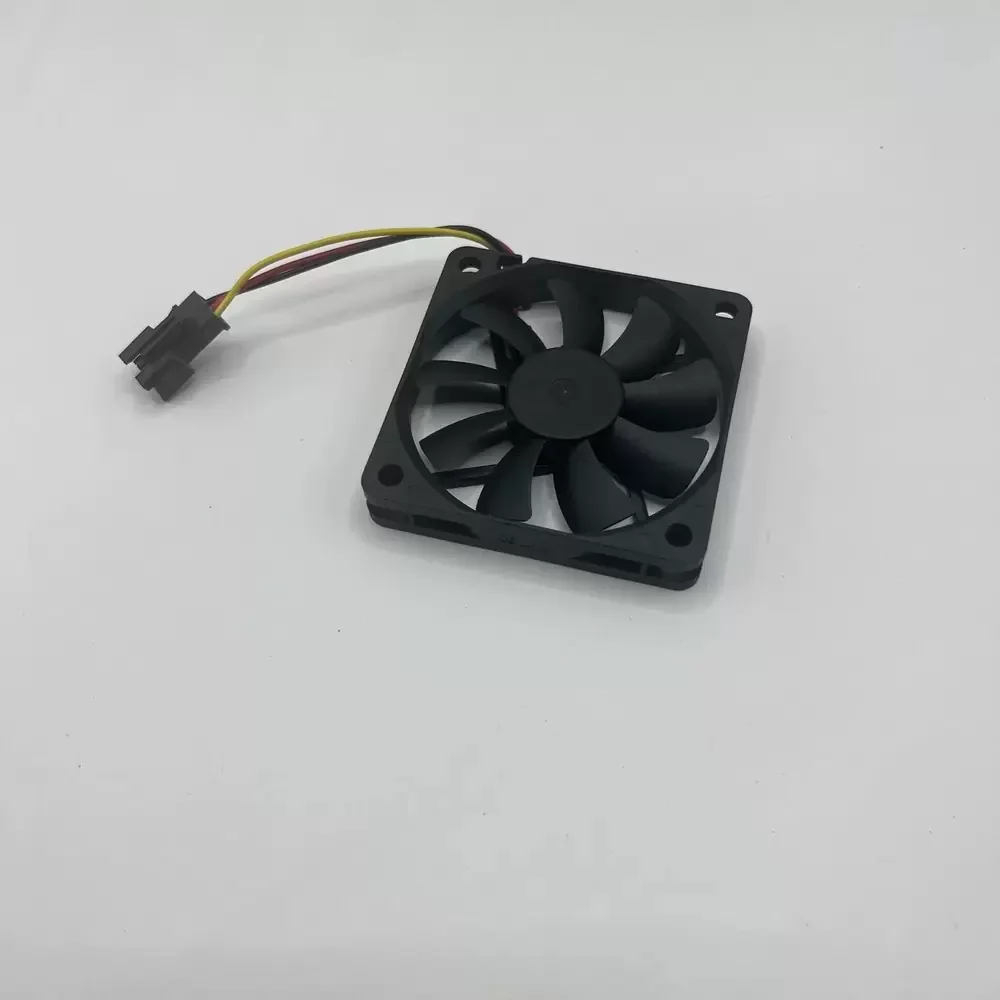

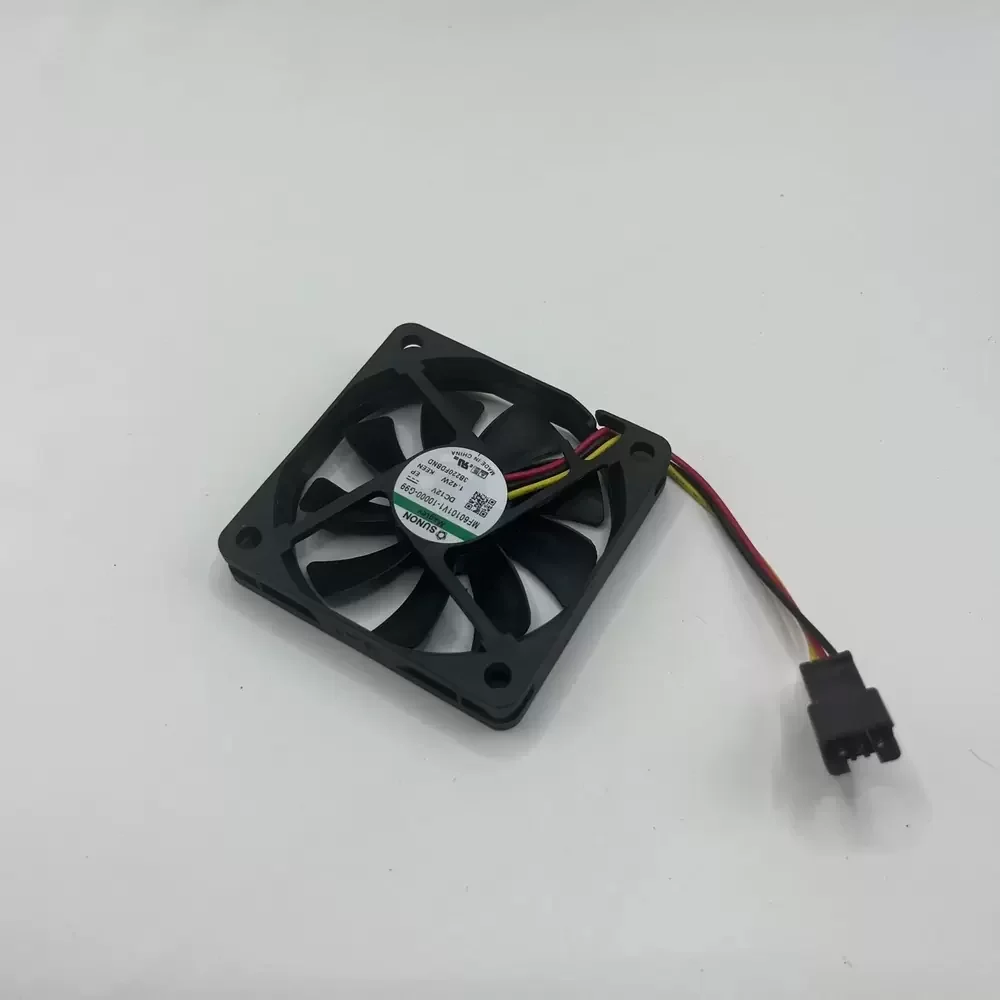

The Sunon MF60101V1-10000-G99 is a DC Axial Fan engineered for high-density electronic cooling applications requiring a compact footprint. Utilizing Sunon’s proprietary MagLev (Magnetic Levitation) Vapo bearing technology, this unit eliminates physical contact between the shaft and bearing, significantly reducing mechanical friction, noise, and vibration while extending operational lifespan. The aerodynamic impeller design optimizes airflow while maintaining structural rigidity, ensuring consistent thermal performance under continuous load. With a rated power of 1.42W, this 60mm fan delivers efficient heat dissipation, minimizing thermal impedance in restricted enclosures where space is at a premium.
Model Number: MF60101V1-10000-G99
Brand: Sunon
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 4.5 – 13.8 VDC
Rated Current: 0.118 A
Power: 1.42 W
Rated Speed: 4800 RPM
Bearing Type: MagLev Vapo Bearing
Max. Air Flow: 17.5 CFM (29.7 m³/h / 0.49 m³/min)
Max. Static Pressure: 3.56 mmH₂O (34.9 Pa / 0.14 inH₂O)
Dimensions: 60 x 60 x 10 mm
Weight: 22.0 g
Life Expectancy: 60,000 Hours at 40°C
Noise Level: 32.5 dB(A)
Speed Control: 3-Wire (Tachometer/Frequency Generator)
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP5X (Dust Protected)
Insulation Class: Class A
Safety Certifications: UL, CUR, TUV
Lead Wire: UL1007, 26 AWG
Designed for precision thermal management, the MF60101V1-10000-G99 is widely utilized in compact computer chassis, server rack cooling modules, and industrial automation equipment. Its slim 10mm profile allows for seamless integration into space-constrained devices such as network switches, projectors, and medical instrumentation. The MF60101V1-10000-G99 ensures reliable operation in continuous duty cycles, making it an ideal solution for telecommunications hardware and power supply cooling requirements.
