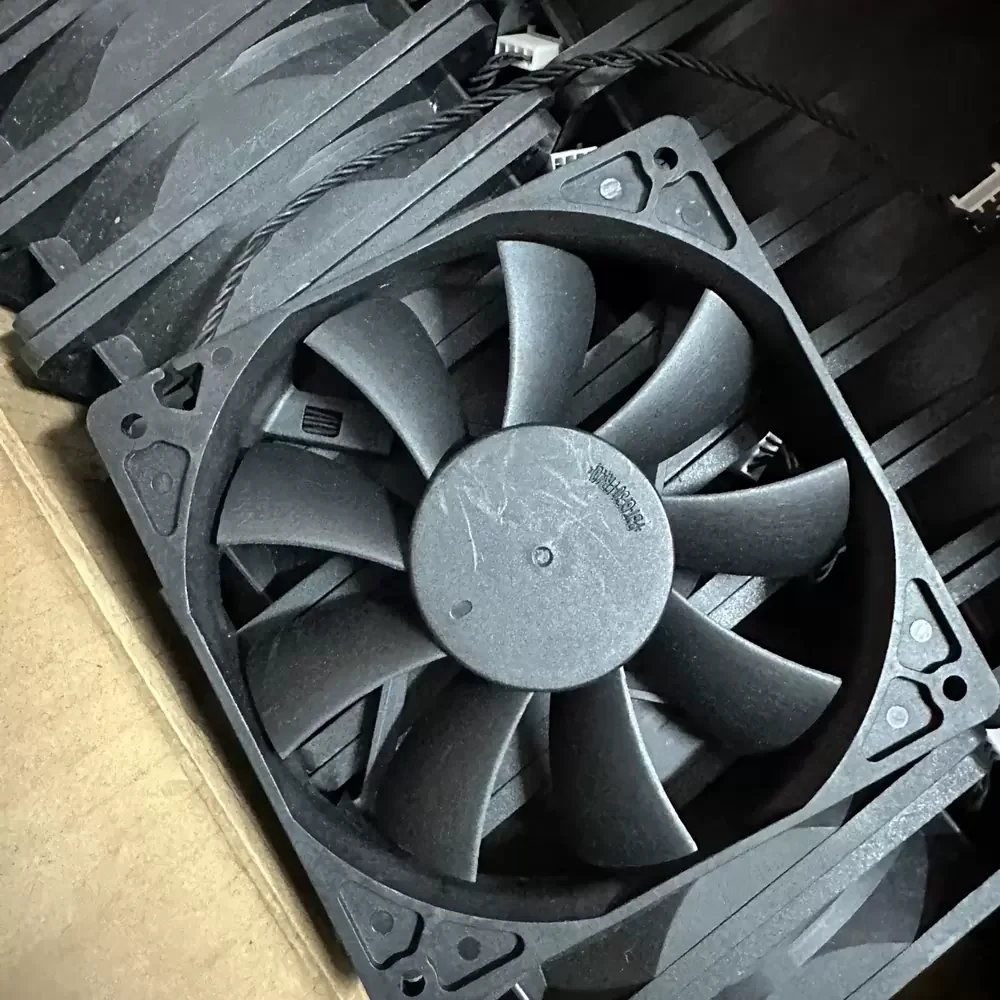

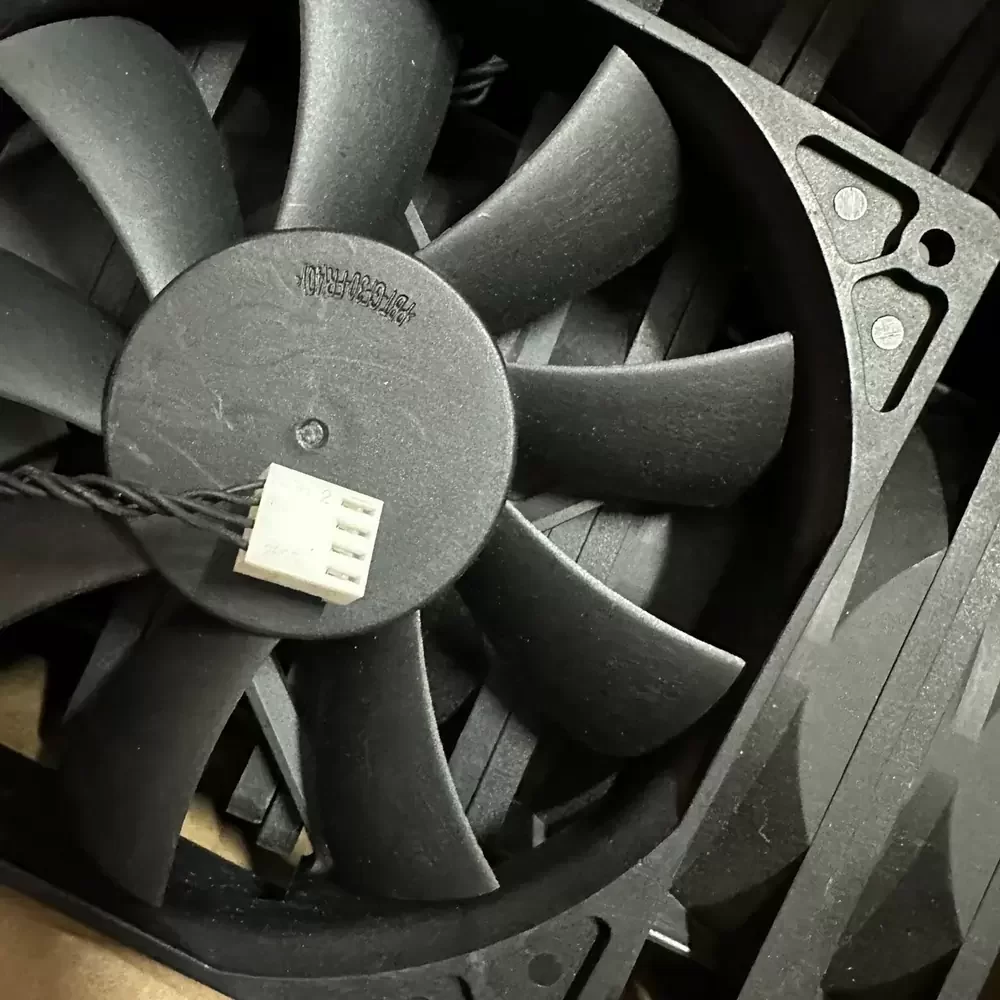

AUB1212H-A01 Delta 12VDC 0.39A 120x120x25mm Axial Fan

Description

Delta AUB1212H-A01 is a 120 x 120 x 25.4 mm axial cooling fan operating at a nominal 12 VDC with a 0.39 A rated current. It features a Superflo bearing system and a 4-wire interface for PWM speed control and tachometer feedback. The unit utilizes a plastic PBT (UL 94V-0) impeller and frame, delivering 92.52 CFM of airflow and 6.35 mmH2O static pressure at a rated speed of 2800 RPM.

AUB1212H-A01 Specifications
Model: AUB1212H-A01
Brand: Delta Electronics
Category: DC Axial Fan
Dimensions: 120 x 120 x 25.4 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.8 VDC
Rated Current: 0.39 A
Input Power: 4.68 W
Rated Speed: 2800 RPM
Maximum Airflow: 92.52 CFM (2.620 m³/min)
Maximum Static Pressure: 6.35 mmH2O (0.250 inH2O)
Noise Level: 39.0 dB-A
Bearing Type: Superflo
Interface: 4-wire (PWM and Tachometer)
Material: Plastic PBT (UL 94V-0)
Operating Temperature: -10 to 60 °C
Storage Temperature: -40 to 70 °C
Weight: 190 g
Certifications: UL, TUV, CE

AUB1212H-A01 Applications
Primary applications include integration into server chassis, high-performance workstation enclosures, and industrial power supply units. Deployed within telecommunications equipment racks and automated control cabinets for thermal management of internal electronic components.
