MGA8012UR-O25 Protechnic 12VDC 0.66A 80x80x25mm Axial Fan

Description

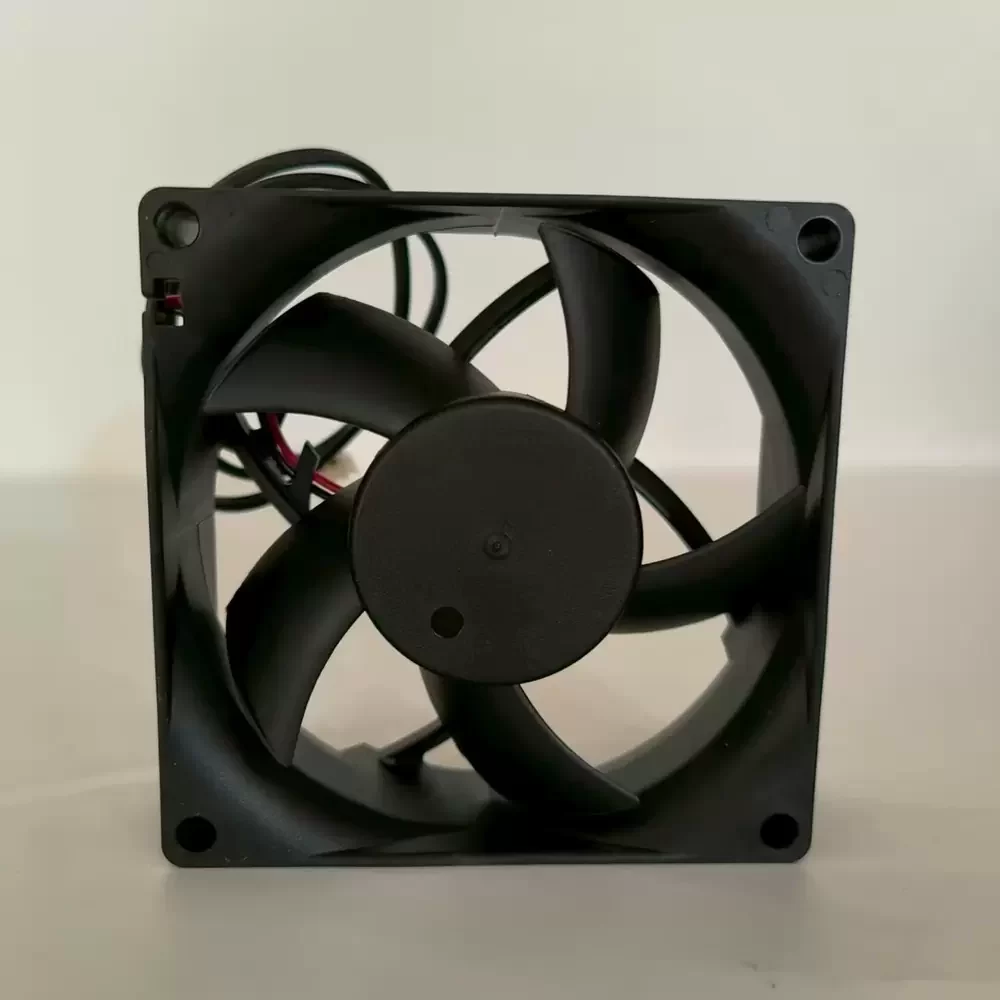

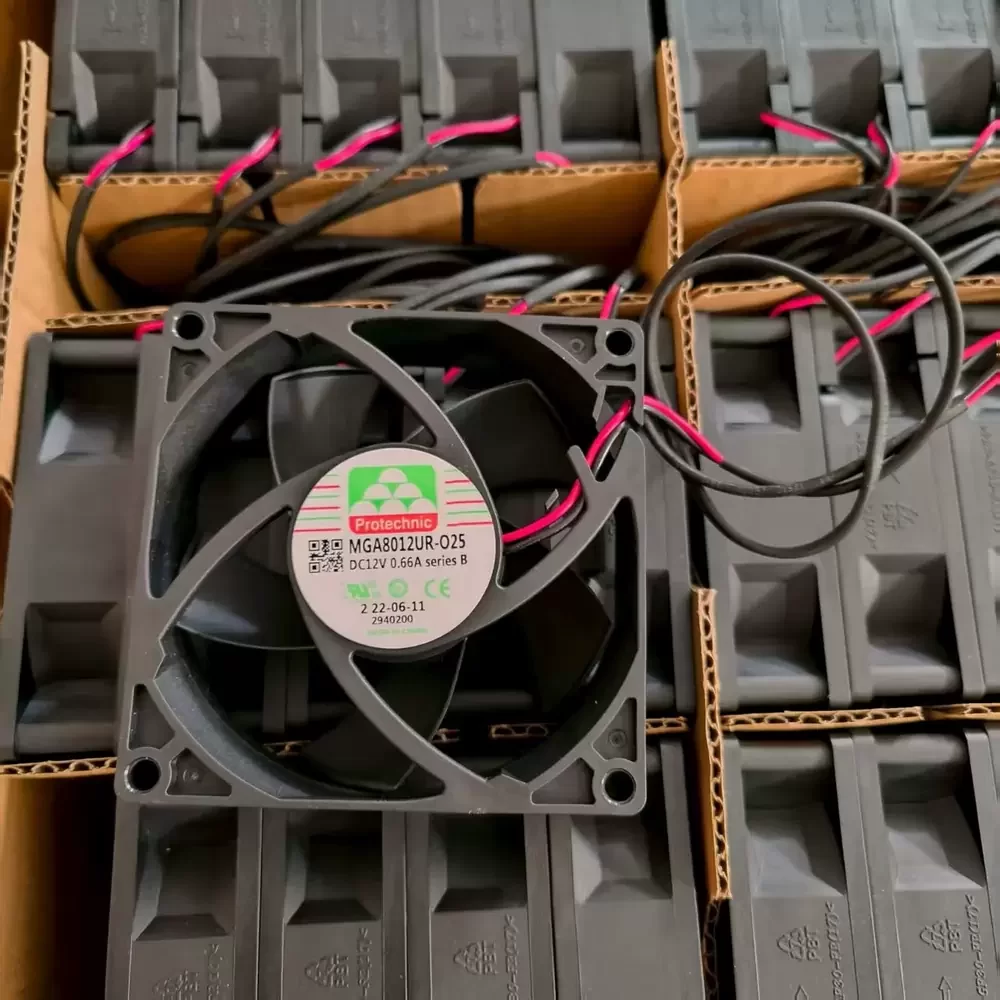

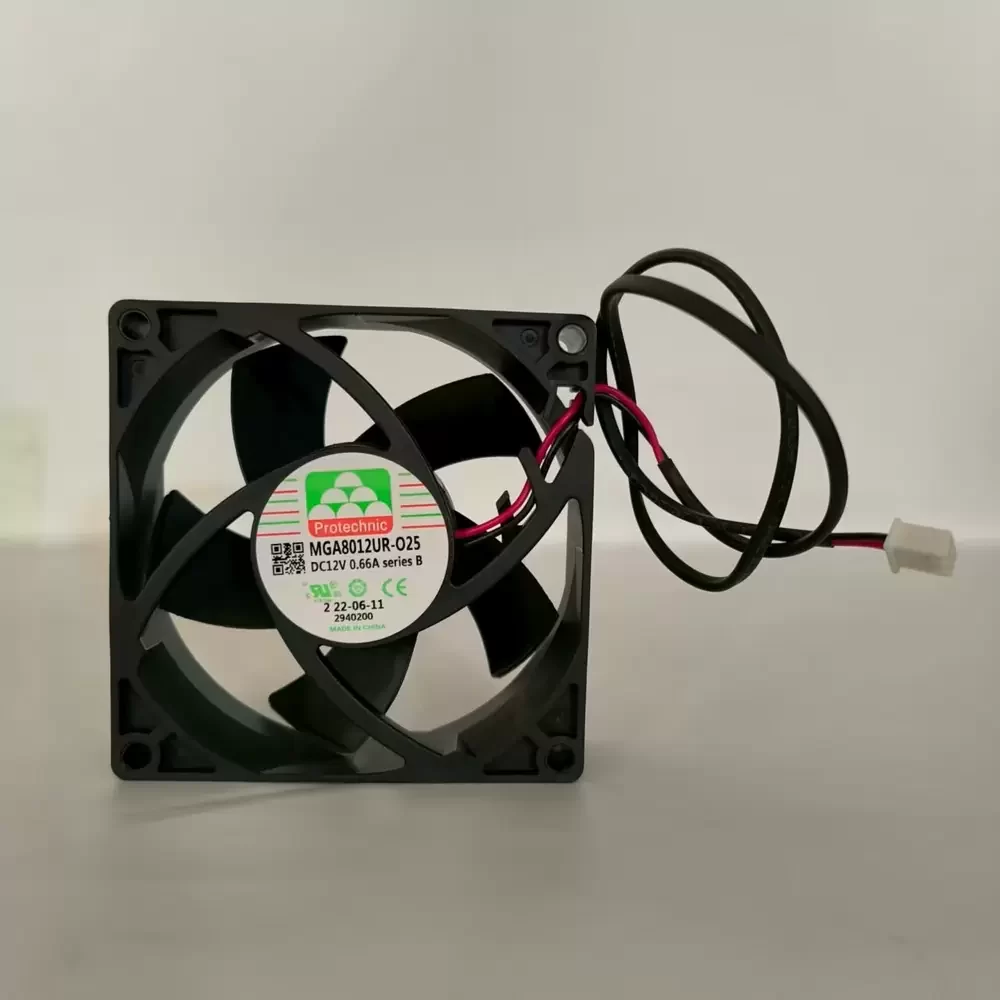

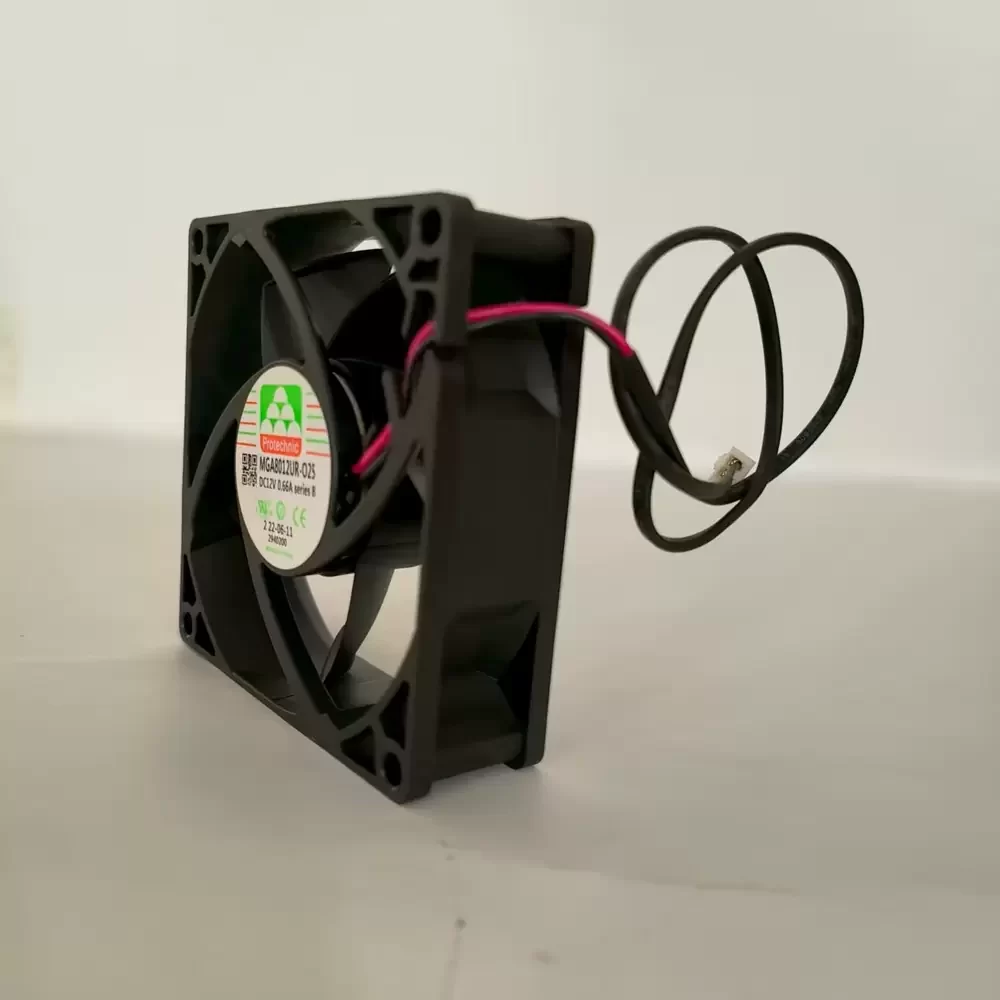

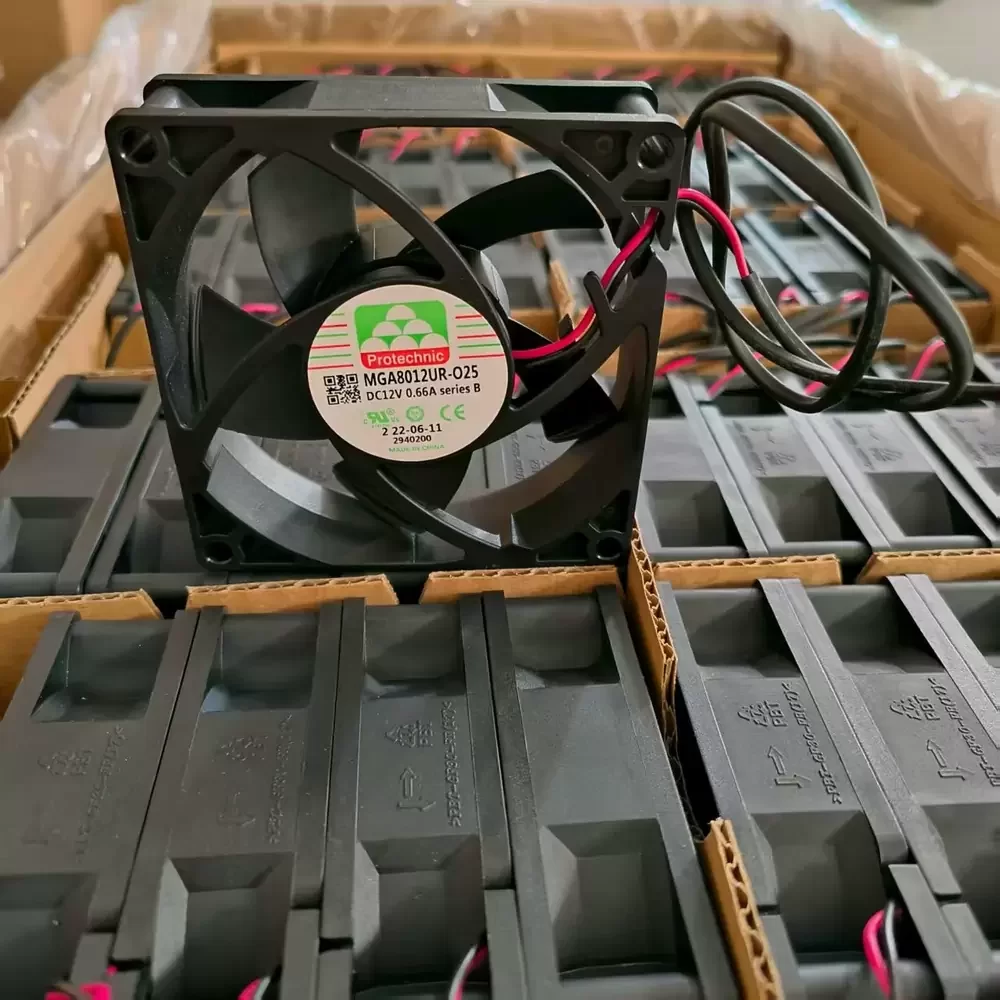

Protechnic MGA8012UR-O25 is an 80 x 80 x 25 mm axial cooling fan operating at 12 VDC with a 0.66 A current draw. The unit features a five-blade reinforced PBT plastic impeller and a brushless DC motor architecture. It utilizes a high-performance dual ball bearing system designed for high-speed stability and extended operational life. Electrical connection is established via 400 mm lead wires terminated with a 2.54 mm pitch connector. The frame is constructed from UL 94V-0 rated thermoplastic.

MGA8012UR-O25 Specifications
Model: MGA8012UR-O25
Brand: Protechnic (Magic)
Category: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 to 13.2 VDC
Rated Current: 0.66 A
Rated Power: 7.92 W
Bearing Type: Dual Ball Bearing
Impeller Material: PBT Plastic (UL 94V-0)
Frame Material: PBT Plastic (UL 94V-0)
Number of Blades: 5
Lead Wire Length: 400 mm
Connector Type: 2.54 mm Pitch
Motor Type: Brushless DC
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 70 °C
Insulation Resistance: 10M Ohm at 500 VDC
Dielectric Strength: 5 mA Max at 500 VAC for 1 minute
Safety Approvals: CE, TUV, UL

MGA8012UR-O25 Applications
Primary applications include integration into industrial PC (IPC) chassis, high-density server rack enclosures, and switch-mode power supply (SMPS) thermal management systems. Deployed within CNC controller cabinets and telecommunications base station cooling modules.
