Description

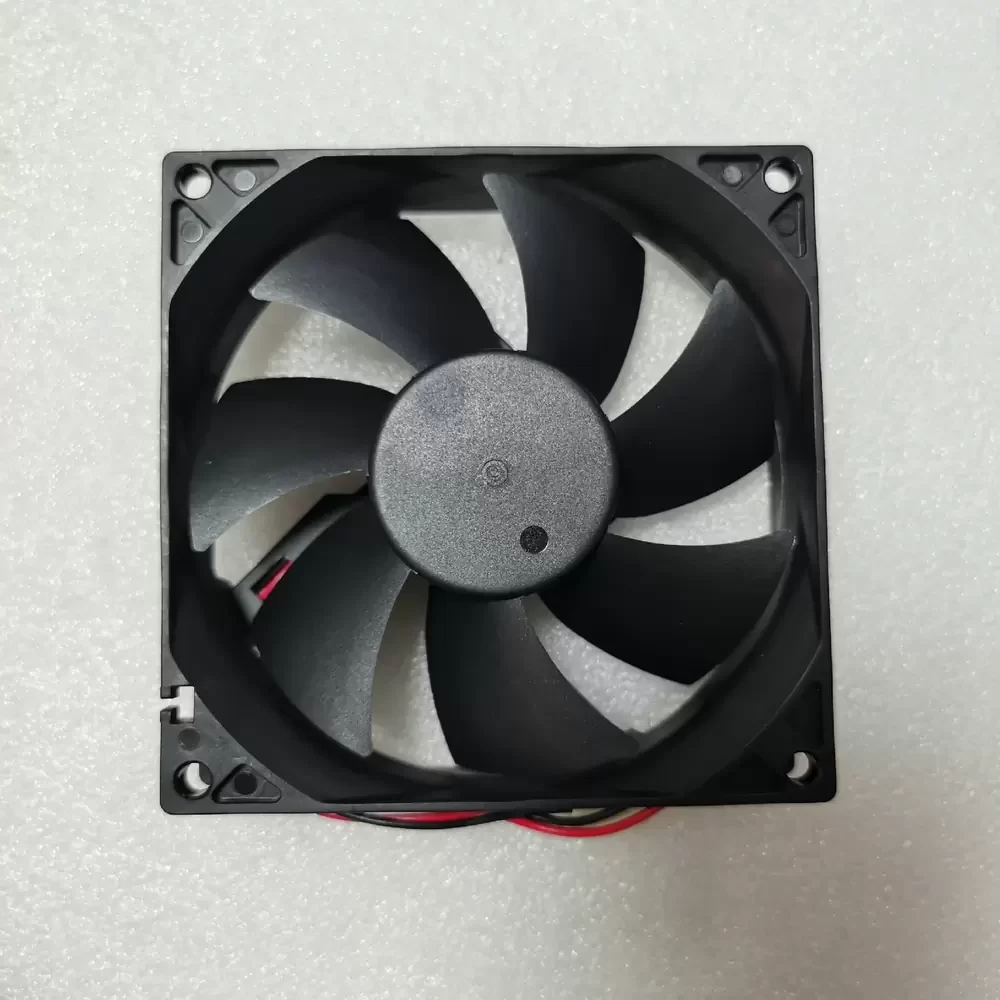

The Magic MGA9212XR-A25 is a precision-engineered Axial Fan designed for high-efficiency thermal management in industrial and electronic environments. Utilizing advanced DC Brushless motor technology combined with a low-friction Hydraulic Bearing system, this unit ensures optimal rotational stability and reduced mechanical wear over extended operational periods. The aerodynamic impeller design maximizes air throughput while maintaining structural rigidity under load, effectively overcoming system resistance. Engineered for reliability, it minimizes thermal impedance in enclosed chassis environments, delivering consistent performance for critical cooling applications.
Model Number: MGA9212XR-A25
Brand: Magic (Protechnic Electric)
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.32 A
Power Consumption: 3.84 W
Rated Speed: 2800 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 52.6 CFM (89.4 m³/h / 1.49 m³/min)
Max. Static Pressure: 3.80 mmH₂O (37.27 Pa / 0.15 inH₂O)
Dimensions: 92 x 92 x 25 mm
Weight: 95 g
Life Expectancy: 40,000 Hours

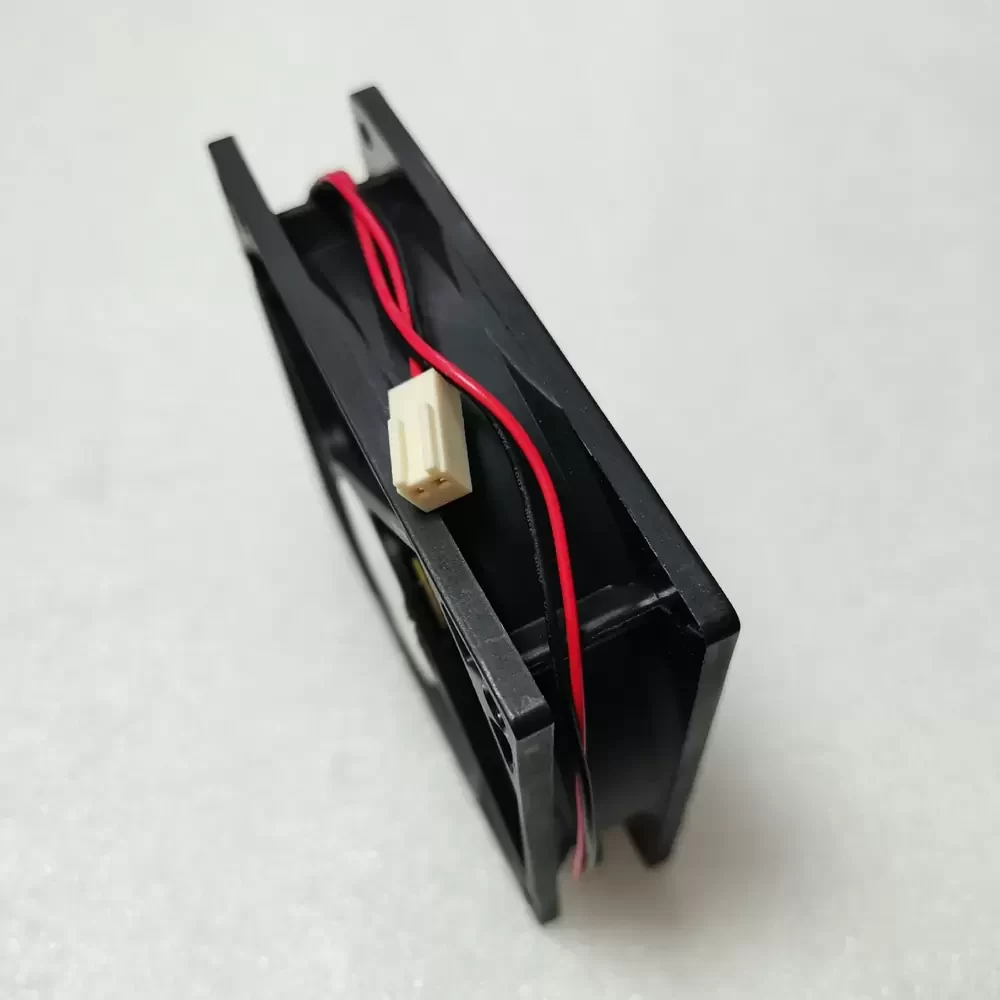

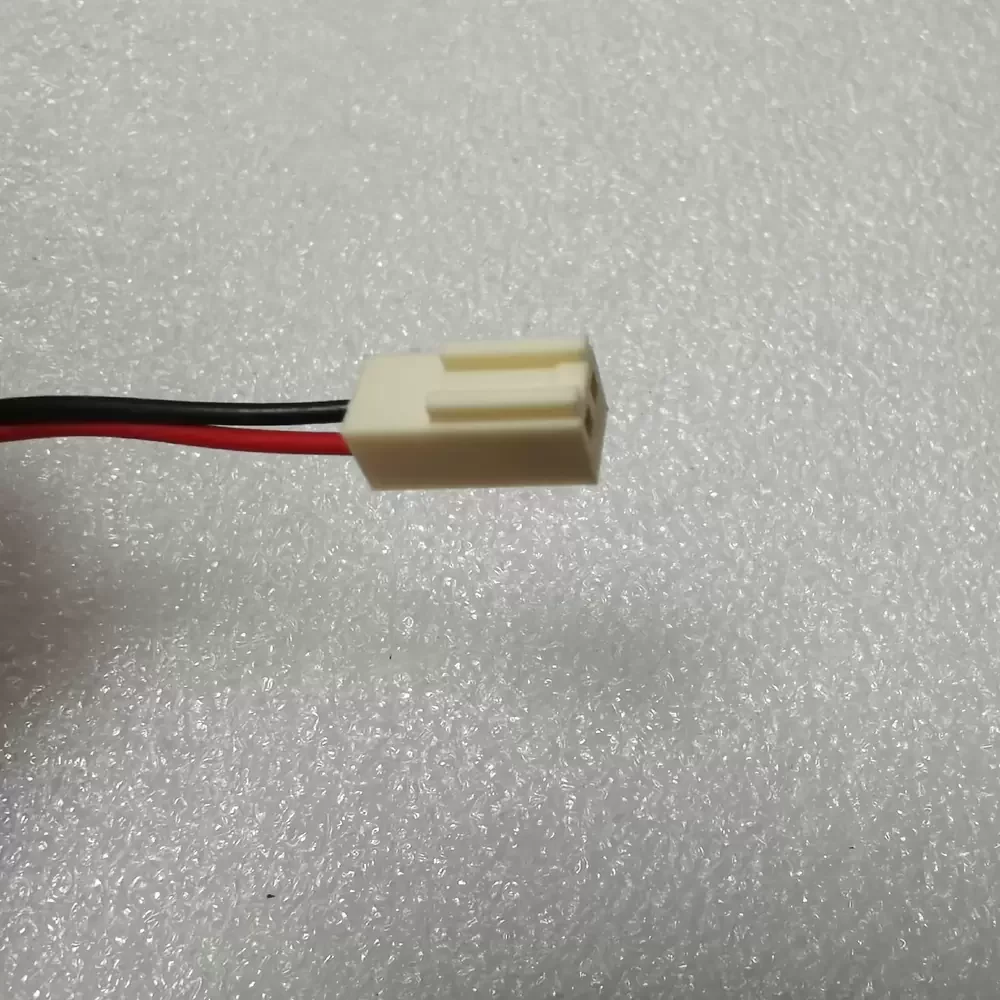

Termination: 2-Wire Lead
Wire Length: 420 mm
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Operating Temperature: -10 to +70°C
Storage Temperature: -40 to +70°C
Noise Level: 34.0 dBA
The MGA9212XR-A25 is specifically engineered for demanding thermal regulation tasks within compact electronic enclosures, such as server racks, industrial power supplies, and telecommunication cabinets. Its hydraulic bearing architecture makes the MGA9212XR-A25 an ideal solution for workstation case cooling and medical instrumentation where sustained airflow and acoustic balance are required for long-term operation.
