Description

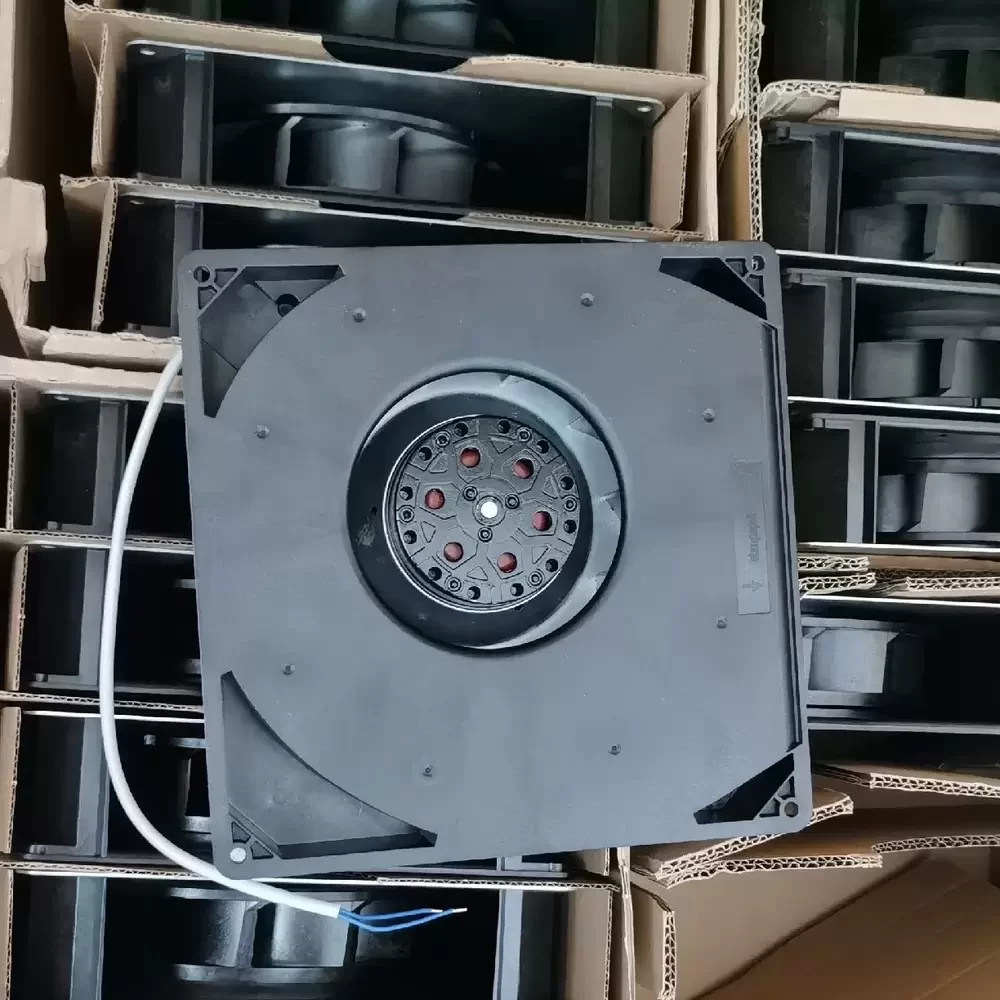

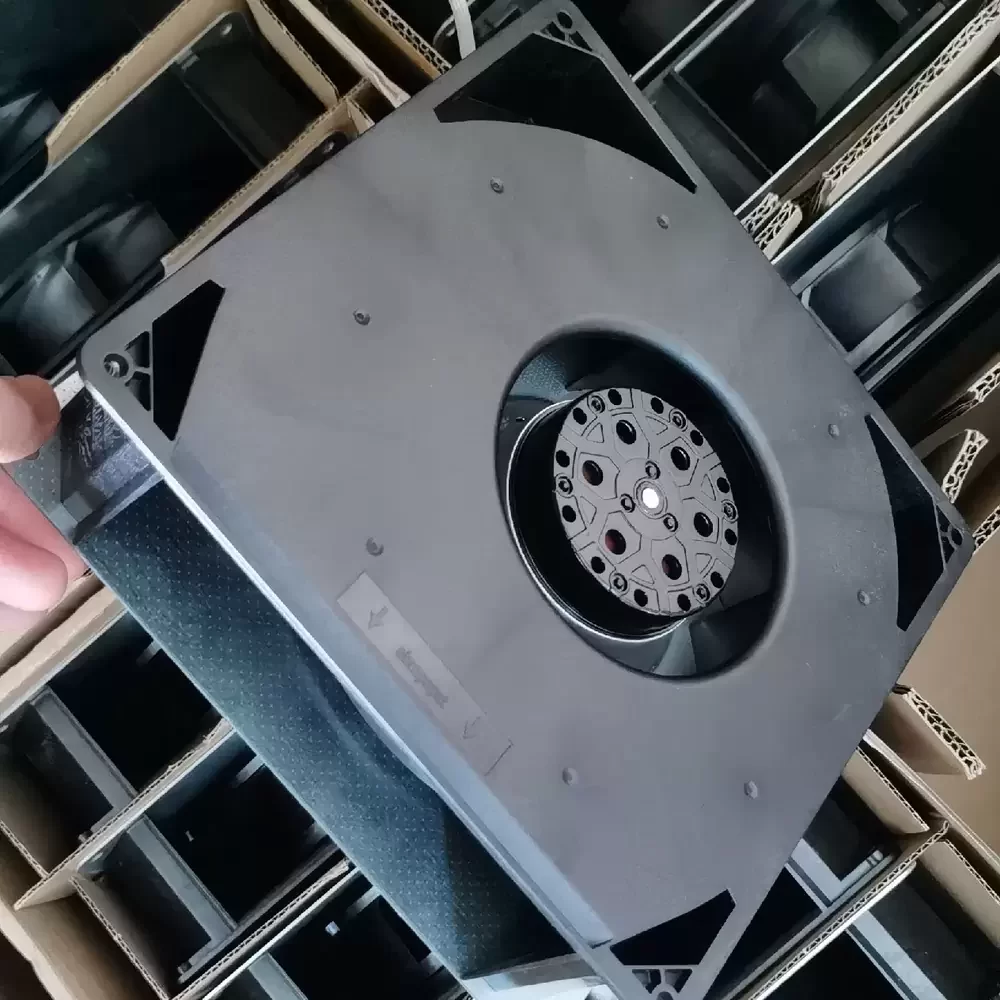

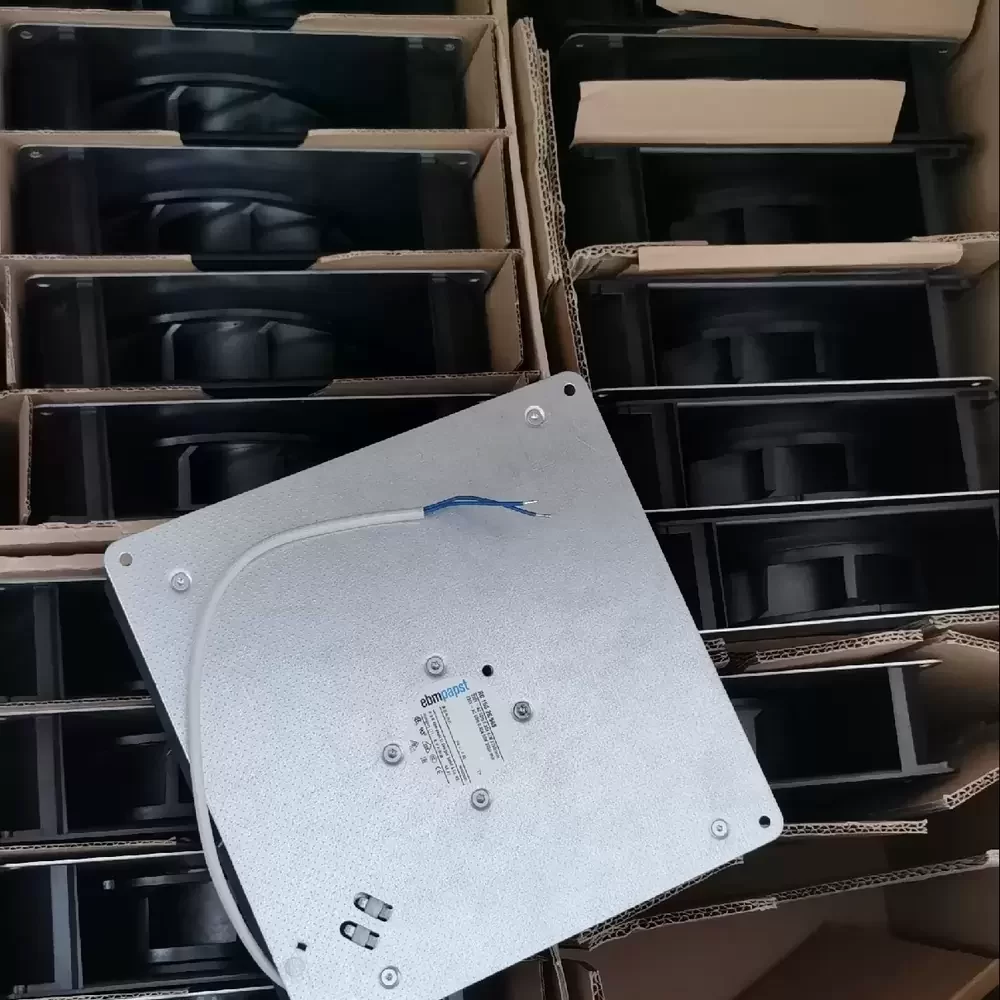

The ebm-papst RG160-28/56S is a high-efficiency AC Centrifugal Blower engineered for critical thermal management in industrial environments. Utilizing an advanced external rotor motor design, this unit integrates the motor directly into the impeller, resulting in a compact footprint and superior rotational stability. The aerodynamic scroll housing is precision-molded to optimize airflow pressure while minimizing turbulence-induced noise, ensuring a high thermal impedance ratio. Constructed with robust materials to withstand continuous operation, the fan features a durable ball bearing system that ensures longevity and consistent performance under varying load conditions. Its structural rigidity and optimized blade geometry make it an ideal solution for systems requiring high static pressure and reliable air movement.
Model Number: RG160-28/56S
Brand: ebm-papst
Product Type: AC Centrifugal Blower
Rated Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.36 A
Power Input: 47 W
Rated Speed: 2600 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 132.4 CFM (225 m³/h)
Max. Static Pressure: 15.2 mmH₂O (150 Pa)
Noise Level: 64 dB(A)
Dimensions: 220mm x 220mm x 56mm
Weight: 1.3 kg
Impeller Material: Galvanized Sheet Steel
Housing Material: Die-Cast Aluminum
Motor Type: AC External Rotor
Insulation Class: Class B
Ingress Protection: IP20
Operating Temperature: -30°C to +70°C
Life Expectancy: 40,000 Hours at 40°C
Termination: Lead Wires
Mounting Orientation: Any
Phase: Single Phase
Capacitor: Required (typically 1.5 µF)
Compliance: CE, RoHS, UL
The RG160-28/56S is specifically designed for applications demanding high static pressure and concentrated airflow, such as industrial control cabinets, electronics cooling, and heat exchangers. Its robust construction allows for reliable integration into server racks, telecommunications infrastructure, and medical diagnostic equipment where space is at a premium but thermal dissipation cannot be compromised. Additionally, the RG160-28/56S is frequently utilized in gas burner systems and ventilation units, providing the necessary air volume to maintain optimal operating temperatures and system efficiency.
