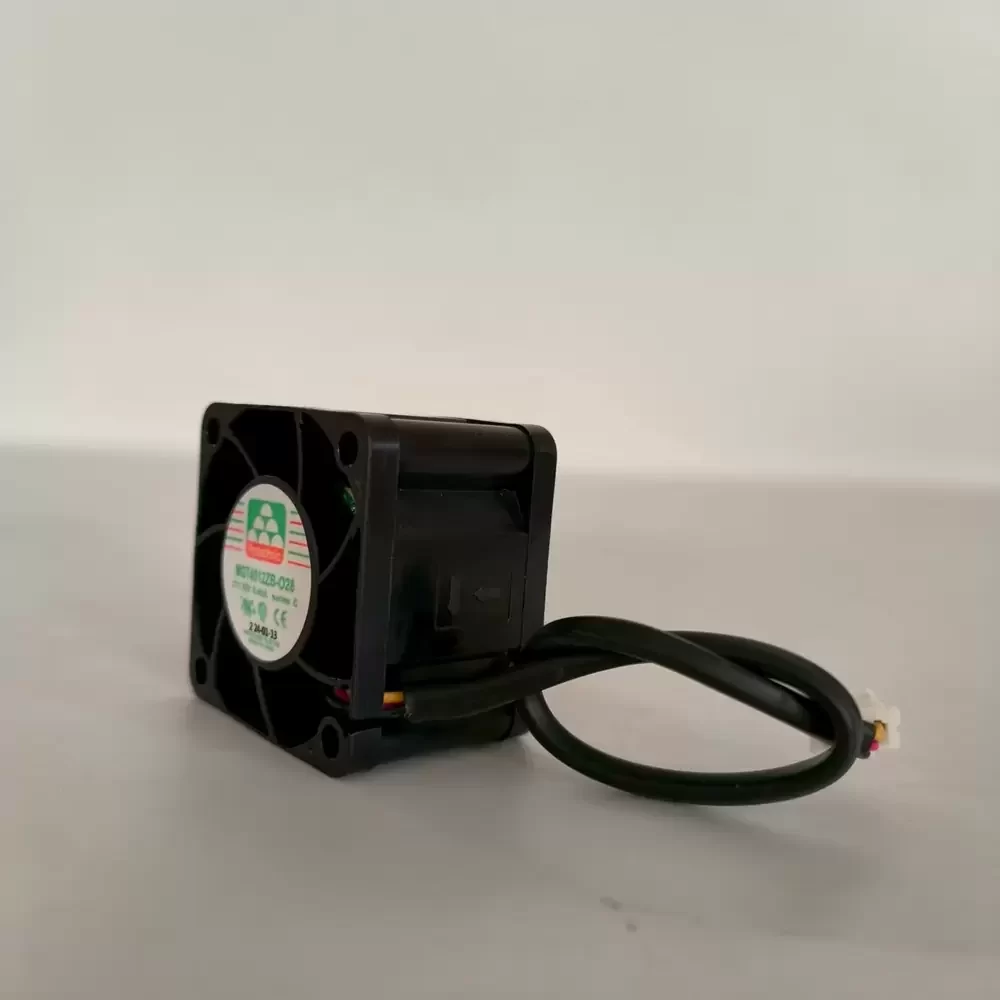

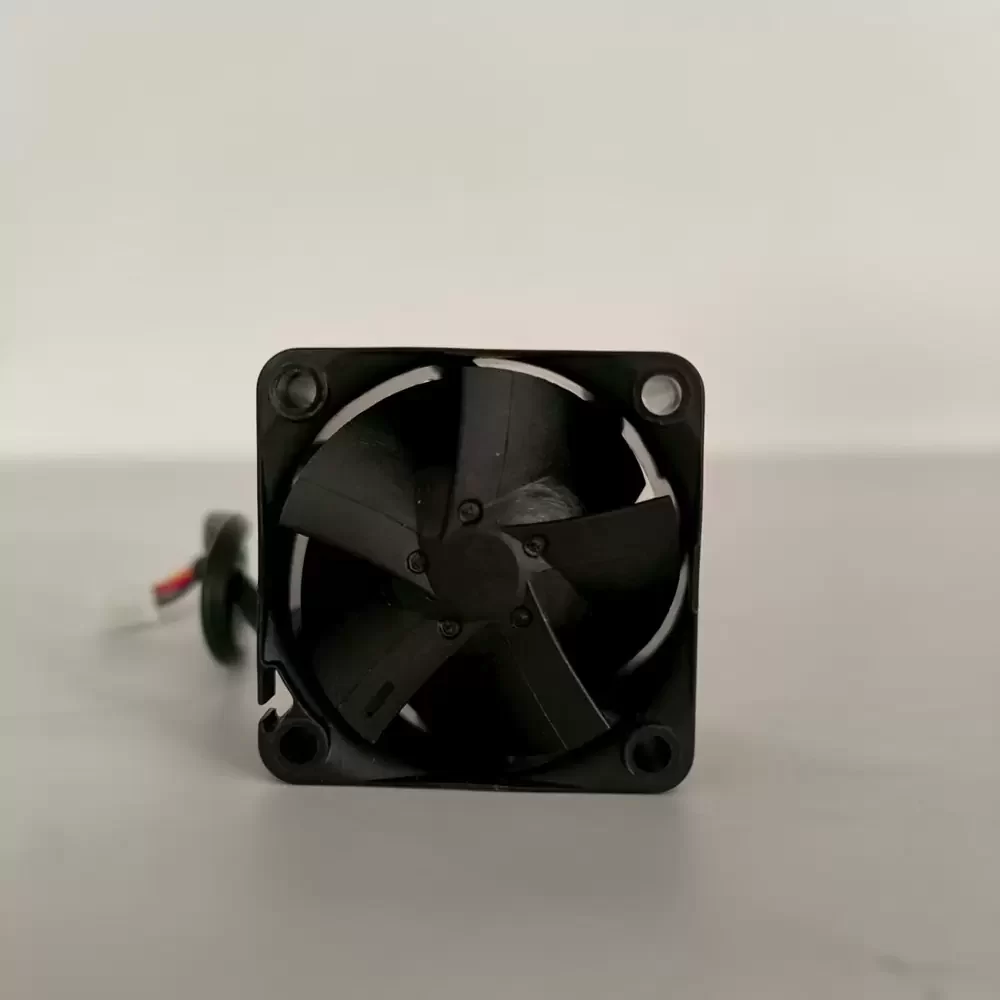

MGT4012VB-O28 Protechnic 12VDC 0.80A 40x40x28mm Cooling Fan

Description

Protechnic MGT4012VB-O28 40 x 40 x 28 mm 12 VDC 0.80 A high-performance axial fan is a high-density thermal management component. The unit is constructed with a reinforced PBT plastic frame and impeller rated to UL 94V-0 standards, utilizing a precision dual ball bearing system for extended operational longevity. It operates within a voltage range of 6.0 VDC to 13.8 VDC, delivering high static pressure and airflow through a compact 4028 form factor. The internal motor architecture includes protection against reverse polarity and locked rotor conditions to ensure hardware integrity during peak duty cycles.

MGT4012VB-O28 Specifications
Model: MGT4012VB-O28
Brand: Protechnic
Category: DC Axial Fan
Dimensions: 40 x 40 x 28 mm
Rated Voltage: 12 VDC
Operating Voltage: 6.0 to 13.8 VDC
Rated Current: 0.80 A
Input Power: 9.6 W
Bearing Type: Dual Ball Bearing
Rotational Speed: 18,000 RPM
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 75 °C
Life Expectancy: 70,000 hours at 40 °C
Termination: Lead Wires
Weight: 45 g

MGT4012VB-O28 Applications
Primary applications include integration into 1U server chassis, high-density network switches, and professional power amplifiers. Deployed within industrial telecommunications base stations and compact workstation enclosures requiring high static pressure for localized component cooling.
