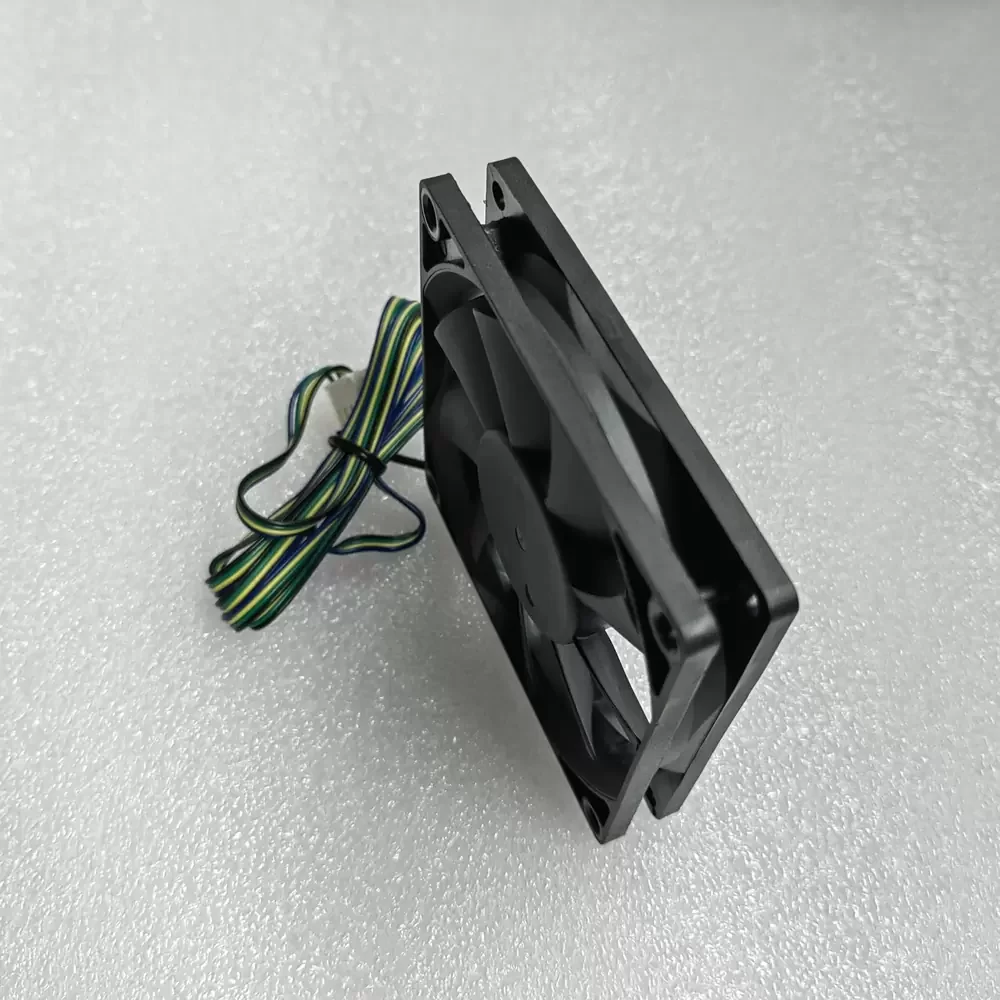

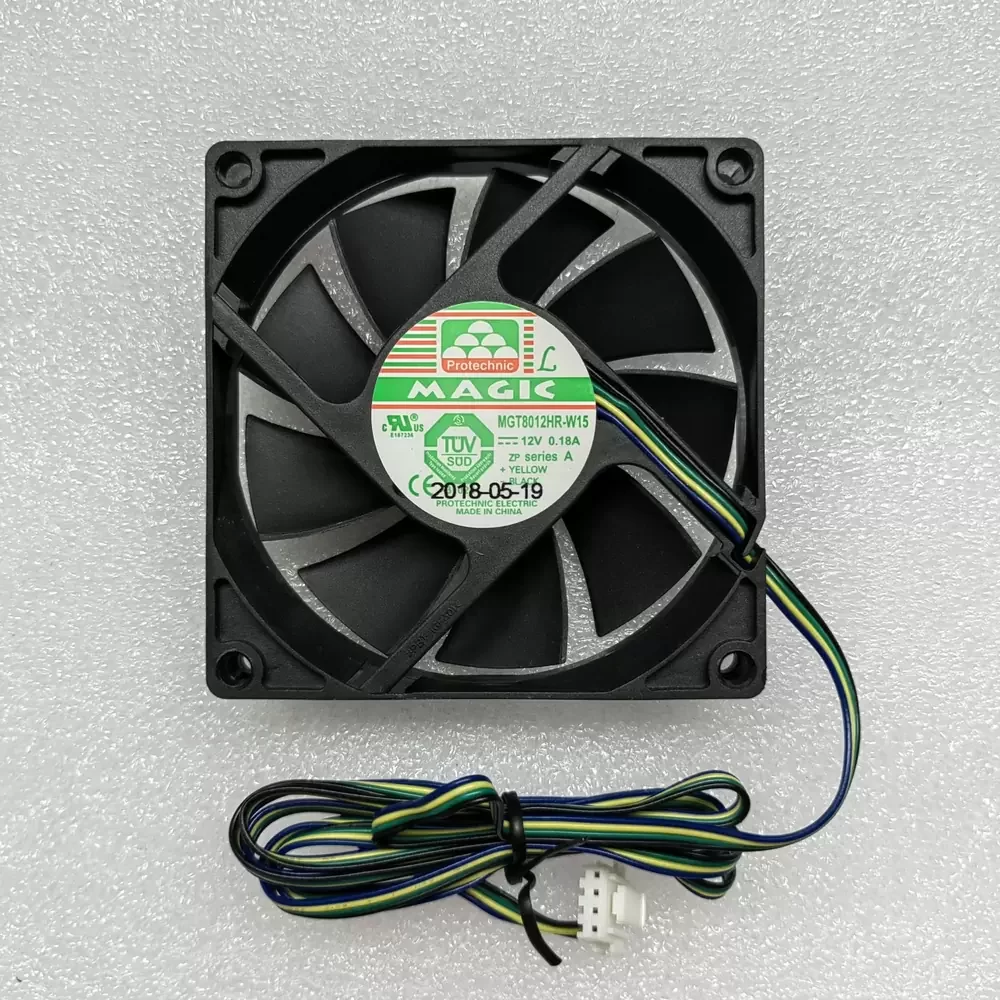

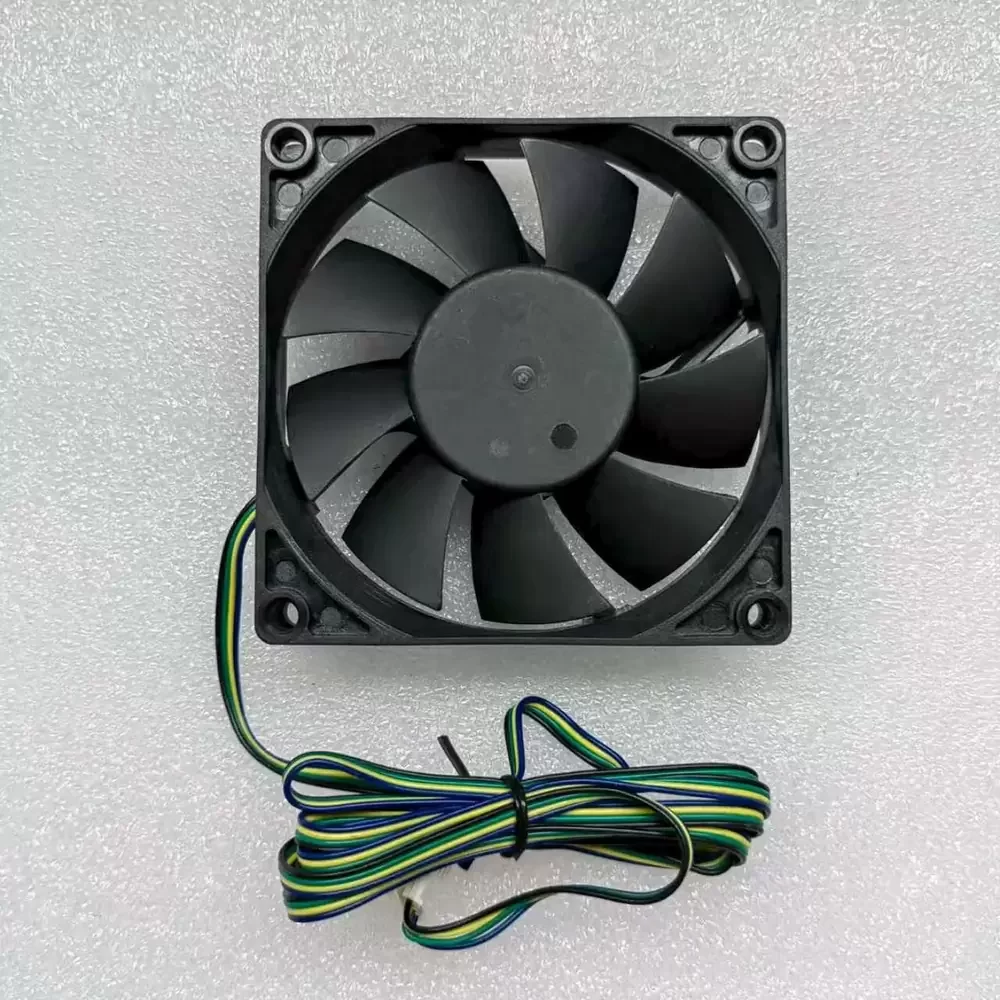

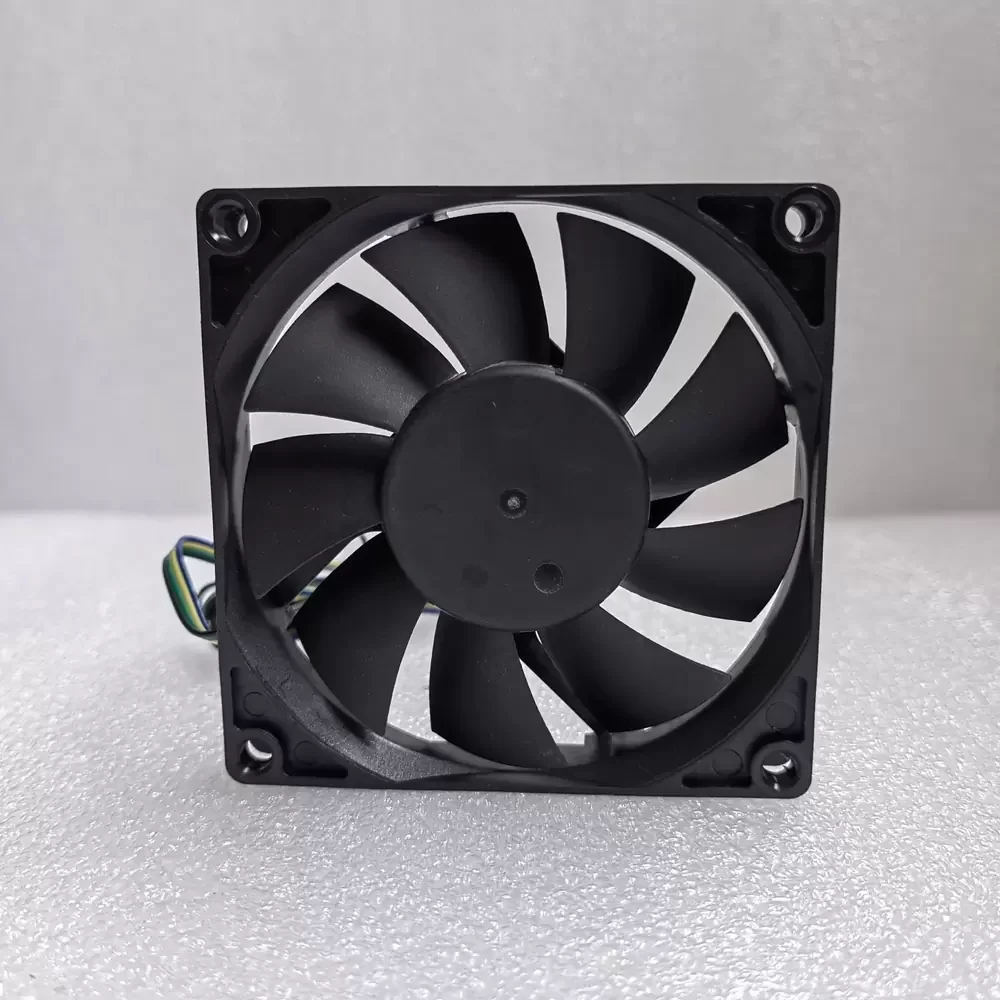

MGT8012HR-W15 Protechnic 12VDC 0.18A 80x80x15mm Axial Fan

Description

The Protechnic MGT8012HR-W15 is a low-profile axial cooling fan measuring 80 x 80 x 15 mm, engineered for high-density thermal management. Operating at a nominal 12 VDC with a rated current of 0.18 A, this unit utilizes a specialized Rifle Bearing system to achieve a rotational speed of 3000 RPM. The internal motor architecture supports Pulse Width Modulation (PWM) for precise speed regulation, delivering a maximum airflow of 32.27 CFM. Constructed with a UL 94V-0 rated plastic housing and impeller, the fan features a 4-wire interface for power and tachometer feedback, ensuring compatibility with advanced thermal controllers.

Protechnic MGT8012HR-W15 Specifications
Model Number: MGT8012HR-W15
Brand: Protechnic Electric
Category: DC Axial Fan
Dimensions: 80 x 80 x 15 mm
Nominal Voltage: 12 VDC
Rated Current: 0.18 A
Input Power: 2.16 W
Rotational Speed: 3000 RPM
Airflow: 32.27 CFM
Static Pressure: 3.41 mmH2O
Noise Level: 32.6 dB-A
Bearing Type: Rifle Bearing
Interface: 4-wire (PWM)
Weight: 55 g
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 70 °C
Expected Life: 40,000 hours at 60 °C
Safety Certifications: UL, TUV, CE

Protechnic MGT8012HR-W15 Applications
Primary applications include integration into 1U server chassis, low-profile CPU heatsinks, and small form factor (SFF) PC enclosures. Deployed within telecommunications power supplies, network switch cooling modules, and compact industrial automation control panels where vertical clearance is restricted.
