Description

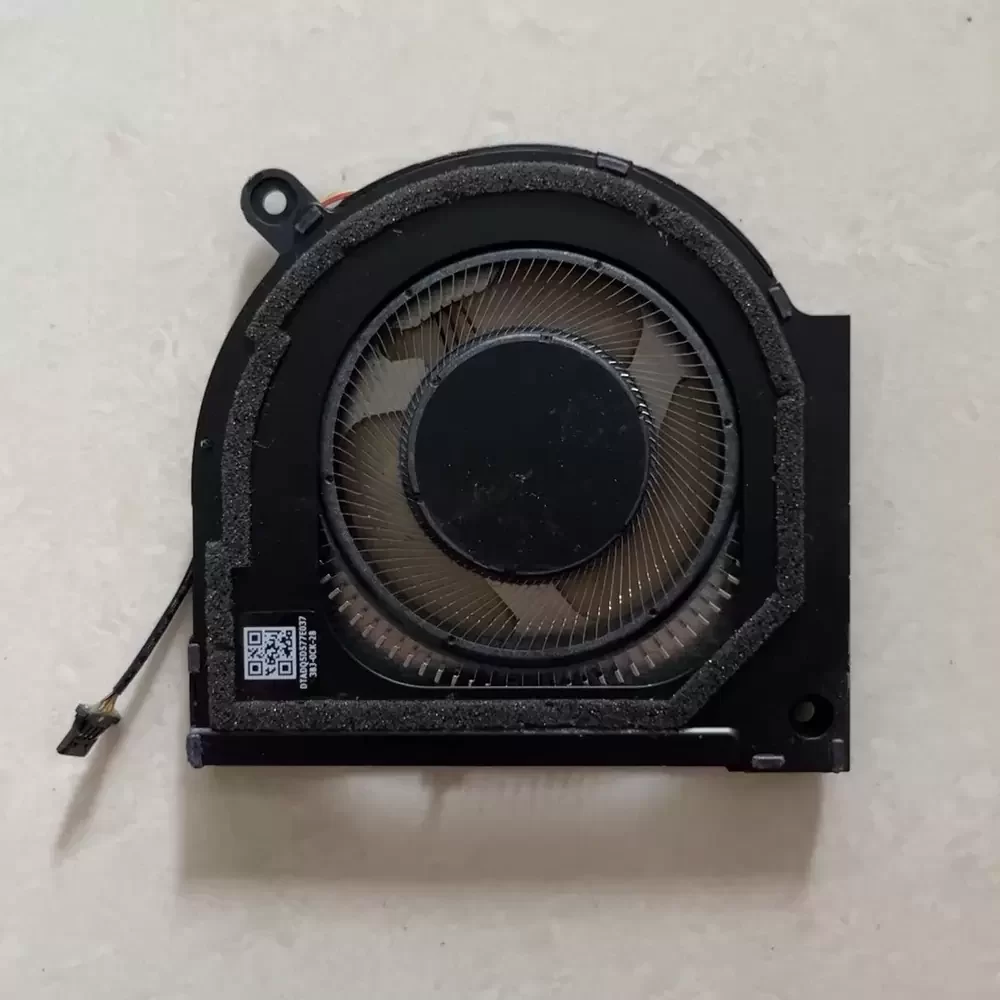

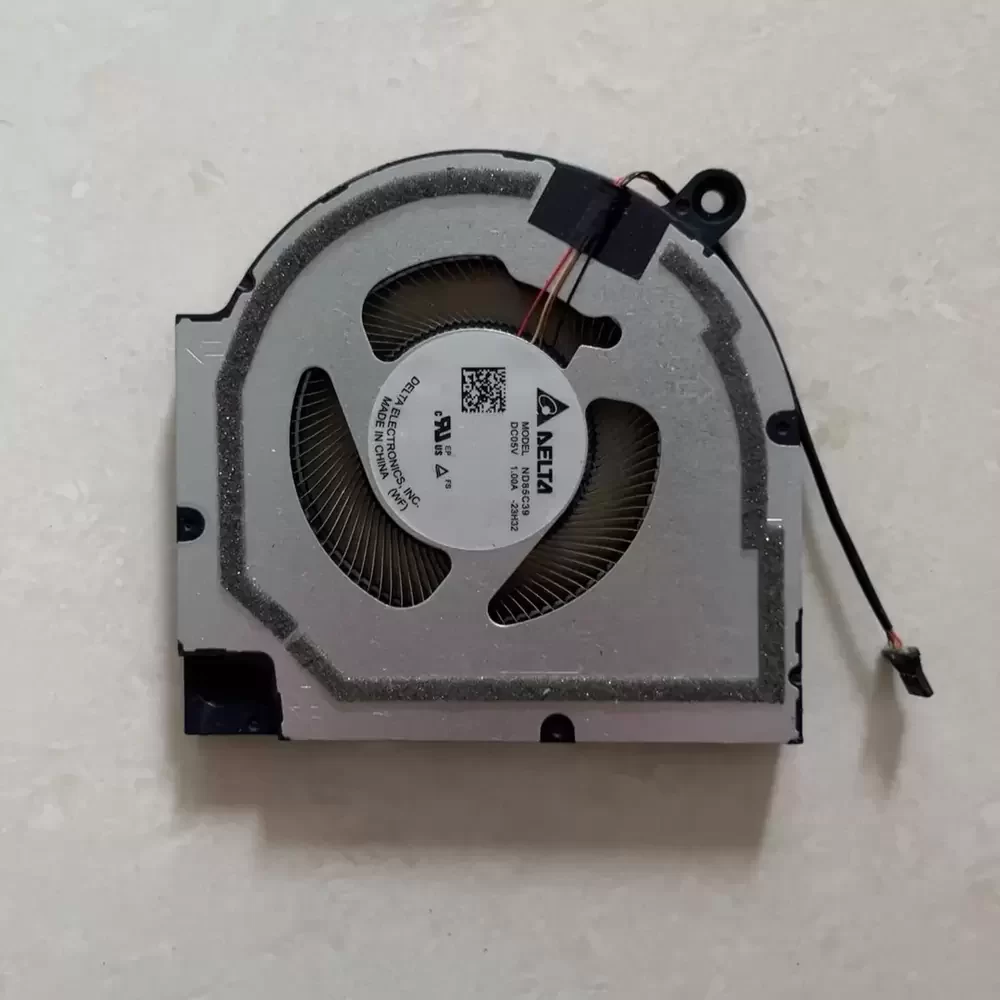

Delta ND85C39-23H32 is a 5VDC 85mm Blower optimized for high-density thermal management in slim-profile gaming hardware. Engineered with advanced DC brushless motor technology and a specialized metal blade architecture, this unit minimizes thermal impedance while maintaining structural rigidity under high rotational velocities. The integrated 4-wire PWM interface allows for precise thermal curve mapping, ensuring the 1.00A power draw translates into maximum static pressure for heat pipe dissipation. Designed as a critical cooling component for the Acer Predator Helios series, it effectively mitigates localized hotspots in high-performance computing environments.
Model Number: ND85C39-23H32
Brand: Delta Electronics
Product Type: Centrifugal Blower Fan
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 1.00A
Power: 5.0W
Bearing Type: Fluid Dynamic Bearing
Blade Material: UL94V-0 Metal Alloy
Housing Material: Reinforced Aluminum/Plastic
Dimensions: 85mm x 80mm x 10mm
Termination: 4-Pin Connector (PWM/Tachometer)
Speed Control: Pulse Width Modulation (PWM)
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Weight: 45g
Certifications: CE, TUV, UL Recognized
ND85C39-23H32 Applications
1. High-Performance Gaming Laptops: Specifically engineered for Acer Predator Helios 300 PH317-55 and Neo 16 chassis to overcome high system impedance in cramped internal geometries.
2. Ultra-Slim Workstations: Ideal replacement fan for 16-inch mobile workstations requiring low-vibration metal blades for optical and component precision.
3. Compact Embedded Systems: Provides high static pressure cooling for ruggedized small-form-factor industrial PCs where vertical clearance is restricted.
