Description

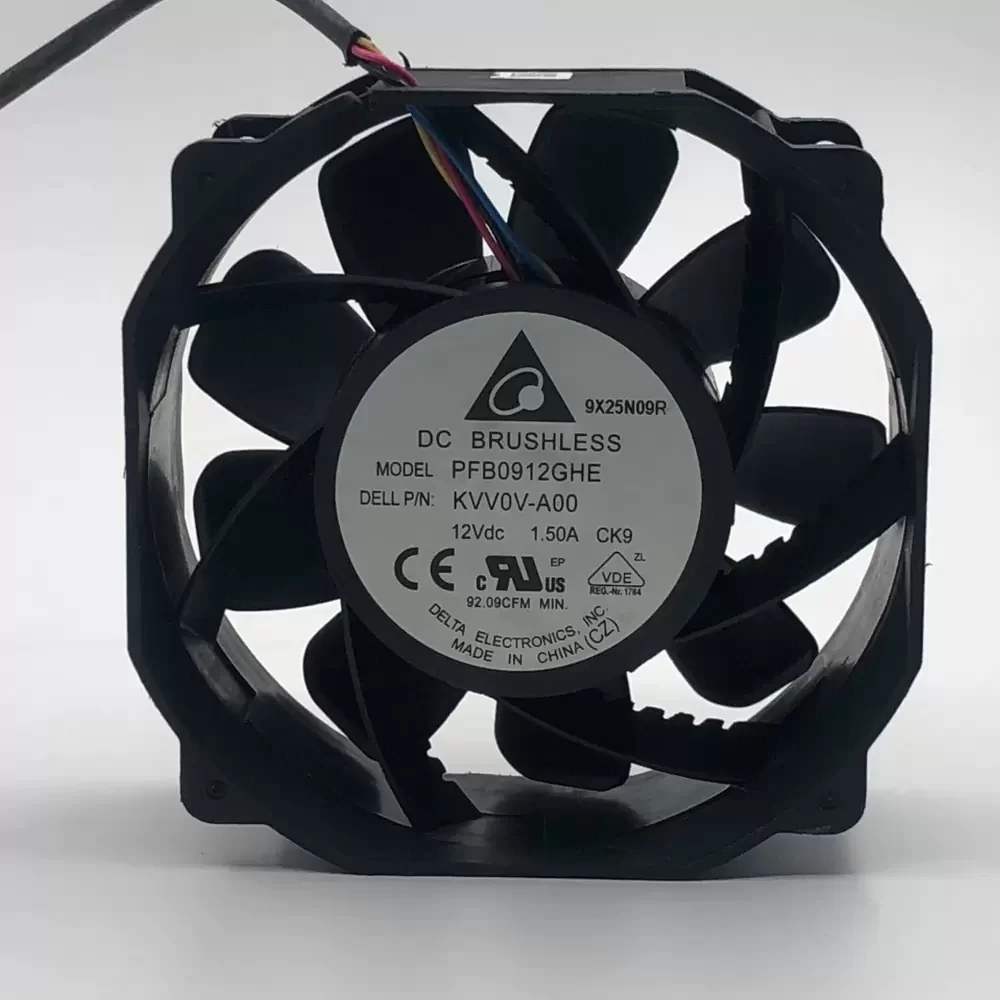

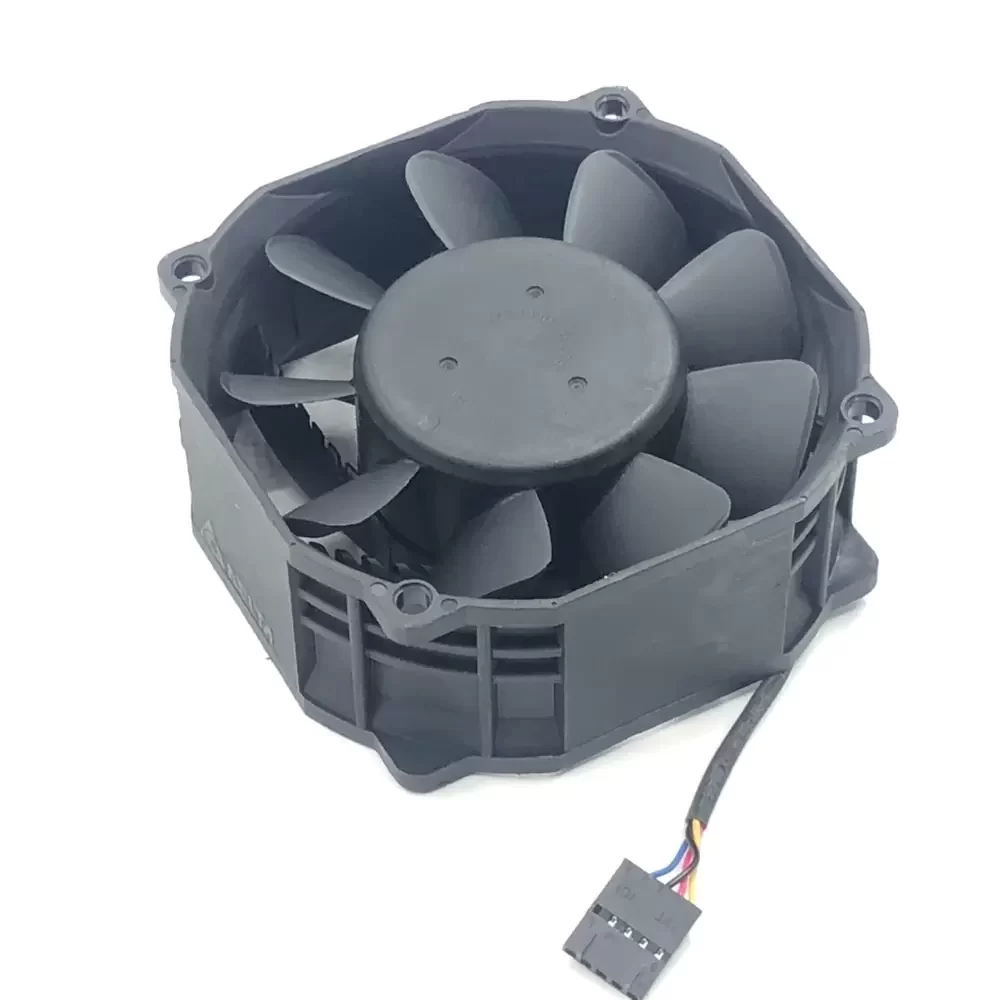

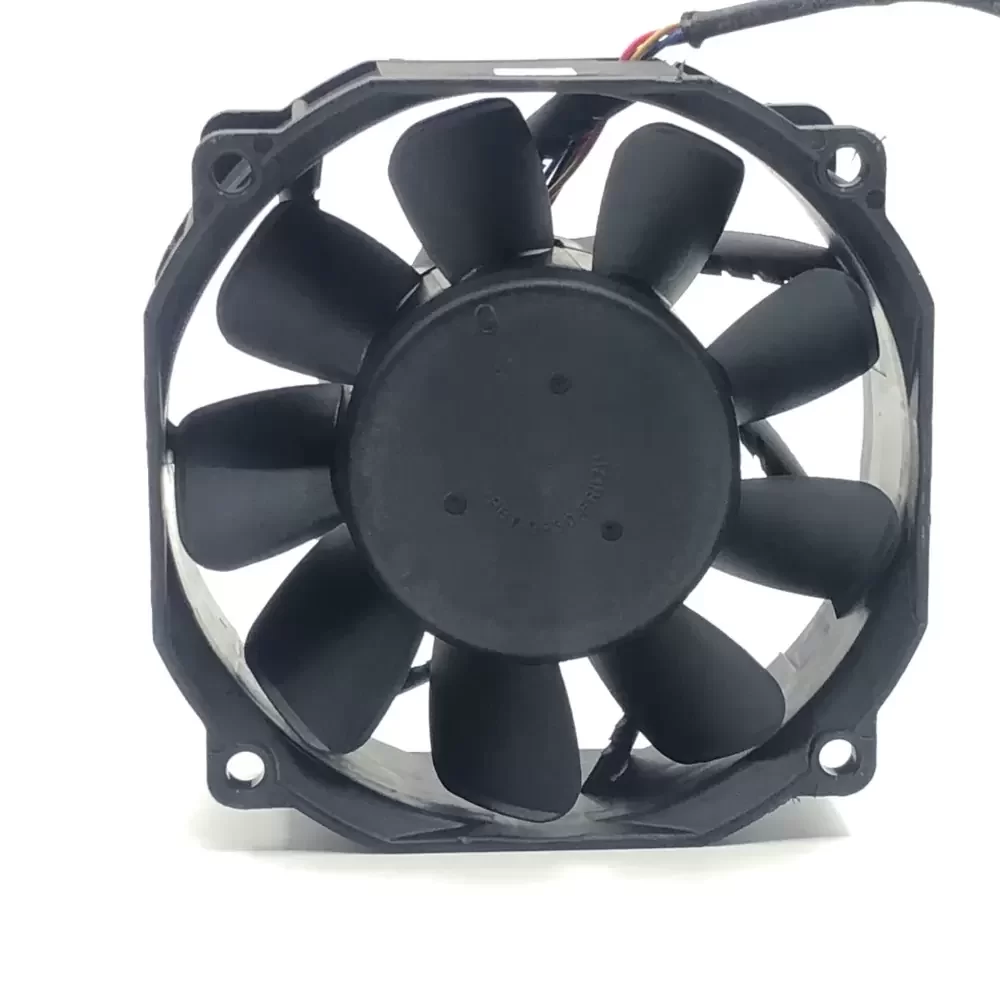

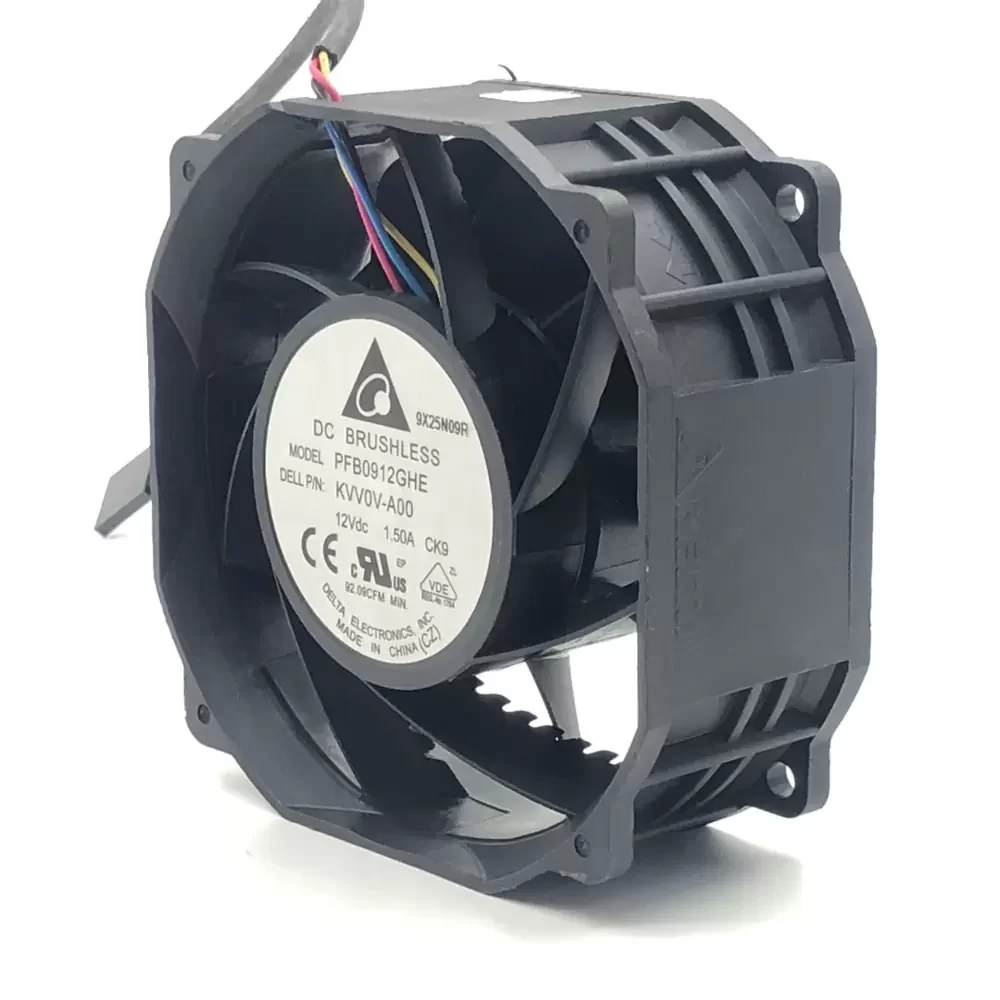

Delta PFB0912GHE-CK9 is a 12VDC 92x92x38mm Axial Fan optimized for high-density thermal management in server environments and high-impedance enclosures. This DC axial fan utilizes a high-performance dual ball bearing architecture and a brushless motor design to ensure structural rigidity and long-term reliability under continuous operation. The aerodynamic impeller is engineered to minimize thermal impedance by delivering a massive 175.03 CFM of airflow and a significant static pressure of 27.41 mmH2O. Operating at a rated current of 1.50A with a power consumption of 18.0W, this model features a 4-wire interface for precise PWM speed control and tachometer feedback, making it an essential component for mission-critical cooling where 6000 RPM performance is required.
Model Number: PFB0912GHE-CK9
Brand: Delta Electronics
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 1.50 A
Power: 18.0 W
Rated Speed: 6000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 175.03 CFM (4.956 m³/min)
Max. Static Pressure: 27.41 mmH₂O (1.079 inH₂O)
Dimensions: 92 x 92 x 38 mm
Weight: 250 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 61.0 dB(A)
Speed Control: PWM Signal
Output: Frequency Generator (Tachometer)
Termination: 4-Wire Lead Wires
Housing Material: Plastic (UL 94V-0)
Blade Material: Plastic (UL 94V-0)
Operating Temperature: -10 to +60 °C
Storage Temperature: -40 to +70 °C
Protection: Locked Rotor Protection, Reverse Polarity Protection
DELL Part Number: KVV0V-A00
PFB0912GHE-CK9 Applications
1. Enterprise Server Chassis: Ideal as a replacement fan for Dell server nodes requiring high static pressure to overcome the airflow resistance of densely packed drive bays and heatsinks.
2. 3U/4U Rackmount Equipment: Provides the necessary CFM to maintain thermal equilibrium in high-wattage networking switches and storage arrays.
3. Industrial Workstations: Engineered for high-load computing environments where low-vibration and high-speed cooling are critical for maintaining CPU and GPU clock stability.
