Description

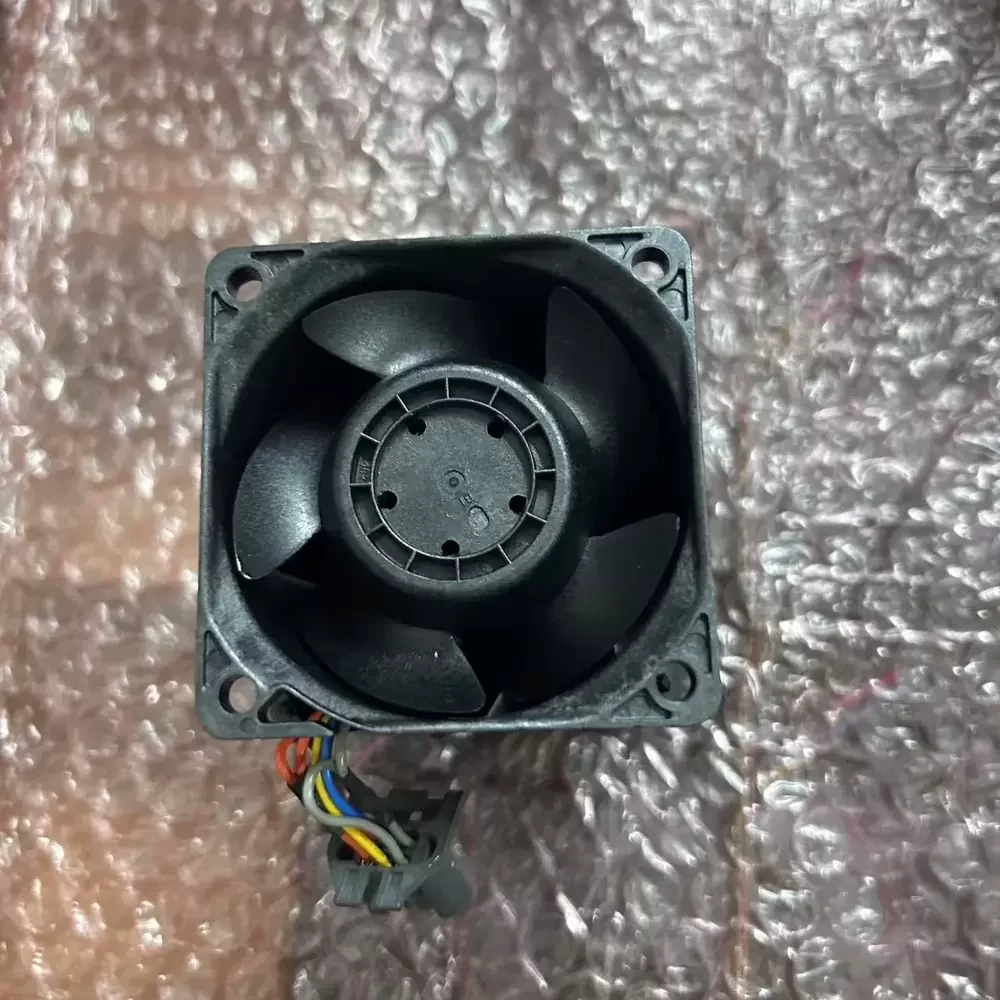

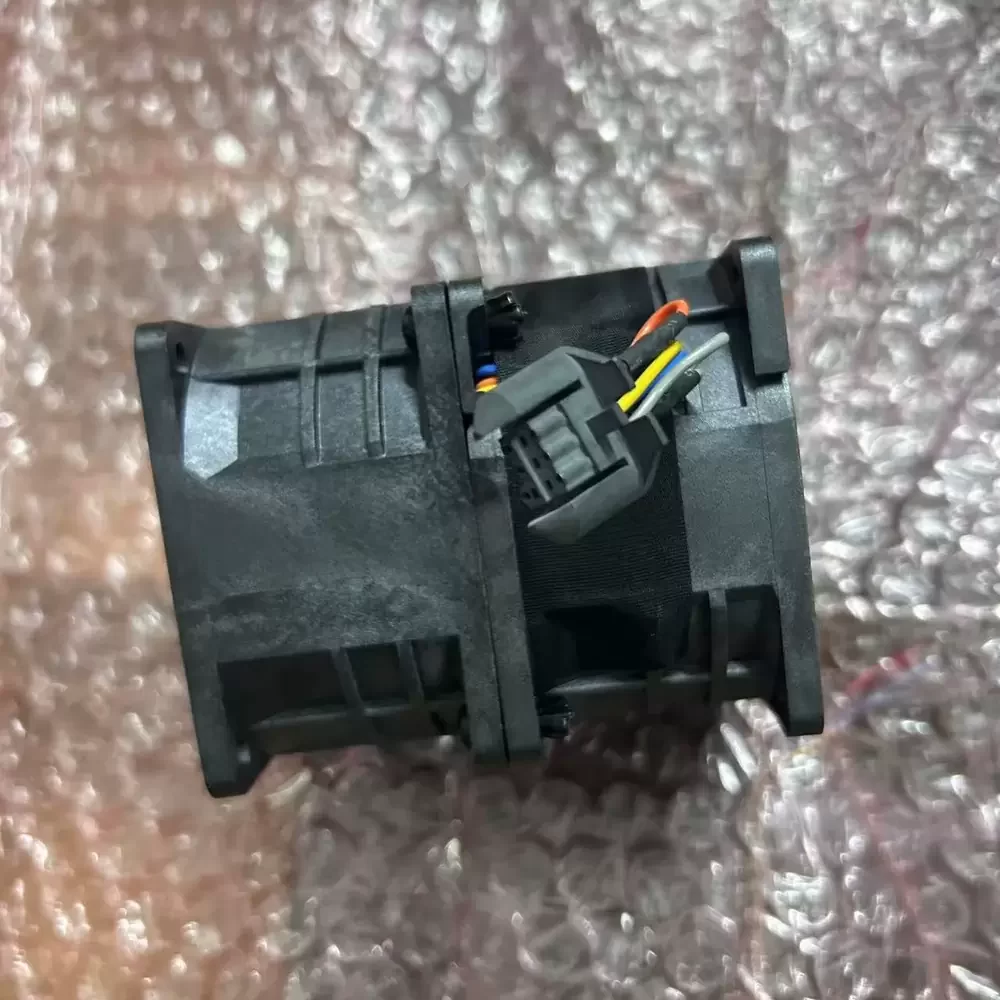

The Delta PFR0612XHE-01BEY is a high-density DC Axial Fan engineered for mission-critical thermal management where structural rigidity and low thermal impedance are paramount. Utilizing a sophisticated brushless DC motor architecture, this unit is optimized for high static pressure environments. The aerodynamic impeller design is paired with a precision-engineered dual ball bearing system to ensure rotational stability at extreme velocities. Its robust construction minimizes mechanical resonance, providing a reliable cooling solution for densely packed electronic enclosures requiring maximum heat dissipation efficiency.
Model Number: PFR0612XHE-01BEY
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 5.00A
Power: 60.0W
Rated Speed: 16500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 62.23 CFM (1.76 m³/min)
Max. Static Pressure: 41.27 mmH₂O (404.7 Pa / 1.62 inH₂O)
Dimensions: 60x60x38mm
Weight: 130g
Life Expectancy: 70,000 Hours at 40C
Speed Control: PWM (Pulse Width Modulation)
Output Signal: Tachometer (Frequency Generator)
Noise Level: 67.5 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 4-Lead Wires
Operating Temperature: -10 to +70C
Storage Temperature: -40 to +75C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Insulation Class: Class A
The PFR0612XHE-01BEY is specifically designed for high-performance computing environments and industrial server racks where space is limited but heat loads are extreme. Due to the high static pressure capabilities of the PFR0612XHE-01BEY, it is an ideal choice for 1U/2U servers, telecommunications base stations, and high-end networking equipment. Its durable dual ball bearing construction ensures that the PFR0612XHE-01BEY maintains continuous operation in 24/7 industrial automation and power supply cooling applications.
