Description

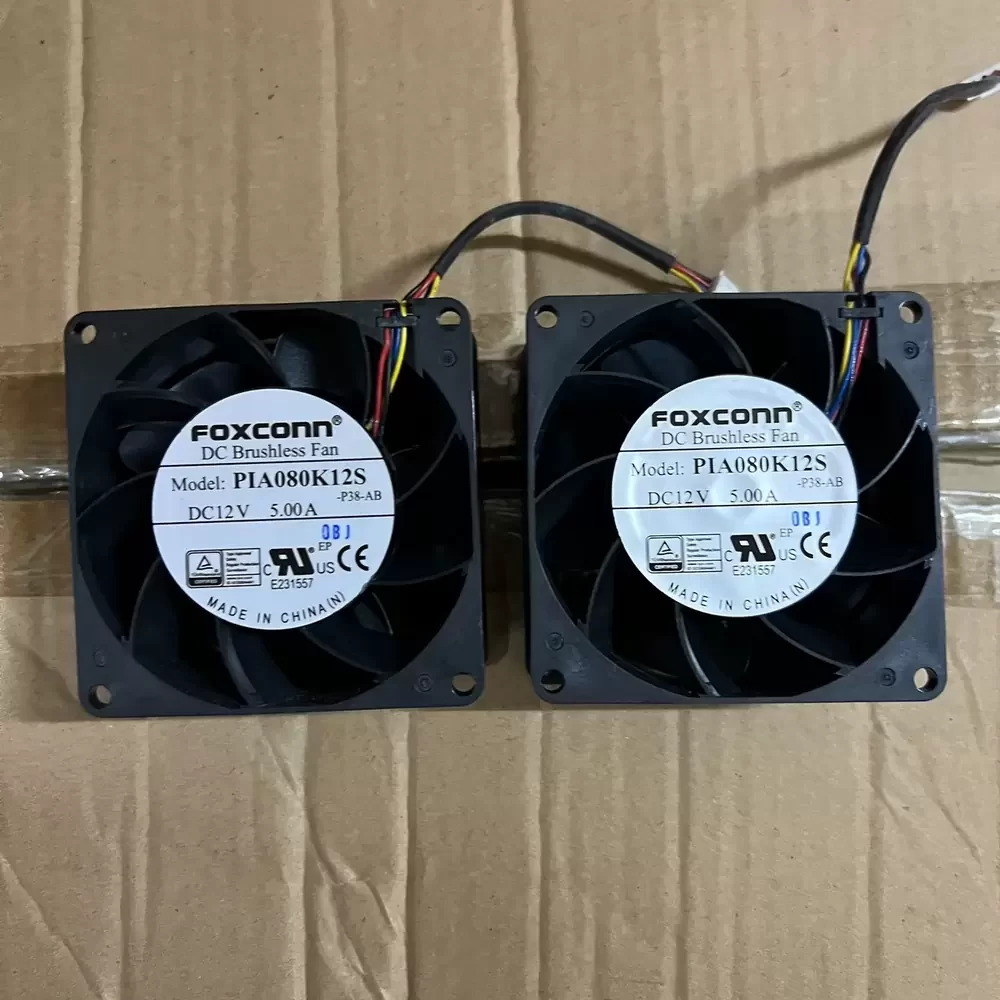

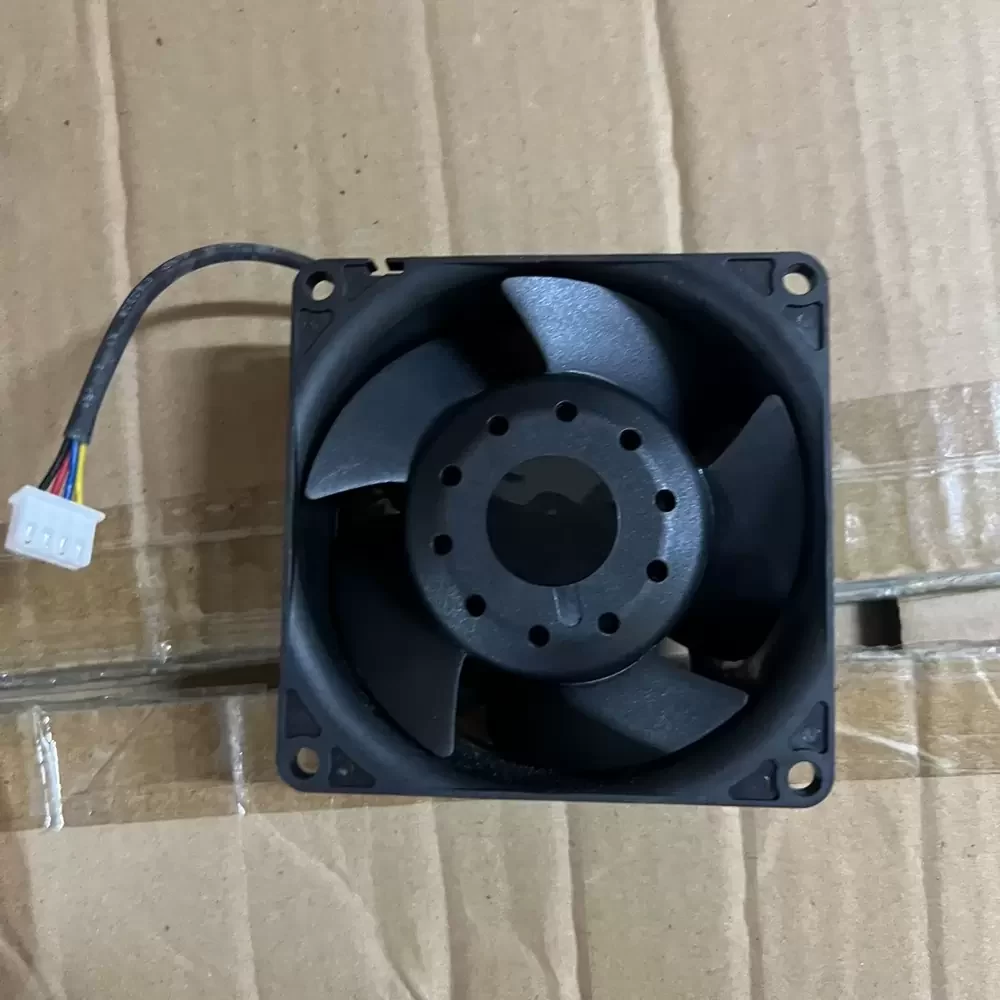

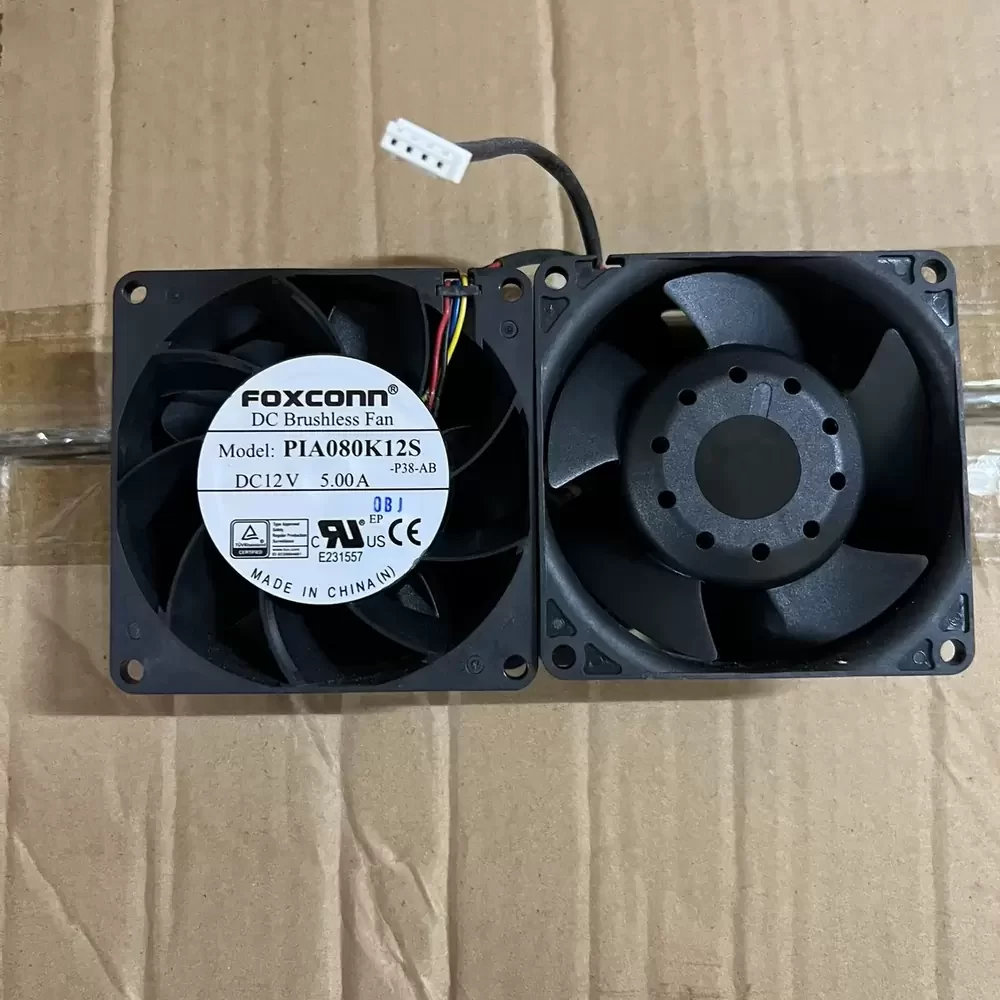

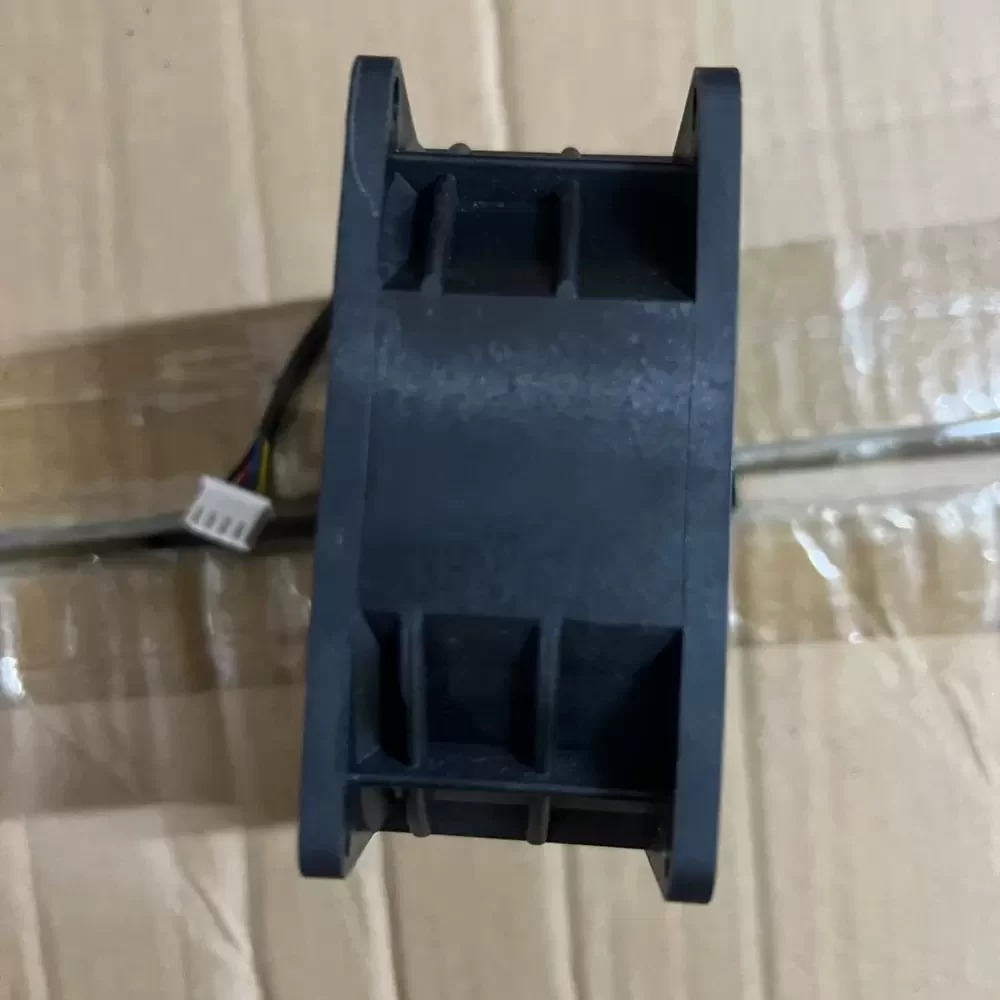

Foxconn PIA080K12S-P38-AB is a 12VDC 80x80x38mm Axial Fan optimized for extreme thermal density and high-impedance cooling environments. Engineered with a high-torque DC motor and precision dual ball bearing architecture, this unit minimizes thermal impedance while maintaining structural rigidity under high rotational stress. The aerodynamic impeller design is specifically tuned to deliver a massive 5.00A current draw, translating to exceptional RPM and static pressure capabilities required for dense server arrays. This 4-wire PWM controlled fan provides precise modulation of airflow, ensuring efficient heat dissipation in mission-critical hardware where failure is not an option.
Model Number: PIA080K12S-P38-AB
Brand: Foxconn
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 5.00 A
Power: 60.0 W
Rated Speed: 12500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 128.5 CFM (218.3 m³/h)
Max. Static Pressure: 52.4 mmH₂O (513.8 Pa)
Dimensions: 80 x 80 x 38 mm
Weight: 210 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Feedback: Tachometer / Frequency Generator
Termination: 4-Wire Lead Wires
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Insulation Class: Class A
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
PIA080K12S-P38-AB Applications
1. 2U/3U Rackmount Servers: High static pressure overcomes the extreme system impedance of densely packed drive bays and heat sinks.
2. Cryptocurrency Mining Rigs: Industrial-grade 5.00A power delivery provides the necessary CFM to prevent thermal throttling in multi-GPU configurations.
3. High-Performance Workstations: Ideal replacement fan for specialized cooling shrouds requiring 4-wire PWM precision for variable thermal loads.
4. Network Switches and Routers: Ensures consistent laminar flow through restrictive internal baffles in enterprise-level telecommunications hardware.
