Description

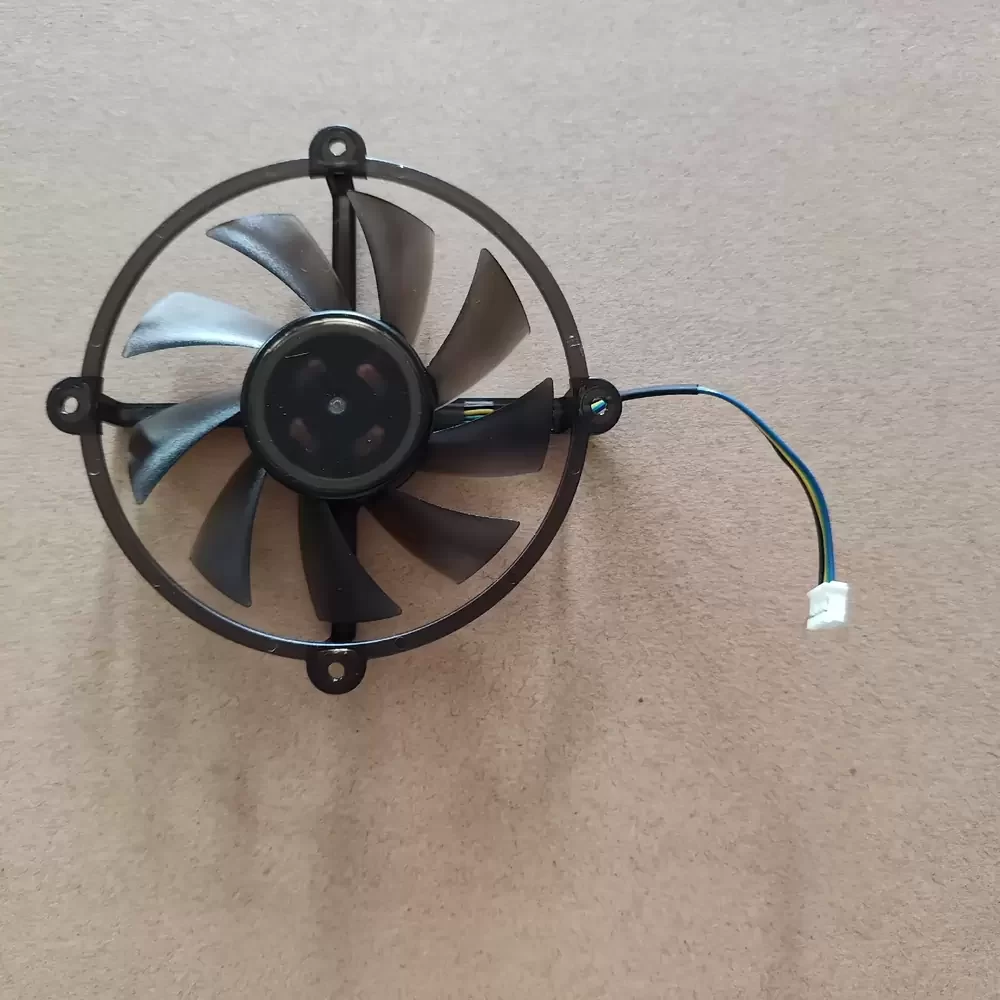

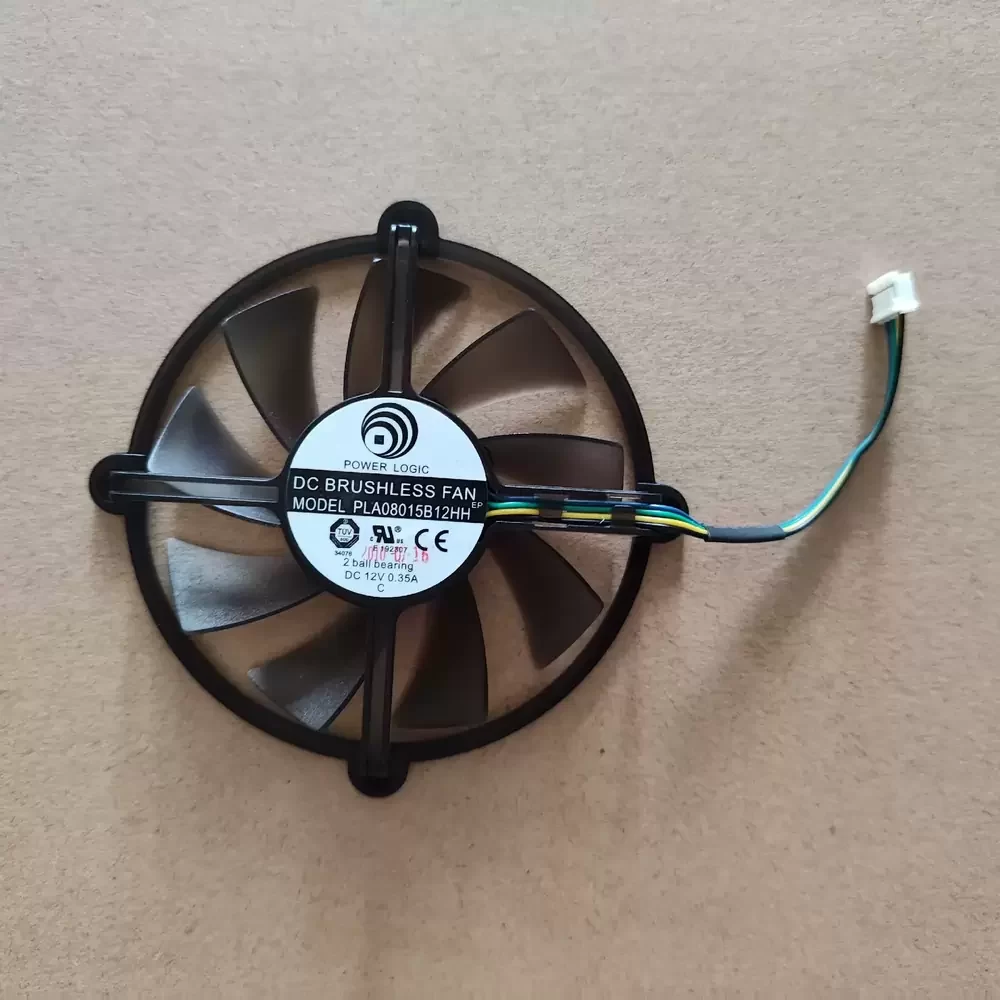

Power Logic PLA08015B12HH is a 12VDC 80x80x15mm Axial Fan optimized for high-density thermal dissipation in GPU cooling assemblies. This unit features a DC brushless motor architecture with dual ball bearing technology to minimize thermal impedance and ensure long-term structural rigidity under continuous high-RPM operation. Operating at a rated current of 0.35A, the fan delivers high static pressure necessary to penetrate dense fin stacks. The 4-wire PWM interface allows for precise speed modulation, ensuring the fan balances acoustic output with cooling demand. It is engineered specifically as a high-reliability component for high-performance VGA cards requiring consistent airflow to maintain stable clock speeds.
Model Number: PLA08015B12HH
Brand: Power Logic
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.35 A
Power: 4.2 W
Rated Speed: 3500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 38.5 CFM (65.4 m³/h)
Max. Static Pressure: 4.12 mmH₂O (40.4 Pa)
Dimensions: 80 x 80 x 15 mm
Weight: 45 g
Life Expectancy: 70,000 hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Pin Connector
Housing Material: UL94V-0 Plastic
Blade Material: UL94V-0 Plastic
Operating Temperature: -10 to +70 °C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
PLA08015B12HH Applications
1. High-Performance VGA Cooling: Ideal replacement fan for Gainward GTS250 (Huangzhong, Zhangliao, and Machao editions) where the 15mm slim profile and high static pressure are required to clear low-profile shroud constraints.
2. Compact GPU Thermal Management: Specifically designed to overcome high system impedance in dual-slot graphics card assemblies requiring 4-wire PWM feedback for BIOS-level thermal control.
