Description

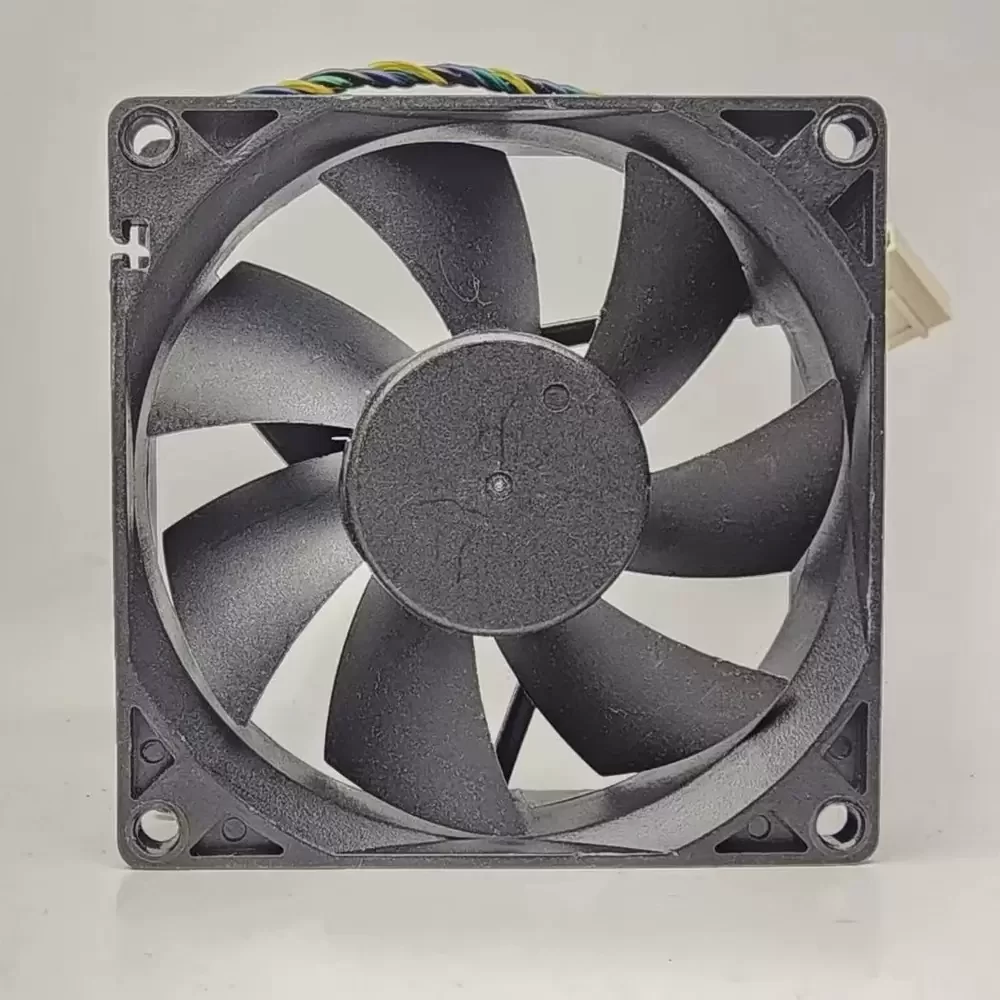

The Power Logic PLA08025S12HH-1-LV is a precision-engineered DC axial fan designed for rigorous thermal management in compact electronic enclosures. Utilizing a robust DC brushless motor architecture, this unit optimizes torque delivery while minimizing electromagnetic interference and power consumption. The aerodynamic impeller profile is calibrated to reduce turbulence-induced noise while maintaining high static pressure capabilities, essential for overcoming system resistance. Constructed with a durable thermoplastic frame and a specialized sleeve bearing system, it ensures consistent rotational stability and manages thermal impedance effectively. The integration of Pulse Width Modulation (PWM) allows for dynamic speed regulation, balancing cooling performance with energy efficiency in demanding operational environments.
Model Number: PLA08025S12HH-1-LV
Brand: Power Logic
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.35 A
Power Consumption: 4.20 W
Rated Speed: 4000 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 48.0 CFM (81.5 m³/h / 1.36 m³/min)
Max. Static Pressure: 5.50 mmH₂O (53.9 Pa / 0.22 inH₂O)
Dimensions: 80x80x25mm
Noise Level: 39.0 dBA
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire / 4-Pin Connector
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Mounting Orientation: Any
Motor Type: Brushless DC
Weight: 85 g
This cooling solution is widely utilized in high-density server racks and telecommunications equipment where reliable airflow is critical. The PLA08025S12HH-1-LV excels in dissipating heat from power supply units and industrial automation controllers, ensuring component longevity. Additionally, the PLA08025S12HH-1-LV is frequently integrated into network switches and medical instrumentation, providing the necessary thermal regulation for sensitive electronics.
