Description

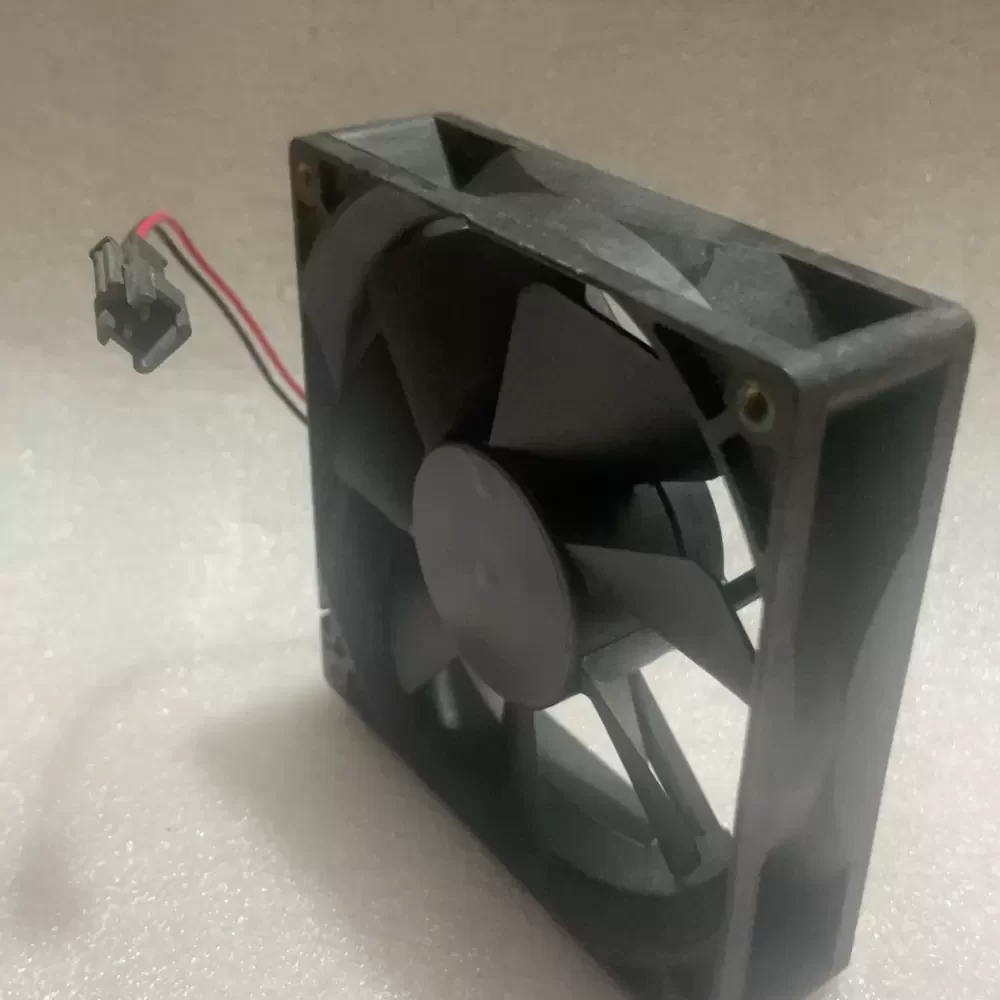

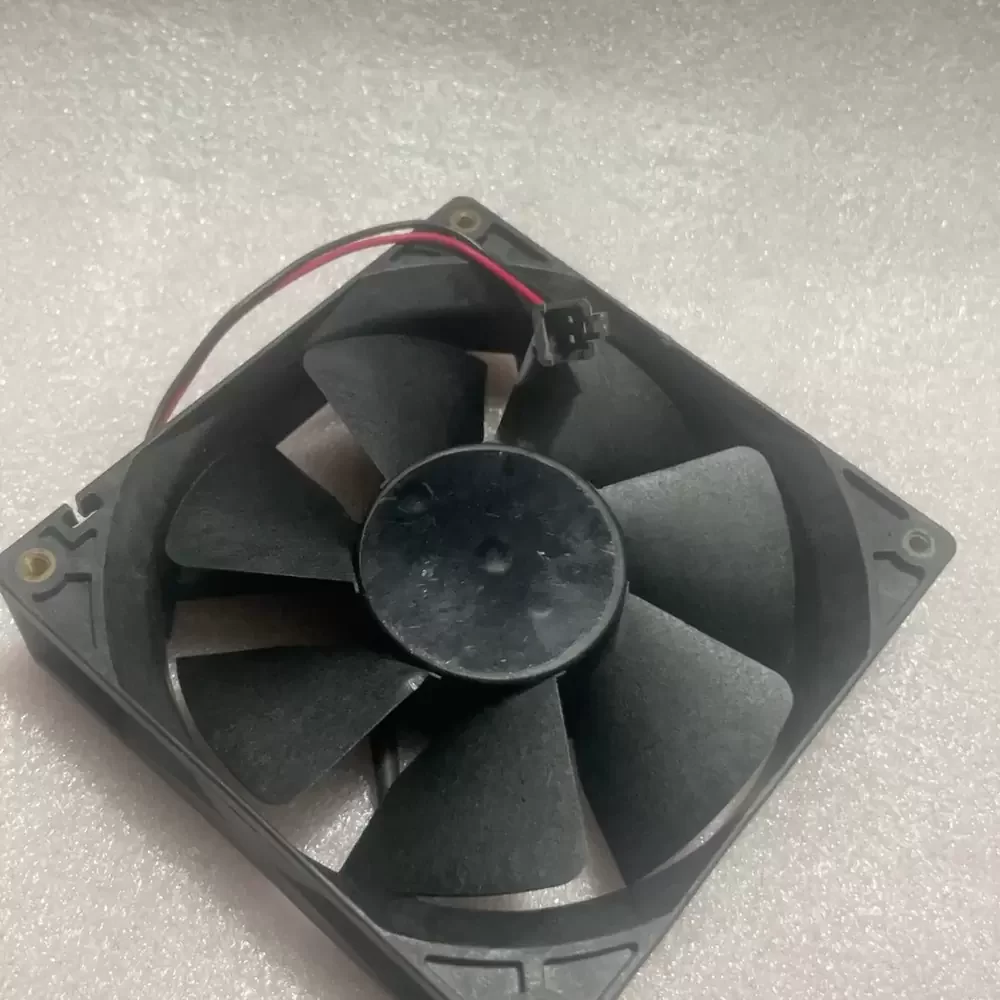

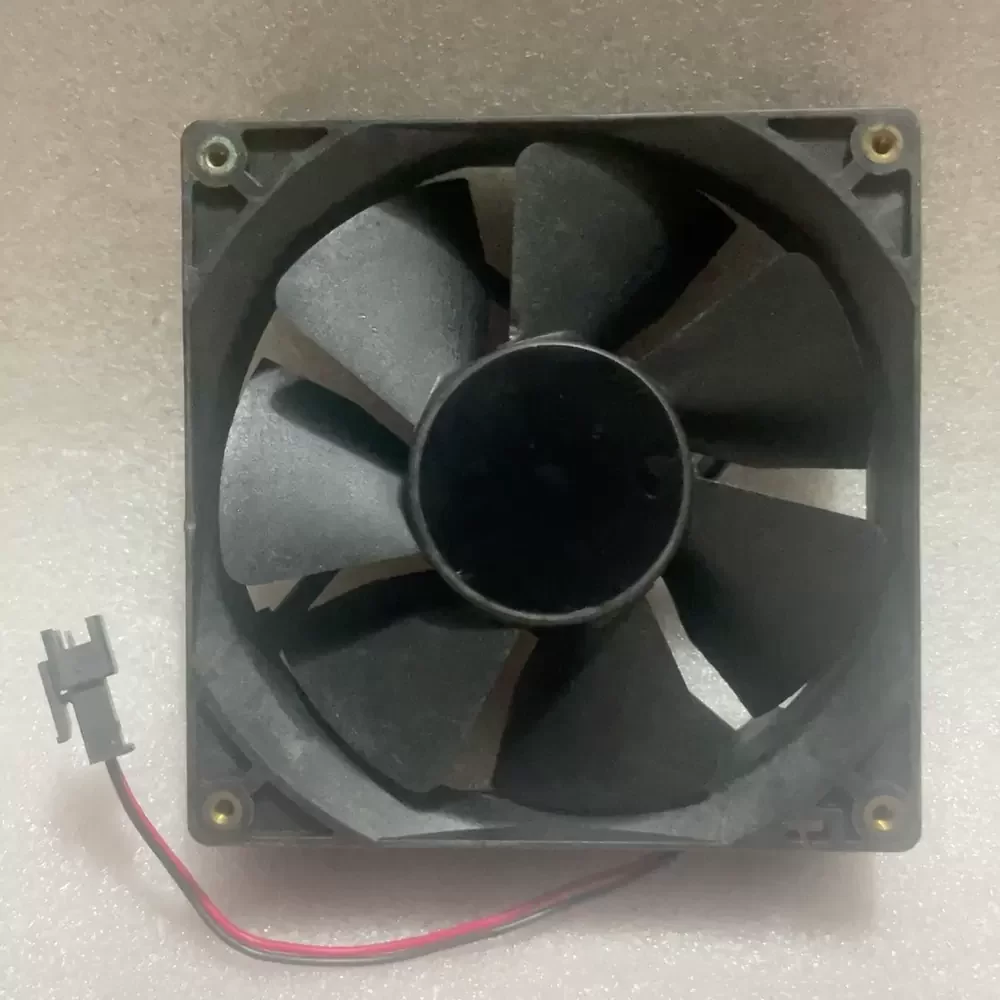

The Matsushita ASF991036 is a precision-engineered DC axial fan designed for optimal thermal management in compact electronic enclosures. Utilizing advanced DC brushless motor technology, this unit minimizes thermal impedance while maintaining high structural rigidity under continuous operation. The SF92 series architecture incorporates an aerodynamic impeller profile that balances static pressure with airflow efficiency, ensuring reliable heat dissipation. Engineered for durability, the ASF991036 features a robust frame construction and a low-friction bearing system, making it an ideal solution for industrial applications requiring consistent cooling performance and electromagnetic stability.
Model Number: ASF991036
Brand: Matsushita (Panasonic)
Product Type: DC Axial Fan
Series: SF92
Rated Voltage: 12V DC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.215 A
Input Power: 2.58 W
Rated Speed: 2900 RPM (Typical)
Bearing Type: Precision Ball Bearing
Max. Air Flow: 52.0 CFM (88.3 m³/h / 1.47 m³/min)
Max. Static Pressure: 3.5 mmH₂O (34.3 Pa / 0.14 inH₂O)
Dimensions: 92 x 92 x 25 mm
Weight: 95 g
Termination: 2-Wire Lead
Motor Technology: DC Brushless
Housing Material: Polybutylene Terephthalate (PBT) UL94V-0
Blade Material: Polybutylene Terephthalate (PBT) UL94V-0
Operating Temperature: -10°C to +60°C
Storage Temperature: -30°C to +70°C
Mounting Orientation: Any
The ASF991036 is frequently deployed in industrial automation control panels and legacy server cooling modules where space constraints require a standard 92mm form factor. Technicians rely on the ASF991036 for cooling power supplies and telecommunications equipment, ensuring critical components remain within safe operating temperature ranges. Its 2-wire configuration simplifies integration into basic DC cooling circuits found in medical instrumentation and network switchgear.
