Description

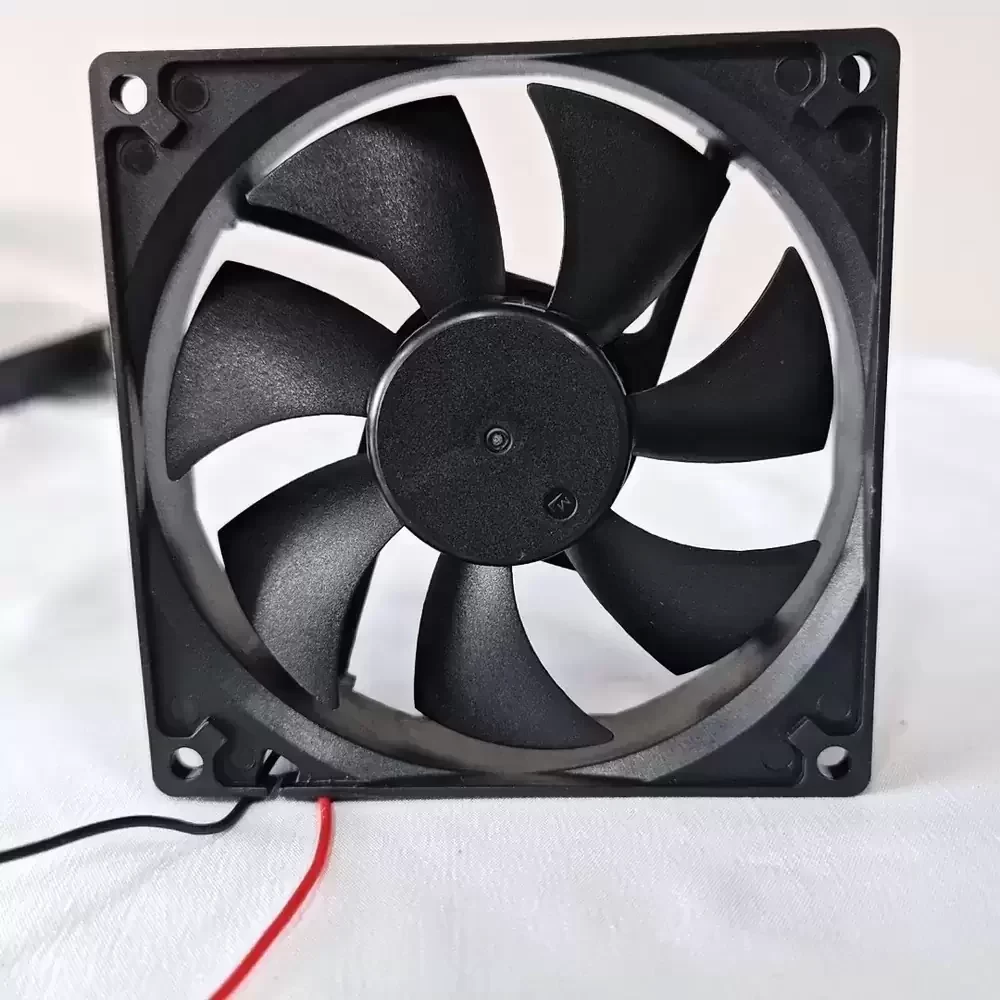

The Yimeng DA09225B12HA is a precision-engineered DC axial fan designed for demanding industrial thermal management applications. Built with a robust thermoplastic housing and an aerodynamically optimized impeller, this unit minimizes thermal impedance while maintaining structural rigidity under continuous operation. The motor assembly utilizes advanced commutation technology to deliver consistent airflow, ensuring critical components remain within safe operating temperature ranges. Featuring a durable bearing system, the DA09225B12HA offers reliable performance in environments requiring sustained cooling efficiency. Its compact 92mm form factor allows for integration into space-constrained enclosures without compromising air exchange rates, making it an essential component for maintaining system stability and longevity.

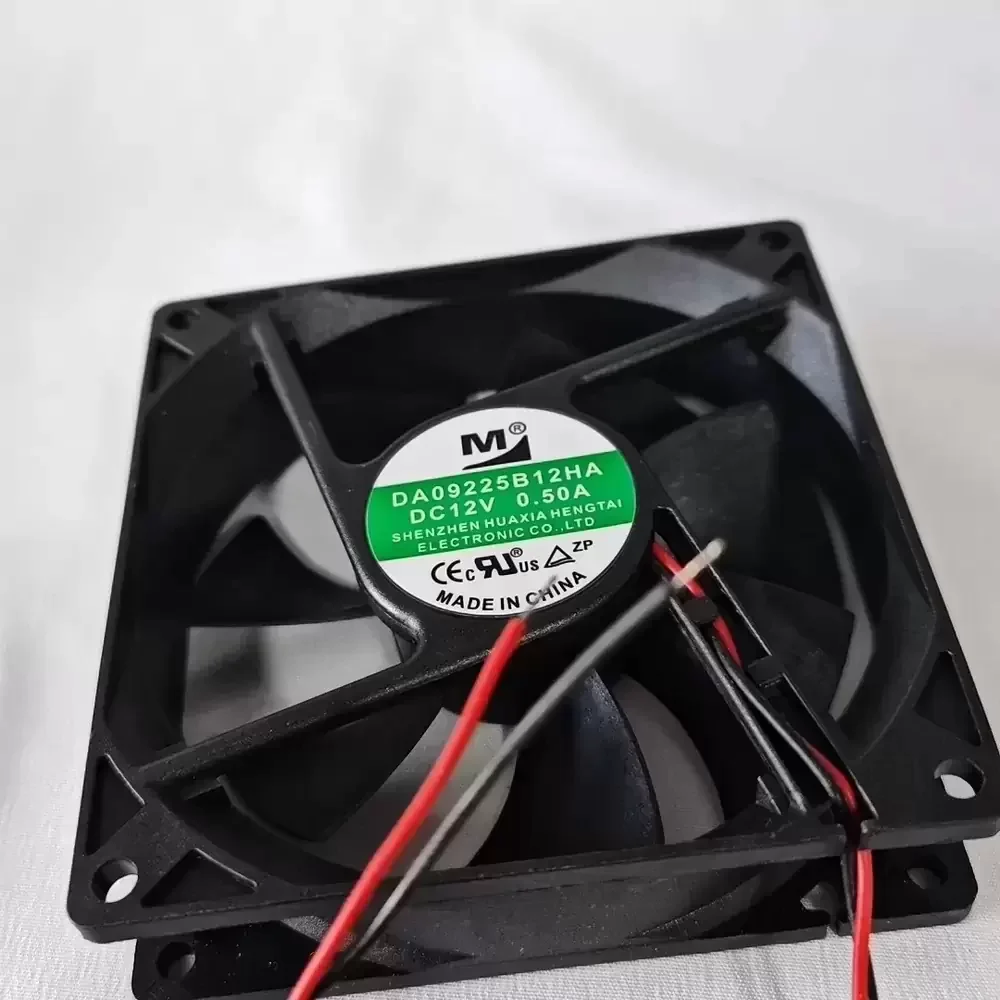

Model Number: DA09225B12HA
Brand: Yimeng
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.50 A
Input Power: 6.0 W
Dimensions: 92 x 92 x 25 mm
Bearing Type: Dual Ball Bearing
Termination: 2-Wire Lead (Red +, Black -)
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Motor Type: Brushless DC Motor
Mounting Type: Flange Mount
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Direction of Rotation: Counter-clockwise (viewed from front)
Airflow Direction: Strut Side
The DA09225B12HA is specifically engineered for integration into high-density electronic enclosures where reliable heat dissipation is paramount. Common deployment scenarios include server rack cooling modules, industrial power supply units, and telecommunications cabinets requiring consistent airflow. Additionally, the DA09225B12HA serves as a critical cooling component in CNC machinery control panels and medical instrumentation, ensuring sensitive electronics operate free from thermal throttling in continuous-duty environments.
