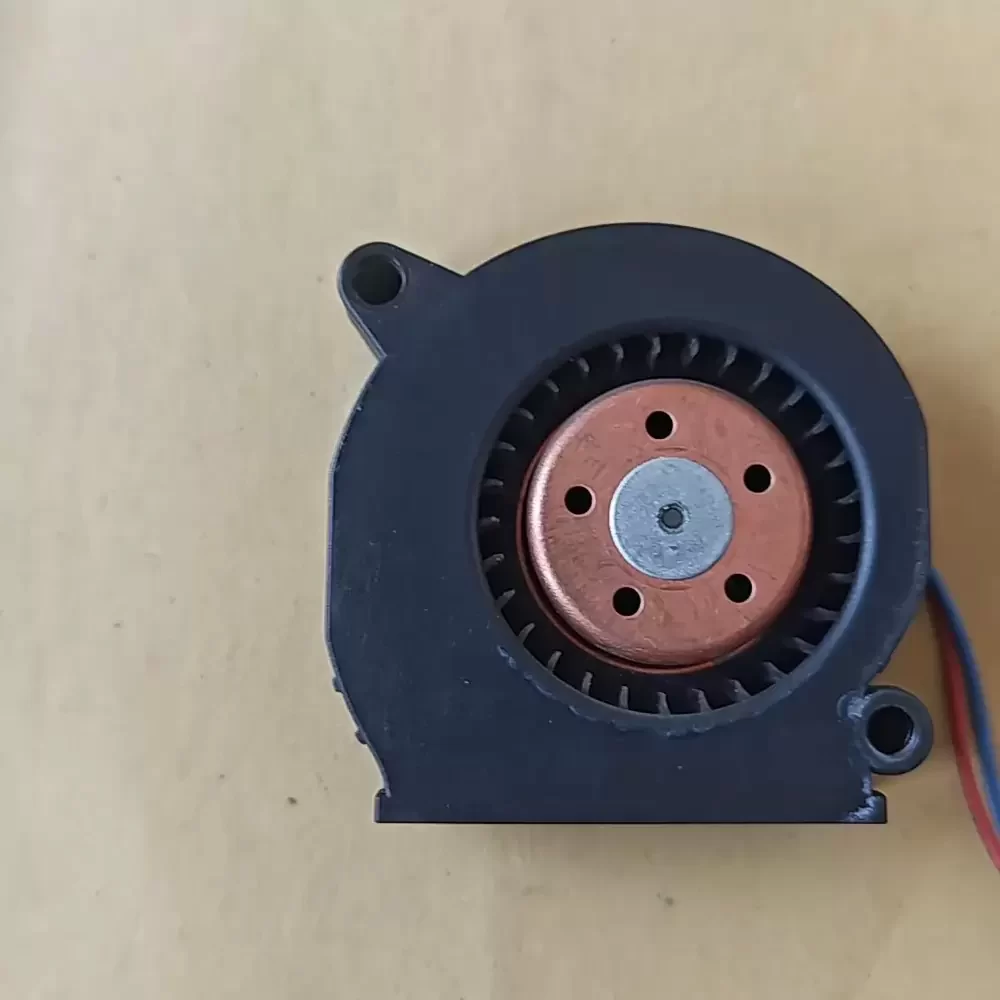

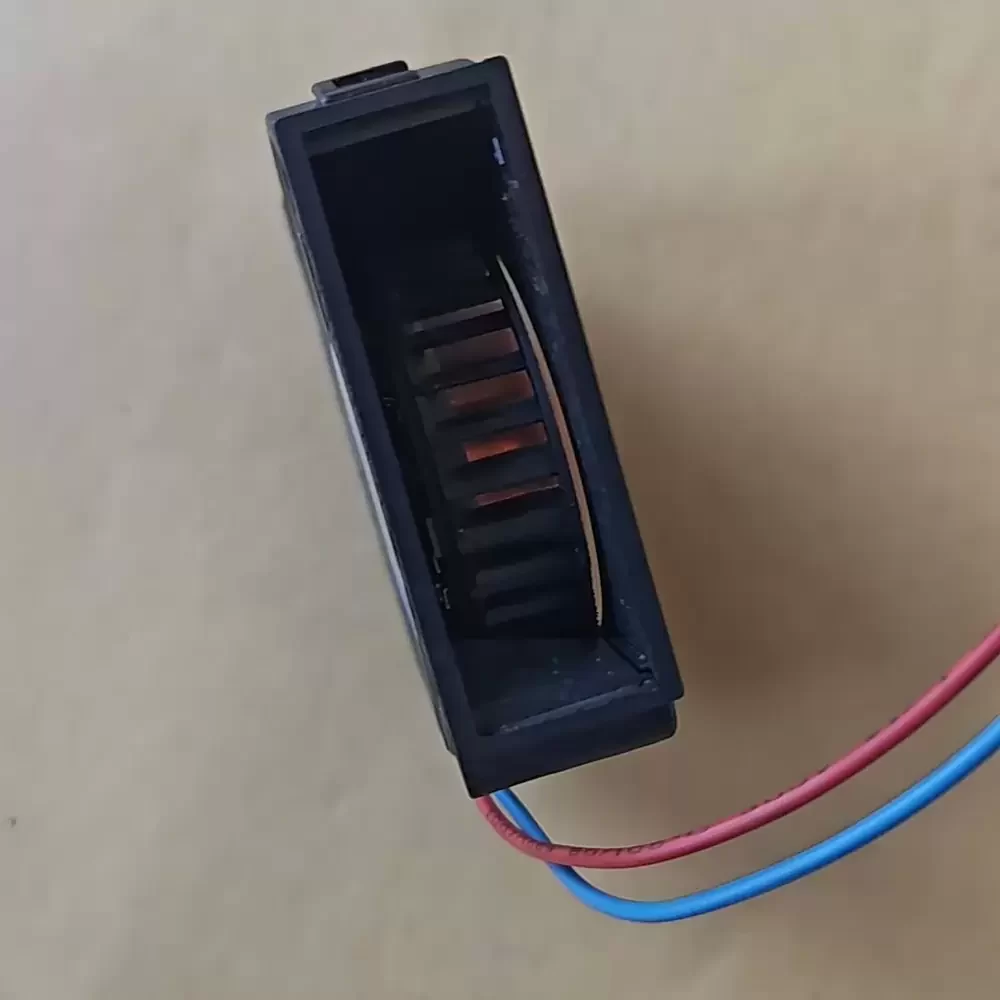

RLF35-8/14N ebm-papst 24VDC 4.3W 51x51x15mm Centrifugal Blower

Description

ebm-papst RLF35-8/14N is a compact 51 x 51 x 15 mm centrifugal blower operating at 24 VDC with a 4.3 W power rating and 9.6 m³/h airflow capacity. The unit features a fiberglass-reinforced plastic scroll housing and impeller, utilizing a dual ball bearing system for extended service life. It incorporates a 2-wire electrical interface with AWG 28 leads and provides high static pressure development through its radial discharge design. The internal motor is protected against reverse polarity and electronic locking.

RLF35-8/14N Specifications
Model Number: RLF35-8/14N
Brand: ebm-papst
Product Category: Centrifugal Blower
Nominal Voltage: 24 VDC
Voltage Range: 14 to 28 VDC
Nominal Current: 180 mA
Power Consumption: 4.3 W
Nominal Speed: 6700 RPM
Max Airflow: 9.6 m³/h
Sound Power Level: 5.5 Bel(A)
Dimensions: 51 x 51 x 15 mm
Weight: 0.04 kg
Bearing Type: Ball Bearing
Housing Material: Fiberglass-reinforced plastic (PBT)
Impeller Material: Fiberglass-reinforced plastic (PA)
Airflow Direction: Axial intake, radial discharge
Direction of Rotation: Clockwise (viewed toward rotor)
Operating Temperature: -20 to +70 °C
Service Life L10: 60000 h at 40 °C
Electrical Connection: 2 single strands AWG 28, TR 64
Motor Protection: Electronic locked-rotor and reverse polarity protection
Approvals: VDE, CSA, UL, CE

RLF35-8/14N Applications
Primary applications include integration into medical CPAP machines, laboratory analytical equipment, and compact telecommunication server modules. Deployed within localized hotspot cooling systems for high-density power electronics and automated pharmacy dispensing kiosks.
