Description

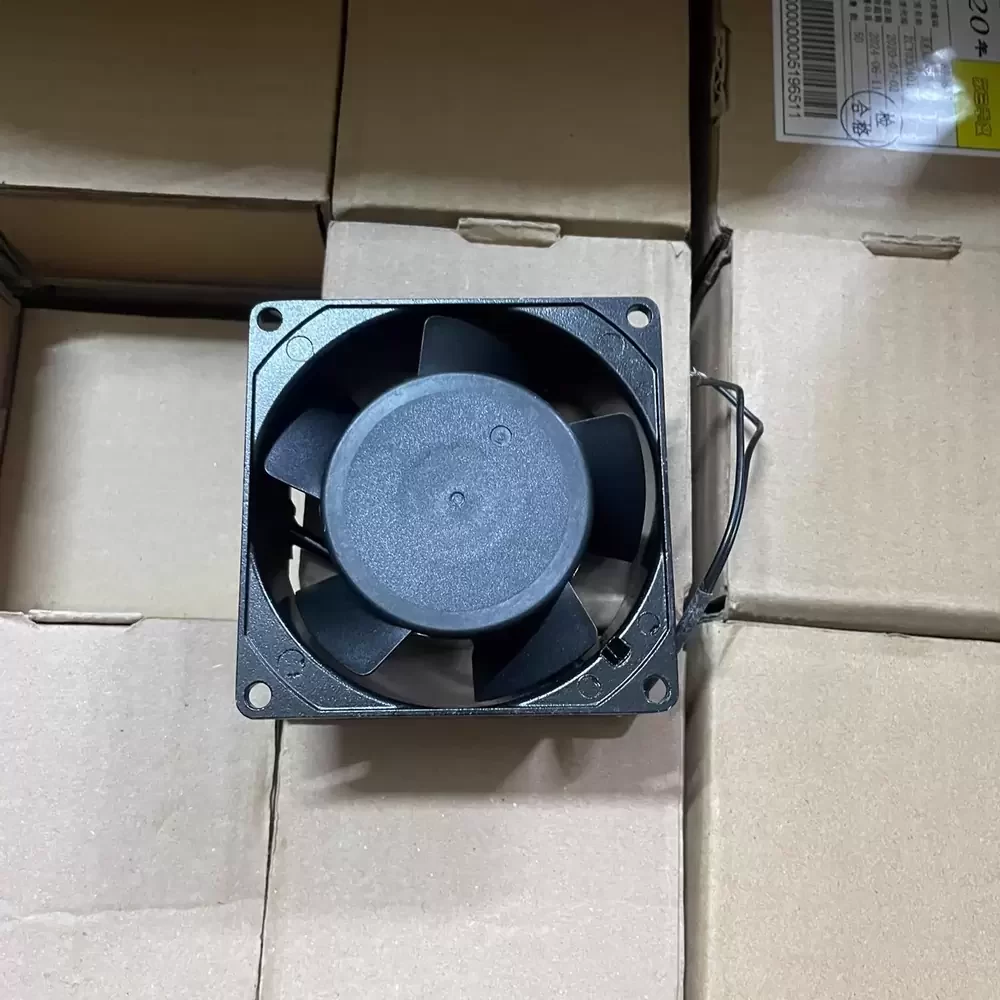

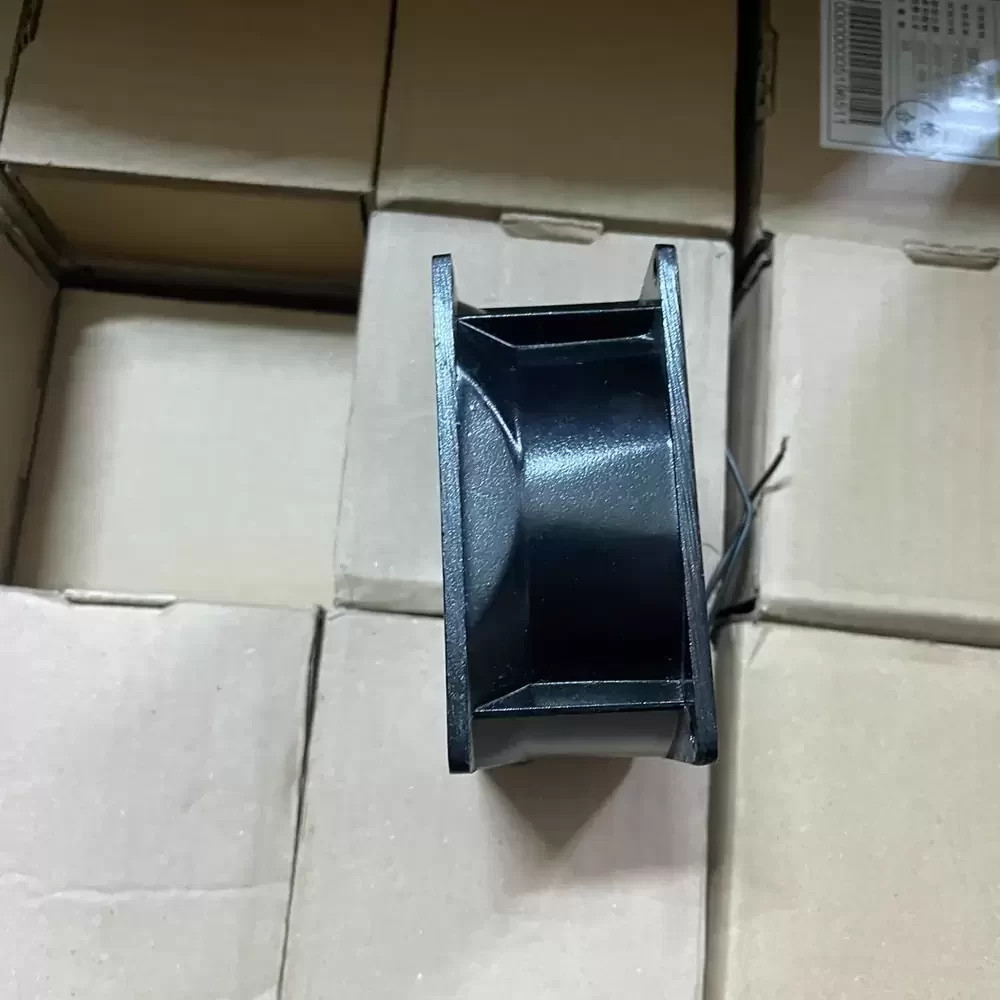

The ADDA AA8382HB-AW is an industrial-grade AC axial fan engineered for high-reliability thermal management in demanding environments. Utilizing advanced motor technology optimized for 220-240VAC operation at dual frequencies (50/60Hz), this unit features a robust bearing architecture designed to minimize thermal impedance and ensure long-term structural rigidity. Its aerodynamic impeller design is specifically balanced to provide consistent airflow while maintaining low acoustic profiles. The AA8382HB-AW is constructed with premium materials to withstand continuous operation, making it an essential component for maintaining optimal operating temperatures in sensitive electronic enclosures and industrial machinery.
Model Number: AA8382HB-AW
Brand: ADDA
Product Type: AC Axial Fan
Rated Voltage: 220-240VAC
Voltage Range: 198.0 – 264.0 VAC
Frequency: 50/60Hz
Rated Current: 0.08/0.07A
Power: 14.0/12.0W
Rated Speed: 2400/2900 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 26.0/31.0 CFM (44.2/52.7 m³/h)
Max. Static Pressure: 3.30/4.83 mmH₂O (32.36/47.36 Pa)
Dimensions: 80x80x38mm
Weight: 270g
Life Expectancy: 50,000 Hours at 40°C
Noise Level: 31.0/36.0 dB(A)
Housing Material: Aluminum Die-Cast
Blade Material: Thermoplastic UL94V-0
Termination: 2 Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Class: Class B
Protection: Impedance Protected
Certifications: UL, CUL, TUV, CE
The AA8382HB-AW is primarily utilized in high-density server racks, telecommunications cabinets, and industrial control panels where space is constrained but thermal loads are significant. Due to its compact 80x80x38mm form factor, the AA8382HB-AW integrates seamlessly into CNC machinery and medical diagnostic equipment to prevent component overheating. Its dual-frequency compatibility ensures that the AA8382HB-AW performs reliably across global power standards, providing critical cooling for power supplies and automated manufacturing systems.
