Description

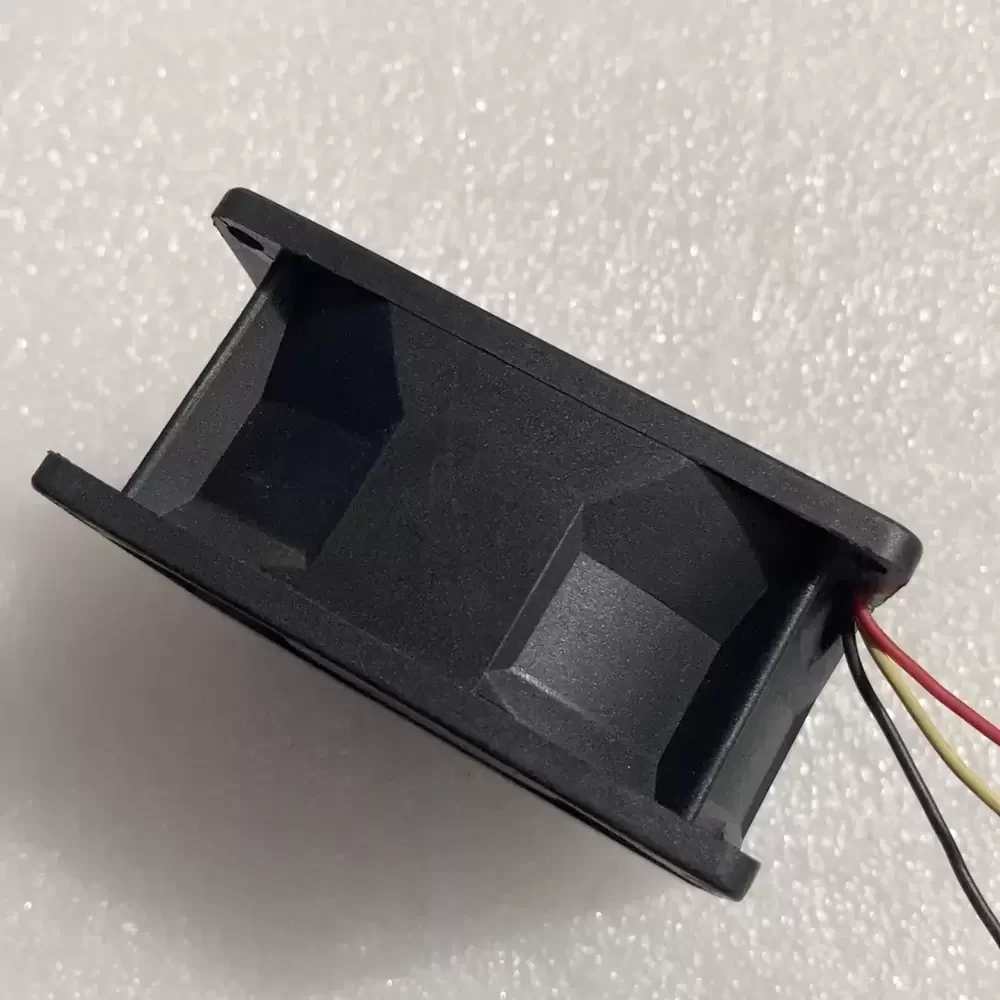

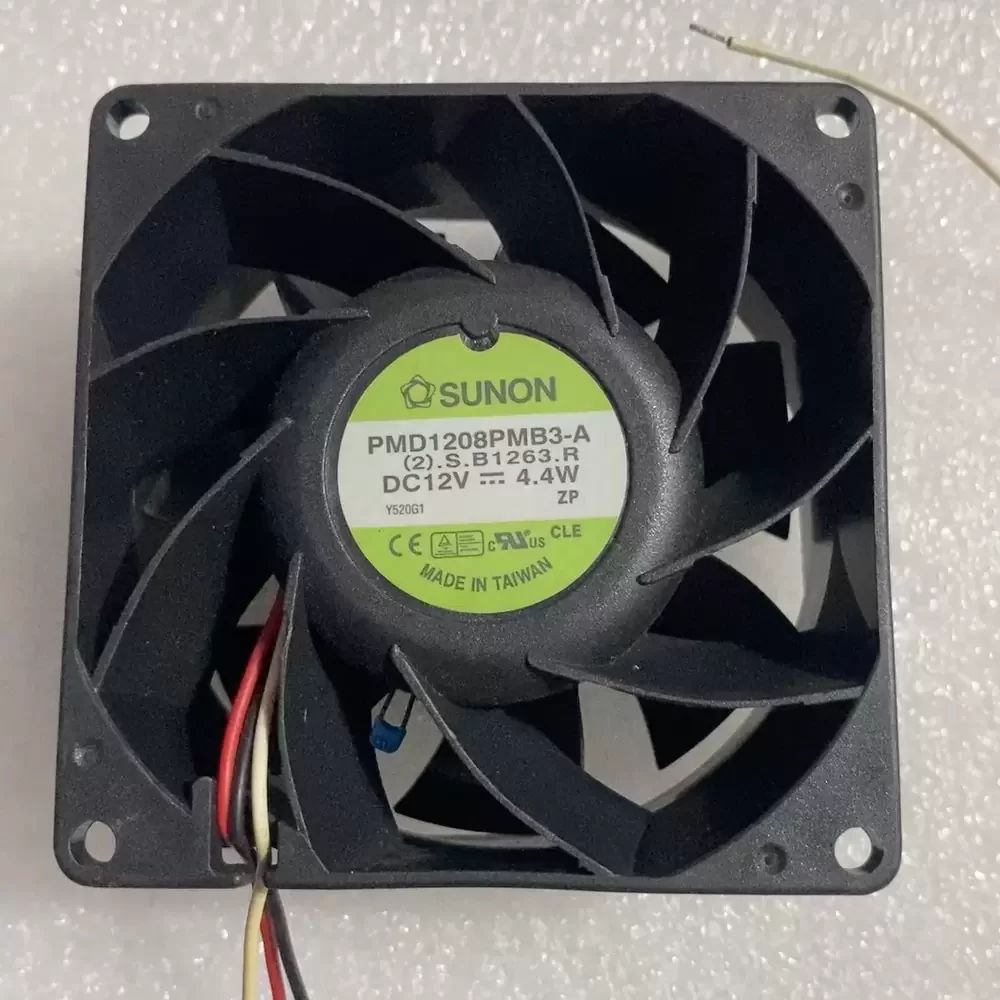

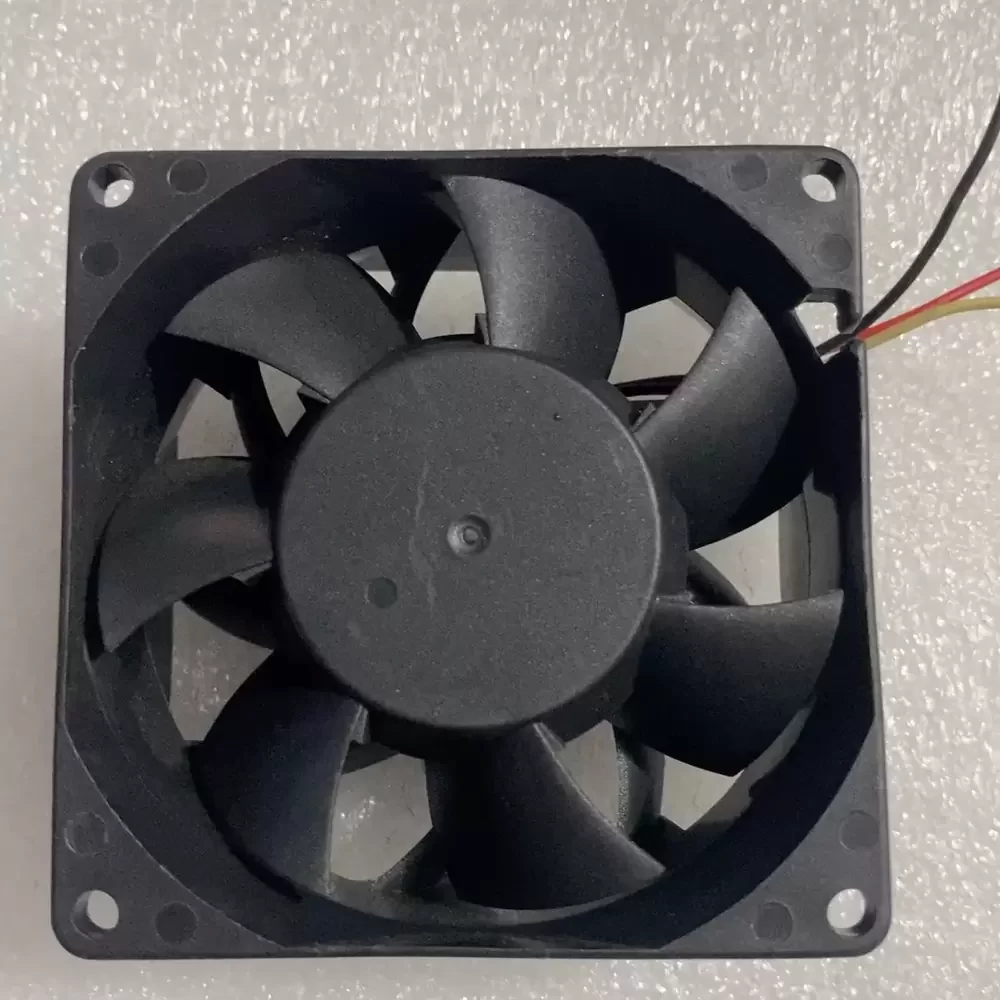

Sunon PMD1208PMB3-A.(2).S.B1263.R is a 12VDC 80x80x38mm Axial Fan optimized for high-density thermal management in industrial enclosures. This unit features a high-performance DC brushless motor with a dual ball bearing architecture, ensuring long-term structural rigidity and minimal thermal impedance under continuous duty cycles. The aerodynamic impeller design is engineered to overcome significant system resistance, delivering a robust 4.4W power output. Operating at a rated current of 0.36A, this fan provides the necessary static pressure to maintain optimal airflow in restricted environments. The 3-wire configuration includes a signal output for precise monitoring, making it a reliable replacement fan for mission-critical hardware requiring stable cooling performance.
Model Number: PMD1208PMB3-A.(2).S.B1263.R
Brand: Sunon
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 6.0 – 13.8 VDC
Rated Current: 0.36 A
Power: 4.4 W
Rated Speed: 4200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 56.5 CFM (1.60 m³/min)
Max. Static Pressure: 10.16 mmH₂O (0.40 inH₂O)
Dimensions: 80 x 80 x 38 mm
Weight: 175 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 46.5 dB(A)
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: 3 Lead Wires
Signal Output: Tachometer / Frequency Generator
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Protection Features: Auto Restart, Polarity Protection
PMD1208PMB3-A.(2).S.B1263.R Applications
1. Industrial Control Cabinets: The 38mm depth and high RPM provide the necessary static pressure to push air through dense internal wiring and modular components.
2. 2U Rackmount Servers: Ideal as a high-pressure replacement fan for server chassis where high component density creates significant airflow resistance.
3. Telecommunications Base Stations: Dual ball bearing construction ensures reliable vertical or horizontal mounting in ruggedized outdoor environments subject to temperature fluctuations.
