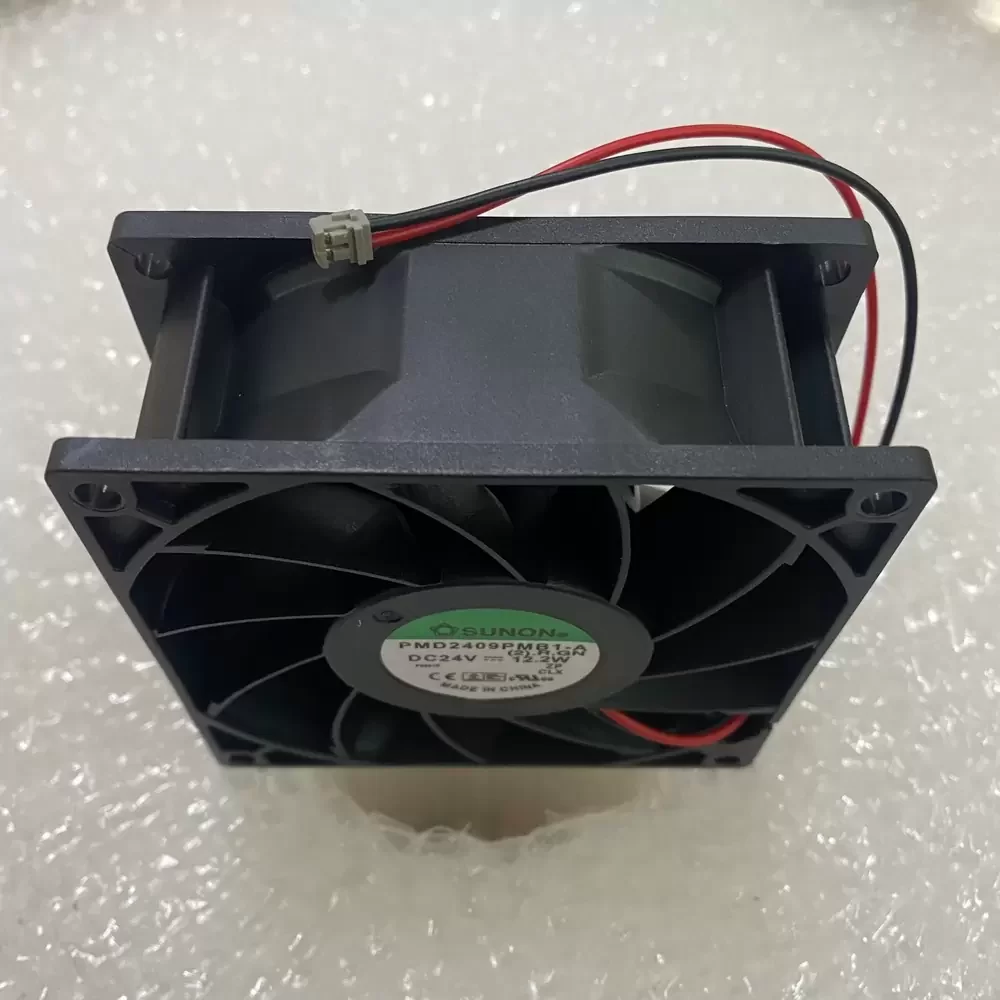

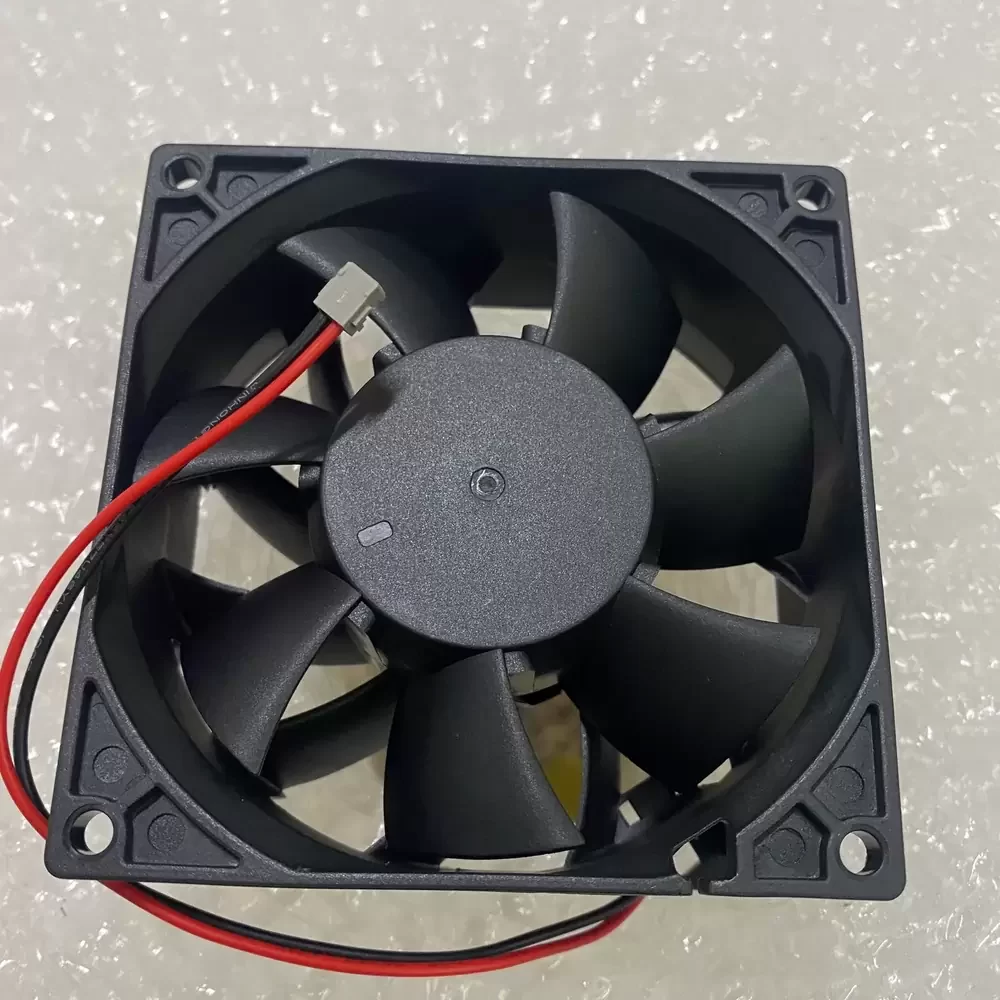

PMD2409PMB1-A.(2).R.GN Sunon 24VDC 92x92x38mm Axial Fan

Description

The Sunon PMD2409PMB1-A.(2).R.GN is a high-static pressure DC Axial Fan engineered for demanding thermal management applications requiring substantial airflow density. Utilizing advanced Brushless DC (BLDC) motor technology combined with a precision Dual Ball Bearing architecture, this unit ensures minimized friction and extended operational longevity under continuous high-load conditions. The aerodynamic impeller design optimizes airflow delivery while maintaining structural rigidity, effectively reducing thermal impedance in high-density electronic enclosures. Its robust construction meets rigorous industrial standards, providing reliable cooling performance for critical systems such as variable frequency drives and power inverters.

Model Number: PMD2409PMB1-A.(2).R.GN
Brand: Sunon
Product Type: DC Axial Fan
Series: PMD (Power Motor DC)
Rated Voltage: 24VDC
Voltage Range: 10.0 – 27.6 VDC
Power Consumption: 12.20 W
Rated Current: 0.51 A
Rated Speed: 4900 RPM
Max. Air Flow: 120.2 CFM (204.2 m³/h / 3.40 m³/min)
Max. Static Pressure: 0.71 inH₂O (176.8 Pa / 18.0 mmH₂O)
Bearing Type: Dual Ball Bearing
Noise Level: 57.6 dBA
Dimensions: 92 x 92 x 38 mm
Weight: 190 g
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Ingress Protection: IP55 (Optional based on variant)
Termination: 2-Wire Lead (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Safety Approvals: UL, CUR, TUV, CE
Motor Protection: Impedance Protected, Reverse Polarity Protection

This high-performance cooling solution is specifically calibrated for industrial automation equipment, including variable frequency drives and heavy-duty power inverters. The PMD2409PMB1-A.(2).R.GN is frequently deployed in server rack enclosures, telecommunications cabinets, and CNC machinery where consistent thermal regulation is paramount. Additionally, the PMD2409PMB1-A.(2).R.GN serves as a critical replacement component for the Schneider ATV71 inverter series, ensuring optimal operating temperatures for sensitive power electronics in harsh manufacturing environments.
