Description

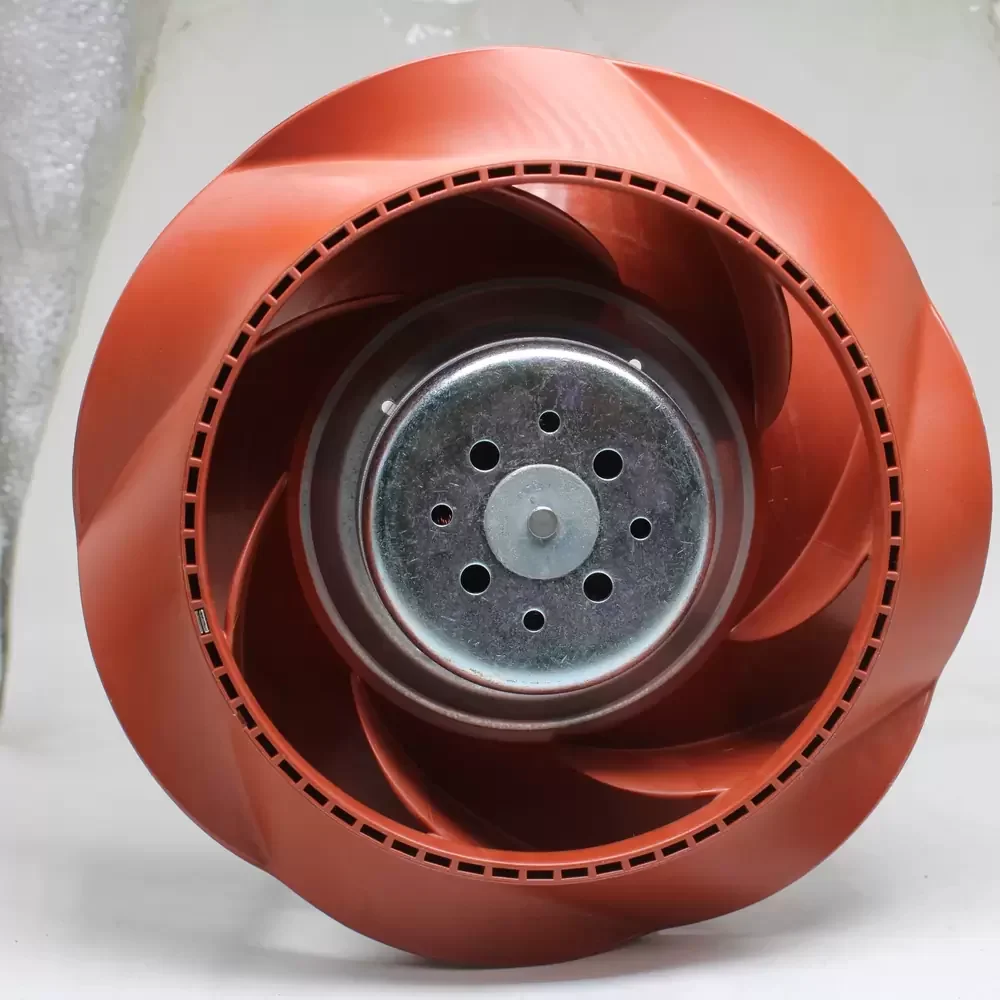

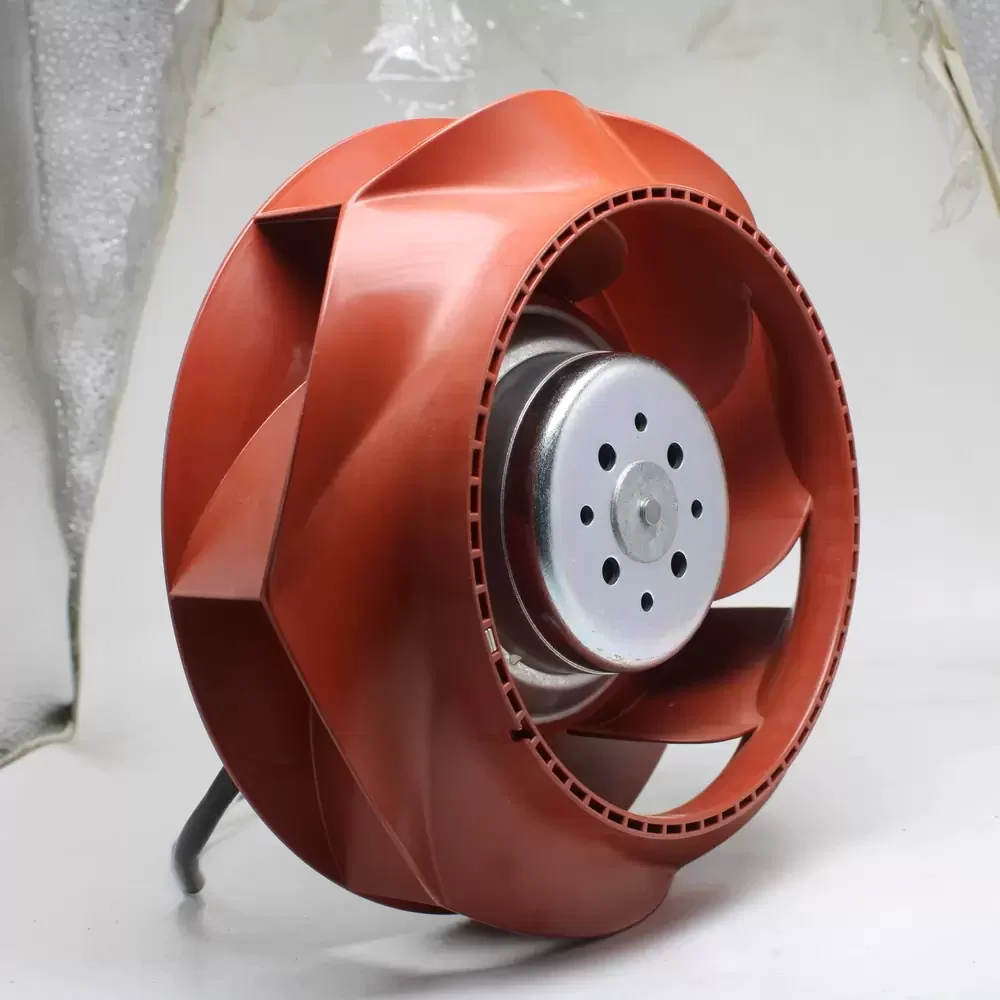

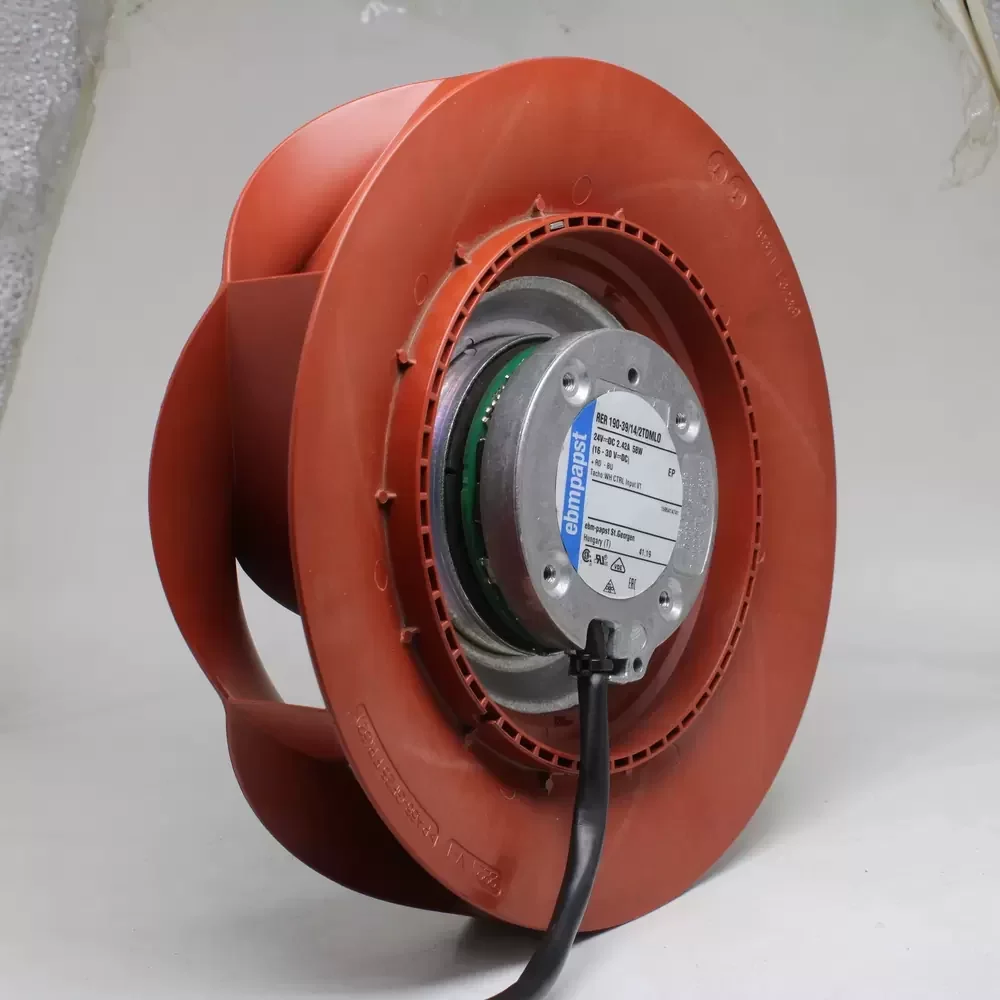

The ebm-papst RER190-39/14/2TDMLO is a precision-engineered DC centrifugal fan designed for high-static pressure applications requiring optimized thermal impedance management. Featuring a robust backward-curved motorized impeller, this unit integrates a high-efficiency DC motor within a structurally rigid housing to minimize vibration and acoustic resonance. The aerodynamic profile of the impeller blades ensures superior airflow delivery while maintaining operational stability under varying load conditions. Built with durable ball bearing architecture, the RER190-39/14/2TDMLO delivers consistent performance in demanding industrial environments, ensuring reliable heat dissipation and system longevity through advanced electromechanical design.
Model Number: RER190-39/14/2TDMLO
Brand: ebm-papst
Product Type: Centrifugal Fan / Motorized Impeller
Rated Voltage: 24 VDC
Voltage Range: 16.0 – 30.0 VDC
Rated Current: 2.42 A
Power Consumption: 58 W
Rated Speed: 3150 RPM
Max. Air Flow: 335.5 CFM (570 m³/h / 9.5 m³/min)
Max. Static Pressure: 2.81 inH₂O (700 Pa)
Bearing Type: Ball Bearing
Dimensions: Ø 190 mm x 69 mm
Weight: 0.87 kg
Impeller Material: Glass-fiber reinforced plastic (PA)
Housing Material: Die-cast aluminum
Direction of Rotation: Clockwise, viewed toward rotor
Ingress Protection: IP20
Insulation Class: Class B
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +80°C
Noise Level: 72 dB(A)
Termination: Lead wires
Motor Protection: Reverse Polarity, Locked Rotor Protection
Speed Control: Speed Signal (Tachometer)
Life Expectancy: 70,000 Hours at 40°C
This centrifugal fan is engineered for high-density electronic cooling and ventilation systems where static pressure is a critical factor. The RER190-39/14/2TDMLO is frequently utilized in telecommunications base stations, server cabinet cooling, and industrial drive cooling systems. Additionally, the RER190-39/14/2TDMLO serves as a vital component in medical imaging equipment and compact air handling units, providing reliable airflow in space-constrained enclosures requiring sustained thermal regulation.
