Description

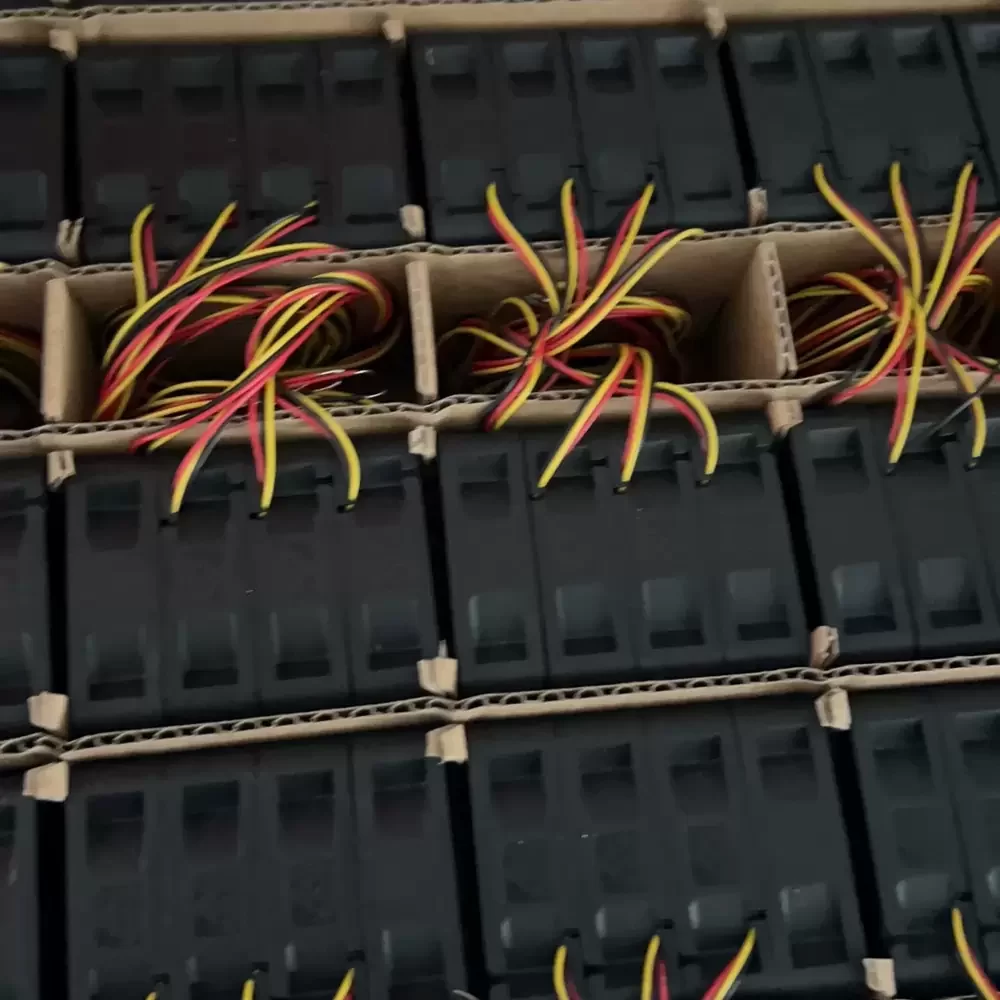

The Magic MGT5012LR-O15 is a compact Axial Fan engineered for applications requiring minimal acoustic resonance and reliable thermal exchange. Utilizing a precision-wound DC brushless motor, this unit optimizes airflow efficiency while maintaining a low thermal impedance profile. The 50mm frame is constructed from reinforced thermoplastic, ensuring structural rigidity under continuous operation. Designed with a focus on silent performance, the aerodynamic blade geometry reduces turbulence-induced noise, making it suitable for noise-sensitive electronic environments.
Model Number: MGT5012LR-O15
Brand: Magic (Magic Motor)
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.07 A
Power: 0.84 W
Rated Speed: 3500 RPM
Bearing Type: Sleeve / Rifle Bearing
Max. Air Flow: 9.5 CFM (16.1 m³/h)
Max. Static Pressure: 2.1 mmH₂O (20.6 Pa)
Dimensions: 50 x 50 x 15 mm
Noise Level: 22 dBA
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Termination: 2-Wire Lead
Operating Temperature: -10 to +70 °C
Life Expectancy: 30,000 Hours
Mounting Orientation: Any
The MGT5012LR-O15 is specifically calibrated for integration into compact electronic assemblies where space constraints and noise reduction are paramount. Common deployment scenarios include small form-factor power supplies, DVR/NVR cooling systems, and network appliance ventilation. The MGT5012LR-O15 ensures consistent airflow to prevent thermal throttling in sensitive components like chipsets and voltage regulators, maintaining system stability in commercial and industrial environments.
