Description

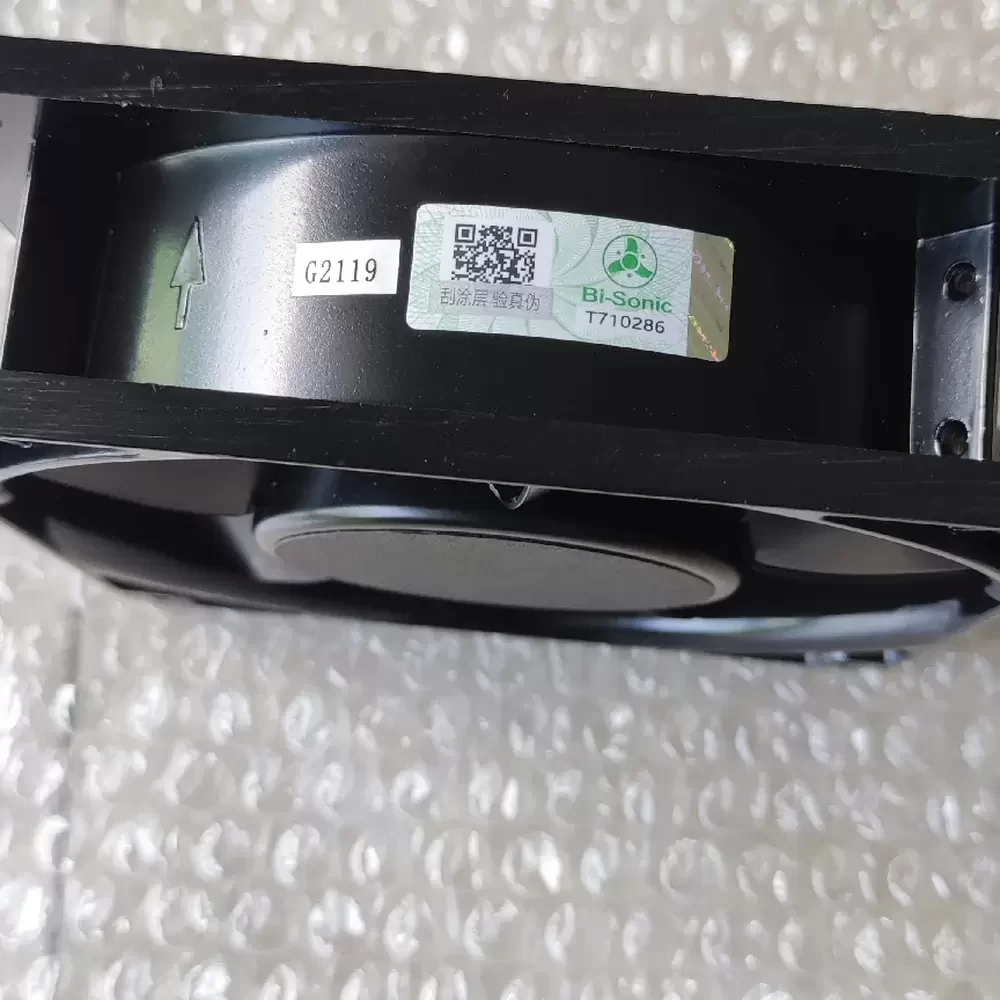

The Bi-Sonic 4E-230B 02 is a high-temperature resistant Axial Fan engineered for demanding industrial thermal management. Utilizing a robust AC induction motor, this unit features an all-metal construction with a die-cast aluminum housing and steel impellers to ensure structural rigidity under extreme thermal stress. The dual ball bearing architecture minimizes friction and optimizes rotational stability, significantly reducing thermal impedance within the system. Designed for continuous operation, the aerodynamic profile of the blades is precision-engineered to maximize static pressure while maintaining acoustic efficiency. This model represents a reliable solution for environments where plastic components would fail due to heat or chemical exposure.
Model Number: 4E-230B 02
Brand: Bi-Sonic
Product Type: Axial Fan
Rated Voltage: 230VAC
Voltage Range: 207.0-253.0VAC
Rated Current: 0.13A
Power: 22W
Rated Speed: 2700RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 85.00CFM (144.41m³/h / 2.41m³/min)
Max. Static Pressure: 7.11mmH₂O (69.72Pa / 0.28inH₂O)
Dimensions: 120x120x38mm
Weight: 550g
Life Expectancy: 50,000Hours
Noise Level: 45dB(A)
Housing Material: Die-Cast Aluminum
Blade Material: Steel
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +80°C
Insulation Class: Class B
Termination: Lead Wires
Protection: Impedance Protected
Certifications: UL, CUL, TUV, CE
The 4E-230B 02 is specifically designed for integration into high-heat industrial environments such as commercial ovens, drying equipment, and heavy-duty welding machines. Given its all-metal construction, the 4E-230B 02 excels in CNC machinery and factory automation cabinets where durability is paramount. It is also frequently utilized in telecommunication base stations and server enclosures that require consistent airflow under high static pressure conditions.
