Description

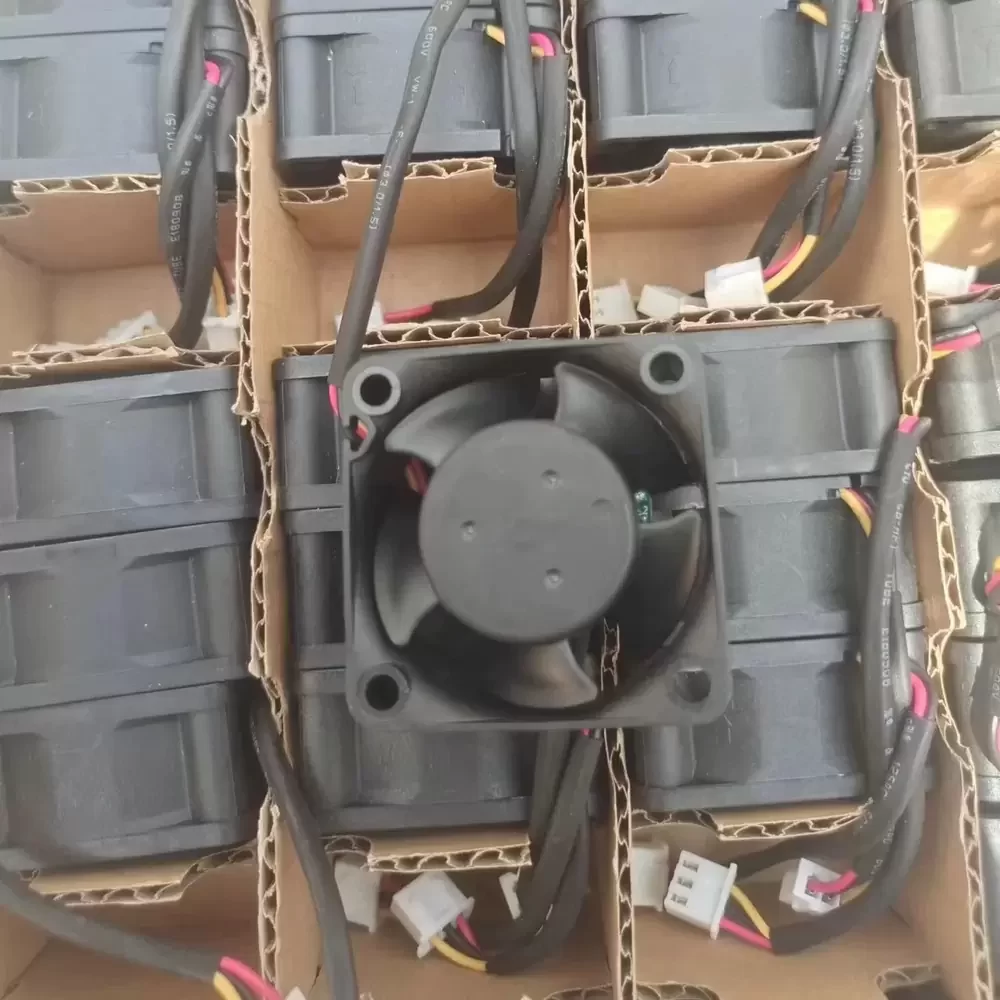

The Magic MGT4012UB-R20 is a high-velocity axial cooling fan engineered for compact electronic environments requiring aggressive thermal dissipation. Featuring a robust Double Ball Bearing architecture, this unit is designed to withstand continuous high-speed operation while minimizing frictional wear and thermal impedance. The aerodynamic impeller geometry is optimized to generate significant static pressure, allowing it to effectively penetrate high-density component clusters found in power electronics. Driven by a precision 12VDC motor, the MGT4012UB-R20 maintains exceptional structural rigidity and rotational stability, ensuring reliable airflow performance and extended operational service life in demanding industrial applications.
Model Number: MGT4012UB-R20
Brand: Magic (Protechnic)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.30 A
Power Input: 3.60 W
Rated Speed: 13600 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 15.50 CFM (26.33 m³/h / 0.44 m³/min)
Max. Static Pressure: 14.2 mmH₂O (139 Pa / 0.56 inH₂O)
Dimensions: 40 x 40 x 20 mm
Weight: 48 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 46.5 dB(A)
Termination: 3-Wire Lead
Wire Gauge: 26 AWG
Signal Output: Tachometer (FG Signal)
Insulation Class: Class A
Ingress Protection: IP40
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Certifications: CE, UL, TUV, RoHS
This compact thermal solution is specifically designed for high-performance hardware such as frequency inverters, power inverters, and 1U server rack chassis where space is at a premium. The MGT4012UB-R20 is frequently utilized in industrial automation controllers, network switches, and medical instrumentation requiring consistent forced air cooling. By integrating the MGT4012UB-R20 into these critical systems, operators ensure efficient heat evacuation from dense circuitry, preventing thermal throttling and safeguarding the longevity of sensitive electronic components.
