Description

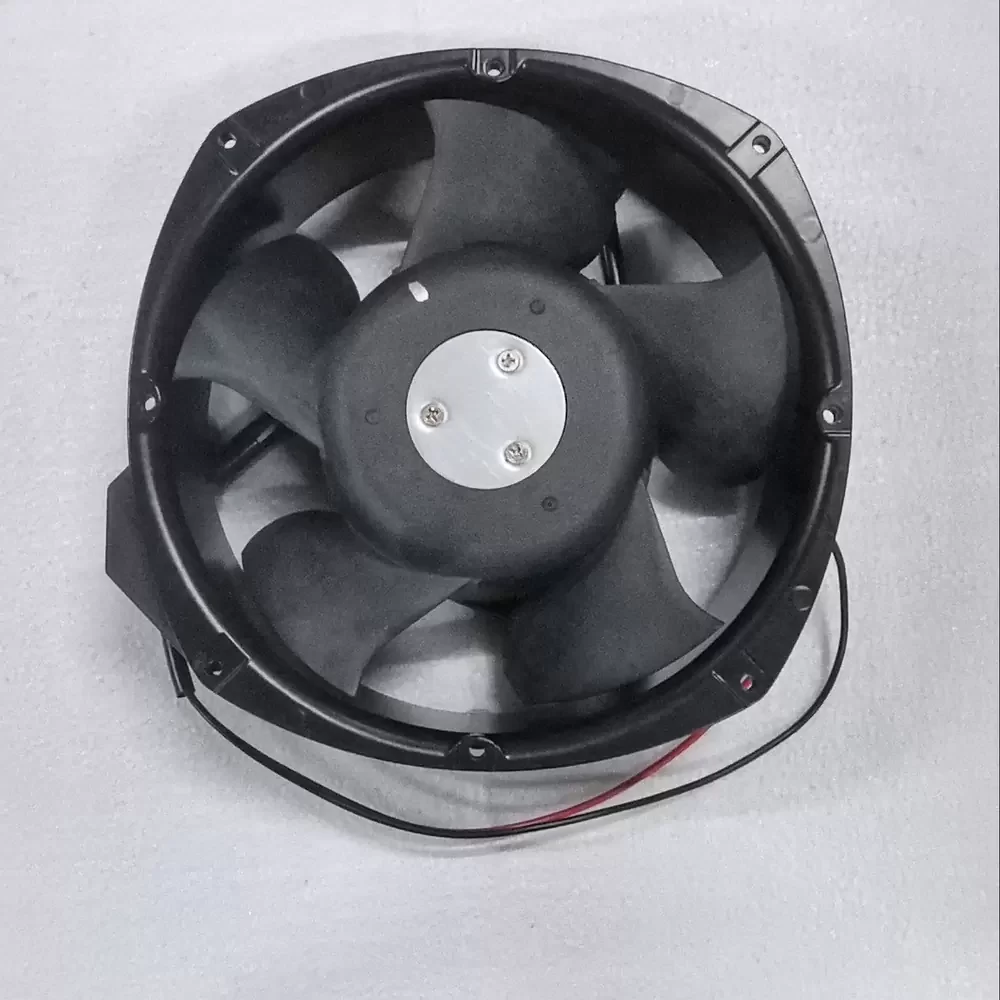

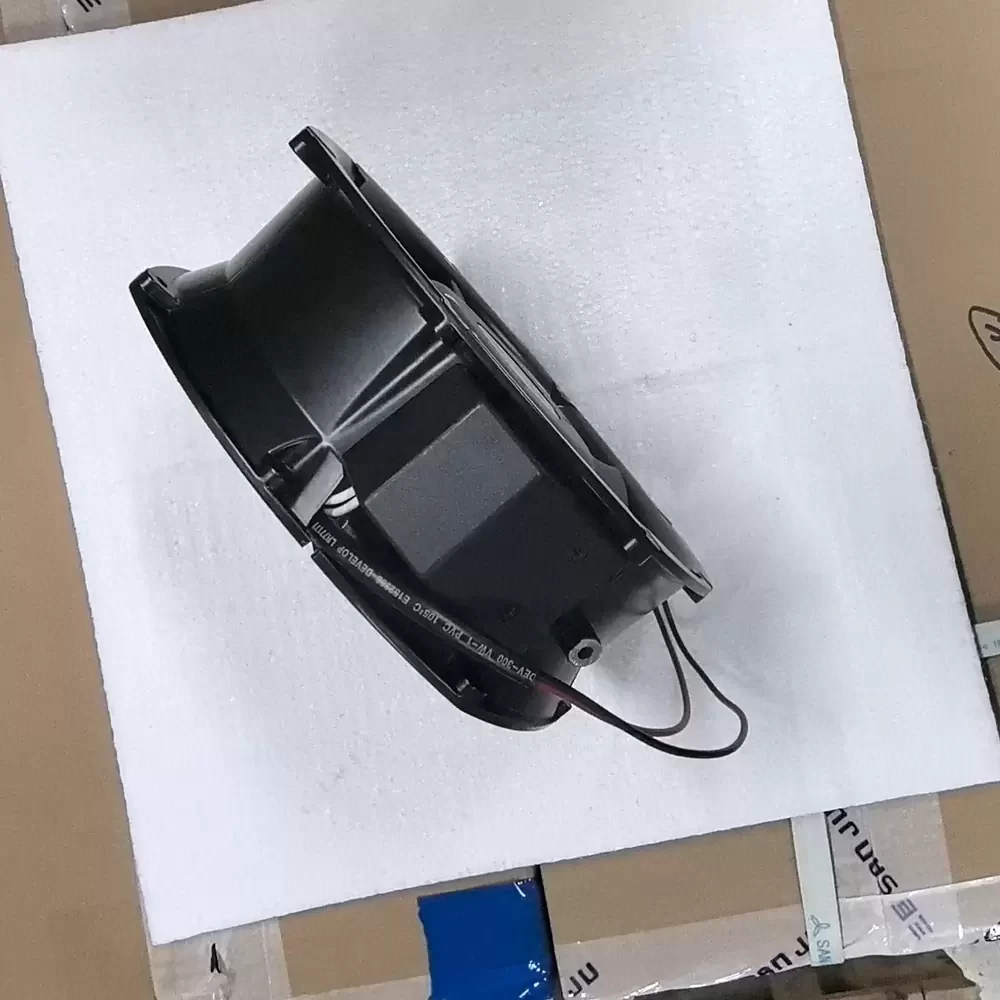

The SINWAN S200RAP-22-1 (GYC) is a heavy-duty AC Axial Fan engineered for rigorous industrial thermal management. Built with a rugged die-cast aluminum housing and an impedance-protected AC induction motor, this unit ensures superior structural rigidity and thermal stability. The fan features a precision dual ball bearing system that significantly reduces friction and enhances operational longevity. Its aerodynamic impeller design is optimized to deliver high-volume airflow while maintaining consistent static pressure, making it a robust solution for environments requiring reliable heat dissipation under continuous load.
Model Number: S200RAP-22-1 (GYC)
Brand: SINWAN
Product Type: AC Axial Fan
Rated Voltage: 200 / 240 VAC
Frequency: 50 / 60 Hz
Input Power: 60 / 75 W
Rated Speed: 2800 / 3300 RPM
Max. Air Flow: 335 / 380 CFM (Approx. 570 / 645 m³/h)
Max. Static Pressure: 0.79 / 0.88 inH₂O (196 / 215 Pa)
Dimensions: 205 x 205 x 72 mm
Bearing Type: Dual Ball Bearing
Frame Material: Die-Cast Aluminum (Black)
Impeller Material: Thermoplastic PBT (UL94V-0) or Steel
Noise Level: 55 / 60 dB(A)
Life Expectancy: 50,000 Hours at 25°C
Termination: Lead Wires / Terminals
Operating Temperature: -10°C to +70°C
Ingress Protection: IP55 (Series Standard)
Motor Protection: Impedance Protected
Certifications: UL, cUL, TUV, CE
Designed for critical cooling applications, the S200RAP-22-1 (GYC) is widely utilized in industrial automation cabinets, large-scale server racks, and power conversion systems. Its durable construction allows for seamless integration into CNC machinery and heavy-duty ventilation systems where consistent airflow is paramount. Additionally, the S200RAP-22-1 (GYC) is suitable for heat exchange units in telecommunications infrastructure, ensuring component protection in demanding thermal environments.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
