Description

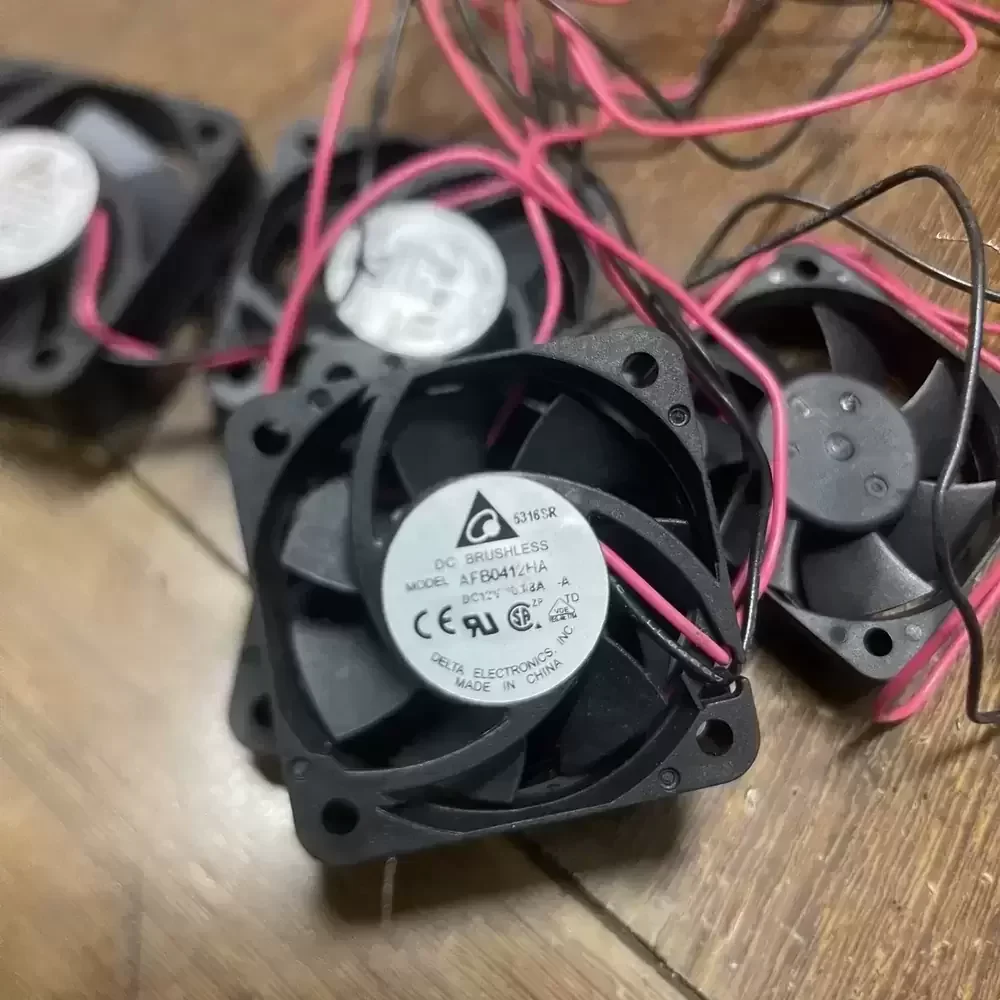

The Delta AFB0412HA-A is a compact DC axial fan engineered for precision thermal management in space-constrained electronic assemblies. Utilizing advanced brushless DC motor technology and a durable ball bearing architecture, this unit ensures consistent rotational stability and reduced friction coefficients over extended operational lifecycles. The aerodynamic impeller design optimizes airflow intake while maintaining a manageable noise profile, balancing thermal impedance reduction with acoustic performance. Its structural rigidity and efficient commutation circuitry make it a reliable component for maintaining optimal operating temperatures in sensitive hardware environments.
Model Number: AFB0412HA-A
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.08 A
Input Power: 0.96 W
Rated Speed: 6000 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 6.8 CFM (11.55 m³/h / 0.19 m³/min)
Max. Static Pressure: 3.64 mmH₂O (35.7 Pa / 0.14 inH₂O)
Dimensions: 40 x 40 x 10 mm
Weight: 14.0 g
Noise Level: 27.0 dB-A
Life Expectancy: 70,000 Hours at 40°C
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Termination: 2-Wire Lead (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP55 (Optional configuration)
Safety Certifications: UL, cUL, TUV, VDE, CE
Protection: Impedance Protected, Reverse Polarity
The AFB0412HA-A is specifically designed for high-density electronic applications where space is at a premium but reliable cooling is non-negotiable. Common deployment scenarios include chipset cooling in server racks, ventilation for compact power supply units, and thermal regulation in industrial automation controllers. The AFB0412HA-A is also frequently utilized in network switches, CNC control panels, and medical instrumentation, ensuring critical components remain within safe thermal envelopes during continuous operation. Its compact 40mm footprint allows for seamless integration into legacy systems and modern PCB layouts alike.
