Description

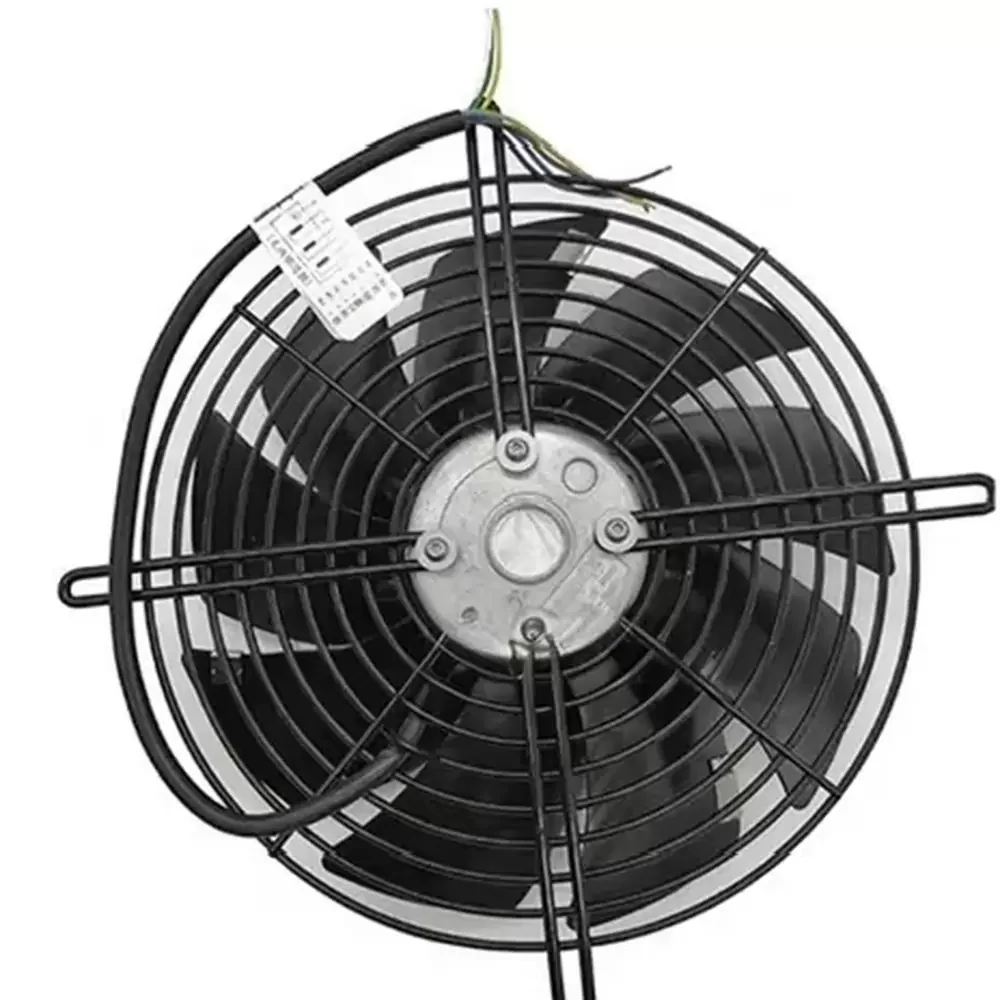

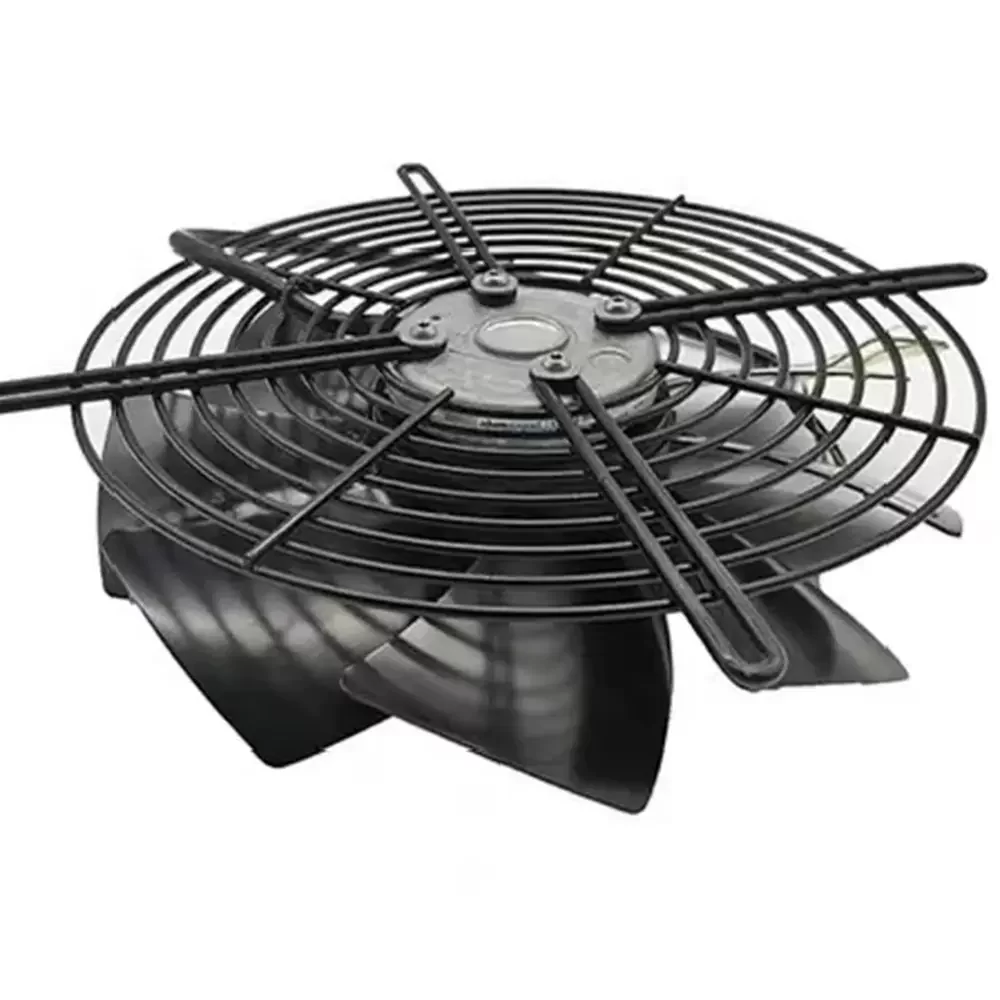

ebm-papst S2D250-BI02-01 250 mm 230 / 400 VAC 100 / 140 W axial fan delivers a maximum airflow of 2810 m³/h. This unit features seven sickled blades constructed from black-coated sheet steel and a phosphated steel guard grille with black plastic coating. The internal mechanism utilizes a dual ball bearing system for horizontal or vertical shaft mounting. It is equipped with an M2D068-CF motor, providing a rotational speed of up to 2650 rpm and a maximum back pressure of 150 Pa. The assembly includes a lateral cable exit with 0.45 m leads and maintains an IP 44 protection rating with insulation class B.
S2D250-BI02-01 Specifications

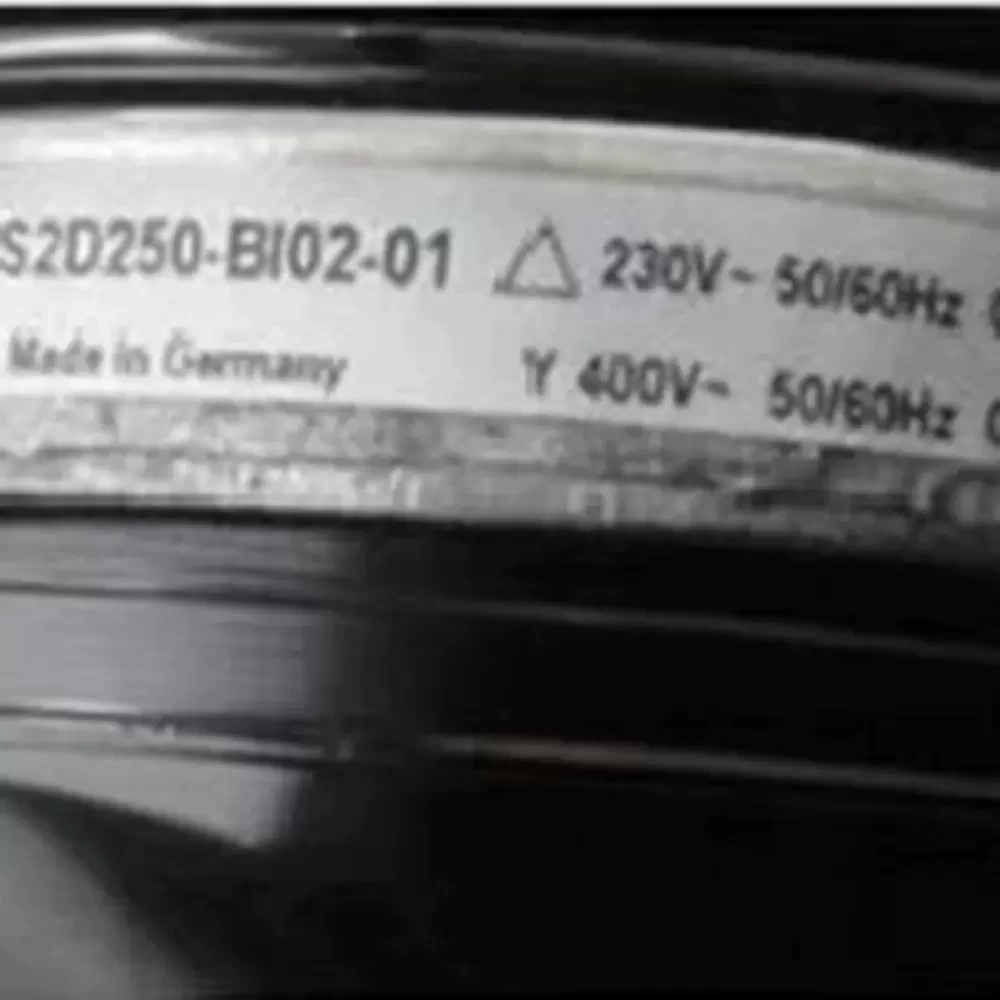

Model: S2D250-BI02-01
Brand: ebm-papst
Motor: M2D068-CF
Phase: 3 ~
Nominal Voltage: 230 / 400 VAC
Frequency: 50 / 60 Hz
Power Input: 100 / 140 W
Current Draw: 0.20 / 0.40 A
Speed: 2500 / 2650 rpm
Airflow: 2450 / 2810 m³/h
Max Back Pressure: 150 Pa
Fan Size: 250 mm
Weight: 2.1 kg
Number of Blades: 7
Blade Material: Sheet steel, coated in black
Guard Grille Material: Steel, phosphated and coated in black plastic
Direction of Rotation: Counter-clockwise
Direction of Airflow: A
Protection Rating: IP 44
Insulation Class: B
Operating Temperature: -25 to 65 °C
Storage Temperature: -40 to 80 °C
Bearing Type: Ball bearing
Cable Length: 0.45 m
Certifications: CE, CCC, EN 60335-1
S2D250-BI02-01 Applications
Primary applications include integration into industrial frequency converter cooling systems, electrical control cabinet thermal management, and telecommunications base station ventilation. Deployed within CNC machine tool enclosures, medical diagnostic equipment, and high-density server rack cooling arrays to maintain optimal operating temperatures.
