Description

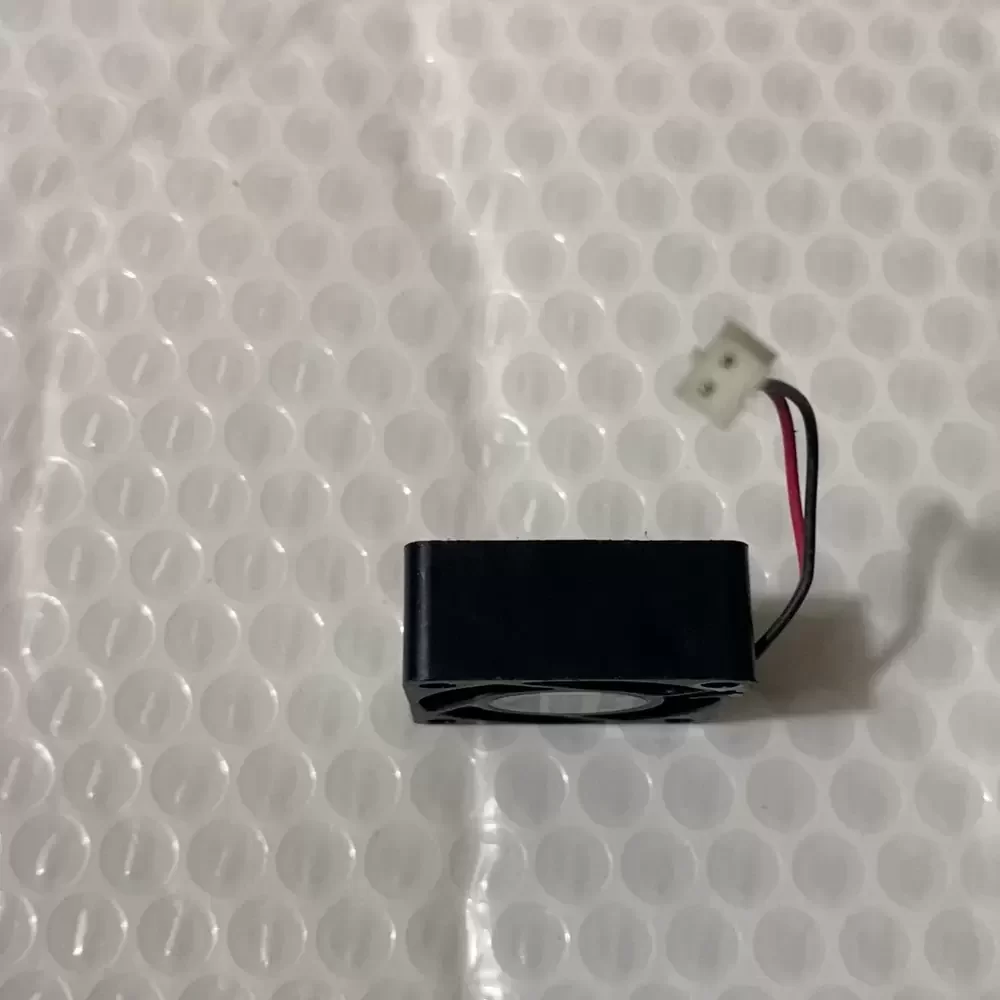

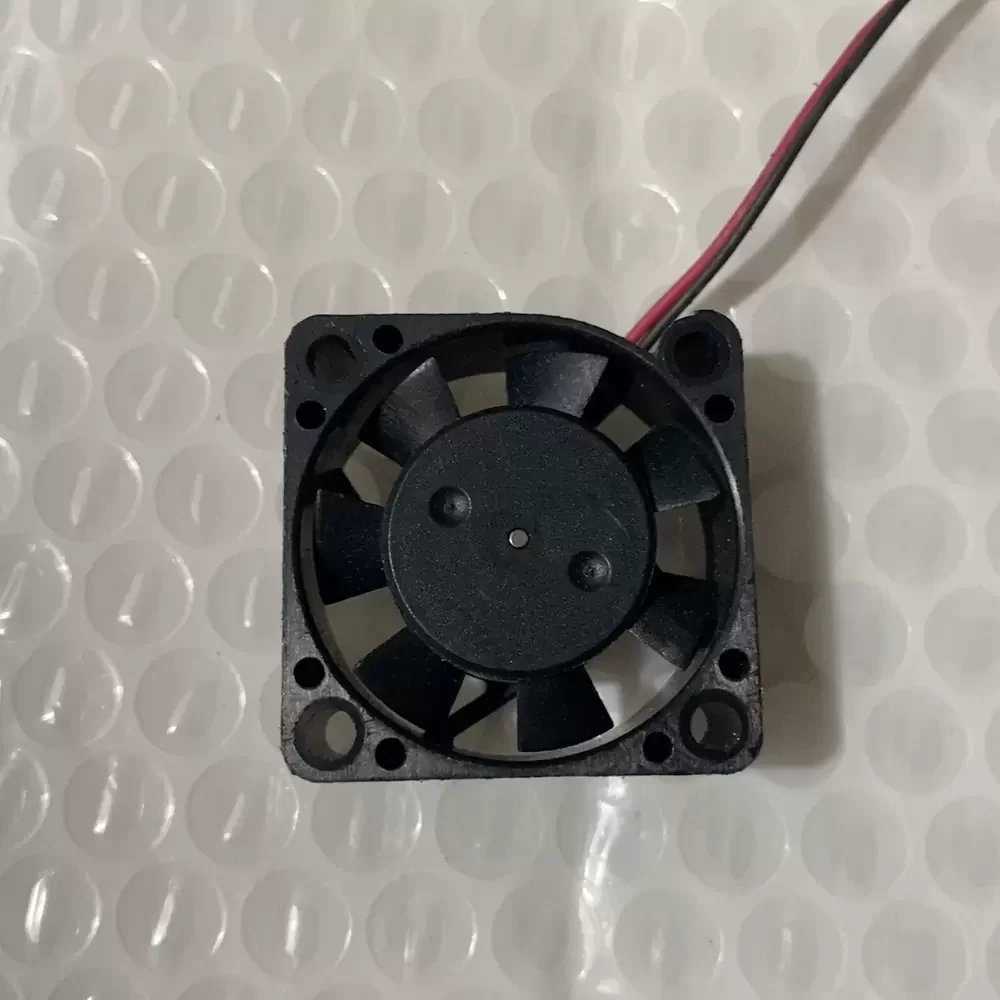

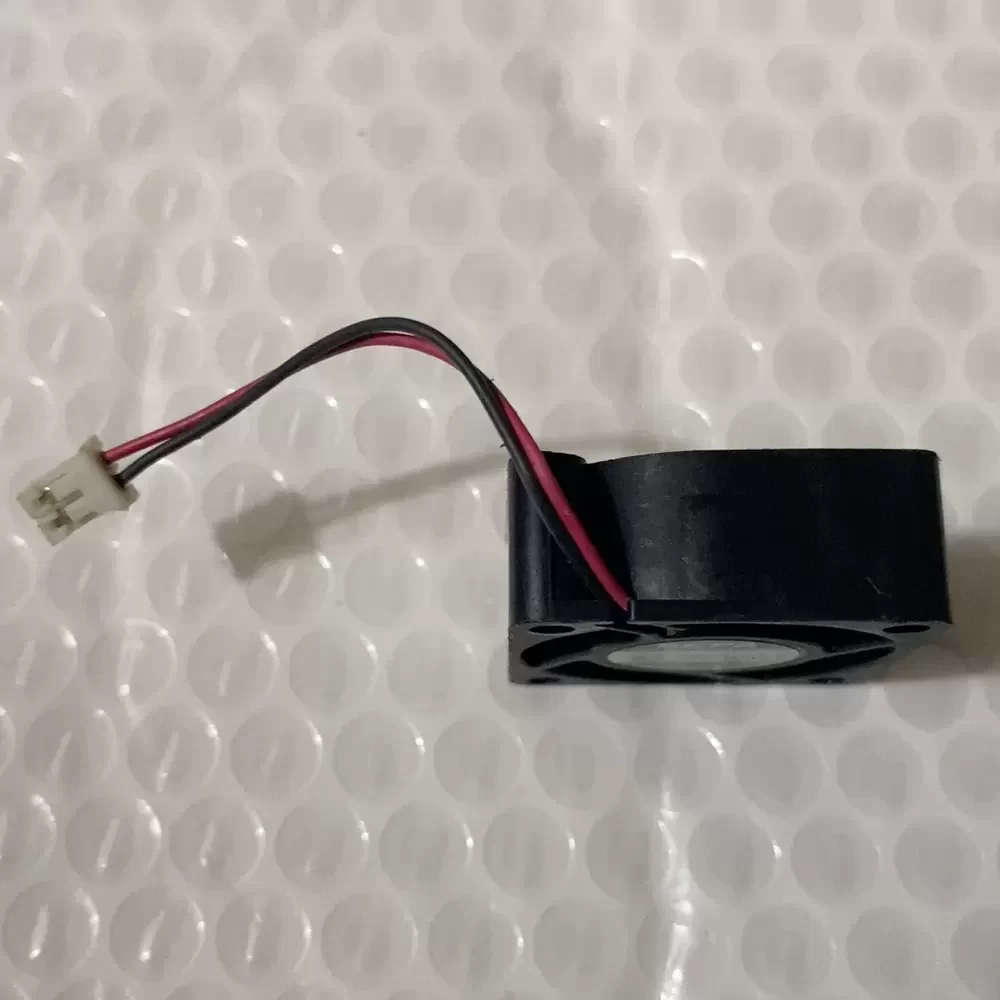

The SEPA SF30A-12 is a compact Axial Fan designed for precision thermal management in space-constrained electronic assemblies. Engineered by Nippon Keiki Works, this micro-cooling solution features a highly efficient 12VDC motor architecture that draws a minimal 0.04A, ensuring low power consumption while maintaining optimal airflow. The unit utilizes a durable sleeve bearing system and an optimized impeller design to deliver consistent cooling performance with reduced acoustic noise. Its structural rigidity and compact form factor make it an ideal component for maintaining thermal equilibrium in sensitive circuitry.
Model Number: SF30A-12
Brand: SEPA
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.04 A
Power: 0.48 W
Rated Speed: 8500 RPM
Max. Air Flow: 3.2 CFM (5.4 m³/h / 0.09 m³/min)
Max. Static Pressure: 2.1 mmH₂O (20.6 Pa / 0.08 inH₂O)
Noise Level: 24 dBA
Bearing Type: Sleeve Bearing
Dimensions: 30 x 30 x 10 mm
Weight: 8 g
Termination: 2 Wire Leads
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10 to +60 °C
Storage Temperature: -20 to +70 °C
Life Expectancy: 30,000 Hours at 25°C
The SF30A-12 is specifically engineered for integration into compact electronic devices where internal space is at a premium. Common applications include cooling chipsets in DVR systems, small form-factor power supplies, handheld medical diagnostic equipment, and network interface cards. The low acoustic profile of the SF30A-12 also makes it suitable for audio-visual equipment and home automation sensors requiring silent operation.
