Description

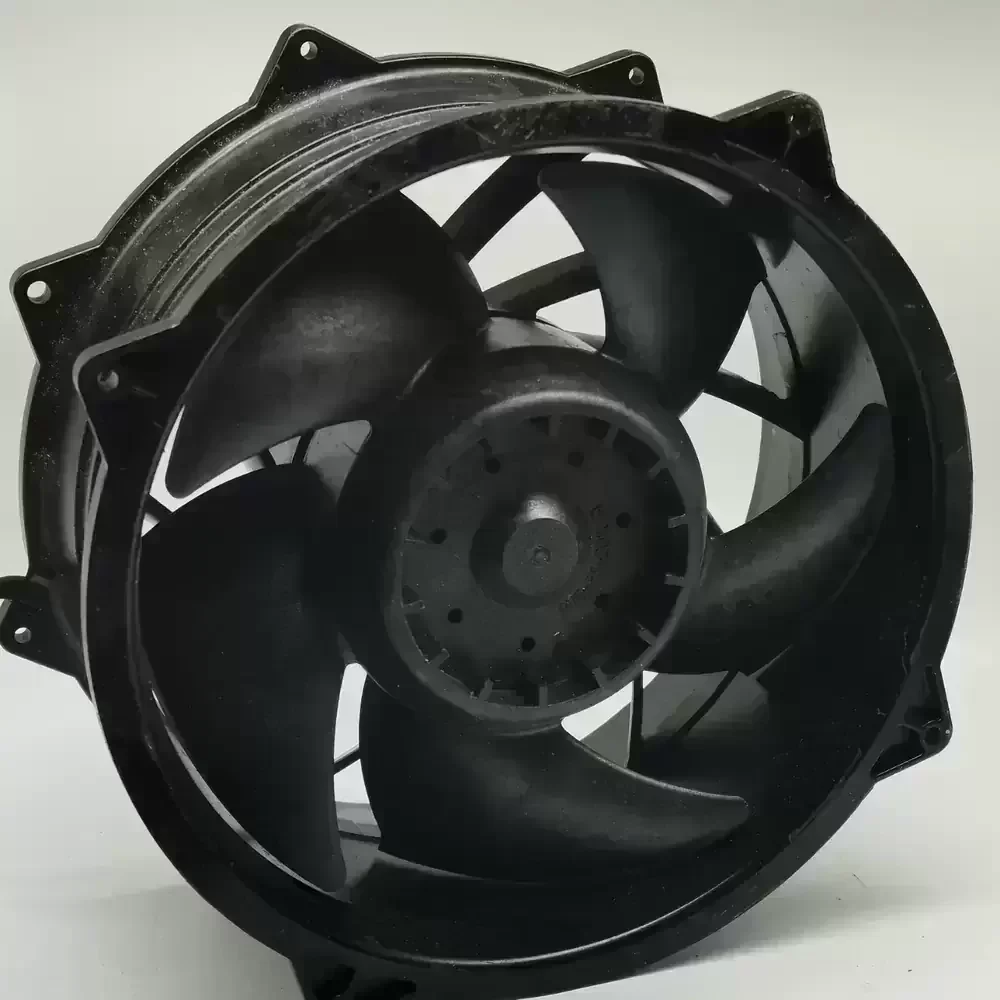

The Delta THD2348MU-00 is a robust industrial Axial Fan engineered for mission-critical thermal management applications requiring exceptional airflow density. Utilizing advanced DC motor technology and a precision-balanced impeller, this unit minimizes thermal impedance while maintaining operational stability under high static pressure loads. The construction features a durable aluminum die-cast frame, ensuring superior structural rigidity and heat dissipation properties in harsh environments. Equipped with high-grade ball bearings, the THD2348MU-00 delivers reliable longevity and consistent performance, making it an optimal solution for demanding electronic cooling systems where airflow efficiency and mechanical durability are paramount.
Model Number: THD2348MU-00
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 60.0 VDC
Rated Current: 5.88 A
Power Consumption: 282.24 W
Rated Speed: 4800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 930.0 CFM (1579 m³/h)
Max. Static Pressure: 3.50 inH₂O (871 Pa)
Dimensions: 230 x 230 x 100 mm
Frame Material: Aluminum Die-Cast
Impeller Material: Reinforced Plastic UL94V-0
Noise Level: 78.5 dB-A
Termination: Lead Wires
Ingress Protection: IP54 (Optional)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Life Expectancy: 70,000 Hours at 40°C
Safety Certifications: UL, cUL, TUV, CE
Protection: Locked Rotor, Reverse Polarity
The THD2348MU-00 is specifically calibrated for high-density industrial applications such as large-scale server racks, telecommunications base stations, and heavy-duty power supply units. Its robust aluminum frame allows the THD2348MU-00 to operate effectively in CNC machinery and automated manufacturing lines where vibration resistance is critical. Additionally, this model serves as a primary cooling component in renewable energy inverters and medical imaging equipment, ensuring thermal stability for sensitive electronics.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
