The Royal Fan TL396AV-C75 is a robust AC Axial Fan engineered for demanding industrial thermal management applications. Utilizing a high-efficiency AC induction motor, this unit delivers consistent airflow while maintaining low thermal impedance under continuous operation. The construction features a full metal housing and impeller, ensuring exceptional structural rigidity and resistance to harsh environmental factors such as heat and mechanical stress. Designed with precision ball bearings, the TL396AV-C75 offers extended service life and reliable performance in high-vibration settings, making it an optimal solution for critical cooling architectures requiring durability and electromagnetic stability.

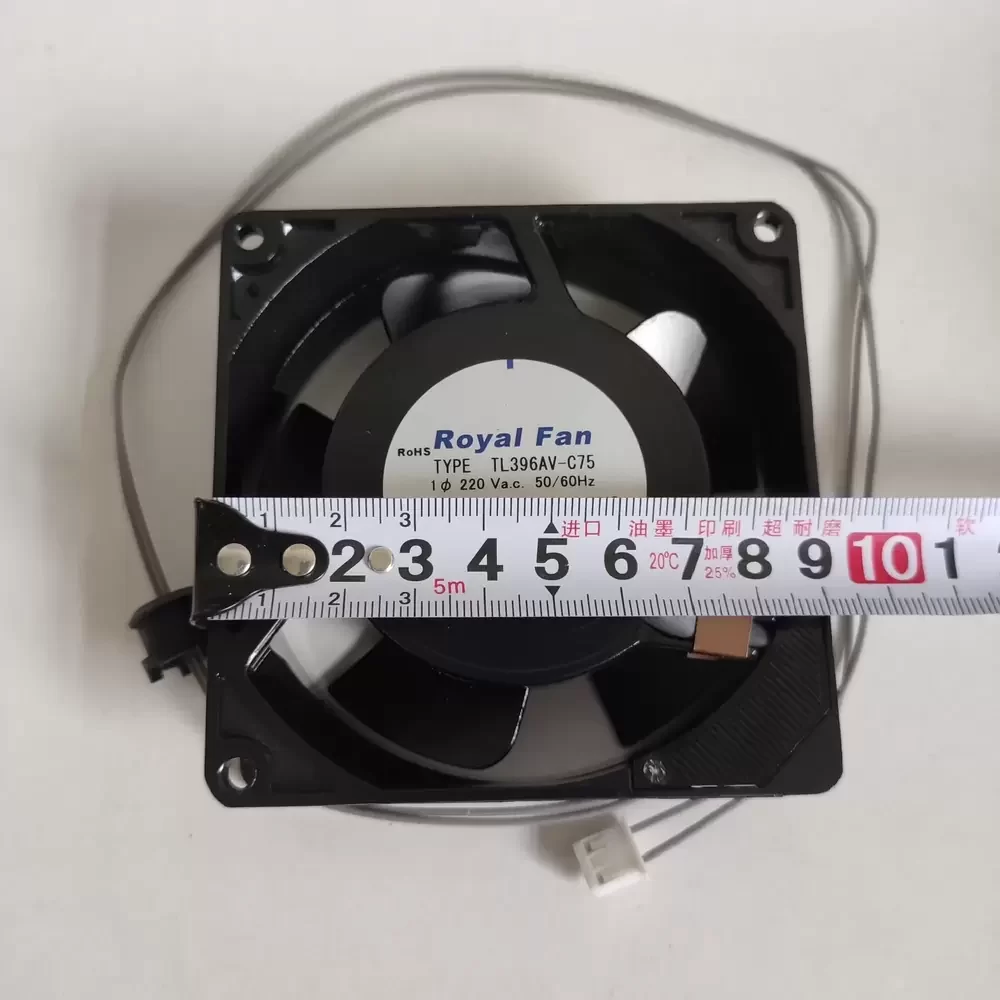

Model Number: TL396AV-C75
Brand: Royal Fan (Rikokogaku)
Product Type: AC Axial Fan
Rated Voltage: 220VAC
Frequency: 50/60Hz
Power: 13/11W
Rated Current: 0.08/0.07 A
Rated Speed: 2600/2900 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 95.0 CFM (161.4 m³/h / 2.69 m³/min)
Max. Static Pressure: 7.5 mmH₂O (73.5 Pa / 0.29 inH₂O)

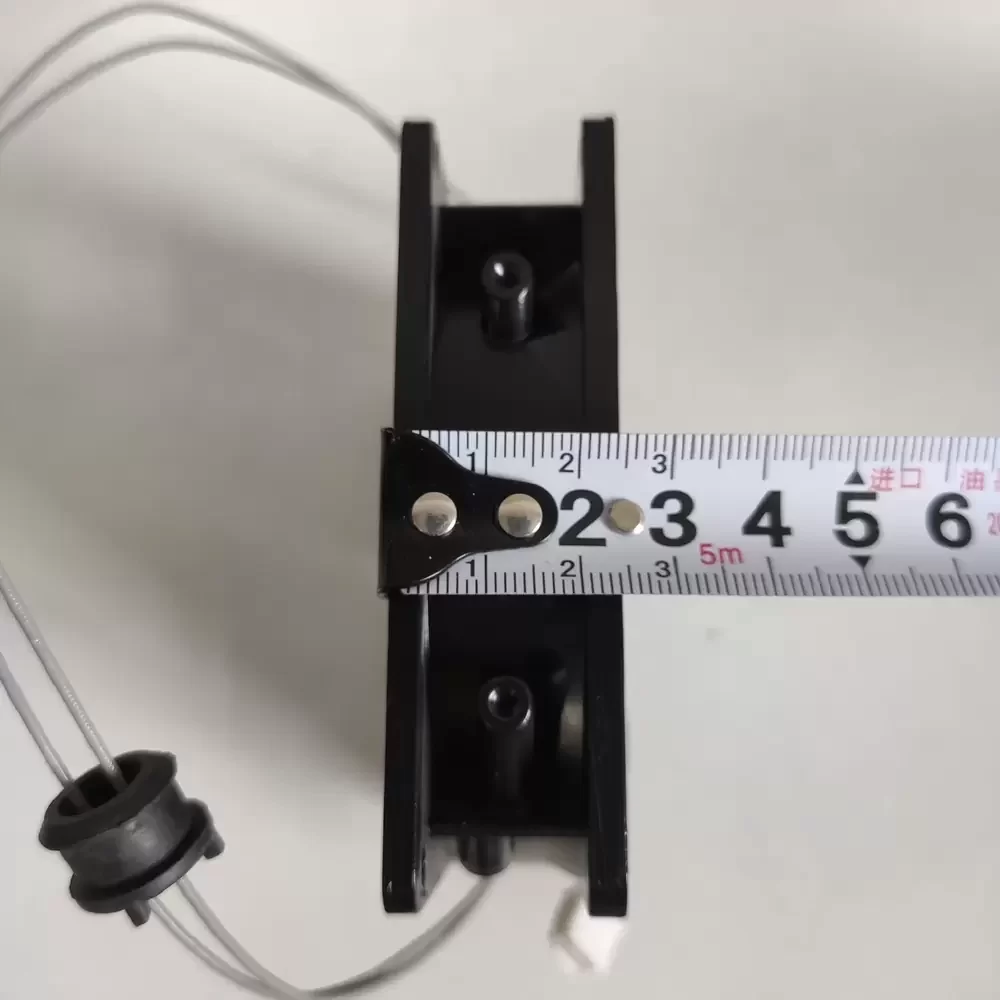

Dimensions: 120x120x38mm
Weight: 550g
Housing Material: Aluminum Die-Cast (Full Metal)
Impeller Material: Metal
Life Expectancy: 50,000 Hours at 25°C

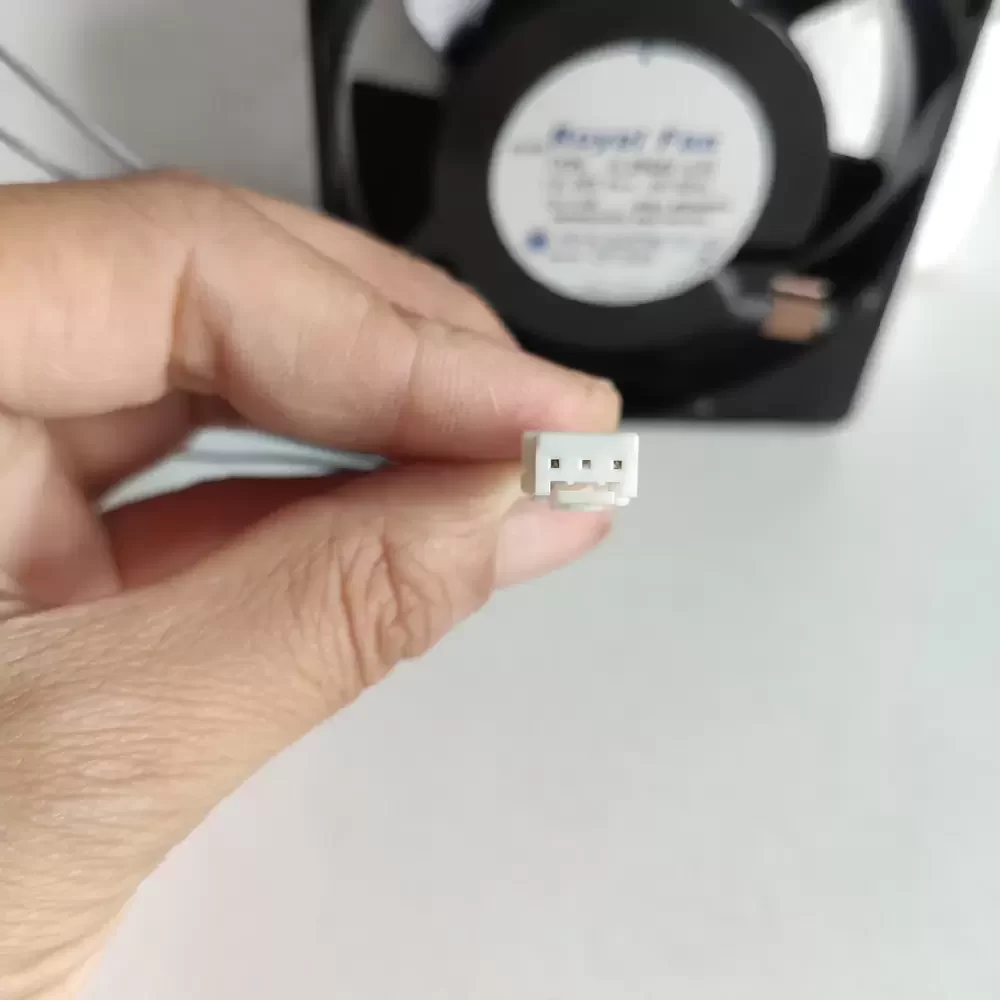

Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP44
Insulation Class: Class B
Motor Protection: Impedance Protected
Mounting Orientation: Any
This heavy-duty cooling solution is extensively utilized in industrial automation environments, specifically within control cabinets and power distribution units where heat dissipation is critical. The TL396AV-C75 excels in maintaining optimal operating temperatures for CNC machinery and heavy-duty welding equipment, preventing thermal shutdowns. Additionally, the TL396AV-C75 is frequently integrated into server rack ventilation systems and telecommunications infrastructure, providing reliable airflow to safeguard sensitive electronic components from overheating in continuous-duty cycles.
