Description

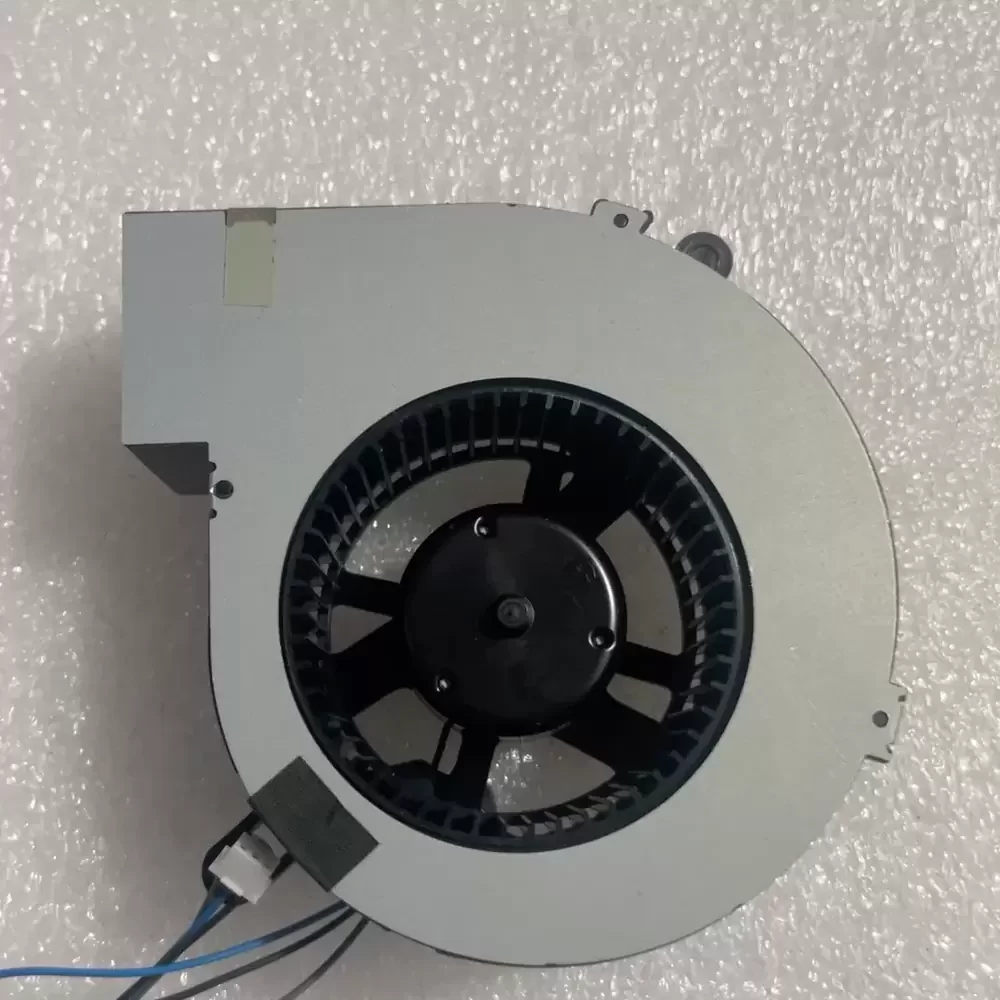

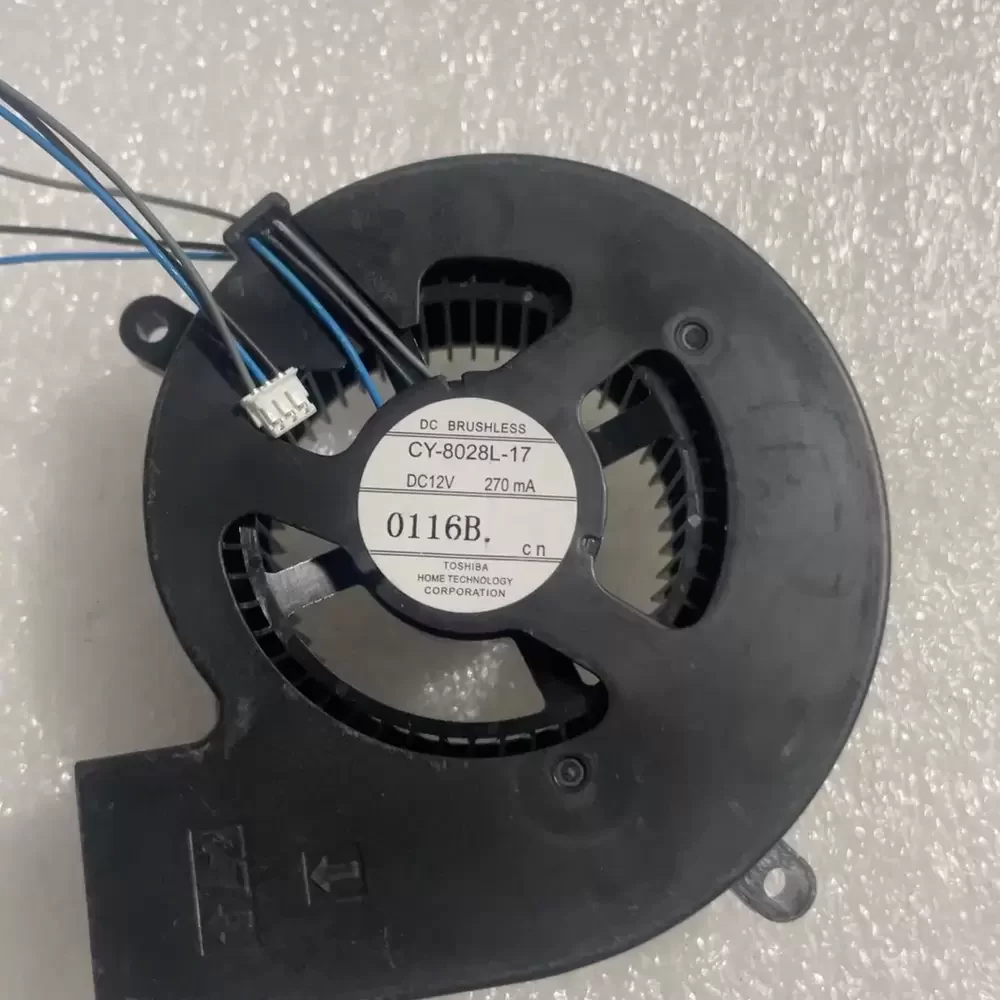

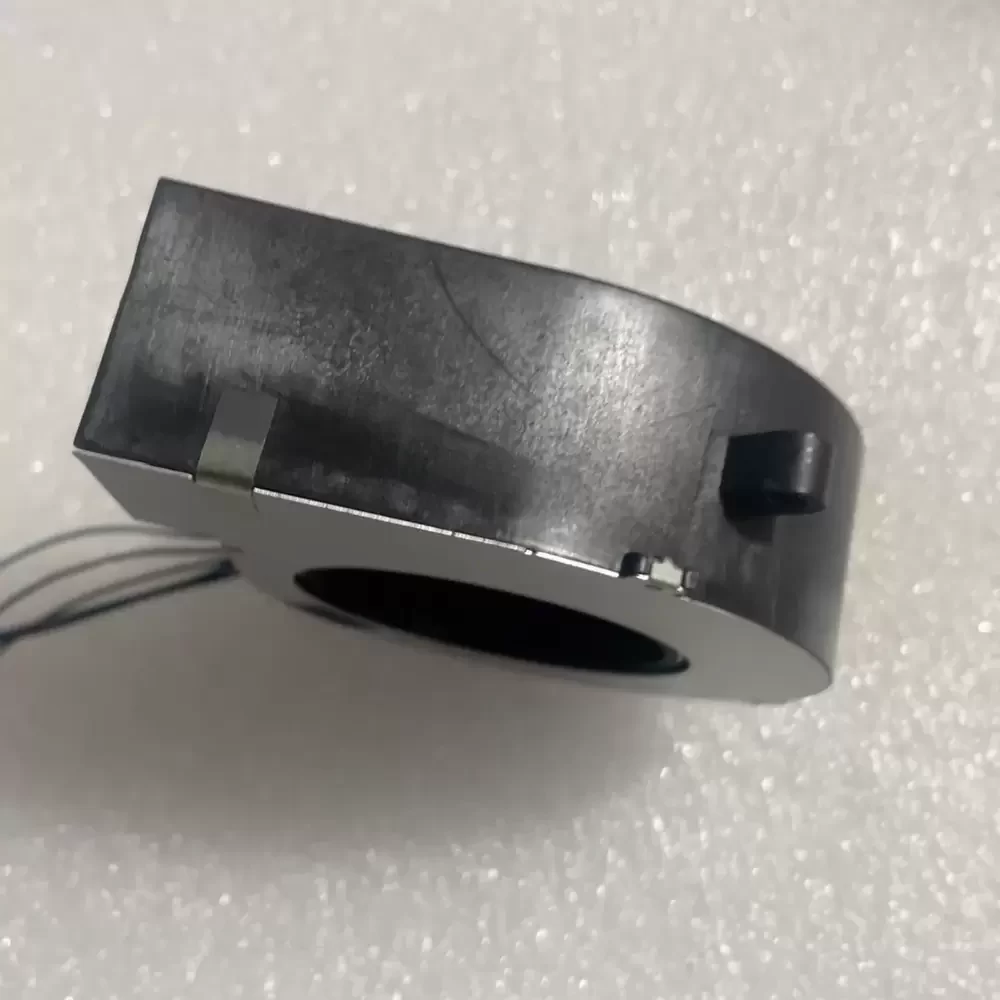

Toshiba CY-8028L-17 is a 12VDC 80x80x28mm Axial Fan optimized for high-density thermal management in optical projection systems. Engineered with a focus on reducing thermal impedance within compact enclosures, this DC brushless motor utilizes a precision bearing architecture to maintain structural rigidity during continuous operation. The aerodynamic blade profile is specifically tuned to deliver a consistent 0.27A current draw, ensuring stable RPM and static pressure required to prevent lamp overheating. This model is a critical component for maintaining internal equilibrium in sensitive electronic environments where airflow consistency is paramount for component longevity.
Model Number: CY-8028L-17
Brand: Toshiba
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.27 A
Power: 3.24 W
Rated Speed: 3200 RPM
Bearing Type: Precision Dual Ball Bearing
Max. Air Flow: 38.5 CFM (65.4 m³/h)
Max. Static Pressure: 4.2 mmH₂O (41.2 Pa)
Dimensions: 80 x 80 x 28 mm
Weight: 95 g
Life Expectancy: 50,000 Hours at 40°C
Speed Control: 3-Wire (Tachometer/Signal Output)
Noise Level: 34 dB(A)
Housing/Blade Material: PBT Plastic (UL94V-0)
Termination: 3-Pin Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Mounting Orientation: All Directional
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
CY-8028L-17 Applications
1. DLP/LCD Projector Thermal Management: Optimized for overcoming the high internal impedance of optical engines, serving as a high-reliability replacement fan to prevent premature lamp failure.
2. Compact Multimedia Enclosures: The 28mm depth provides a specific mechanical advantage for 80mm mounting slots requiring higher static pressure than standard 25mm variants.
3. Medical Imaging Equipment: Low-vibration operation ensures the fan does not interfere with sensitive optical sensors or precision diagnostic hardware.
