Description

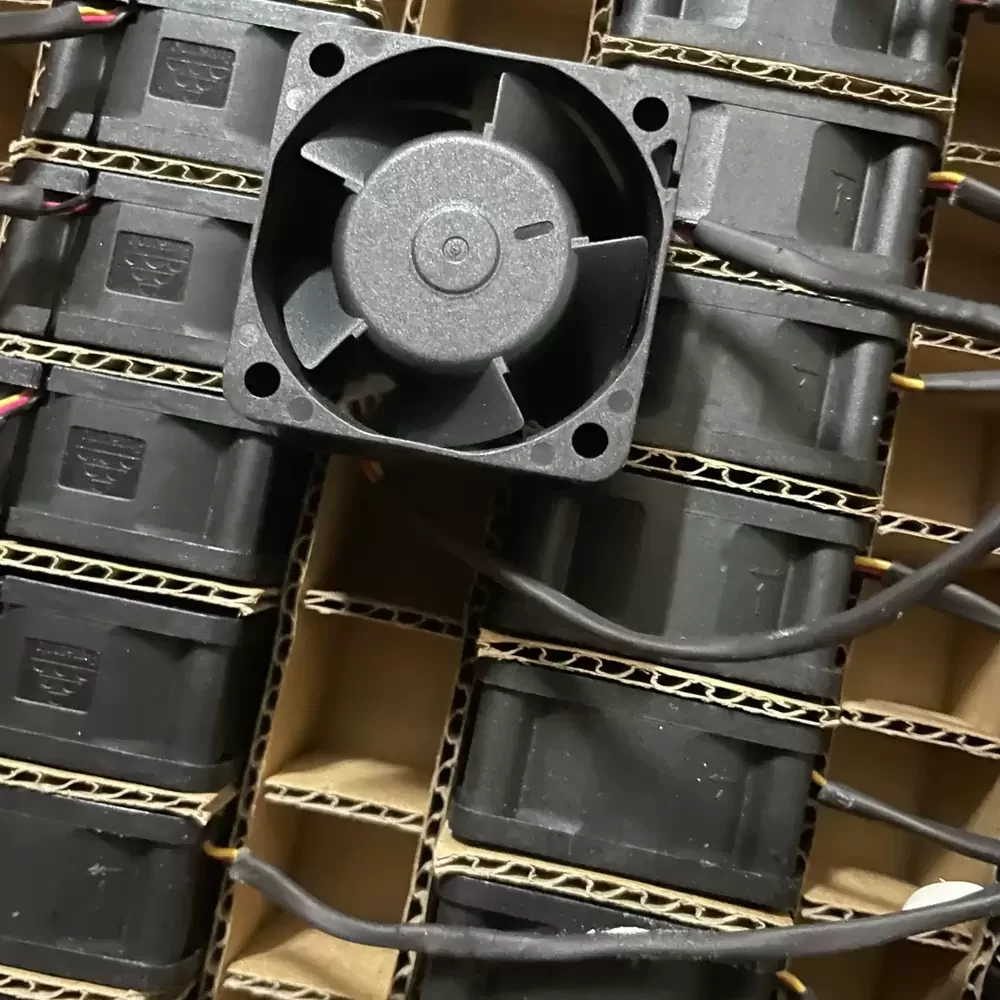

The Protechnic MGT4012ZB-R20H is a DC axial fan engineered for demanding industrial environments requiring compact thermal management solutions. Utilizing advanced brushless DC motor technology, this unit minimizes thermal impedance while maintaining exceptional structural rigidity through its reinforced PBT housing. The aerodynamic impeller design is optimized for high static pressure efficiency, ensuring consistent airflow in restricted enclosures. Featuring an IP55 ingress protection rating, the MGT4012ZB-R20H offers superior resistance against dust and moisture, making it ideal for outdoor or harsh indoor applications. Its sophisticated bearing architecture ensures long-term operational stability and reduced mechanical wear under continuous duty cycles, providing reliable performance in mission-critical systems.
Model Number: MGT4012ZB-R20H
Brand: Protechnic
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.22A
Power: 2.64W
Rated Speed: 8500 RPM
Bearing Type: Two Ball Bearing
Max. Air Flow: 10.5 CFM (17.8 m³/h / 0.30 m³/min)
Max. Static Pressure: 9.5 mmH₂O (93.1 Pa / 0.37 inH₂O)
Dimensions: 40x40x20mm
Weight: 35g
Life Expectancy: 70,000 Hours at 40°C
Ingress Protection: IP55
Insulation Class: Class A
Noise Level: 36.5 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 3 Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: CE, TUV, UL
The MGT4012ZB-R20H is specifically designed for integration into high-density server racks and telecommunications equipment where space is at a premium. Due to its IP55 rating, the MGT4012ZB-R20H is also frequently utilized in outdoor power supplies and industrial CNC control cabinets that require protection from environmental contaminants. Its robust construction makes it suitable for medical diagnostic devices and specialized laboratory instrumentation requiring reliable localized cooling for the MGT4012ZB-R20H.
