Description

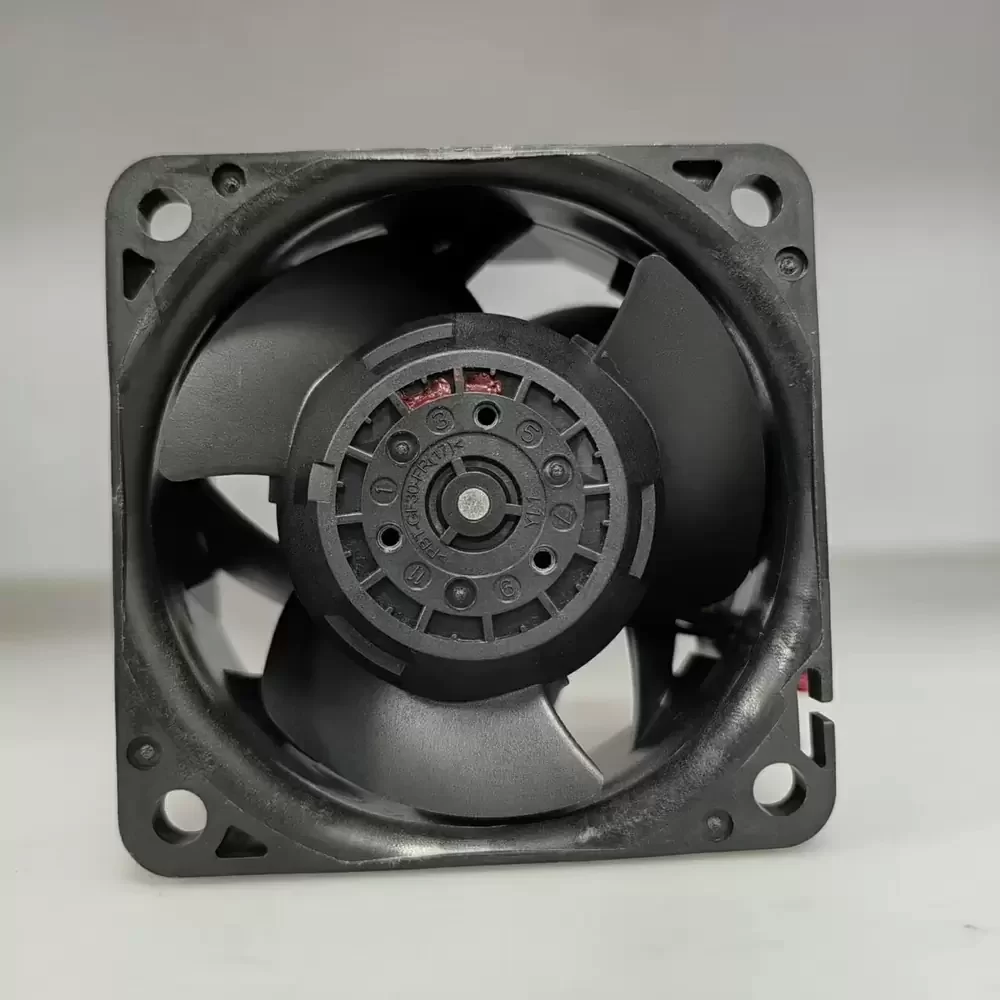

The Nidec V60E12BS1M3-07 is a high-static pressure axial fan designed for mission-critical thermal management within the renowned UltraFlo series. Engineered with advanced DC motor technology and a precision dual ball bearing architecture, this unit ensures exceptional rotational stability and longevity under continuous high-speed operation. The aerodynamic blade geometry is optimized to minimize thermal impedance while maximizing airflow throughput, making it ideal for high-density server environments where back pressure is a significant factor. Its robust housing provides superior structural rigidity, effectively mitigating vibration-induced noise and mechanical stress. With a rated speed of 20,550 RPM, this component delivers aggressive cooling performance, ensuring optimal operating temperatures for sensitive electronic components in demanding industrial and enterprise applications.
Model Number: V60E12BS1M3-07
Brand: Nidec
Series: UltraFlo
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 2.39 A
Power Consumption: 28.68 W
Rated Speed: 20550 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 68.50 CFM (116.38 m³/h)
Max. Static Pressure: 2.45 inH₂O (610 Pa)
Dimensions: 60 x 60 x 38 mm
Noise Level: 64.0 dB(A)

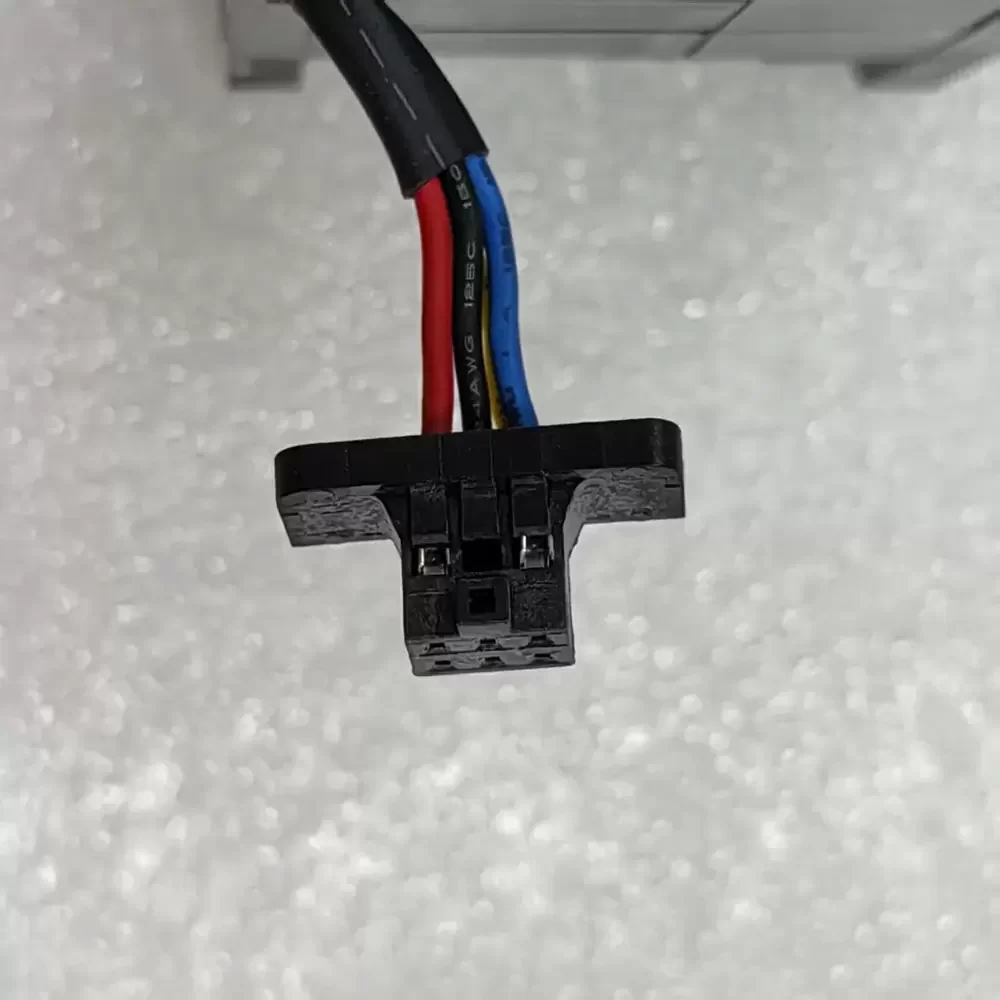

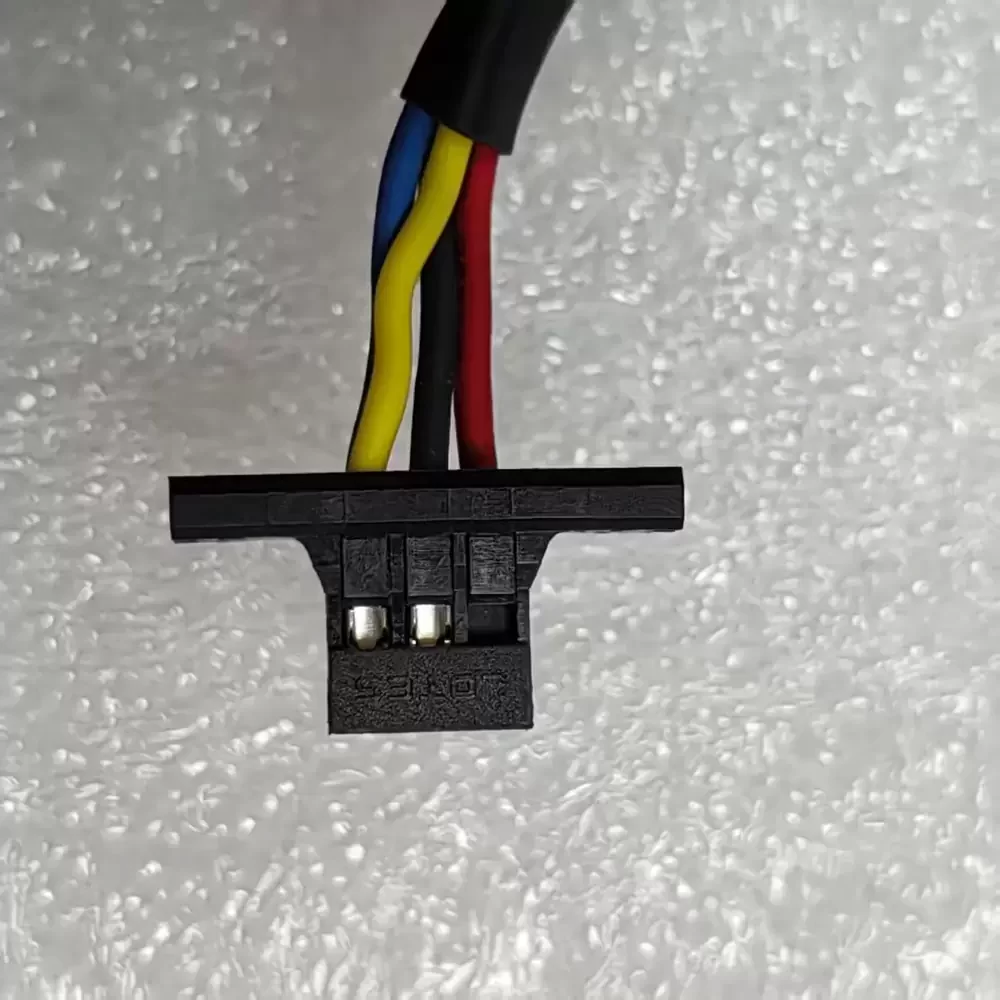

Termination: 4-Wire / 4-Pin Connector
Wire Length: 40 mm
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer (Frequency Generator)
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Mounting Orientation: Any
Ingress Protection: IP20
Weight: 130 g
The V60E12BS1M3-07 is specifically engineered for high-impedance environments such as 1U and 2U server racks where overcoming system resistance is critical for heat dissipation. Its compact yet powerful design makes it a staple in enterprise computing clusters, blade servers, and high-performance storage arrays requiring substantial static pressure. Additionally, the V60E12BS1M3-07 serves effectively in industrial automation equipment and telecommunications infrastructure, providing reliable forced convection cooling to prevent thermal throttling in densely packed electronic enclosures.
