Description

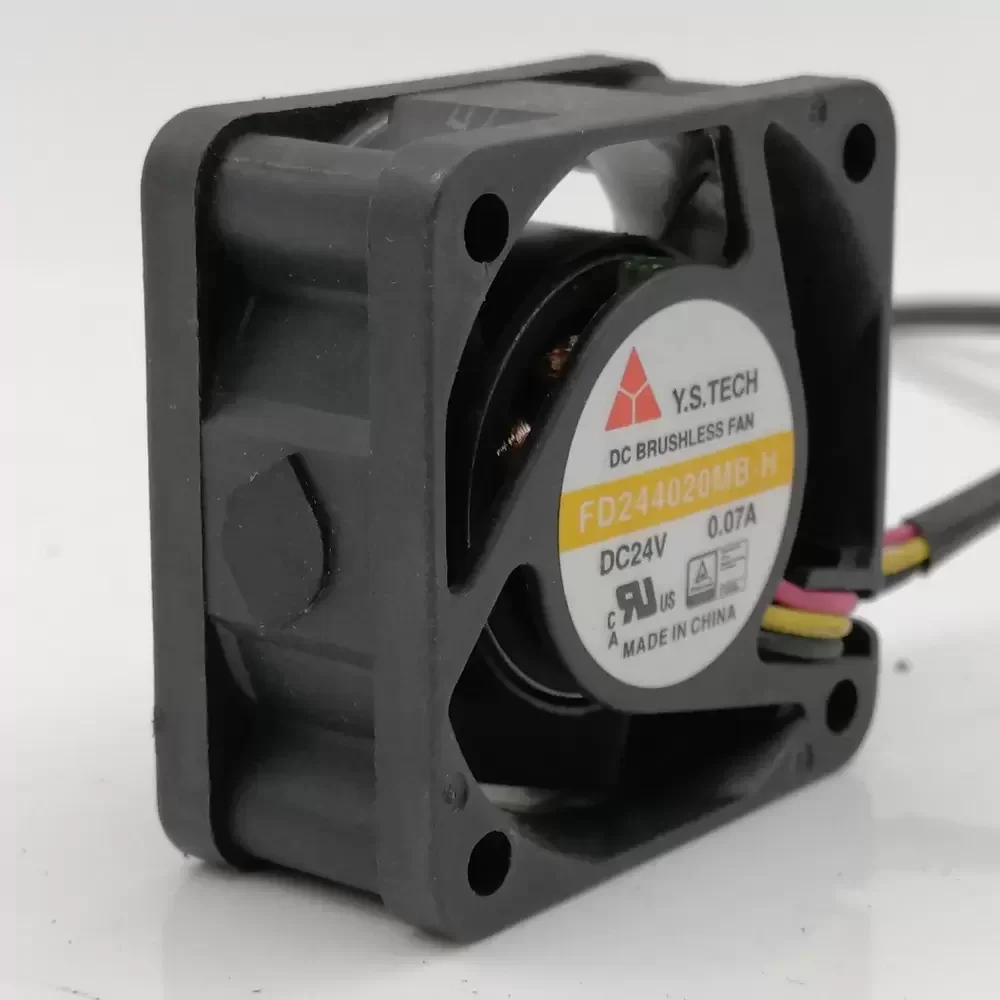

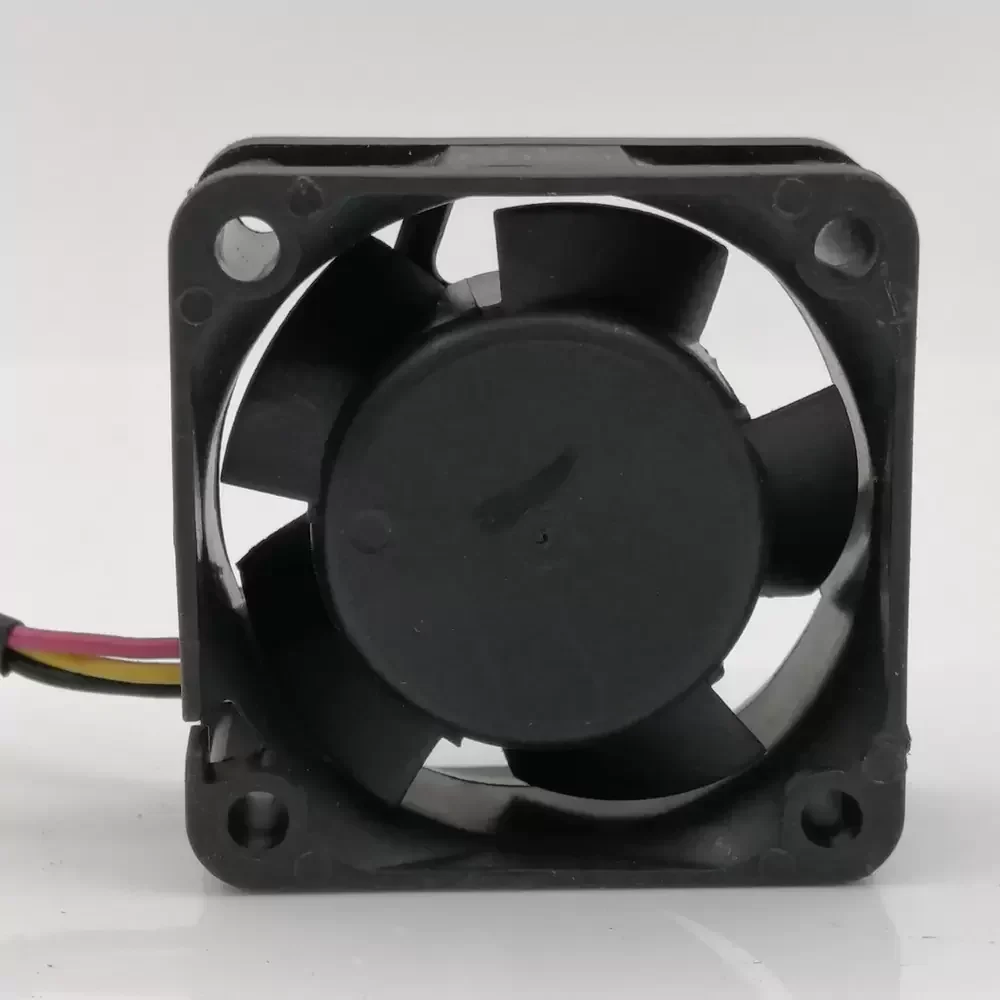

The Y.S.TECH FD244020MB-H is a precision-engineered DC Axial Fan designed for applications requiring reliable thermal management within a compact footprint. Utilizing a robust 2-Ball Bearing architecture, this unit ensures minimized friction and extended operational longevity under continuous load, significantly outperforming sleeve bearing alternatives in high-temperature environments. The aerodynamic impeller design optimizes airflow efficiency while maintaining low acoustic signatures, effectively reducing thermal impedance in high-density electronic enclosures. Constructed with high-grade thermoplastic UL94V-0 materials, the frame offers superior structural rigidity and resistance to environmental stress, making it an ideal solution for critical industrial cooling requirements where consistent performance is mandatory.
Model Number: FD244020MB-H
Brand: Y.S.TECH (Yen Sun Technology)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.07 A
Power Consumption: 1.68 W
Rated Speed: 5800 RPM
Bearing Type: 2-Ball Bearing
Max. Air Flow: 7.5 CFM (12.74 m³/h / 0.21 m³/min)
Max. Static Pressure: 4.8 mmH₂O (47.07 Pa / 0.19 inH₂O)
Dimensions: 40 x 40 x 20 mm
Weight: 28 g
Life Expectancy: 70,000 Hours @ 40°C
Termination: 3-Wire (Lead Wire with Tachometer Signal)
Noise Level: 29.0 dBA
Housing Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP4X
Safety Approvals: UL, cUL, TUV, CE
Mounting Orientation: Any
This cooling solution is engineered for integration into compact electronic assemblies such as 1U server power supplies, network switches, and industrial automation controllers. The FD244020MB-H provides consistent airflow necessary for dissipating heat from sensitive components like chipsets and voltage regulators in telecommunications equipment. Additionally, the FD244020MB-H is frequently utilized in medical instrumentation and CNC control panels where space constraints demand a high-reliability thermal solution with a compact form factor and signal monitoring capabilities.
