Description
The Sunon VF80864BX-Q024-S9H is a specialized high-performance cooling solution engineered for mission-critical Inspur server storage equipment. Utilizing advanced DC motor technology and a robust dual-ball bearing architecture, this unit is designed to withstand the thermal demands of high-density computing environments. The fan features a counter-rotating blade configuration within an 80x80x86mm frame, which significantly enhances static pressure capabilities and optimizes thermal impedance. With a substantial power rating of 115.00W, it delivers concentrated airflow to maintain structural rigidity and operational stability under continuous heavy loads.

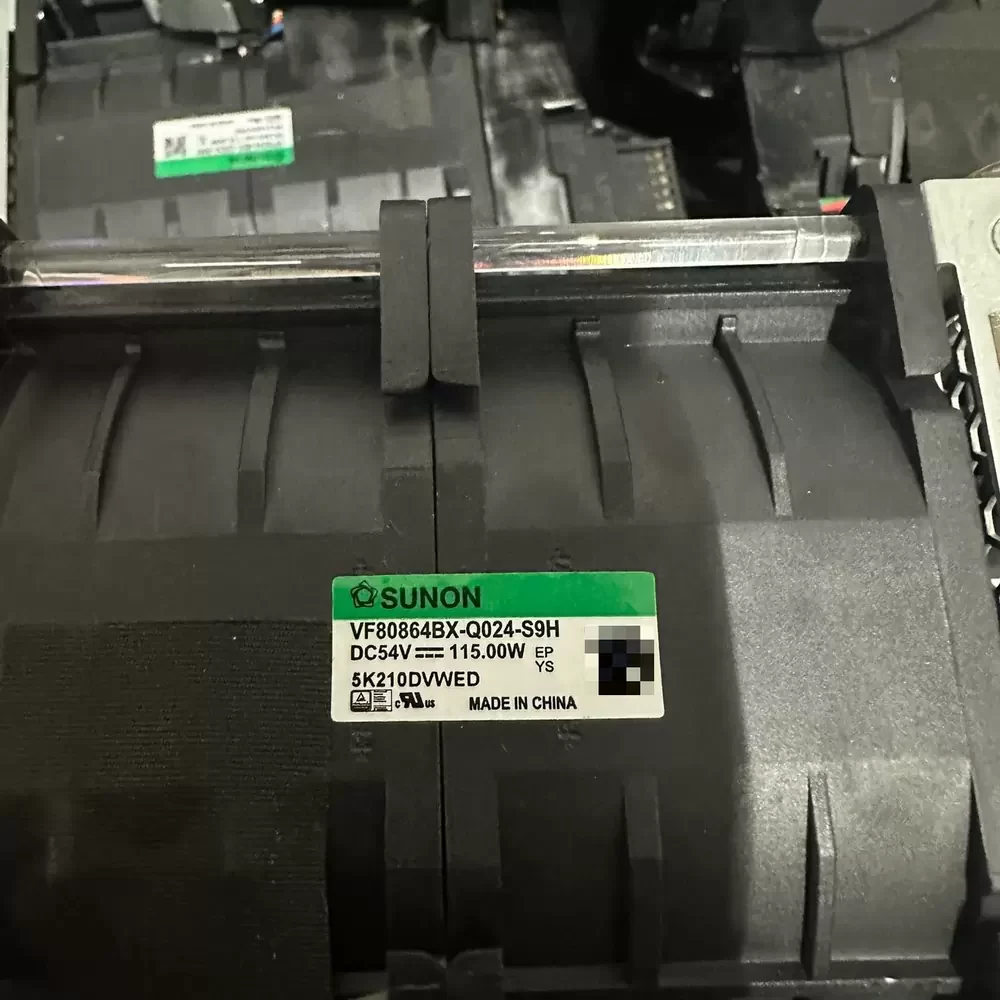

Model Number: VF80864BX-Q024-S9H
Brand: Sunon
Product Type: DC Counter-Rotating Axial Fan
Rated Voltage: 54 VDC
Power: 115.00 W
Dimensions: 80x80x86mm
Bearing Type: Dual Ball Bearing
Application: Inspur Server Storage
OEM Part Number: V00307D000000000
Additional ID: FNM829E10523A
Frame Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: Lead Wires with Connector
Mounting Orientation: Flange Mount
Operating Temperature: -10°C to +70°C (Standard)
Ingress Protection: IP21 (Server Grade)
This cooling unit is specifically designed for integration into Inspur server storage equipment and enterprise data center racks. The VF80864BX-Q024-S9H provides the necessary high-static pressure to force air through dense storage arrays and restricted chassis spaces. By utilizing the VF80864BX-Q024-S9H, facility managers can ensure reliable thermal dissipation for critical hardware components, preventing thermal throttling in continuous-duty telecommunications and server applications.



Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
